*定制二维霍尔探头，长度可按要求自定，如需手柄有金属、塑料两种可选
*可在探头内加装温度传感器或镀金
*交货期为1-4周（无库存情况下）可含增值税及运费
*标示价格不是具体价格，欢迎通过旺旺、电话或E-mail垂询
常规二维探头 Two-Axis Probes

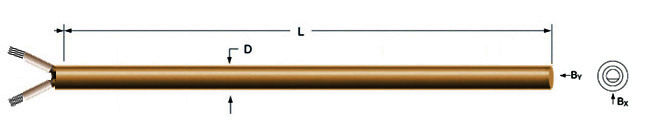

型号 L(cm)约 D(mm)
型号 | L(mm)约 | D(mm) | 有源区直径(mm) | 测量范围 | 磁灵敏度 | 精度（线性度） | 工作温区 | 不平衡电压（mv） | 温度系数max | 封装材料 |
2AHD801A | 10/25/50 | 3.5 | 0.15 | DC-100KHZ | 2.5mV/KG to 15mV/KG | <±0.2%to30kG | -20°Cto+70°C | ≤±0.10 | -0.03%/°C | 黄铜 |
2AHD801B | 10/25/50 | 3.5 | 0.15 | DC-100KHZ | 2.5mV/KG to 15mV/KG | <±0.3%to30kG | -20°Cto+70°C | ≤±0.20 | -0.03%/°C | 黄铜 |
2AHD802A | 10/25/50 | 2.0 | 0.15 | DC-100KHZ | 2.5mV/KG to 15mV/KG | <±0.2%to30kG | -20°Cto+70°C | ≤±0.10 | -0.03%/°C | 黄铜 |
2AHD802B | 10/25/50 | 2.0 | 0.15 | DC-100KHZ | 2.5mV/KG to 15mV/KG | <±0.3%to30kG | -20°Cto+70°C | ≤±0.20 | -0.03%/°C | 黄铜 |
2AHD803A | 10/25/50 | 1.5 | 0.15 | DC-100KHZ | 2.5mV/KG to 15mV/KG | <±0.2%to30kG | -20°Cto+70°C | ≤±0.10 | -0.03%/°C | 黄铜 |
2AHD803B | 10/25/50 | 1.5 | 0.15 | DC-100KHZ | 2.5mV/KG to 15mV/KG | <±0.3%to30kG | -20°Cto+70°C | ≤±0.20 | -0.03%/°C | 黄铜 |
2AHD804A | 10/25/50 | 1.2 | 0.10 | DC-100KHZ | 2.5mV/KG to 15mV/KG | <±0.2%TO(±10kG)<±2%to(±30kG) | -20°Cto+70°C | ≤±0.10 | -0.03%/°C | 黄铜 |
2AHD804B | 10/25/50 | 1.2 | 0.10 | DC-100KHZ | 2.5mV/KG to 15mV/KG | <±0.2%TO(±10kG)<±3%to(±30kG) | -20°Cto+70°C | ≤±0.20 | -0.03%/°C | 黄铜 |
2AHD805A | 10/25/50 | 0.9 | 0.10 | DC-100KHZ | 2.5mV/KG to 15mV/KG | <±0.2%TO(±10kG)<±2%to(±30kG) | -20°Cto+70°C | ≤±0.10 | -0.03%/°C | 黄铜 |
2AHD805B | 10/25/50 | 0.9 | 0.10 | DC-100KHZ | 2.5mV/KG to 15mV/KG | <±0.3%TO(±10kG)<±3%to(±30kG) | -20°Cto+70°C | ≤±0.20 | -0.03%/°C | 黄铜 |
