温馨提示：默认出厂是POS-5802DD ，POS-5802LN 价格245元一台 ，

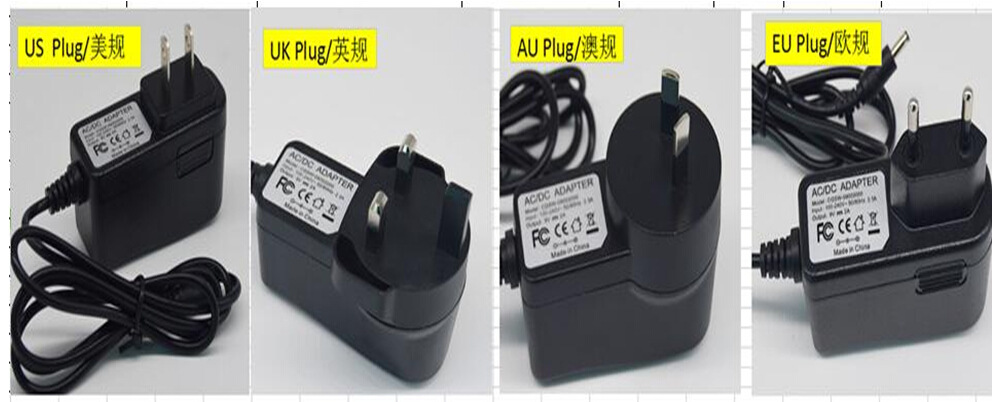

温馨提示：打印机质保1年 ，电池质保4个月。国外用的版本 下单请备注一下电源适配器规格，有美规.欧规.英规.澳规可选其中一种规格。

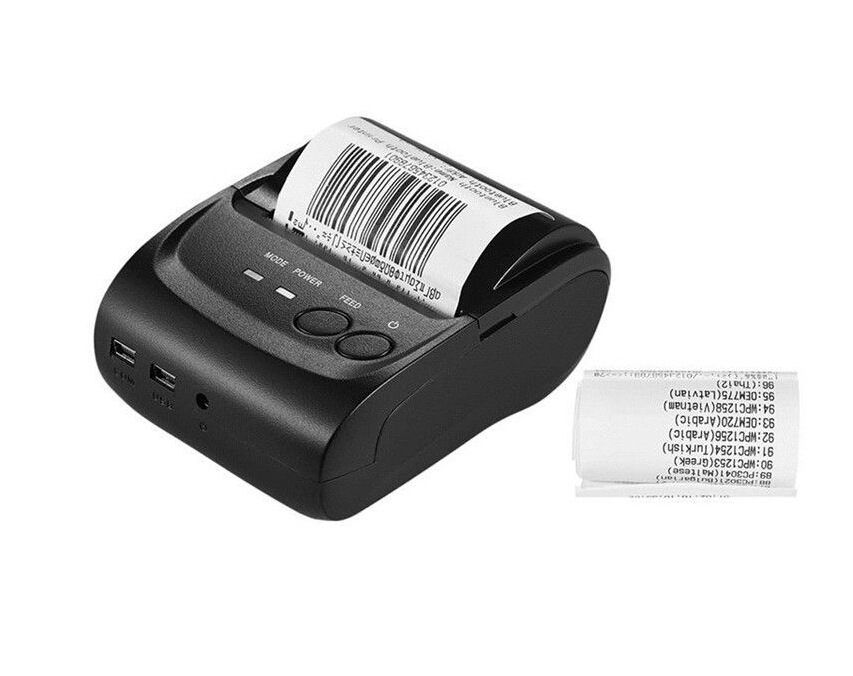

Mini Bluetooth Printer is a portable thermal printer that combines USB,RS-232 Serial and Bluetooth communication interface together, The printer could be powered by car charger, and rechargeable battery(depending on specified models) . These special characters make it successfully be applied to a variety of instruments, handheld data printing.
迷你蓝牙打印机是结合USB接口，串口和蓝牙通信接口一起便携式热敏打印机。打印机可以采用车载充电器,可充电电池(根据指定的模式)。这些特殊功能使它成功地应用于多种仪器,手持数据打印。

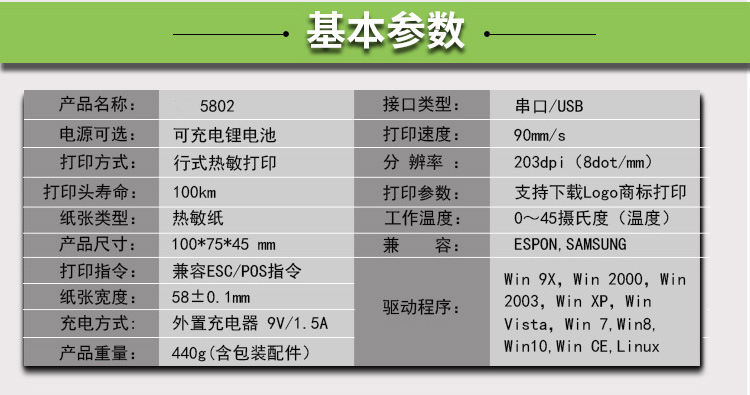

1-2. Specification&Features技术参数和特点
|
Item项目 |
Specification参数 |
|

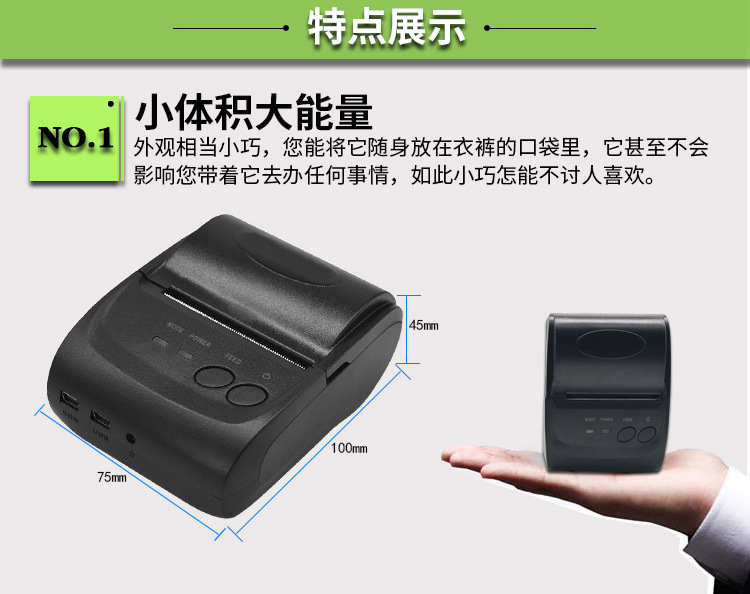

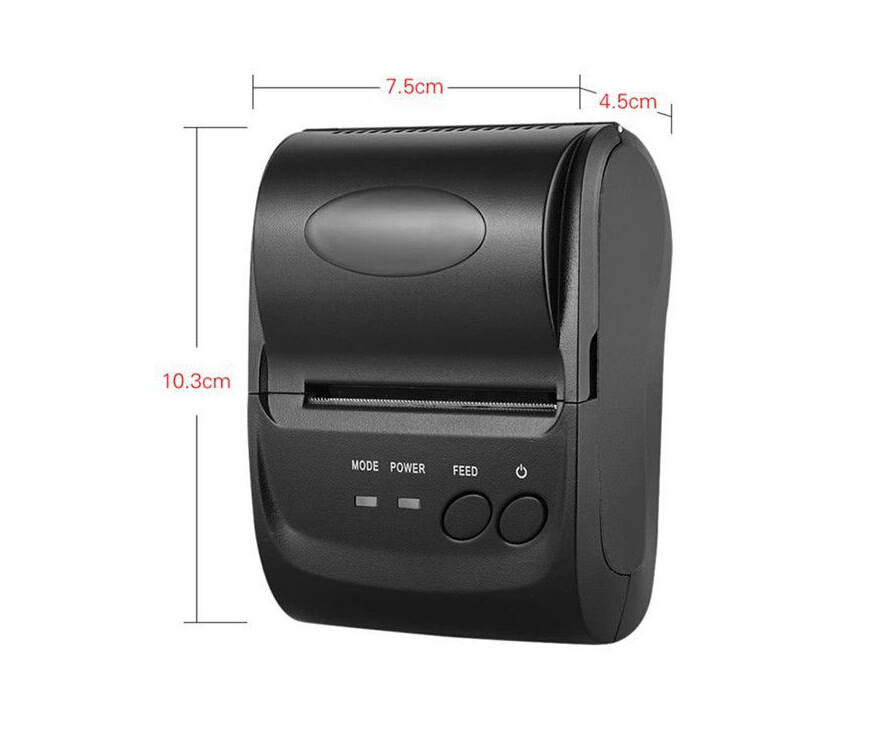

Overall Dimension (W×D×H)外观尺寸（W×D×H) |
104×75×45mm |
|
Weight重量 |
134g |
|
Color颜色 |
Dark gray灰黑 |
|
Effective print width 有效打印宽度 |
48mm |
|
Print method打印方式 |
Thermal line printing行式热敏打印 |
|
Print commands打印指令 |
ESC/POS兼容指令 |
|
Print speed打印速度 |
Up to 90mm/sec |
|
Resolution分辨率 |
8 dots/mm(203dpi) |
|
Print font打印字体 |
12x24/24x24 |
|
Column capacity柱容量 |
32柱/16柱 |
|
Character size字符大小 |
1.5 x 3.0 mm(W x H)/ 3.0x3.0mm(WxH) |
|
Paper dimensions纸尺寸 |
58.0±0.1mm x直径40.0mm |
|
Paper thickness纸厚度 |
0.06 to 0.08mm |
|
Character set字符集 |
Alphanumeric/ Chinese Kanji |
|

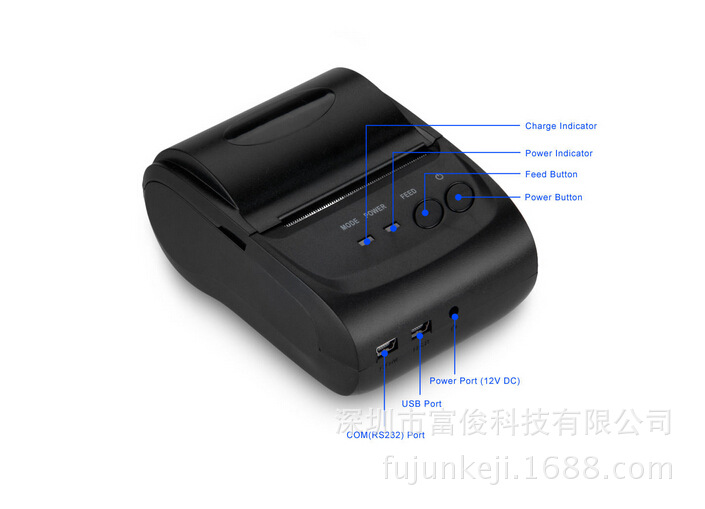

Interface接口 |

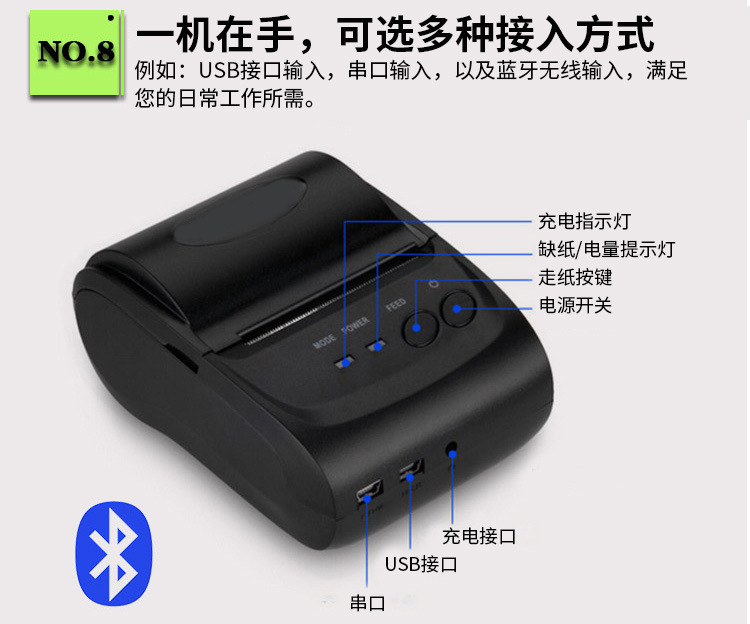

USB,串口，蓝牙(可选) |
|
Data buffer数据缓冲区 |
Up to 5K bytes |
|
Power Adapter电源适配器 |
9V DC/2A |
|

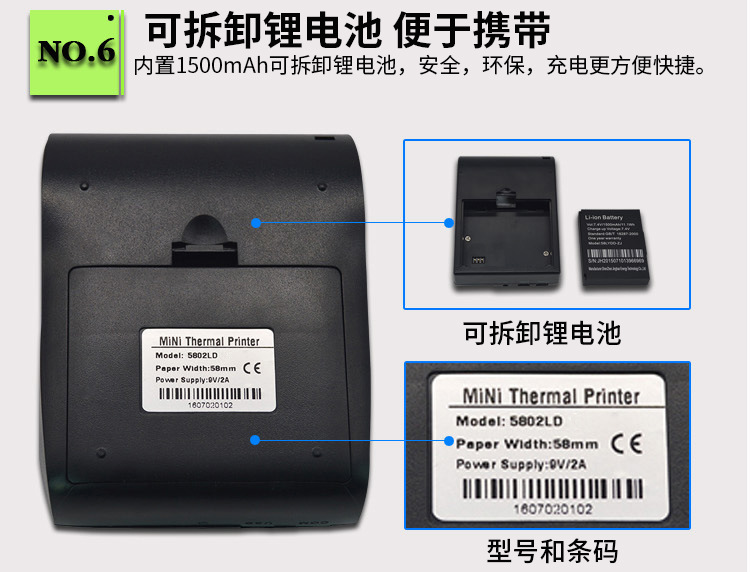

Battery Power电池电源 |
7.4V DC/1500mA |
|
Other features其他特性 |
Paper detection, power detection, Manual shut down 纸检测,检测功率、手动关闭 |
|
Working conditions工作环境 |
温度:-10℃～50℃,湿度:10%～90% |
|
Storage conditions储存环境 |
温度:-20℃～70℃,湿度:5%～95% |
1-3. Application area应用领域

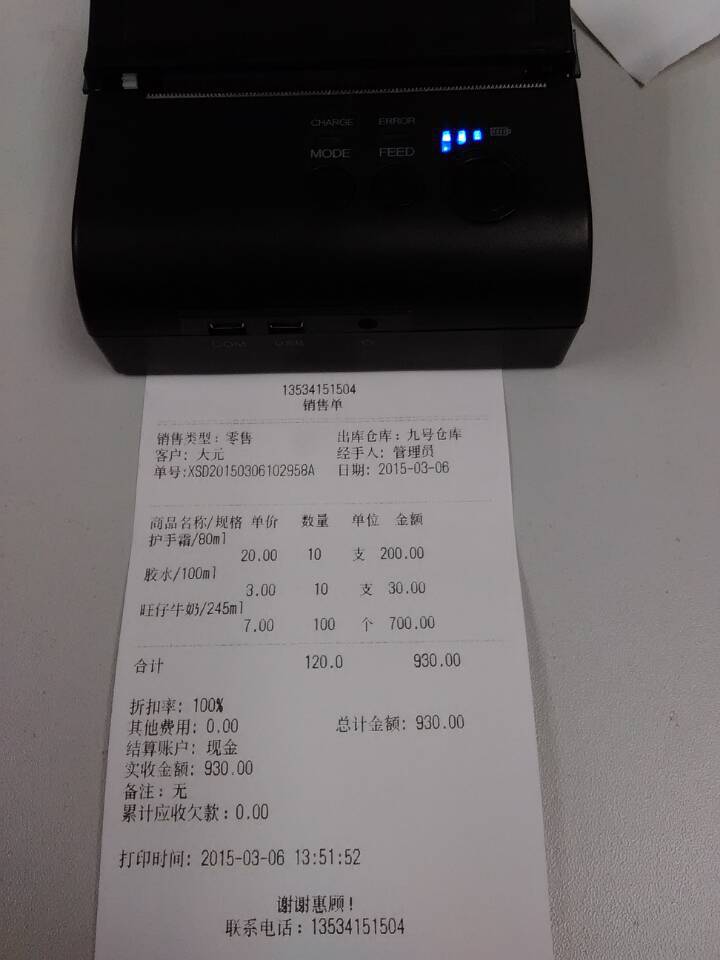

Compared to the traditional thermal receipt printer, Mini printer has smaller body, more reliable capability, more steady printing and portable advantages. The Mini printer can work on a lot of locations, such as the TAXI bill printing, administrative fees receipt printing, post receipt printing, restaurant ordering information printing, online payment information printing, etc. With the rapid popularity of smart-mobile, Mini printer will be more widely used in the near future.
相比传统的热收据打印机、迷你打印机有较小的身体,更可靠的能力,更稳定的印刷和便携式的优势。迷你打印机可以使用更多的领域,比如出租车票据打印、行政费用收据打印、邮政收据打印、餐厅订餐信息打印、在线支付信息打印等。与迅速流行的智能手机,迷你打印机将得到更广泛的使用在不久的将来。

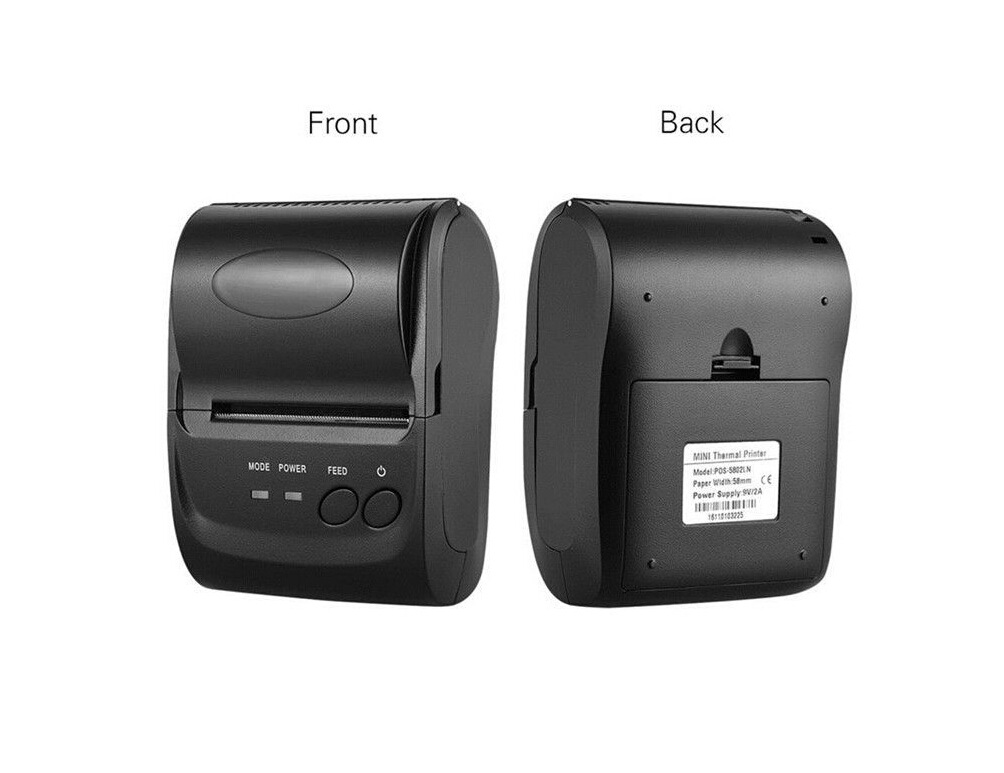

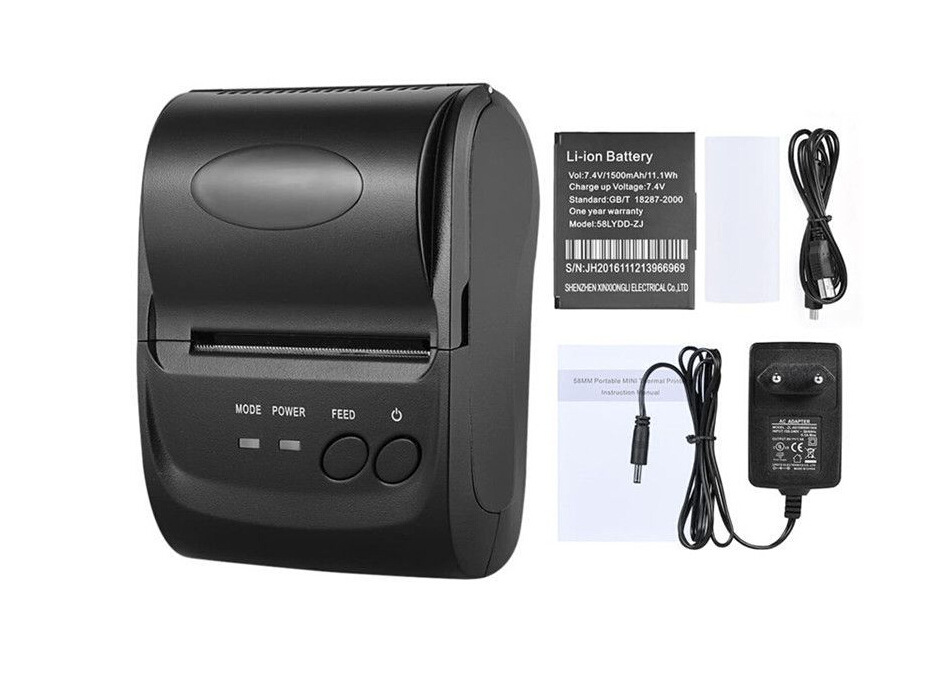

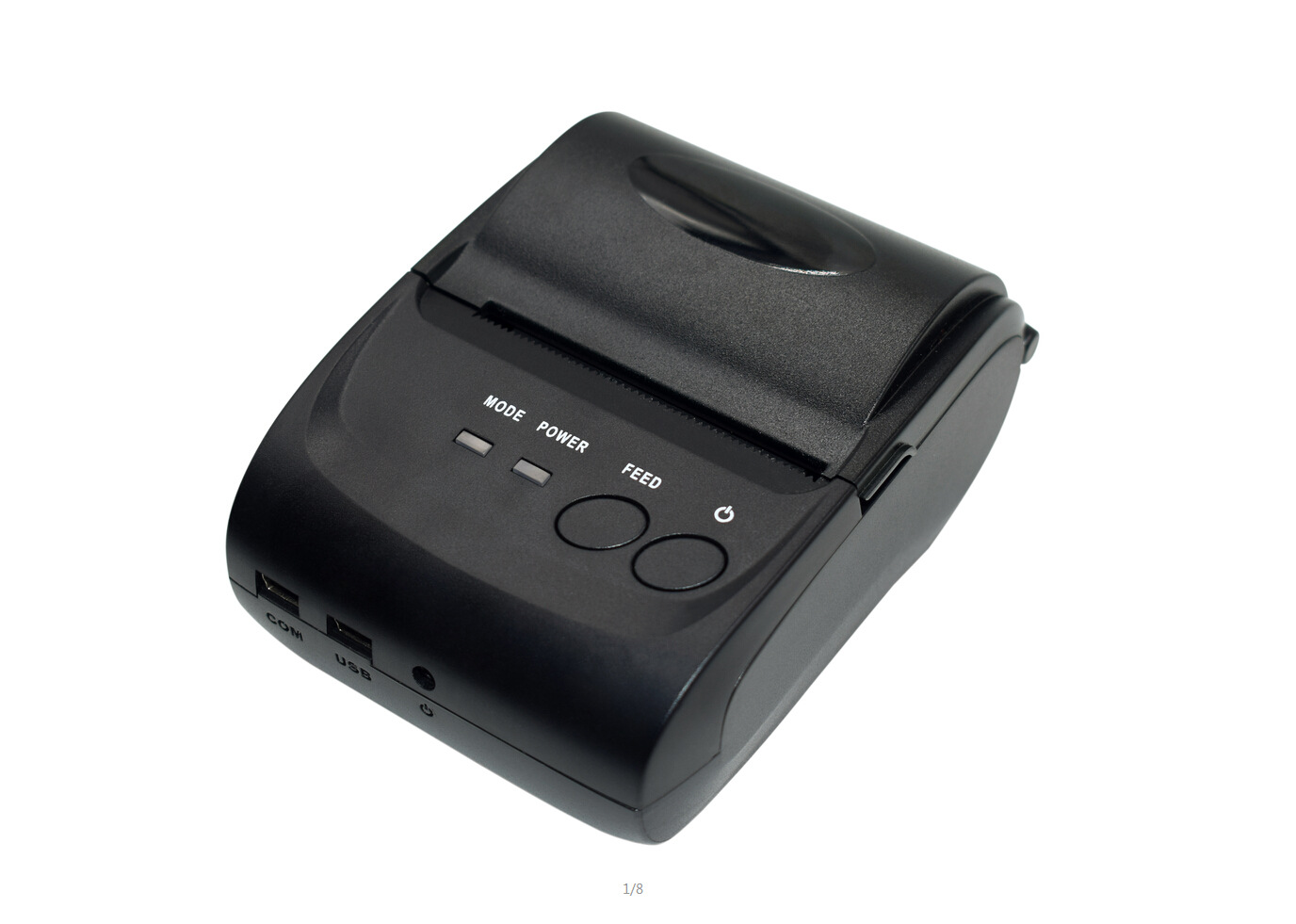

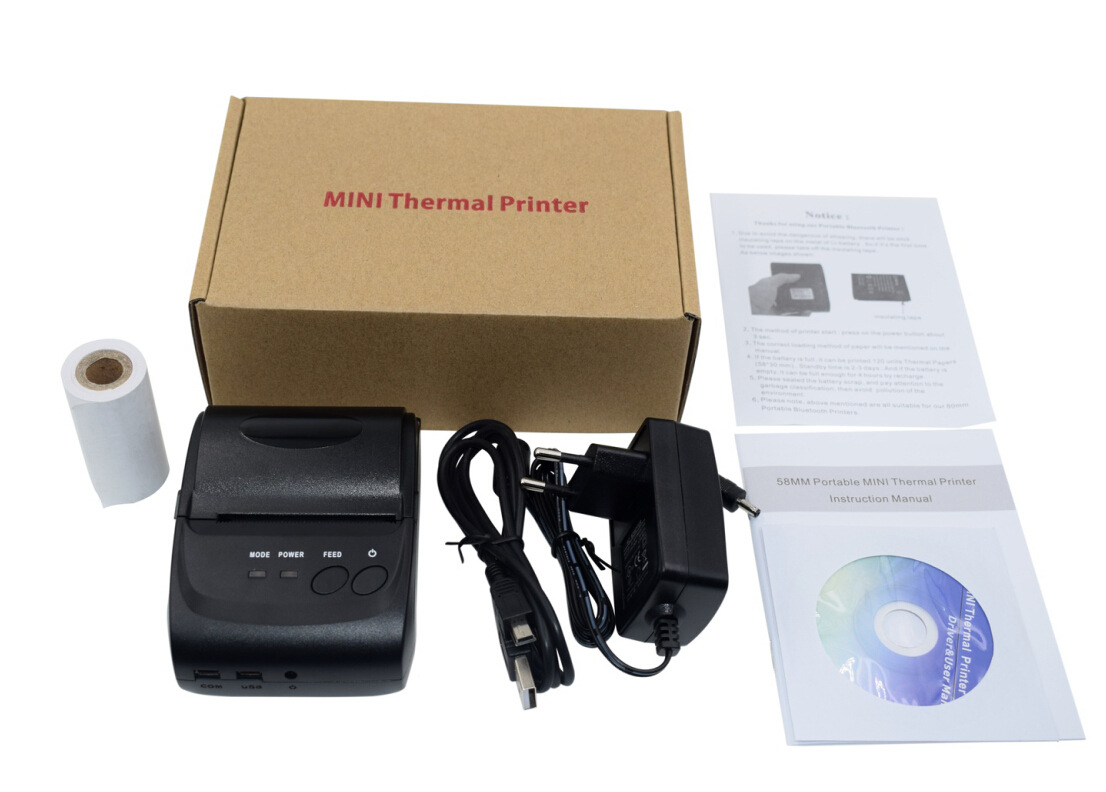

新外壳模具产品图片：
