本店产品标价均为未税报价，另鉴于材料成本波动，烦请与我司沟通确认价格后再下单，以实际协商价为准。

公司对公/批量客户/代销商烦请电话沟通下单，TEL:02082178230,更多优惠等着您！嘻嘻

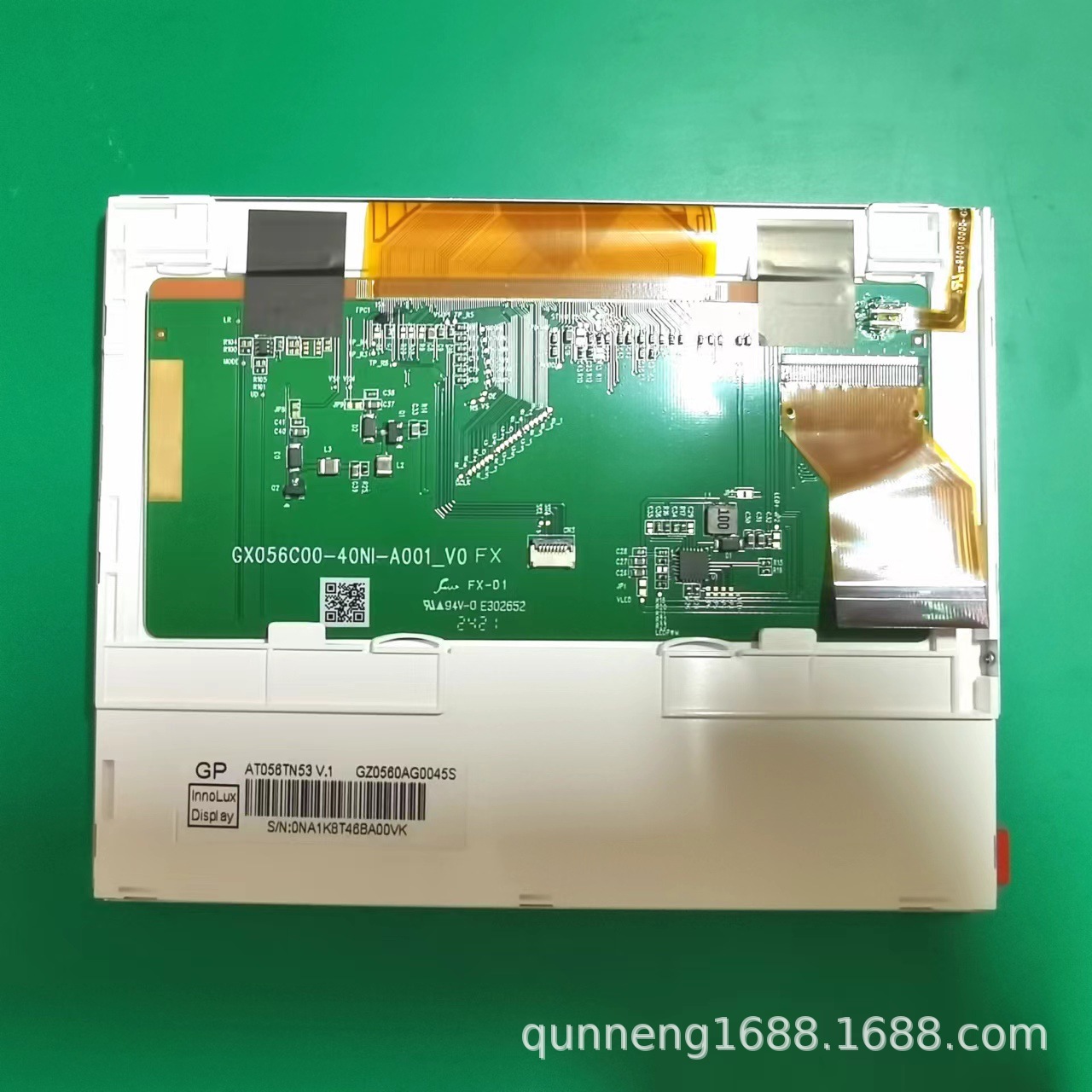

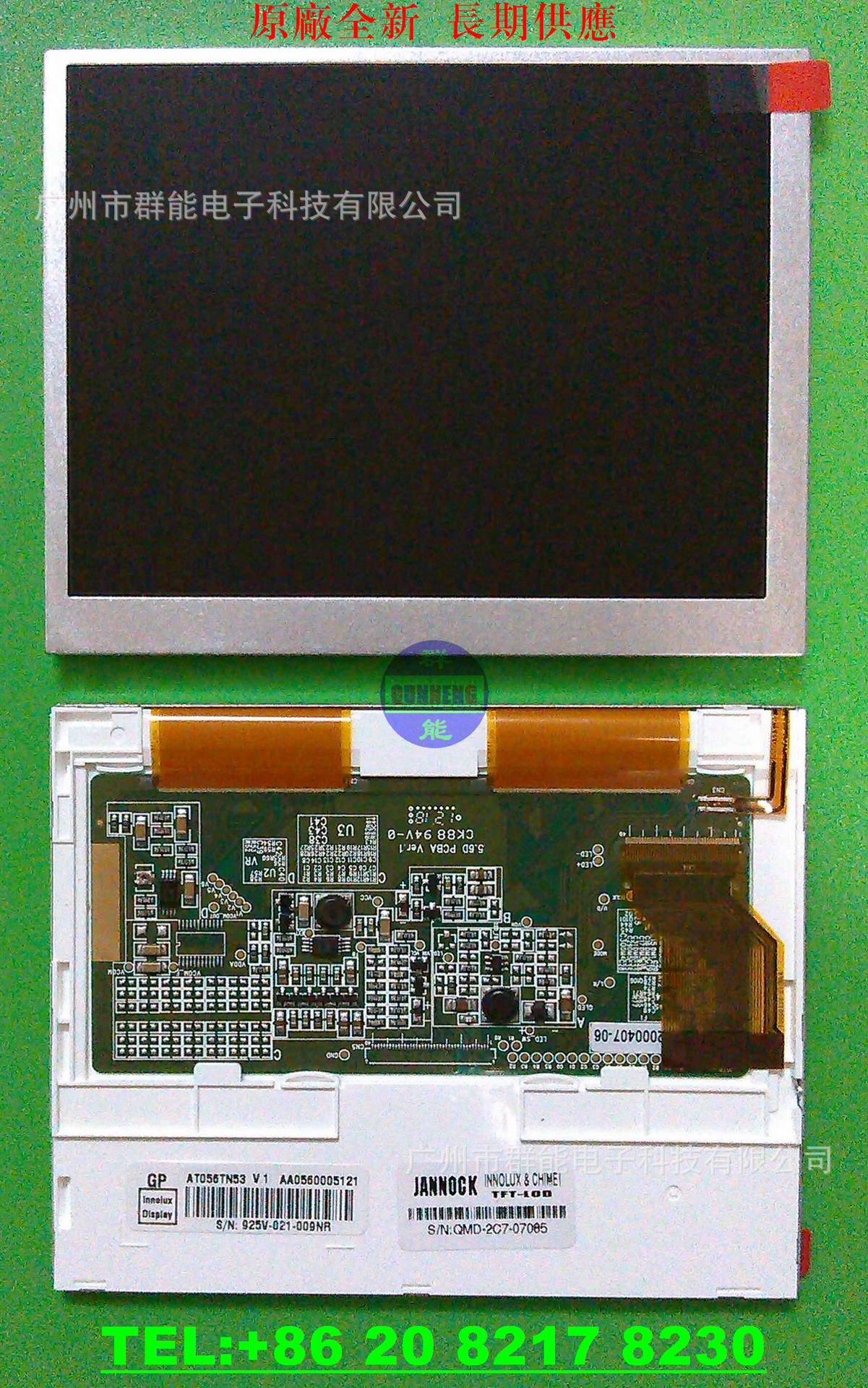

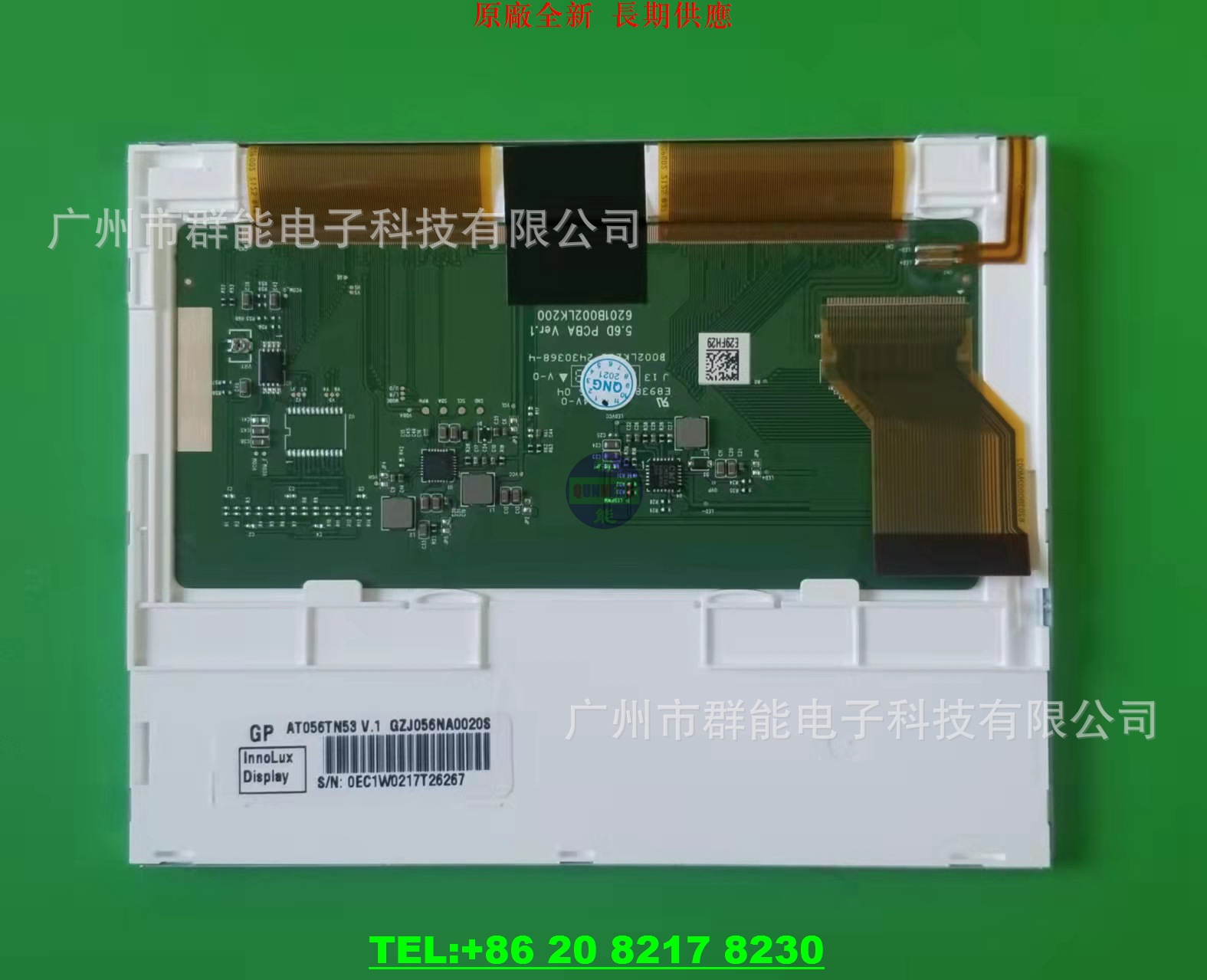

产品名称代码：AT056TN53 V.1

台湾群创5.6寸TFT彩屏，数字屏，A屏，

分辨率640*480  带LED驱动 TTL TCB 4：3，40pin

General Specifications
No. Item Specification Remark
1 LCD size 5.6 inch(Diagonal)
2 Driver element a-Si TFT active matrix
3 Resolution 640 × (RGB) × 480
4 Display mode Normally White, Transmissive
5 Dot pitch 0.0588(W) × 0.1764(H) mm
6 Active area 112.896 (W) × 84.672(H) mm
7 Module size 126.5(W) × 100(H) × 5.7(D) mm Note 1
8 Surface treatment Anti-Glare
9 Color arrangement RGB-stripe
10 Interface Digital
11 Backlight Power consumption 1.900W(Typ) Note 2
12 Panel Power consumption 0.660W(Typ) Note 3
13 Weight 88g
Note 1: Refer to Mechanical Drawing.
Note 2: Including LED Driver power consumption.
Note 3: Including T-con Board power consumption.
