Product Features

• Made of ABS material with matte surface finish.

• Equipped with high-end professional audio processing solution for recording.

• Supports lossless WAV professional recording and one-touch recording.

• Large built-in memory for ample audio storage.

• Omnidirectional condenser microphone for 360° surround recording, restoring original sound perfectly.

• Intelligent noise reduction effectively filters out background noise.

• Large-capacity polymer lithium battery for long-hour recording.

• High-definition LED screen for clear viewing and easy operation at night.

• Built-in clock function to mark file creation time for quick lookup.

• Plays audio files in multiple formats.

• Auto power-off and file saving when the battery is low, preventing data loss.

• Driver-free USB flash drive function with universal Type-C USB port for high-speed data transmission.

• Built-in recording and listening aid, supports monitoring while recording.

• Intelligent voice-activated recording saves storage space by cutting blank audio segments.

• Supports scheduled recording and file splitting.

• Built-in password lock to fully protect file security.
Technical Specifications
Item Specification

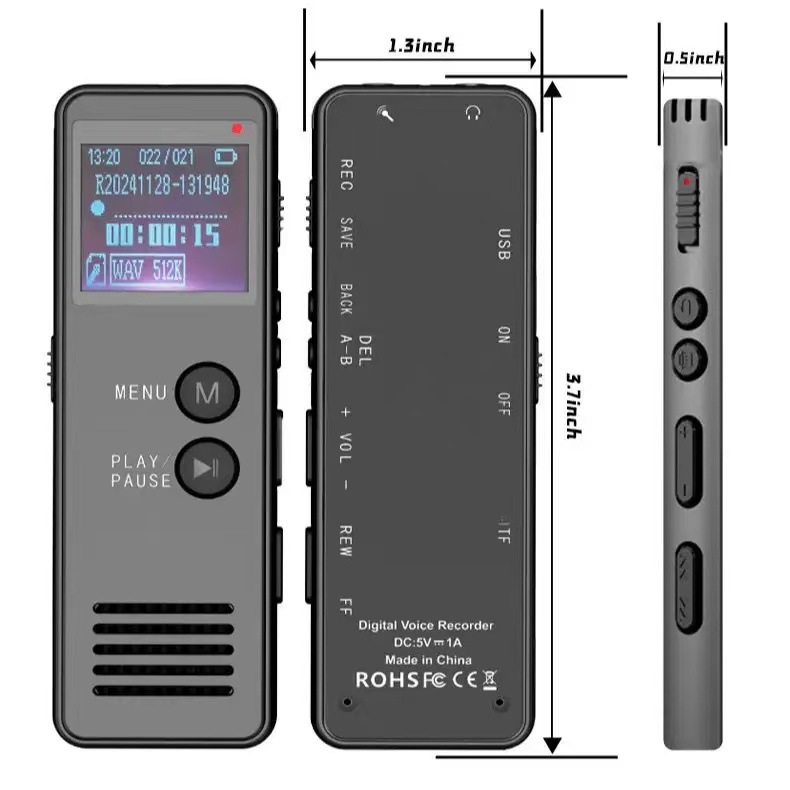

Device Dimensions 98mm30mm13mm
Screen 128*64 dot matrix LED screen
Recording Format WAV
Battery Life (Full Charge)
WAV (512Kbps): approx. 26 hours
WAV (1024Kbps): approx. 20 hours
WAV (1536Kbps): approx. 15 hours
MP3 (32Kbps): approx. 30 hours
MP3 (128Kbps): approx. 25 hours
MP3 (192Kbps): approx. 26 hours
Recording Current (Approx.)
512/1024/1536Kbps: 15/18/23 mA (varies by memory card type)
32/128/192Kbps: 12/15/15 mA (varies by memory card type)
Standby Current (Approx.) Backlight on: 15 mA; Backlight off: 10 mA
Maximum Output Power L: 10mW + R: 10mW (32Ω)
Frequency Response 20Hz - 20KHz
External Ports 3.5mm stereo headphone jack, universal Type-C USB port, 3.5mm audio line port
Built-in Microphone Omnidirectional condenser microphone
Signal-to-Noise Ratio (SNR): ≥ 70dB
Power Supply Built-in lithium battery (400mAh), rated voltage: 3.7V - 4.2V
Input Rating 5V / 300mA ~ 5V / 500mA
Total Harmonic Distortion 0.05%
Storage Embedded flash memory
Operating Temperature -5℃ ~ 40℃
Battery Model 302248-400mAh
Net Weight Approx. 33.5g

Battery Usage Duration (Full Charge)

• Recording:
Speaker playback: approx. 5 hours (Current: about 30mA, subject to volume)
Headphone playback: approx. 15 hours (Current: 9mA)

• Music Playback:
Speaker playback: approx. 5 hours (subject to volume and audio tracks)
Headphone playback: approx. 10 hours (Current: 13mA)

Supported Systems

Windows XP, iOS and other systems (subject to actual operating system)

Standard Accessories

User manual, USB data cable, earphones

l 采用ABS原料生产及外观哑光工艺生产

l 内置高端专业录音音频处理方案。

l WAV无损专业录音，一键录音。

l 大容量内存，让你轻松收录。

l 电容麦克风360环绕录音，再现原汁原味录音。

l 智能降噪，可以对音源的噪音部分给予有效的过虑。

l 大容量聚合物电池，满足您录音时间需求。

l 采用高清LED屏显示，夜间操作方便，清晰可见。

l 带时间功能，准确的记录文件生成时间方便查询

l 支持多种格式 音频文件播放.

l 录音低电自动关机保存功能，让文件不再丢失。

l 免驱动 U 盘功能， USB 通用Type-c接口，高速数据传输。

l 自带录音助听功能，支持边录边听功能。

l 智能声控录音，有效的节约存储空间，缩减空白无用文件。

l 支持定时录音，录音分割功能。

内置密码功能，有效保护文件安全。

　　　　　　　　　　　　　　　　技术参数
项目 规格
机器尺寸 　　98mm*30mm*13mm 　　屏幕尺寸 　　128*64　点阵屏
录音格式 WAV格式 显示屏：LED屏
电池每充满一次电量 WAV－512Kbps 约26小时； WAV－1024Kbps 约20小时
WAV－1536Kbps 约15小时； MP3－32Kbps 约30小时
MP3－128Kbps 约25小时；　MP3－192Kbps 约26小时；
录音电流（约） 512/1024/1536kbps录音电流15/18/23mA (卡的种类不同，电流不同）
32/128/192Kbps录音电流12/15/15mA (卡的种类不同，电流不同）
待机电流（约） 亮背光：15 mA；熄背光：10mA
实际最大输出 L) 10mW＋(R) 10mW (32Ohm) 频率响应：20Hz至20KHz
外部输入 耳机 3.5频立体声插孔
USB Type-C通用接口
音频线 3.5音频线
内置MIC 不定向电容器麦克 S/N（杂讯比）： ≥ 70dB
电源；额定电压 内置锂电池（400mA）：.3.7V-4.2V
　输入额定电压/功率 　5V300mAH--5V500mAH 失真度：0.05%
存储 嵌入式闪存 操作温度： -5℃～40℃
电池型号： 302248-400mA；　　　　　　　　　重量：　约33.5g
机器配件及包装尺寸 说明书、数据线、耳机；　　
电池使用时间（每充满一次电量） 播放 录音：外音约5小时(根据声音大小而定约30mＡ)；耳机：约15小时(9mＡ)
播放 音乐：外音约5小时(根据声音大小歌曲而定)； 耳机：约10小时(13mＡ)
支持系统 XP/IOS等；请根据实际操作系统确认
