7" TFT Color LCD Video Door Phone Hands Free Visual Intercom Doorbell Video Record IR Night Vision Touch Key with 4G SD Card Rainproof 1V2

Features:
Combines many functions in one: two-way intercom, surveillance, unlock, hands free call and talk, etc.

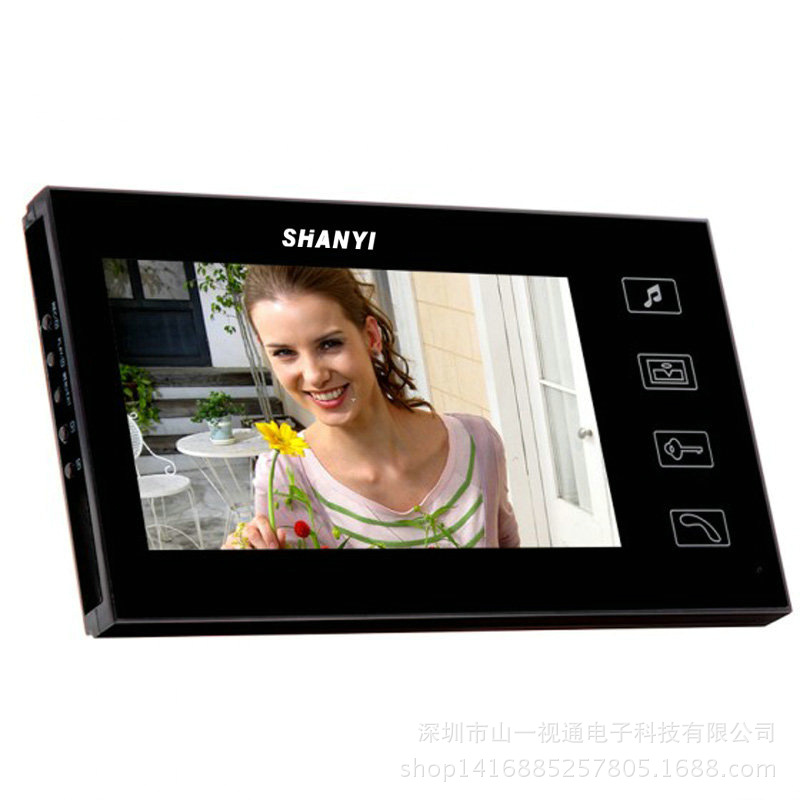

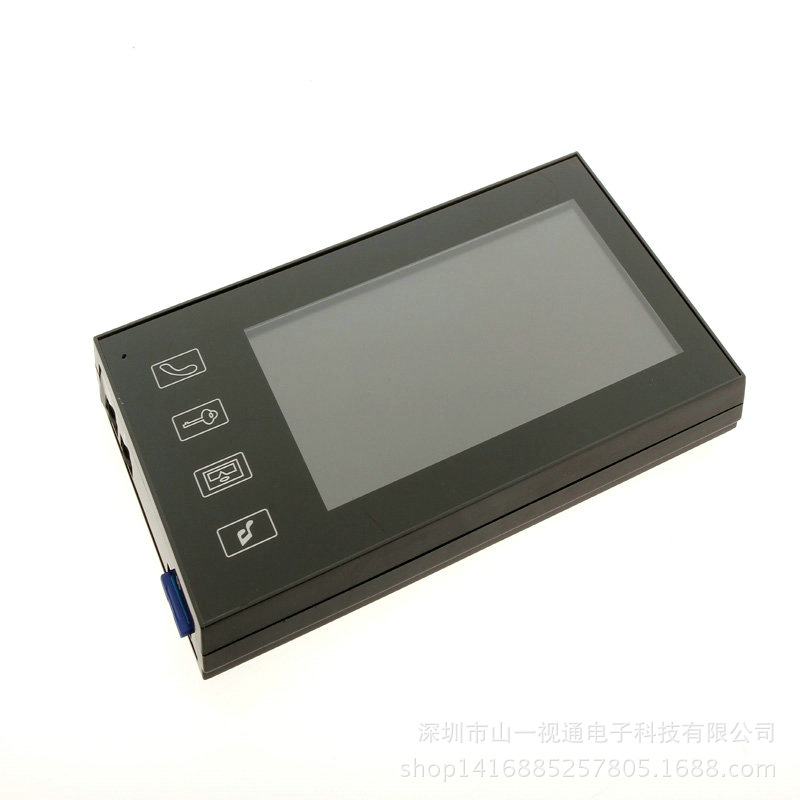

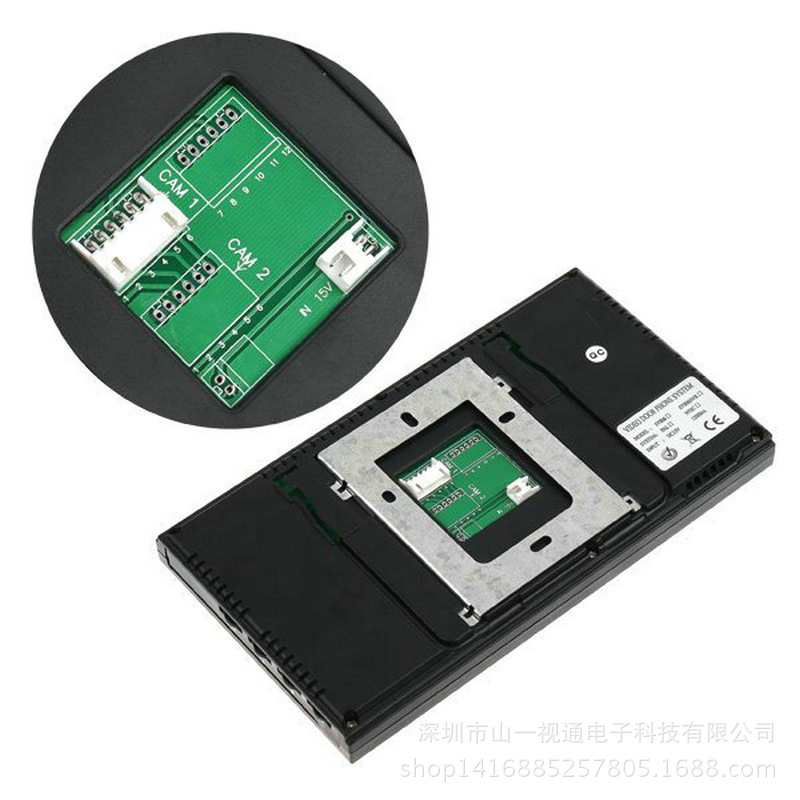

Indoor monitor: ultra-slim design, nice and luxurious, and with a mounting plate, it can be installed on walls easily.

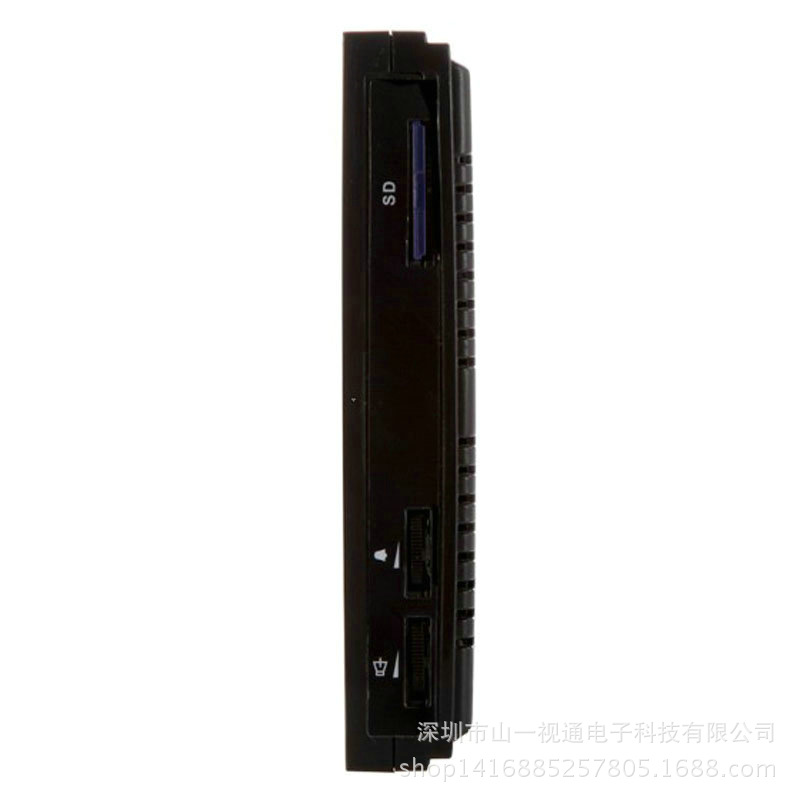

Supports SD card record, max capacity can be 16G.
Can begin 10s\' video recording automatically when the outdoor unit calls, and also can record videos manually.
7 inch TFT color LCD display screen, without radiation, low power consumption, high definition and with sensitive touch key press control.

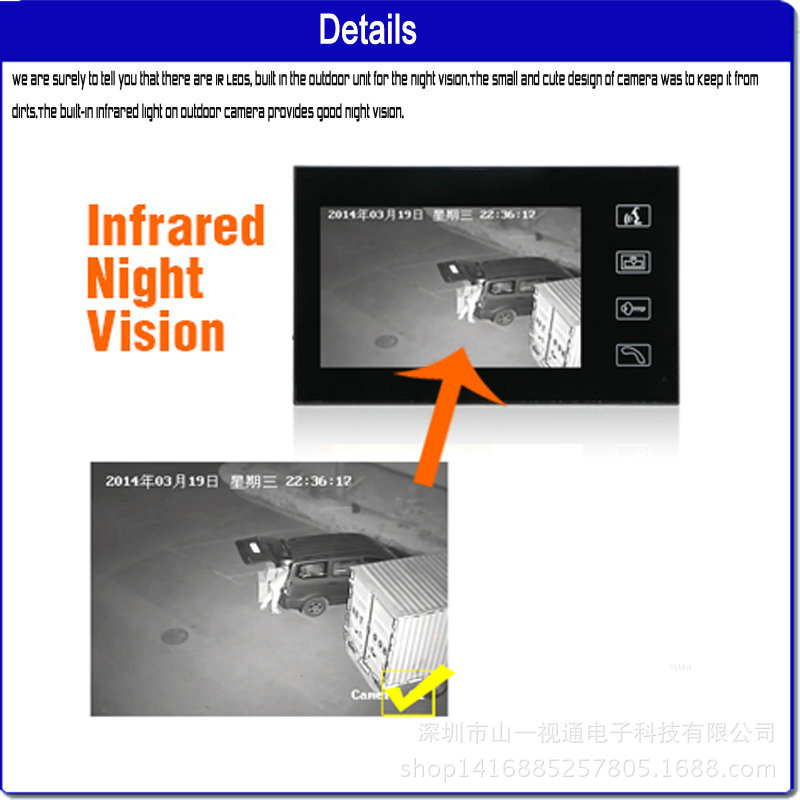

Outdoor camera with clear IR night vision can monitor and capture images in low-illumination environment.

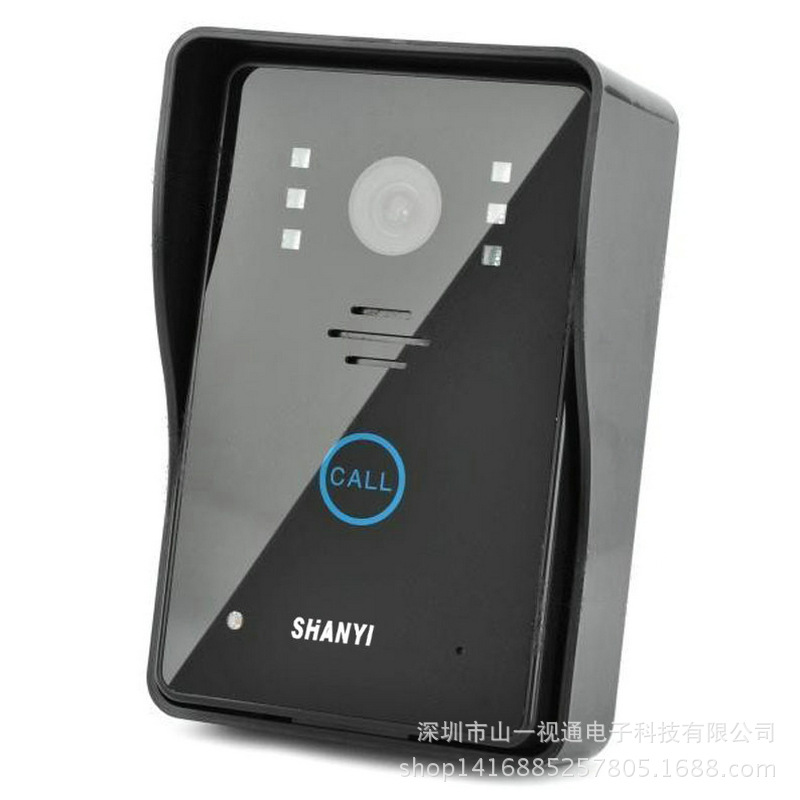

With a rain shield, waterproof, antioxidant and durable to use.
16 kinds of different melodies for your choices.
Volume, brightness and contrast are adjustable.
Supplied with connection cable and adapter, users can install it according to operating instruction.

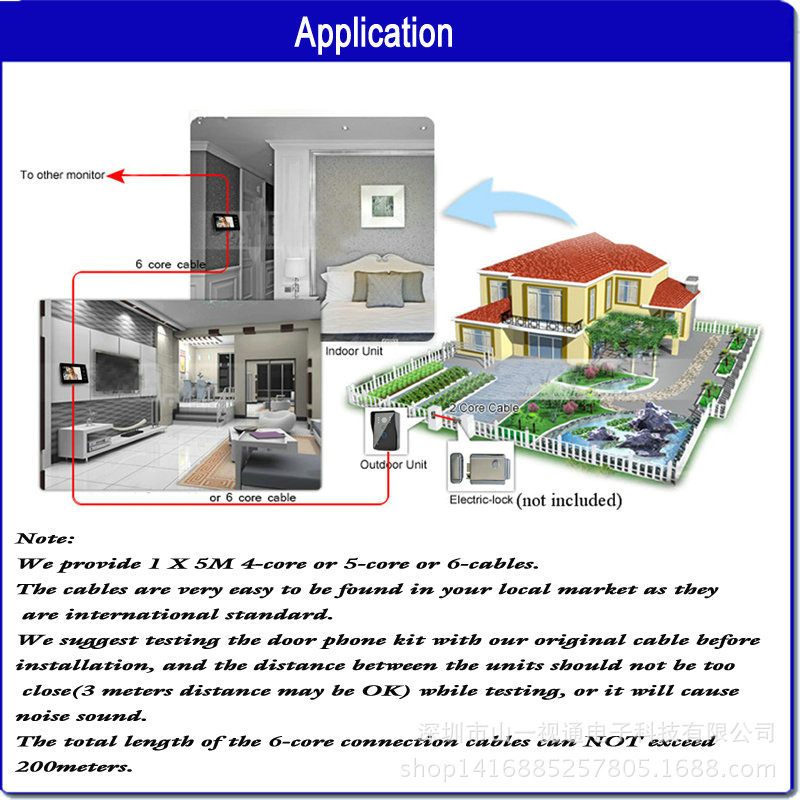

Can be widely used in single-family houses, villas, offices, hotels and so on.

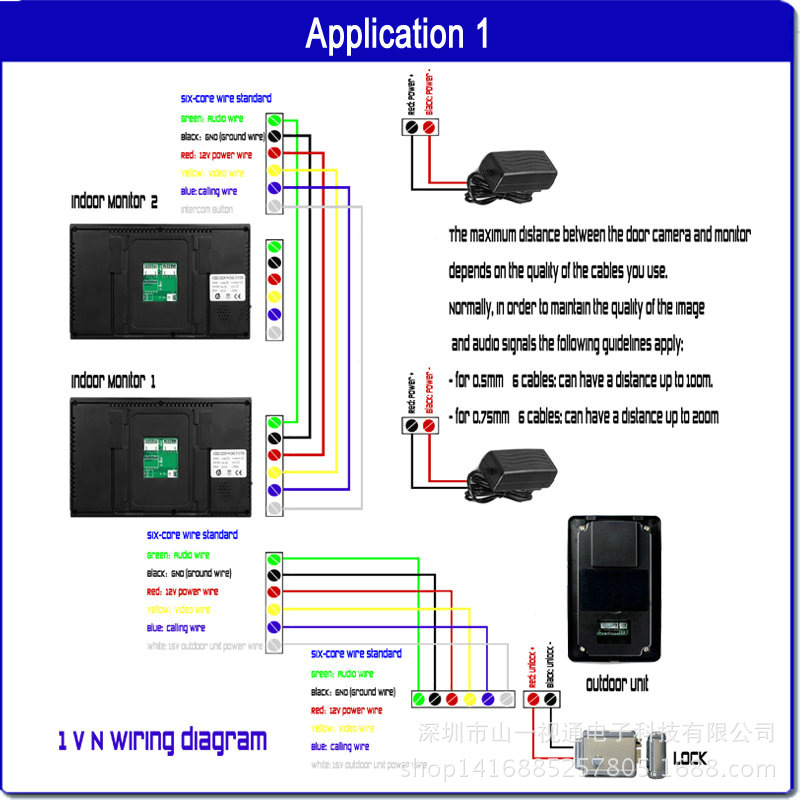

This product can meet different requirements: one outdoor camera can support up to four indoor monitors or two outdoor cameras can support up to four indoor monitors.
Note: 1. Only ONE Monitor can do record
      2. The indoor monitor in this door phone kit is supplied with a 4G SD card.

 3.The button will show the blue background after connect to power

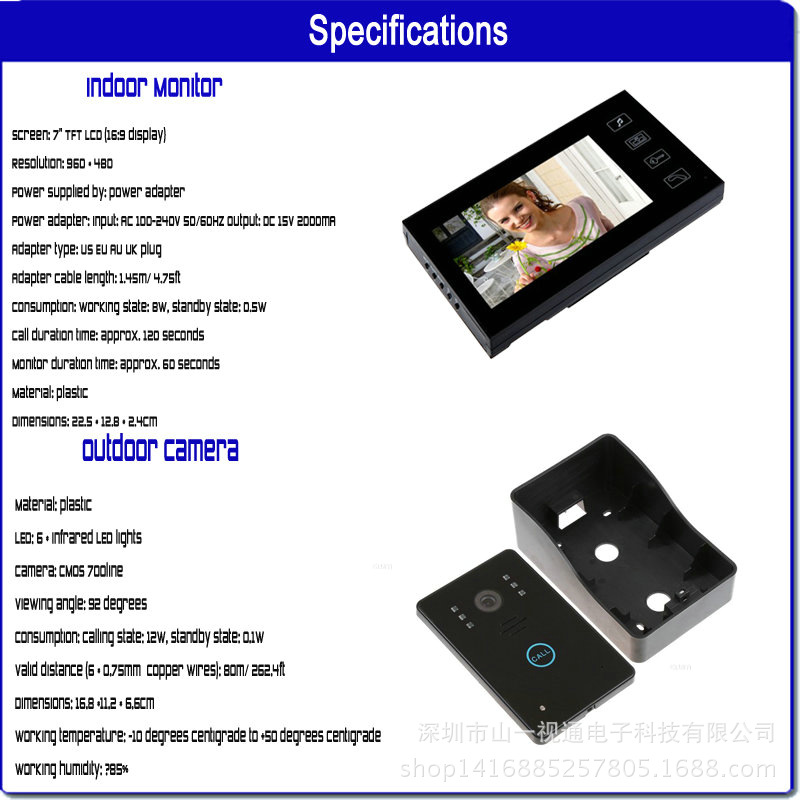

Specifications of indoor monitor:
Screen: 7" TFT LCD (16:9 display)
Resolution: 960 * 480
Power supplied by: power adapter
Power adapter: input: AC 100-240V 50/60Hz output: DC 15V 2000mA
Adapter type: US EU AU UK plug
Adapter cable length: 1.45m/ 4.75ft
Consumption: working state: 8W, standby state: 0.5W
Call duration time: approx. 120 seconds
Monitor duration time: approx. 60 seconds
Material: plastic
Dimensions: 22.5 * 12.8 * 2.4cm

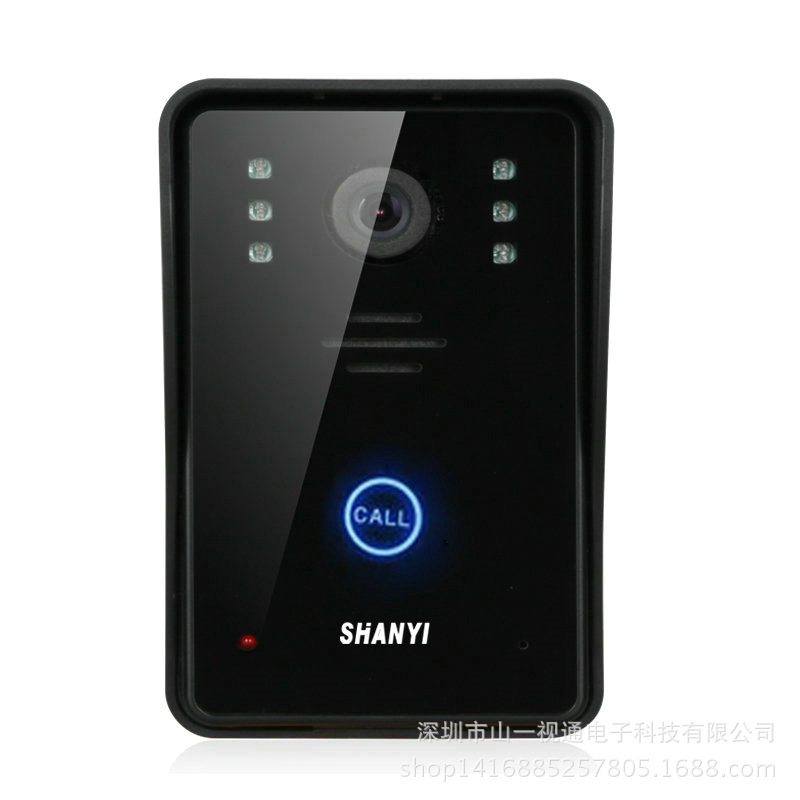

Specifications of outdoor unit:
Material: plastic & metal
LED: 6 * infrared LED lights
Camera: CMOS 700line

Viewing angle: 92 degrees
Consumption: calling state: 12W, standby state: 0.1W
Valid distance (6 * 0.75mm² copper wires): 80m/ 262.4ft
Dimensions: 16.8 *11.2 * 6.6cm
Working temperature: -10 degrees centigrade to +50 degrees centigrade
Working humidity: ≤85%

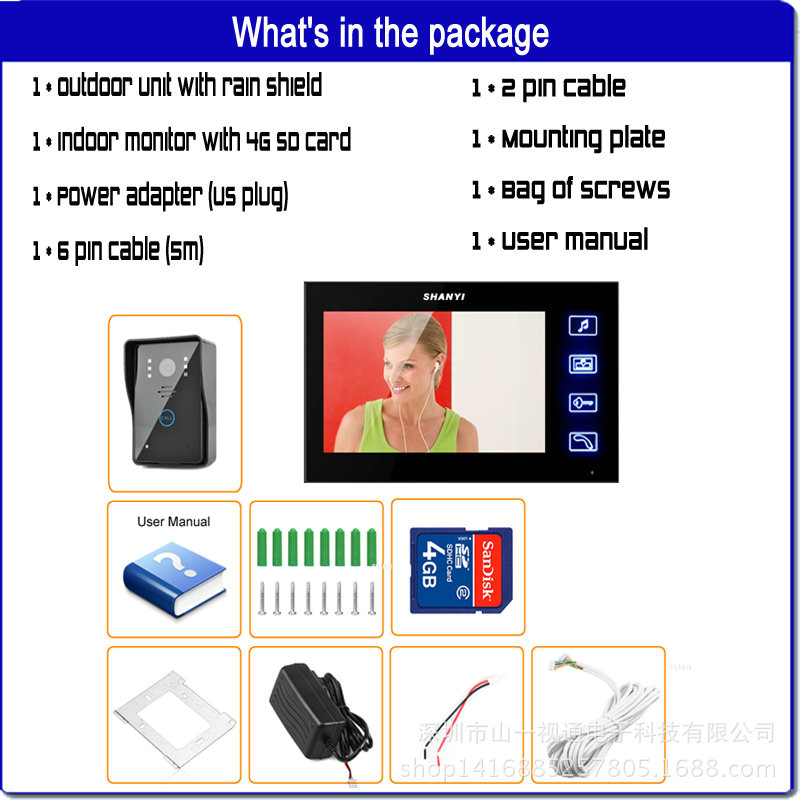

Packing list:
1 * Outdoor unit with rain shield
1 * Indoor monitor with 4G SD card

1 * Indoor monitor

2 * Power adapter

2 * 6 pin cable (5m)
1 * 2 pin cable
2 * Mounting plate
1 * Bag of screws
1 * User manual
