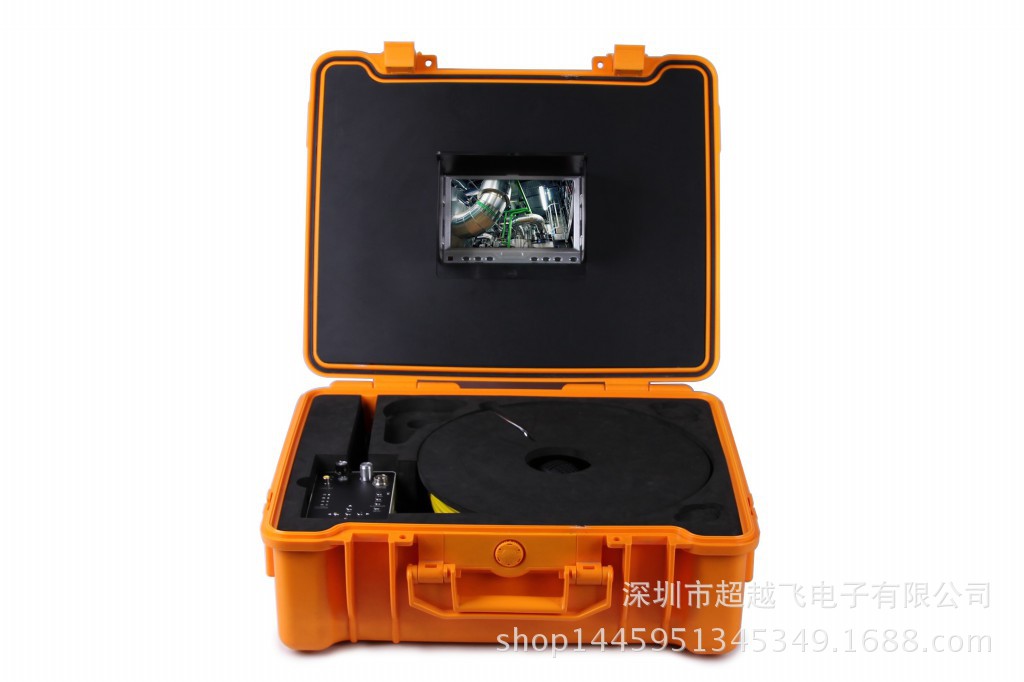

型号: CR110-7G20M

型号: CR110-7G30M

型号: CR110-7G40M

型号: CR110-7G50M

可接受客户订制

类别： 管道内窥镜，管道探测仪，管道探测器，水管探测器

商标: bestwill

卡通箱尺寸: 560*470*240mm (20米)  毛重: 10.2kgs/台

卡通箱尺寸: 560*470*240mm (30米） 毛重: 11.0kgs/台

卡通箱尺寸: 560*470*240mm (40米)  毛重: 11.8kgs/台

卡通箱尺寸: 560*470*240mm (50米) 毛重: 12.6kgs/台

显示器规格:

1.  7" 彩色数字屏

2.  分辩率: 800(H) X 480(V)

3.  电压: DC 12V

4.  OSD 语言:  英语，中文等 (10 种语言可选择)

5.  上，下，左，右可调节

6.  16:9  显示

7.  内置遮阳罩

8.  工作温度: -20°C-60°C

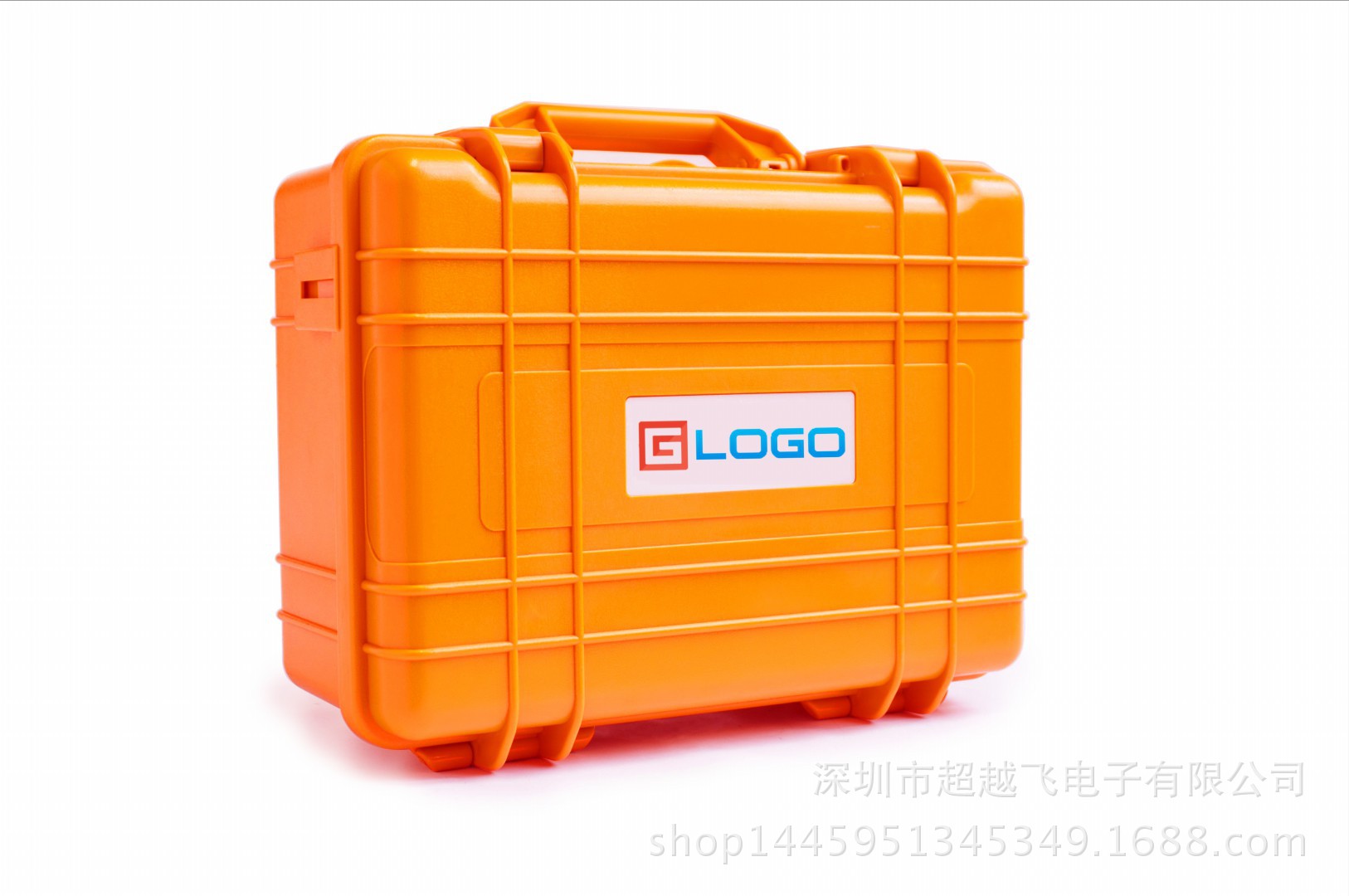

9.  便携式铝箱

10.  电池: 12V 4000MAH     可充电锂电池或铅酸电池,使用时间:7小时

11.  充电器: 输入 AC90-240V , 输出: DC 12V    1000MA

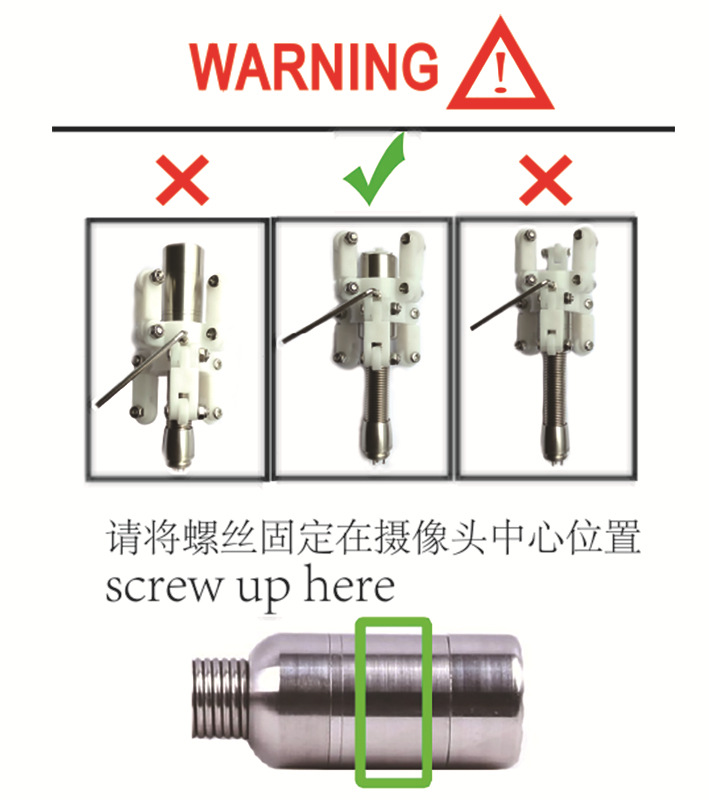

12.  居中器:  1. SKIDS1:  Φ60MM

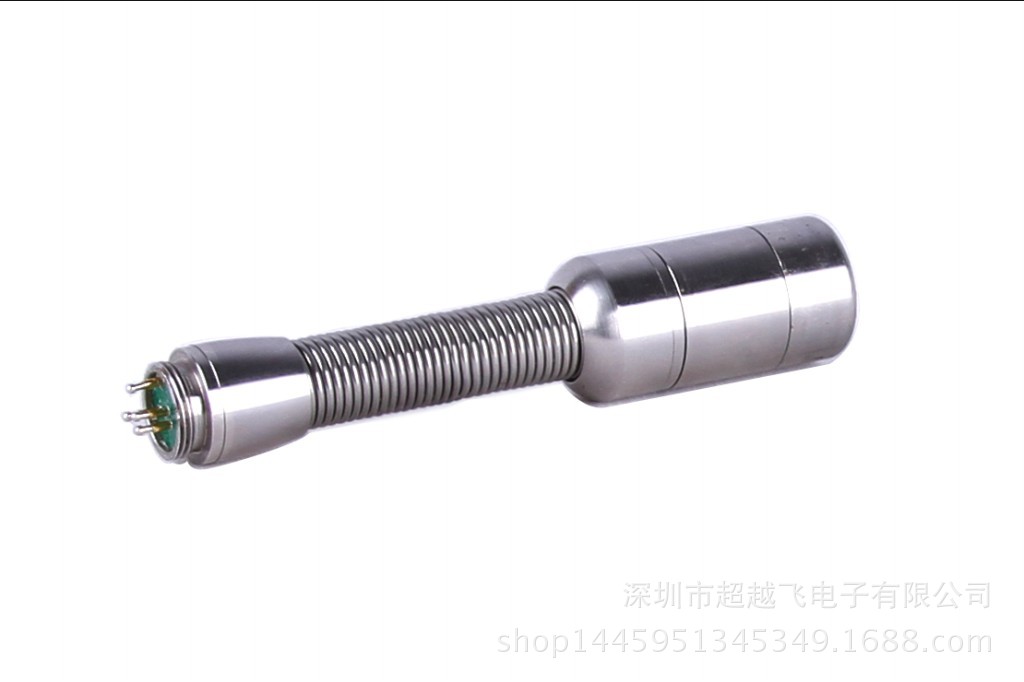

摄像头规格:

1. 摄像头尺寸: 23mm x 120mm, 头部:45mm

2. 摄像头材料: 高强度不锈钢304

3. 摄像头镜片材料: 钢化玻璃

4. 传感器: 1/3 英寸 CCD 或 CMOS

5. 清晰度: 800 线

6. 摄像头视角: 120°

7. 补光灯: 12颗白光灯

8. 白光灯可调节

9. 特殊金制触点接口

10. 摄像头连接线长: 20/30/40/50 米

11. 摄像头工作电流: 100MA

12. 摄像头电压: DC 12V

13. 防水等级:IP68

14. 作业环境: 管道内使用; 工作温度:-10°C-50°C

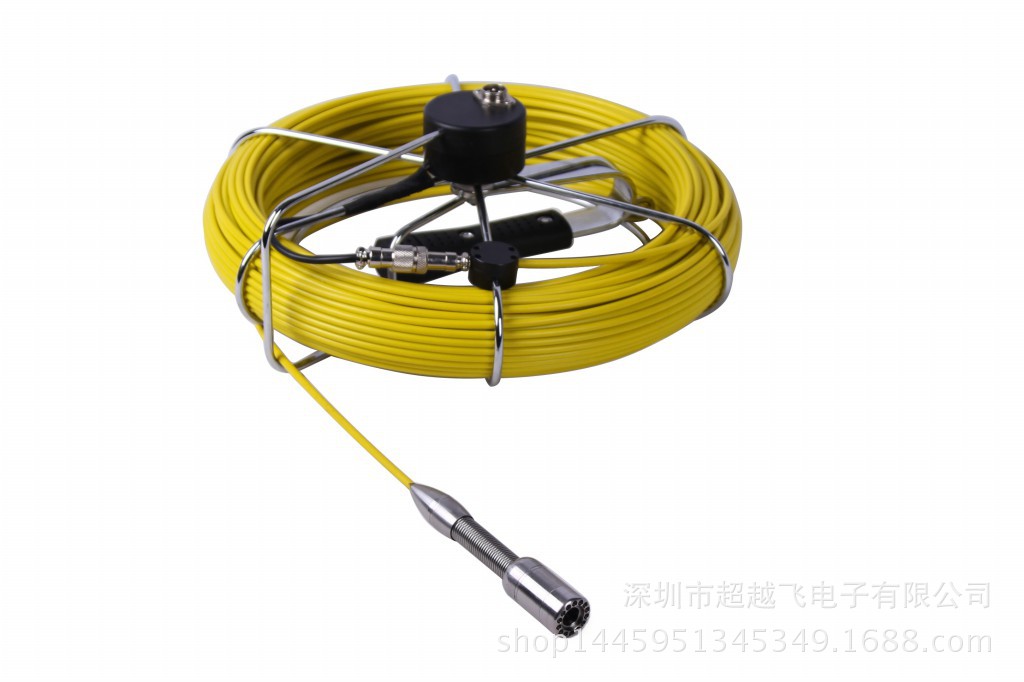

绕线轮

1. 线轮尺寸: 320MM(直径)X110(高度)

2. 线材质: 玻纤线

3. 线长: 20米 / 30米 / 40米 / 50米 ( 可选)

4. 玻纤线直径： 4.8MM

5. 玻纤线颜色: 黄色

Model Number: CR110-7G20M

Model Number: CR110-7G30M

Model Number: CR110-7G40M

Model Number: CR110-7G50M

Is customized: Yes

Type: Endoscope inspection camera, Pipe inspection camera

Brand Name: bestwill

Carton size: 560*470*240mm (20m)  Gross weight: 10.2kgs/pc

Carton size: 560*470*240mm (30m)  Gross weight: 11.0kgs/pc

Carton size: 560*470*240mm (40m)  Gross weight: 11.8kgs/pc

Carton size: 560*470*240mm (50m)  Gross weight: 12.6kgs/pc

Key words: endoscope camera, pipe camera,

          Sewer camera, borehole inspection,

          Sewer inspection camera

          Pipe inspection camera

Monitor specification:

1.  7" Color monitor

2.  monitor Total Pixels: 800(H) X 480(V)

3.  monitor power supply:  DC 12V

4.  OSD language:  English (10 languages available)

5.  up, down  left, right adjustable

6.  16:9  model

7.  Audio input unit : microphone, clip type

7.  Built in sunshade

8.  Operating Temperature: -20°C-60°C

9.  Portable plastic case, made in fire protection material

10.  Battery: 12V 4000MAH     rechargeable Li –ion or Lead-acid

           Used time :   7  hours

11.  Charger: Input: AC90-240V , output: DC 12V    1000MA

12.  SKIDS size:  1. SKIDS1:  Φ60MM

Camera specification:

1. camera size: 23mm x 120mm, front size:45mm

2.Camera case material: stainless steel 304

3. Camera glass material: sapphire glass

4. sensor size: CMOS

5.Total Pixels: 800 TVL HD

6. view angle: 120°

7. camera led light: 12PCS white LEDS

8. LEDS  adjustable

9. Special gold point touch connector

10. Cable length: 20/30/40/50 meters optional

11. camerawork current: 100MA

12. camera power supply :DC 12V

13. waterproof: IP68

14. Work temperature: -10°C-50°

Cable wheel

1. Cable size: 320MM(diameter)X110(h)

2. Wire material: fiberglass rod

3. Fiberglass length: 20M / 30M / 40M / 50M ( optional)

4. Fiberglass diameter: 4.8MM

5. Fiberglass color: yellow
