型号: CR110-7N500

可接受客户订制

类别： 管道内窥镜，管道探测仪，管道探测器，水管探测器

商标: bestwill

显示器卡通箱尺寸: 420*195*335mm         毛重: 16.7kgs/pc

线轮卡通箱尺寸: 580*680*670mm(500米)    毛重: 120.2kgs/pc

                                         整套总重量: 136.9kgs

显示器规格:

1.  7" 彩色数字屏

2.  分辩率: 800(H) X 480(V)

3.  电压: DC 12V

4.  OSD 语言:  英语，中文等 (10 种语言可选择)

5.  上，下，左，右可调节

6.  16:9  显示

7.  内置遮阳罩

8.  工作温度: -20°C-60°C

9.  便携式铝箱

摄像头规格:

1. 摄像头尺寸: 195mm (L) x Φ 75mm(直径)

               (Φ45mm, 55mm 可选)

2. 摄像头材料: 高强度不锈钢304

3. 摄像头镜片材料: 钢化玻璃

4. 传感器: 1/3 英寸 CCD 或 CMOS

5. 清晰度: 700 线

6. 摄像头视角: 130°镜头

7. 聚焦可调节

8. 自动扫描功能

9. 任意模式下可调速

10. 箭头键自动跟踪

11. 可以预设位置观测,录活方便

12. 防水等级:IP68

13. 补光灯: 11颗白光灯或红外灯

14. 摄像头连接线长: 60米/120 米

15. 摄像头工作电流: 150MA

16. 摄像头电压: DC 12V

17. 作业环境: 管道内,钻井内使用

18. 工作温度: -10°C-50°C

绕线轮

1. 线轮尺寸: 460(L) X 460(W) X 460(H) mm

2. 线材质: 同轴电缆线

3. 线长: 500米

4. 玻纤线直径： 5MM

5. 玻纤线颜色: 黑色

录像机规格:

1. 1. 供电电压:  12V
2. 2. 工作电流:  200MA
3. 3. 可存储容量: SD 卡 (最大支持：16G)
4. 4. 电子钟及数字日历
5. 5. 录像图像:  720X576   (D1)
6. 6. 抓拍及录像功能
7. 7. 录像格式: AVI

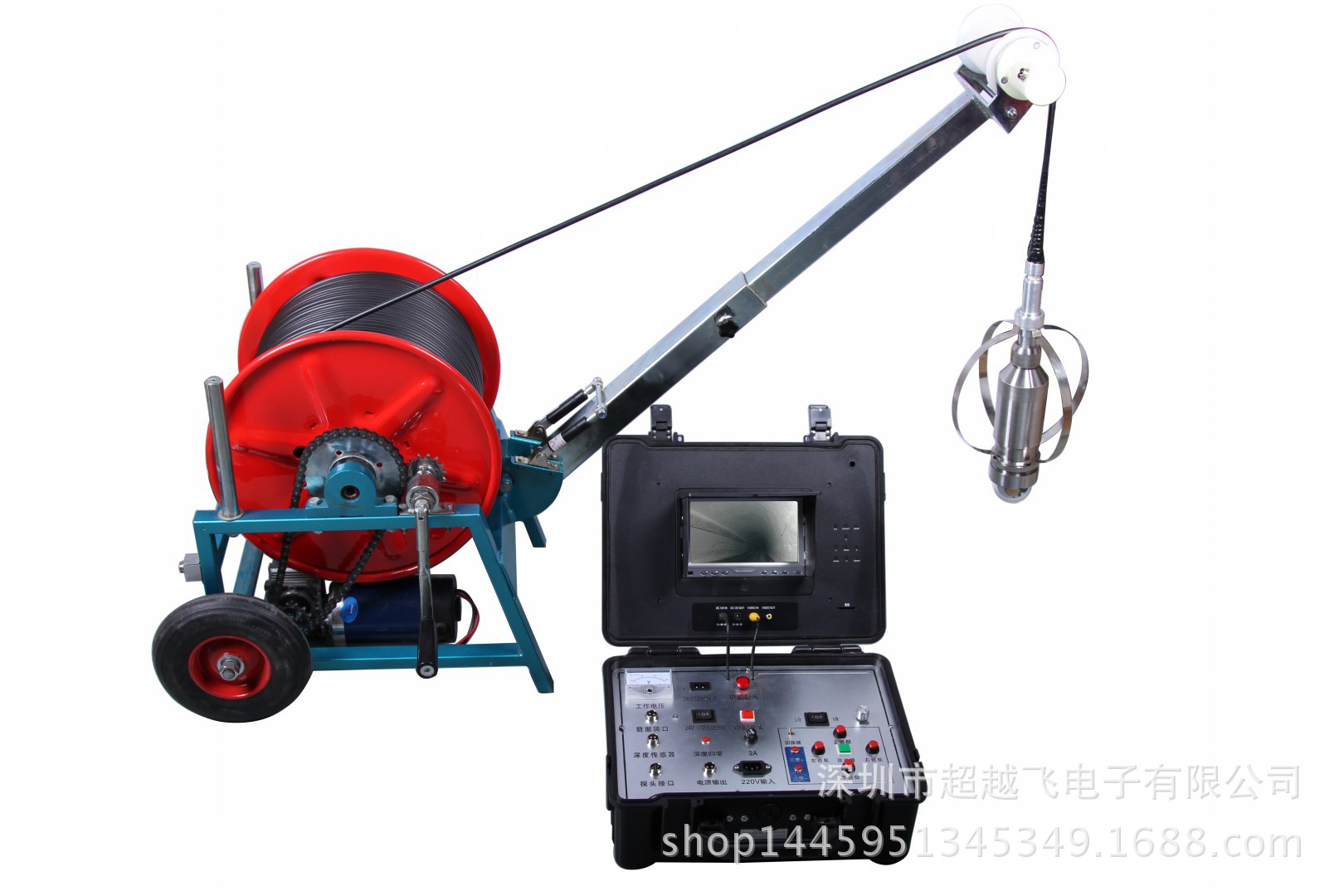

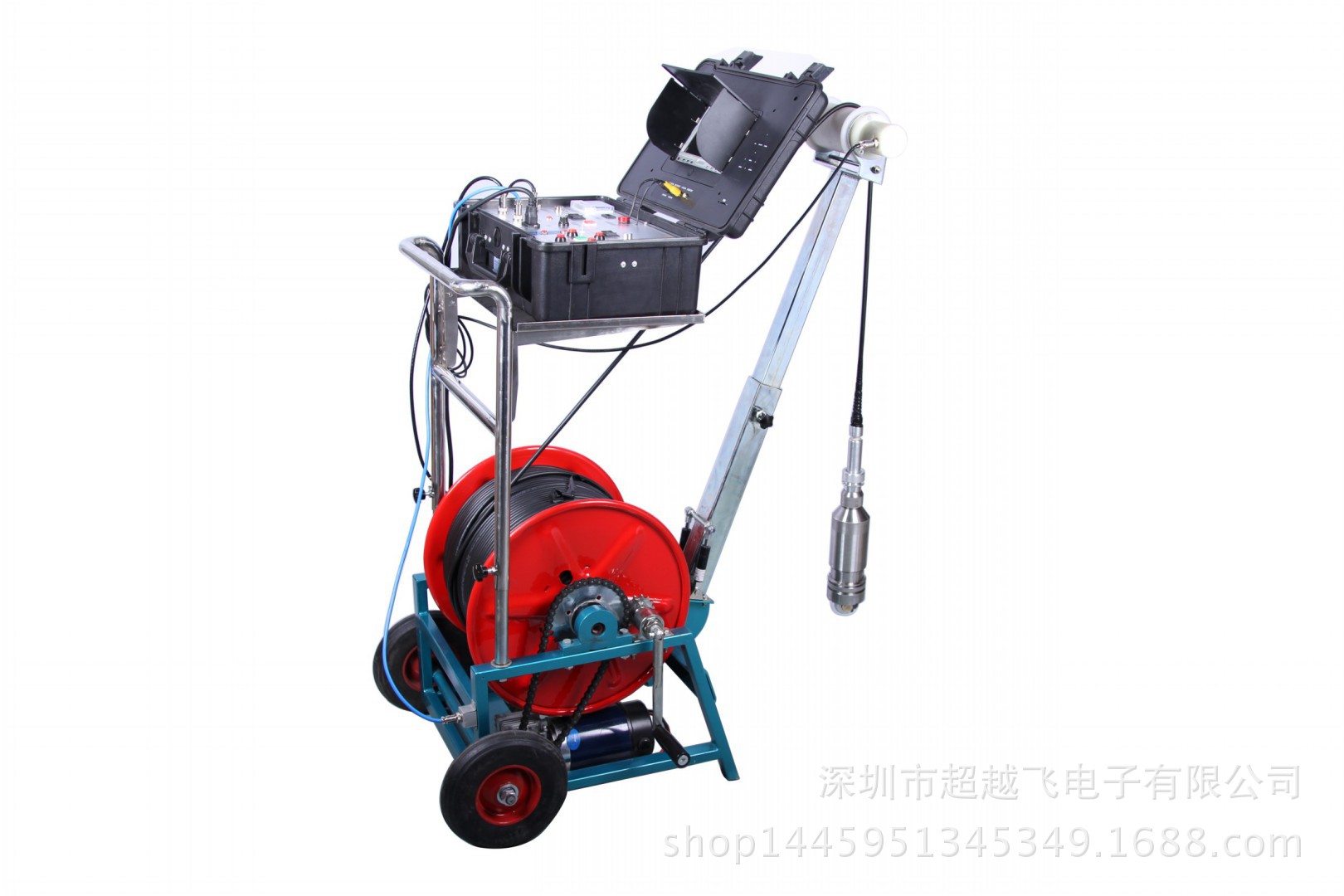

Model Number: CR110-10NA1000

Is customized: Yes

Type: Borehole inspection camera, inspection camera,Pipe Camera system

Brand Name: bestwill

Carton size monitor: 420*195*335mm       Gross weight: 6.7kgs/pc

Carton size wheel: 680*800*870mm (1000m)  Gross weight: 150.3kgs/pc

                                        Total : 157kgs

Key words: endoscope camera, pipe camera,

          Sewer camera, borehole inspection,

          Sewer inspection camera

          Pipe inspection camera

          panning camera, rotative camera, underwater camera,

          360 degree rotative camera

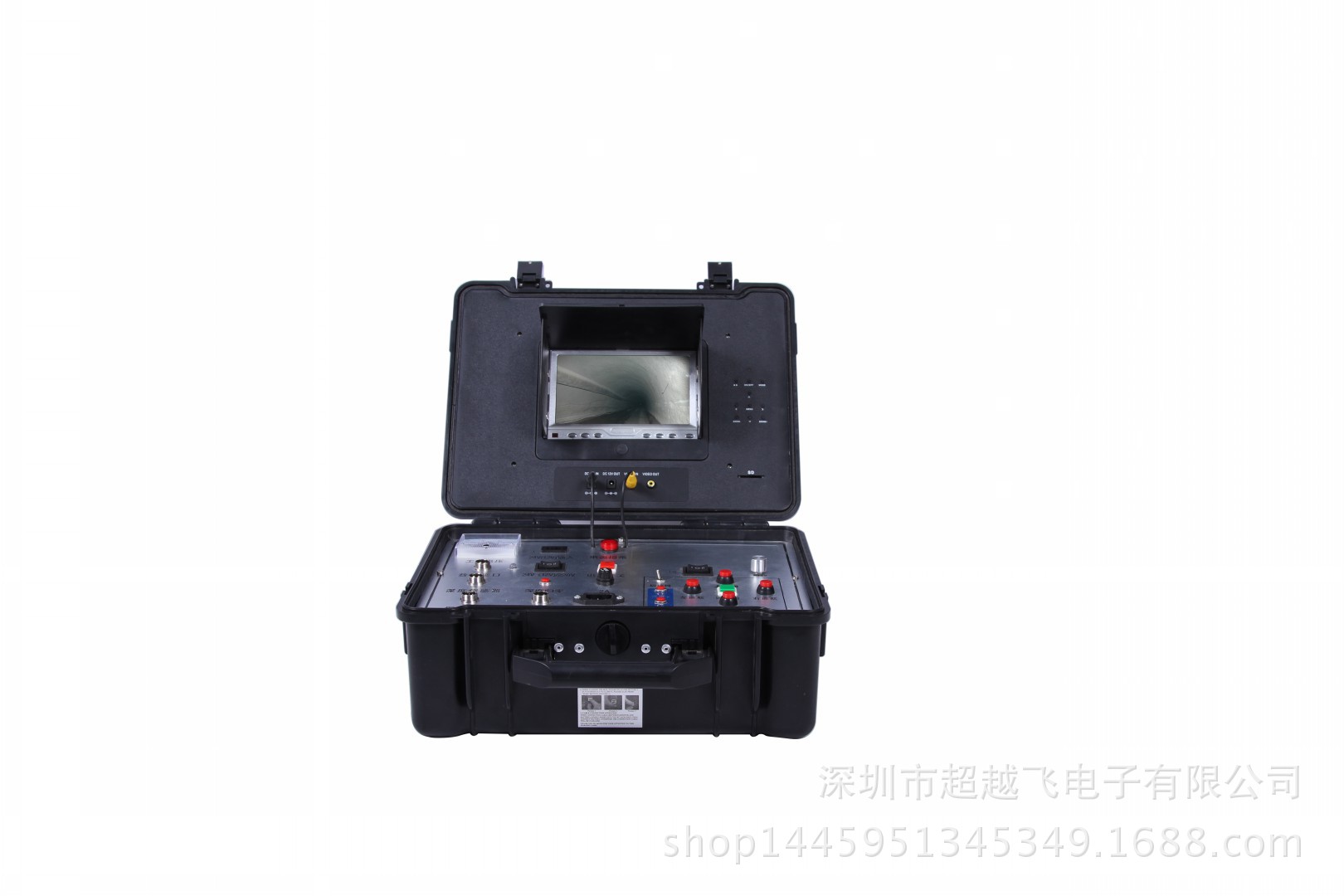

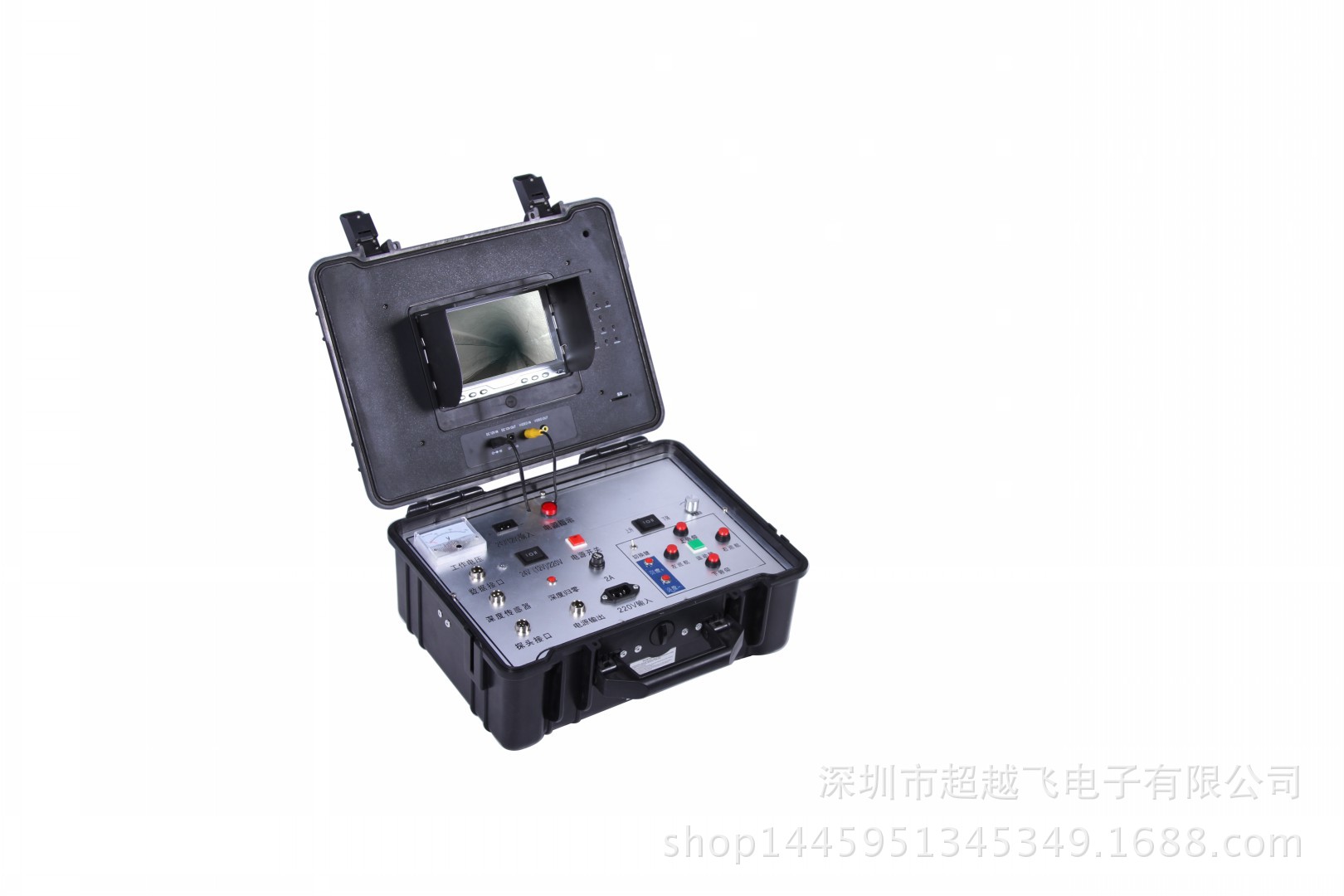

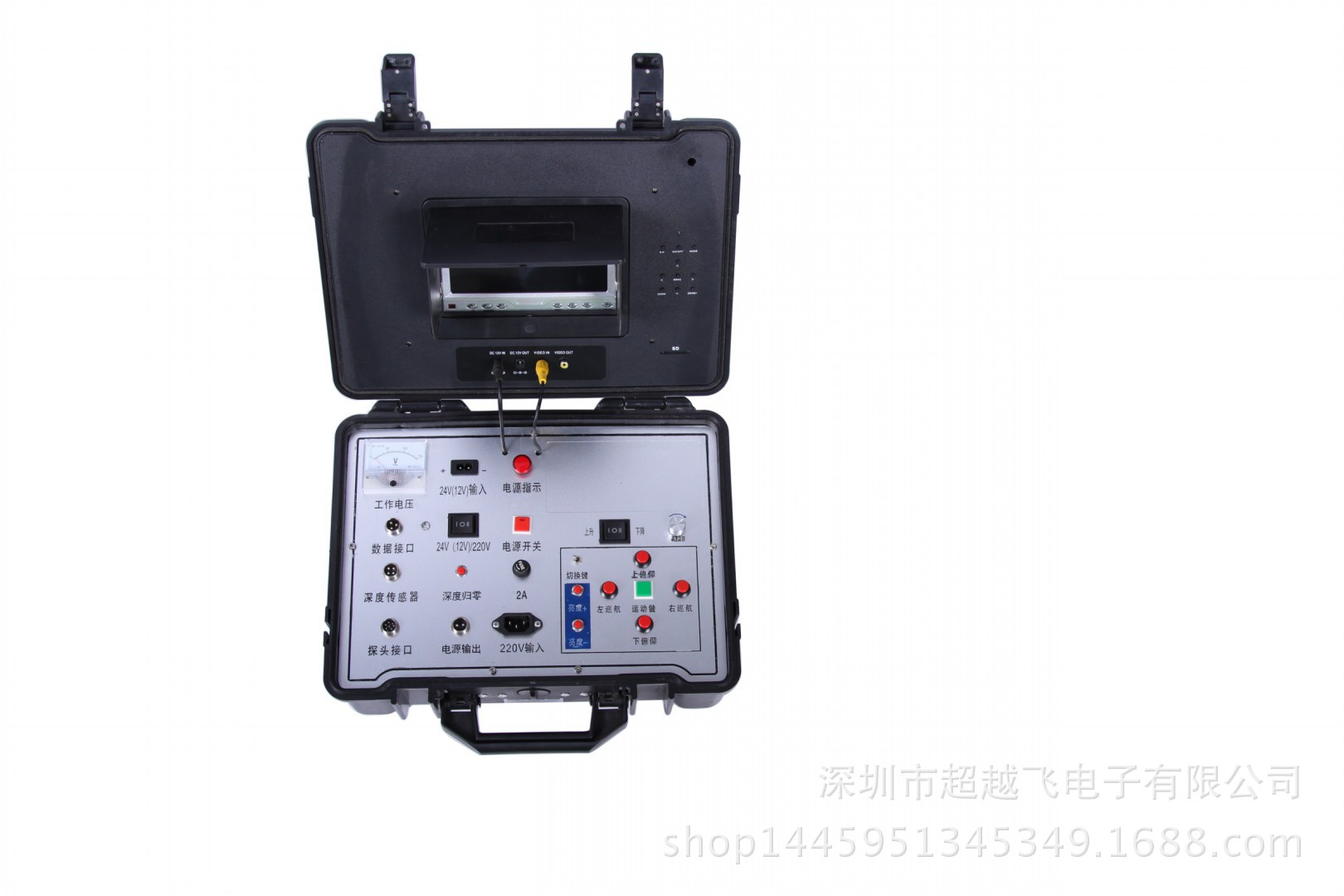

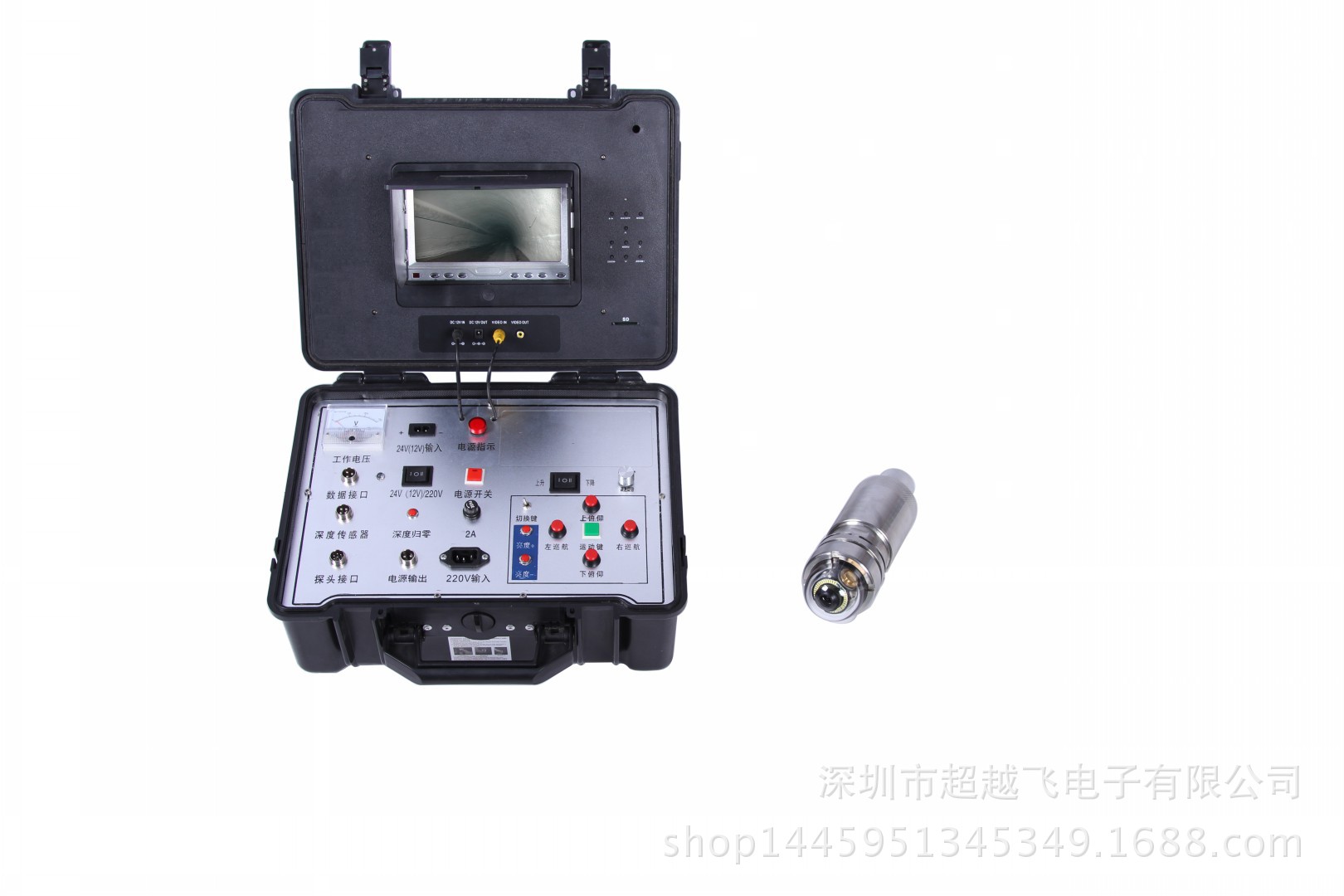

Monitor specification:

1.  7" Color monitor

2.  monitor Total Pixels: PAL：720X576    NTSC: 720X480

3.  monitor power supply:  DC 12V

4.  OSD language:  English (10 languages available)

5.  up, down  left, right adjustable

6.  16:9  model

7.  Built in sunshade

8.  Operating Temperature: -20°C-60°C

9.  Portable aluminum case

Video text input

1. language: English

2. keyboard interface 1   PS2keyboard

3. keyboard interface 2   USB keyboard(need USB to PS2 connector)

4. text on video(PAL and NTSC)

5. edit line: PAL  28 letter 15 line    NTSC  26 letter  12 line

6. max edit page: 4 page

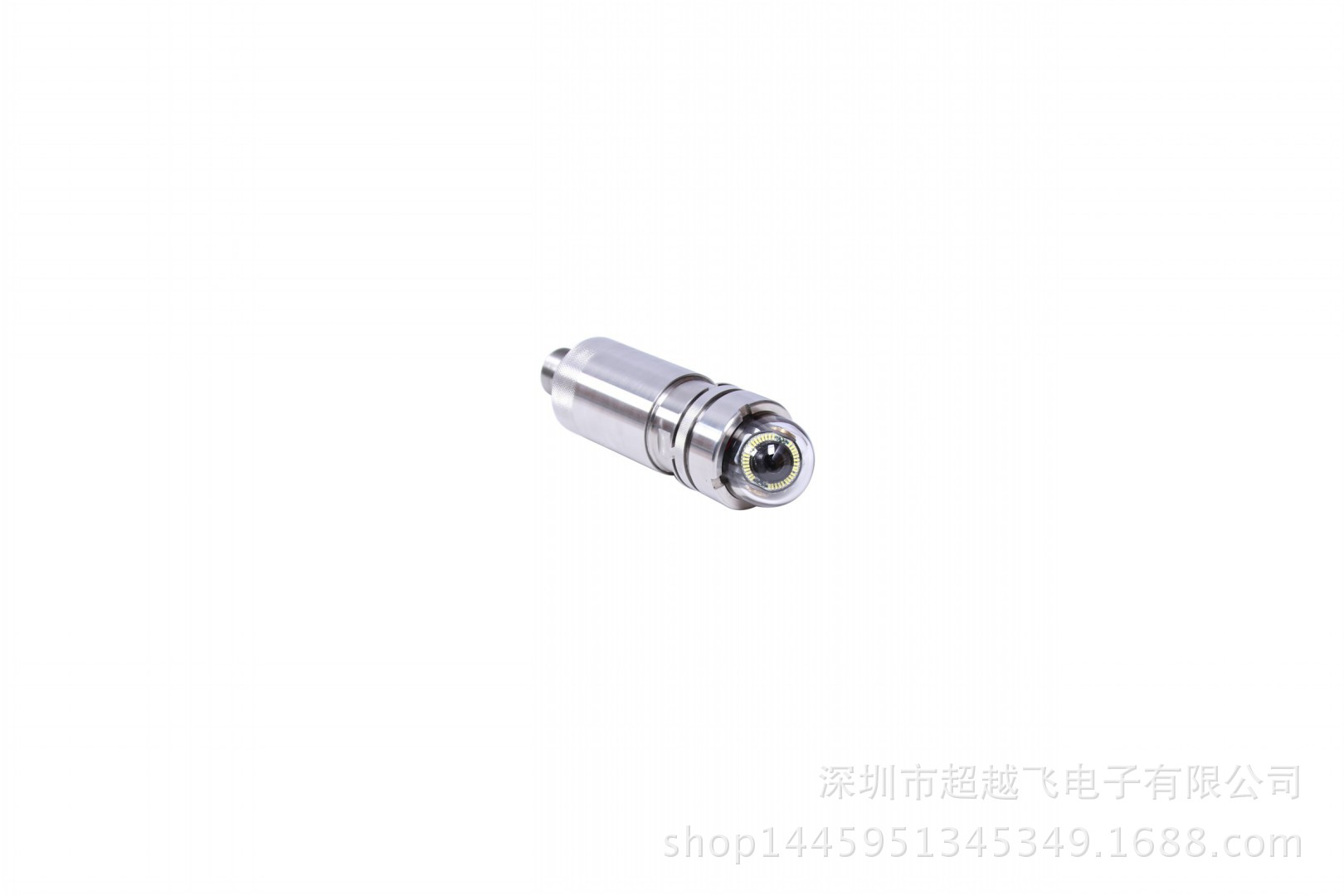

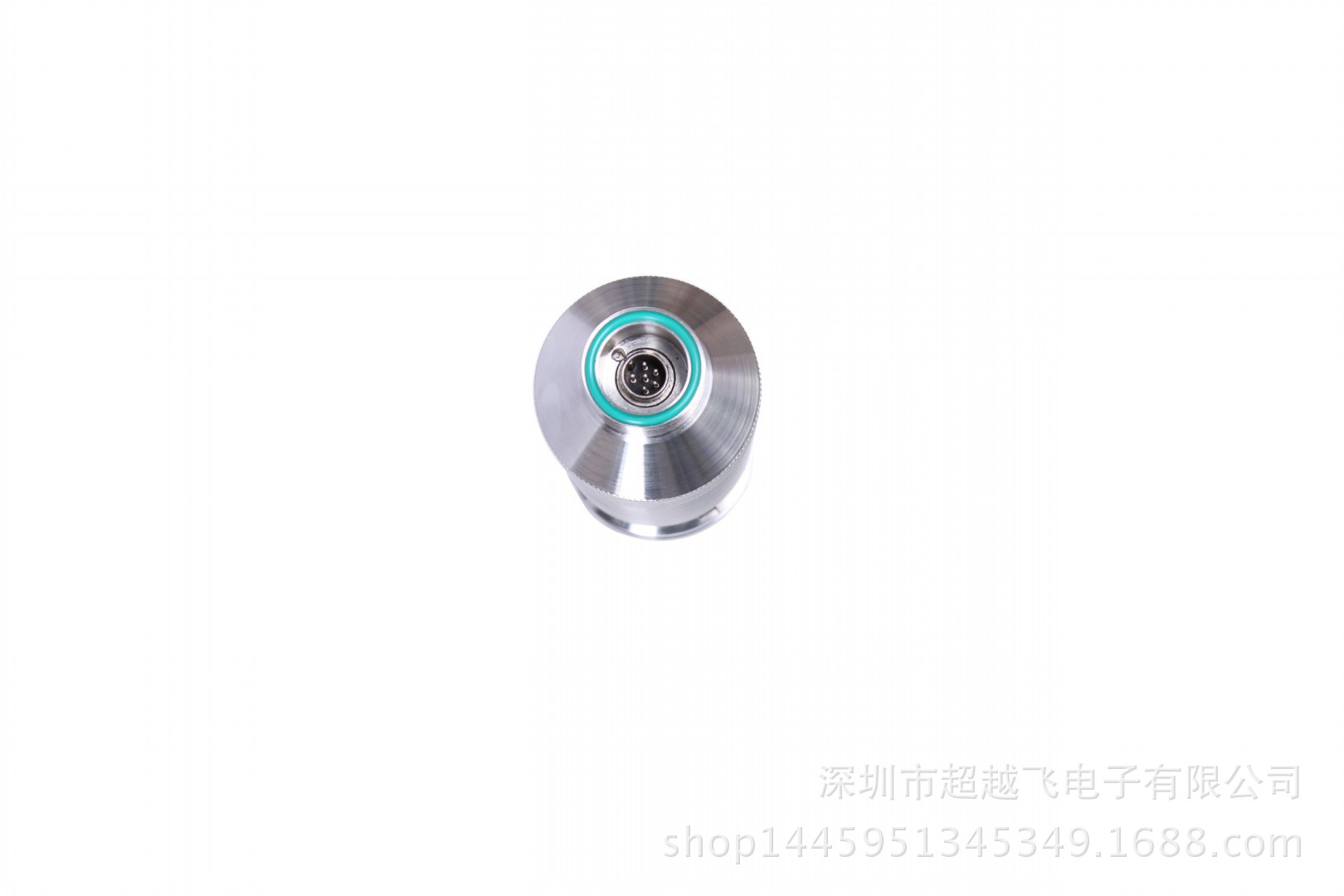

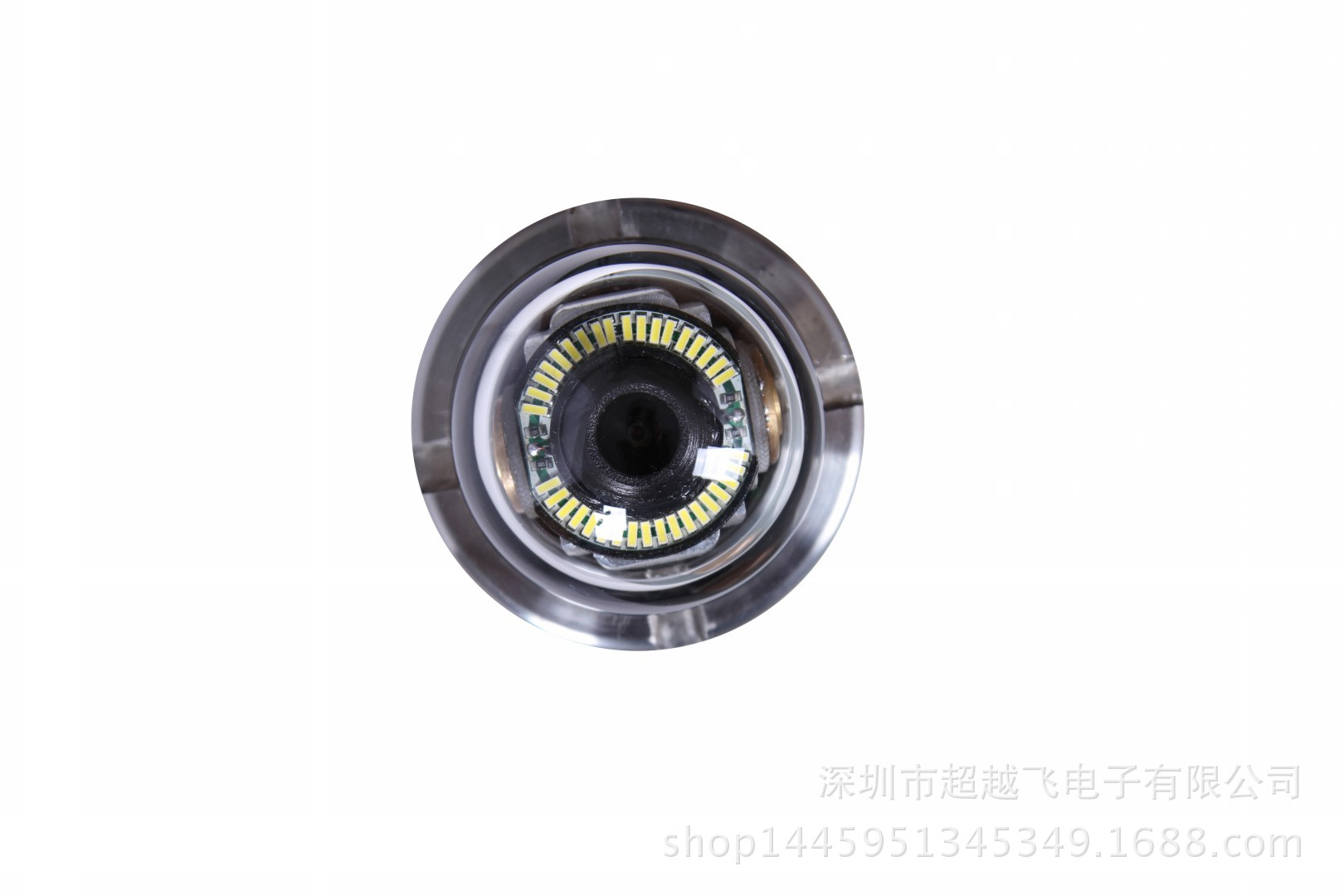

Camera specification:

1. camera size: 195mm (L) x Φ 75mm(diameter)

               (Φ45mm, 55mm optional)

2. Camera case material: stainless steel 304

3. Camera glass material: sapphire glass

4. Sensor size: 1/3 inch CCD or CMOS

5. Resolution:  700TVL

6. View angle: 130° lens, Panning 360° , up and down 180 ° Camera

7. Focus: can be adjusted manually

8. Auto pan function

9. Under any mode can be switched dynamically speed or step

10. The arrow keys are supported by electric continuous motion,

11. you can always set to a certain position, positioning observation, flexibility

12. IP68  Waterproof / Weatherproof

13. camera led light: 11PCS white LEDS  or IR lights, LEDS  adjustable

14. Cable length: 1000 meters (up to 3000m available)

15. camerawork current: 250MA

16. camera power supply: DC 12V

17. Work condition: underwater, drain, drilling well

18. Work temperature: -10°C-50°C

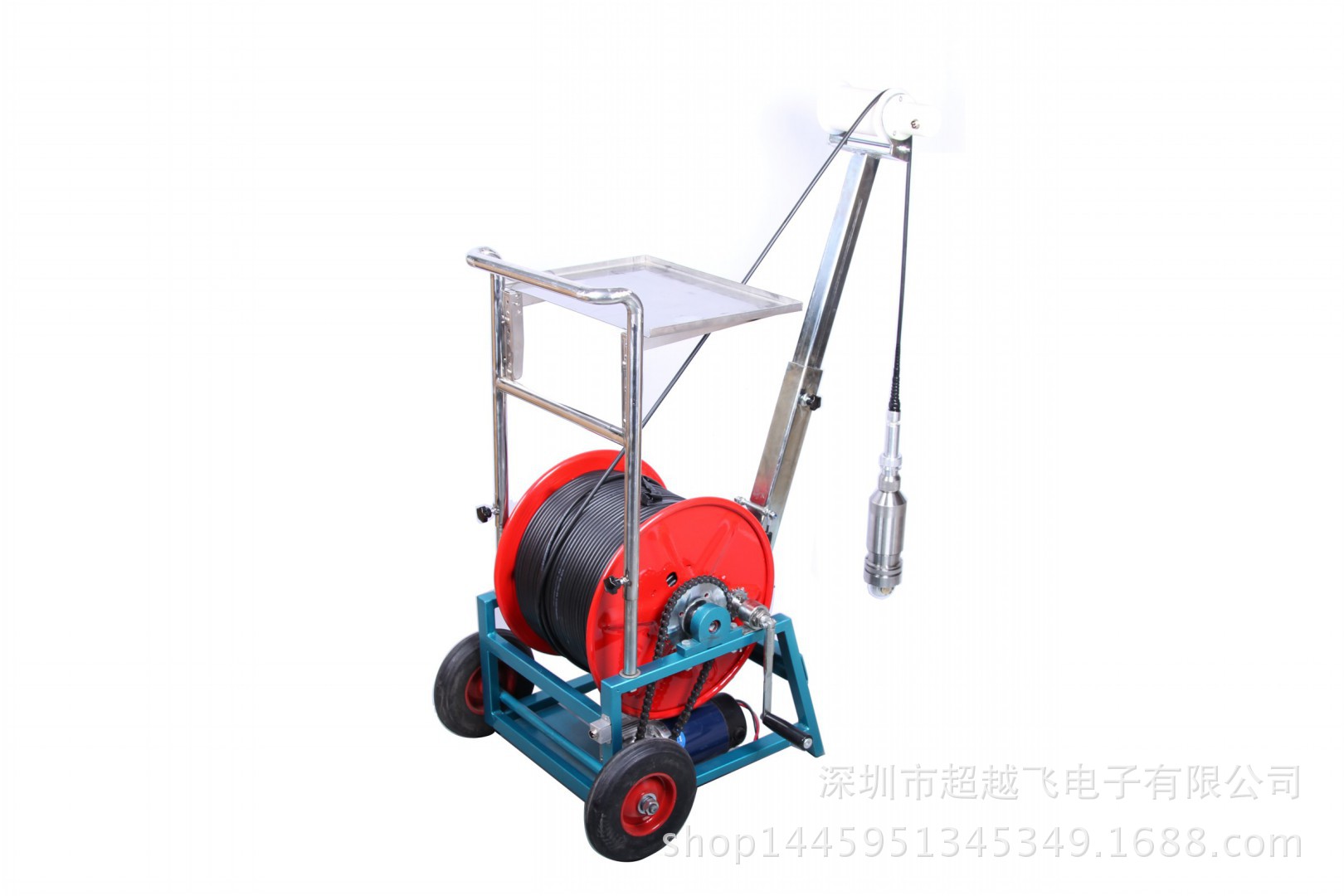

Cable wheel

1. Cable wheel size: 760(L) X 660(W) X 560(H) mm

2. Cable material: waterproof strong cable

3. Cable length:  1000M

4. Cable diameter: 5MM

5. Cable color: black

6. Electric wench cable

DVR specification:

1. DVR power supply:   12V

2. DVR work current:  200MA

3. storage medium: SD card (max 16G)

4. digital clock and digital calendar

5. DVR Total Pixels:  720X576   (D1)

6. picture snap and movie record

7. movie format: AVI
