• Fast Access Time 8，10ns(Max)

•CMOS Low Power Dissipation

Standby (TTL)   : 10mA (Max.)

(CMOS) : 6mA (Max.)

Operating : 35mA (8ns，Max.)

30mA (10ns，Max.)

•Single 3.3 ±0.3V or 5.0 ±0.5V Power Supply

 S6R1008V1A : 3.3 ±0.3V Power Supply

 S6R1008C1A : 5.0 ±0.5V Power Supply

•TTL Compatible Inputs and Outputs

• Fully Static Operation，No Clock or Refresh required

•Three State Outputs

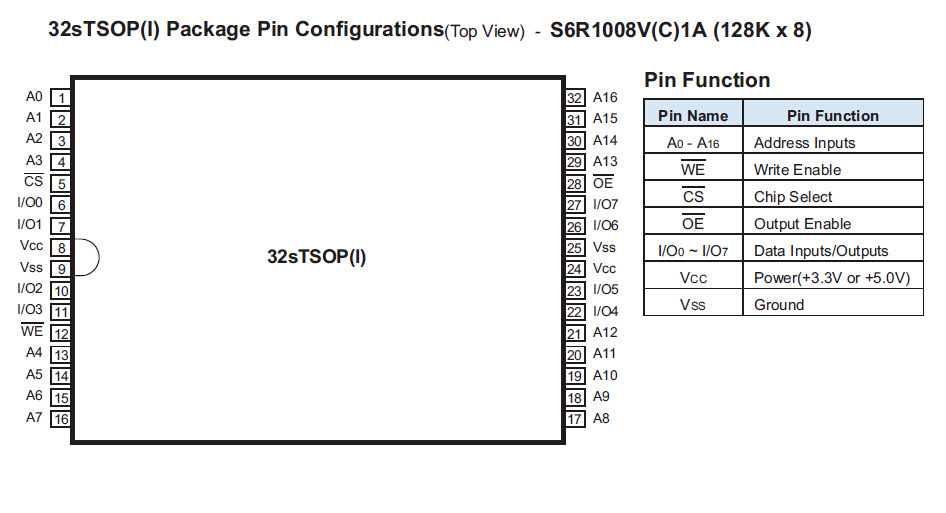

•Standard 32sTSOP(I) Package Pin Configuration

•Operating in Commercial and Industrial Temperature range

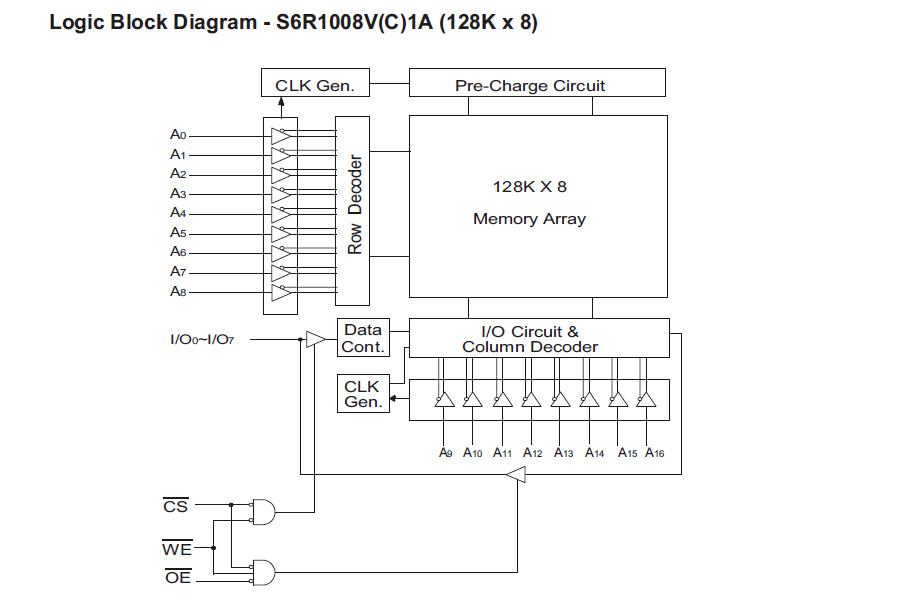

The S6R1008V(C)1A is a 1，048，576 bit high speed Static Random Access Memory organized as 128K words by 8bits. The S6R1008V(C)1A uses 8 common input and output lines and have an output enable pin which operates faster than address access time at read cycle.

The device is fabricated using advanced CMOS process and

designed for high speed circuit technology. It is particularly well

suited for use in high density high speed system applications.

The S6R1008V(C)1A is packaged in a 32 pin sTSOP(I).

Density

Org.

VDD (V)

Speed

Part Number

Package

TEMP

tAA(ns)

tOE(ns)

1Mb

128Kx8

3.3

8

4

S6R1008V1A-LC(I)08

32sTSOP

C : Commercial Temperature I : Industrial Temperature

3.3

10

5

S6R1008V1A-LC(I)10

32sTSOP

5.0

8

4

S6R1008C1A-LC(I)08

32sTSOP

5.0

10

5

S6R1008C1A-LC(I)10

32sTSOP
