•No write delays

• Unlimited write endurance

• Data retention greater than 20 years

• Automatic data protection on power loss

• Block write protection

• Fast, simple SPI interface with up to 40 MHz clock rate

• 2.7 to 3.6 Volt power supply range

• Low current sleep mode

•Industrial temperatures

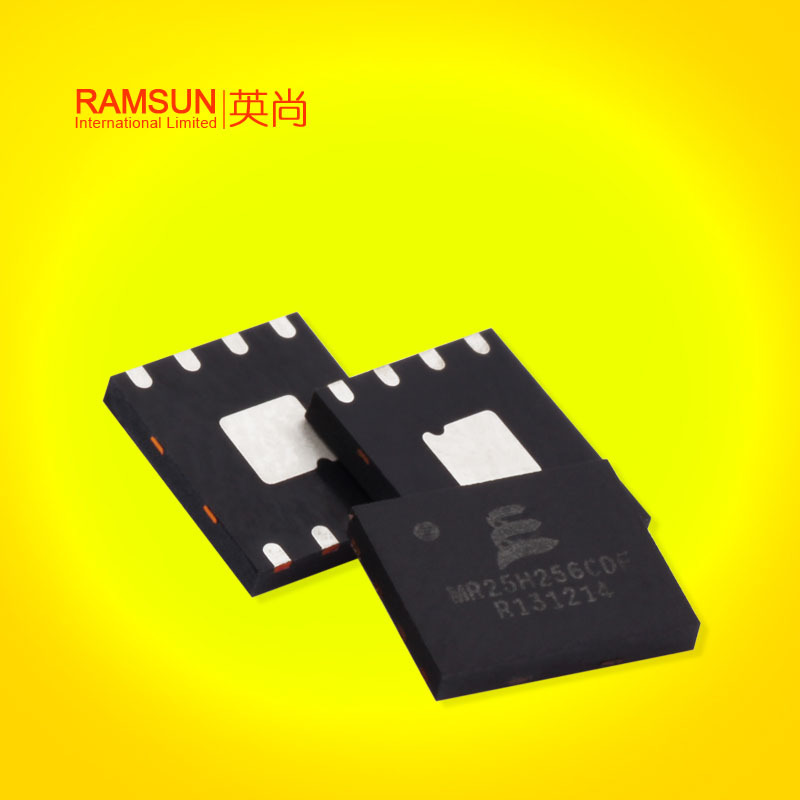

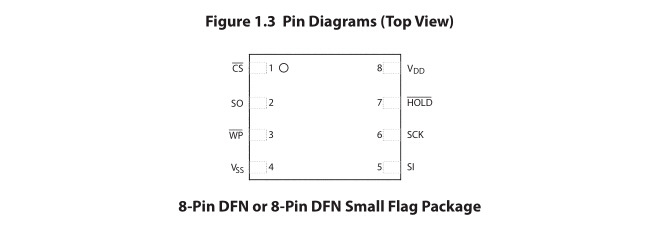

• Available in 8-pin DFN or 8-pin DFN Small Flag RoHS-compliant packages

• Direct replacement for serial EEPROM, Flash, FeRAM

• AEC-Q100 Grade 1 Option

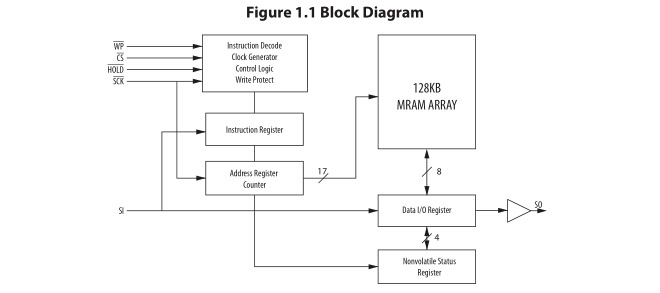

The MR25H10 is a 1,048,576-bit magnetoresistive random access memory (MRAM) device organized as 131,072 words of 8 bits. The MR25H10 offers serial EEPROM and serial Flash compatible read/write timing with no write delays and unlimited read/write endurance.

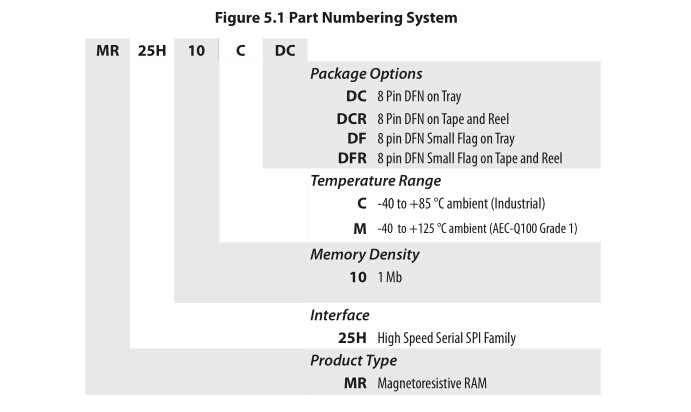

Grade

Temperature Range

Package

Shipping Container

Order Part Number

Industrial

-40 to +85 C

8-DFN

Tray

MR25H10CDC

Tape and Reel

MR25H10CDCR

Small Flag 8-DFN

Tray

MR25H10CDF

Tape and Reel

MR25H10CDFR

AEC-Q100 Grade 1

-40 to +125 C

8-DFN

Tray

MR25H10MDC

Tape and Reel

MR25H10MDCR

Small Flag 8-DFN

Tray

MR25H10MDF

Tape and Reel

MR25H10MDFR
