• +3.3 Volt power supply

• Fast 35 ns read/write cycle

• SRAM compatible timing

• Unlimited read & write endurance

• Data always non-volatile for >20 years at temperature

• RoHS-compliant small footprint BGA and TSOP2 package

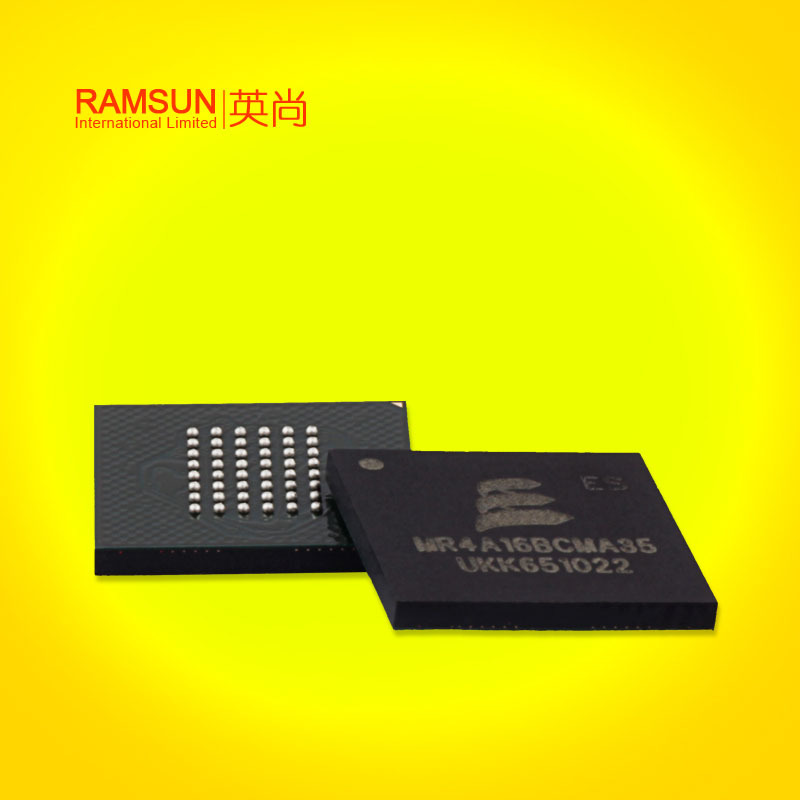

The MR4A16B is available in a small footprint 48-pin ball grid array (BGA) package and a 54-pin thin small outline package (TSOP Type 2). These packages are compatible with similar low-power SRAM products and other nonvolatile RAM products.

The MR4A16B provides highly reliable data storage over a wide range of temperatures. The product is offered with commercial temperature (0 to +70 °C), and industrial temperature (-40 to +85 °C) operating temperature options.

Grade

Temp Range

Package

Shipping Con- tainer

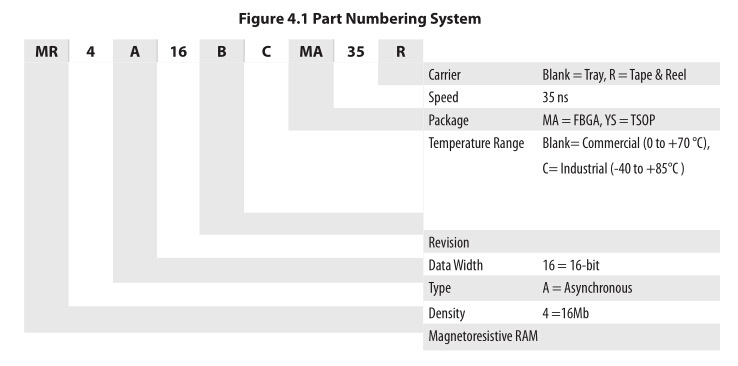

Order Part Number

Commercial

0 to +70 °C

48-BGA

Trays

MR4A16BMA35

Tape & Reel

MR4A16BMA35R

54-TSOP2

Trays

MR4A16BYS35

Tape & Reel

MR4A16BYS35R

Industrial

-40 to +85°C

48-BGA

Tray

MR4A16BCMA35

Tape & Reel

MR4A16BCMA35R

54-TSOP2

Tray

MR4A16BCYS35

Tape & Reel

MR4A16BCYS35R
