品牌：lyontek来扬
型号：LY61L1024
128K X 8 BIT HIGH SPEED CMOS SRAM
Features General Description
|

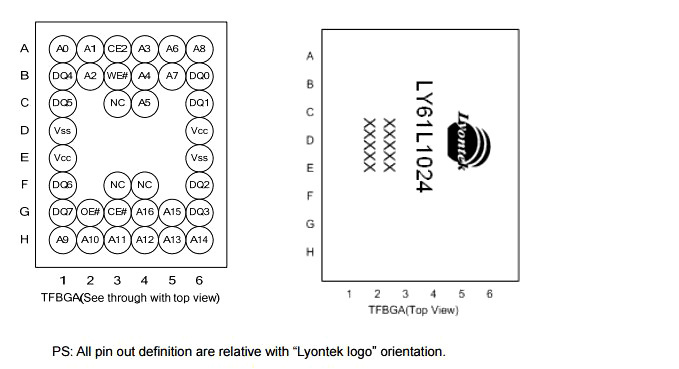

Fast access time : 10/12/15/18ns Low power consumption: Operating current : 75/70/65/55mA (TYP.) Standby current : 0.6mA (TYP.) 1μA (TYP.) LL -version Single 3.3V power supply All inputs and outputs TTL compatible Fully static operation Tri-state output Data retention voltage : 2.0V (MIN.) Green package available Package : 32-pin 300 mil SOJ 32-pin 8mm x 20mm TSOP-I 32-pin 8mm x 13.4mm STSOP 36-ball 6mm x 8mm TFBGA |
TheLY61L1024is a 1,048,576-bit low power CMOS static random access memory organized as 131,072 words by 8 bits. It is fabricated using very high performance, high reliability CMOS technology. Its standby current is stable within the range of operating temperature.
|
Key Parameters
| Item No. | Configuration | Power Supply | Isb | Package |
| LY6164 | 8K × 8 | 5V | 1.0mA(typ) | 28 sTSOP (8 × 13.4) |
| LY61256 | 32K × 8 | 5V | 0.5mA(typ) | 28 sTSOP (8 × 13.4) |
| LY61L256 | 32K × 8 | 3.3V | 0.5mA(typ) | 28 sTSOP (8 × 13.4) |
| LY61L1288 | 128K × 8 | 3.3V | 0.6mA(typ) | 32 sTSOP (8 × 13.4) |
| LY611024 | 128K × 8 | 5V | 1.0mA(typ) | 32 SOJ |
| LY61L1024 | 128K × 8 | 3.3V | 0.6mA(typ) | 32 SOJ |
| LY616416 | 64K × 16 | 5V | 0.1mA(typ) | 44 TSOP II |
| LY61L6416 | 64K × 16 | 3.3V | 0.6mA(typ) | 44 TSOP II |
| LY61L6416A | 64K × 16 | 3.3V | 2mA(typ) | 44 TSOP II |
| LY61L6416B | 64K × 16 | 3.3V | 1.5μA(typ) | 44 TSOP II |
| LY612568 | 256K × 8 | 5V | 1.0mA(typ) | 44 TSOP-II |
| LY61L2568A | 256K × 8 | 3.3V | 0.5mA(typ) | 44 TSOP-II |
| LY6112816 | 128K × 16 | 5V | 1.0mA(typ) | 44 TSOP II |
| LY61L12816A | 128K × 16 | 3.3V | 2mA(typ) | 44 TSOP II |
