Fast access time : 55/70ns

Low power consumption:

Operating current : 45/30mA (TYP.)

Standby current : 1A (TYP.) SL-version

Single 2.7V ~ 3.6V power supply

All inputs and outputs TTL compatible

Fully static operation

Tri-state output

Data byte control :

 (i) BYTE# fixed to VCC

LB# controlled DQ0 ~ DQ7

UB# controlled DQ8 ~ DQ15

 (ii) BYTE# fixed to VSS

DQ15 used as address pin, while

DQ8~DQ14 pins not used

Data retention voltage : 1.2V (MIN.)

Green package available

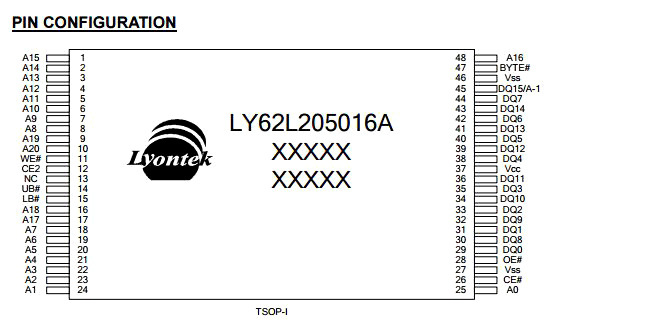

Package : 48-pin 12mm x 20mm TSOP-I

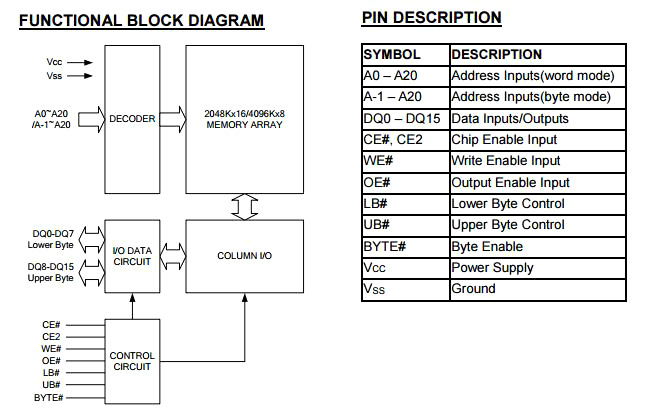

TheLY62L205016Ais a 33,554,432-bit low power

CMOS static random access memory organized as

2,097,152 words by 16 bits or 4,194,304 words by 8

bits. It is fabricated using very high performance, high

reliability CMOS technology. Its standby current is

stable within the range of operating temperature.
