Fast access time : 8/10/12ns

Low power consumption:

Operating current:

50/40/35mA(TYP.)

Standby current:

2mA(TYP.)

Single 3.3V power supply

All inputs and outputs TTL compatible

Fully static operation

Tri-state output

Green package available

Data retention voltage : 1.5V (MIN.)

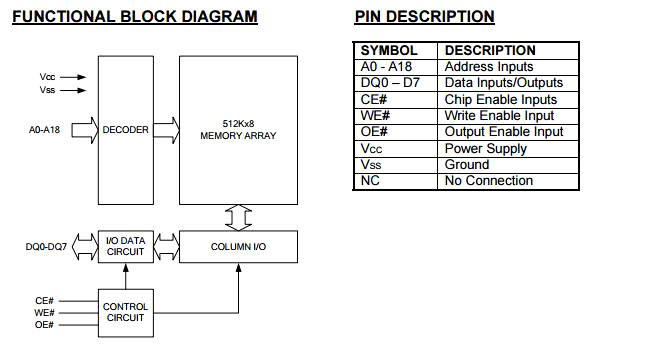

TheLY61L5128Ais a 4,194,304-bit high speed CMOS

static random access memory organized as 524,288

words by 8 bits. It is fabricated using very high

performance, high reliability CMOS technology. Its

standby current is stable within the range of operating

temperature.

The LY61L5128A operates from a single power

supply of 3.3V and all inputs and outputs are fully TTL

compatible

Package : 44-pin 400 mil TSOP-II

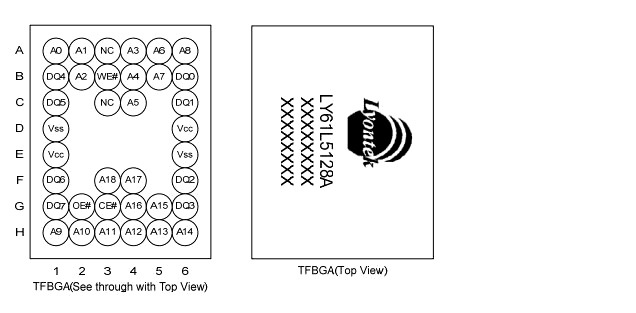

36-ball 6mm x 8mm TFBGA

Item No.

Density

Configuration

Power Supply

Isb

Package

LY615128

4M

512K × 8

5V

1.0mA(typ)

44 TSOP II

LY61L5128

4M

512K × 8

3.3V

0.5mA(typ)

36 BGA

LY61L5128A

4M

512K × 8

3.3V

2mA(typ)

36 BGA

LY6125616

4M

256K × 16

5V

0.1mA(typ)

44 TSOP II

LY61L25616

4M

256K × 16

3.3V

0.5mA(typ)

44 TSOP II

LY61L25616A

4M

256K × 16

3.3V

2mA(typ)

44 TSOP II

LY61L10248A

8M

1M × 8

3.3V

3.0mA(typ)

44 TSOP II

LY61L10268A

8M

1M × 8

3.3V

3.0mA(typ)

48 BGA

LY61L51216A

8M

512K × 16

3.3V

3.0mA(typ)

44 TSOP II

LY61L20498A

16M

2M × 8

3.3V

4.0mA(typ)

54 TSOP II

LY61L20508A

16M

2M × 8

3.3V

4.0mA(typ)

44 TSOP II

LY61L102416A

16M

1M × 16

1.8~3.3V

4.0mA(typ)

48 TSOP I

LY61L102516A

16M

1M × 16

3.3V

4.0mA(typ)

54 TSOP II
