Max. Clock 20 MHz

Low-Power CMOS Technology:

Read Current: 3 mA at 1 MHz

Standby Current: 4 µA Max. at 3.6V

32,768 x 8-bit Organization

32-Byte Page

HOLD pin

Flexible Operating modes:

Byte read and write

Page mode (32 Byte Page)

Sequential mode

Sequential Read/Write

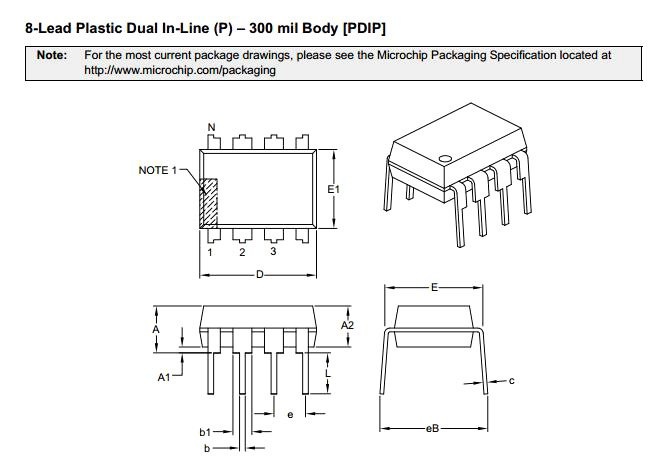

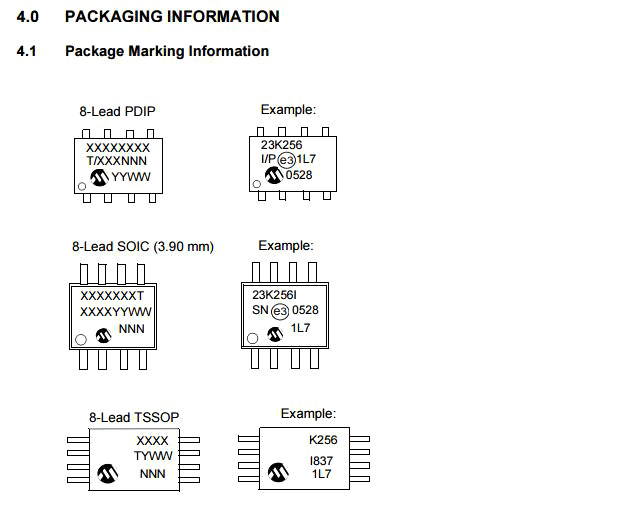

TheMicrochipTechnology Inc. 23X256 are 256 Kbit Serial SRAM devices. The memory is accessed via a simple Serial Peripheral Interface (SPI) compatible serial bus. The bus signals required are a clock input (SCK) plus separate data in (SI) and data out (SO) lines. Access to the device is controlled through a Chip Select (CS) input. Communication to the device can be paused via the hold pin (HOLD). While the device is paused, transitions on its inputs will be ignored, with the exception of Chip Select, allowing the host to service higher priority interrupts. The 23X256 is available in standard packages including 8-lead PDIP and SOIC, and advanced packaging including 8-lead TSSOP.

Den

Org

Part Number

Vcc

Temp. Ranges

Pkg(Pins)

256K

32Kx8

23K256

2.7-3.6V

I, E

P, SN, ST

32Kx8

23A256

1.5-1.95V

I

P, SN, ST
