SPI-Compatible Bus Interface:- 20 MHz Clock rate- SPI/SDI/SQI mode

Low-Power CMOS Technology:- Read Current: 3 mA at 5.5V, 20 MHz- Standby Current: 4 µA at +85°C

Unlimited Read and Write Cycles

Zero Write Time

64K x 8-bit Organization:- 32-byte page

Byte, Page and Sequential mode for Reads andWrites

High Reliability

Pb-Free and RoHS Compliant, Halogen Free

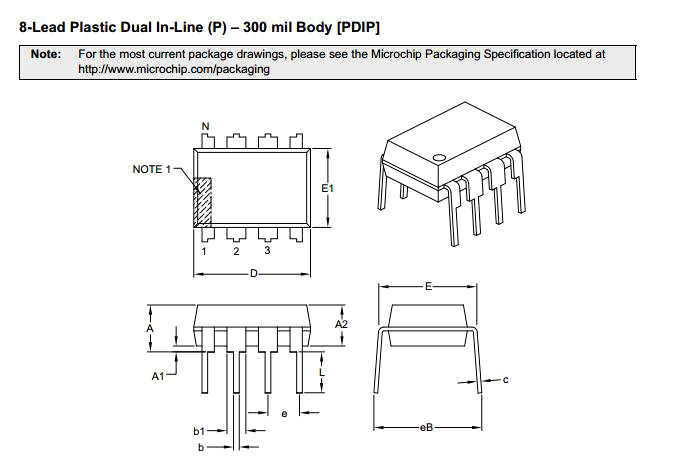

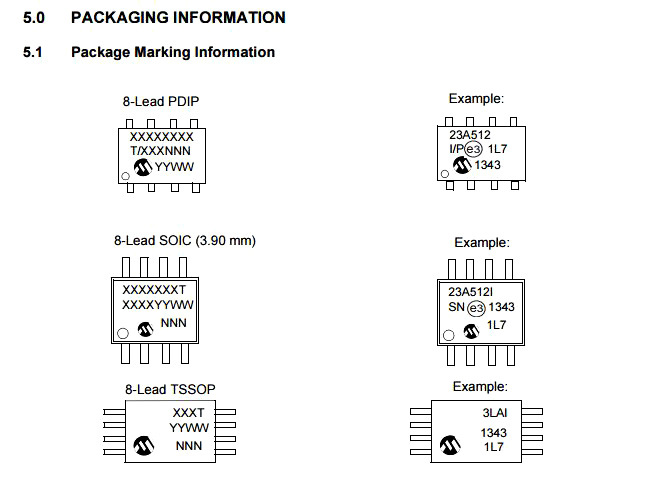

8 Lead SOIC, TSSOP and PDIP Packages

Temp Range: -40°C to +85°C

TheMicrochipTechnology Inc. 23A512/23LC512 are 512 Kbit Serial SRAM devices. The memory is accessed via a simple Serial Peripheral Interface (SPI) compatible serial bus. The bus signals required are a clock input (SCK) plus separate data in (SI) and data out (SO) lines. Access to the device is controlled through a Chip Select (CS) input. Additionally, SDI (Serial Dual Interface) and SQI (Serial Quad Interface) is supported if your application needs faster data rates. This device also supports unlimited reads and writes to the memory array. The 23A512/23LC512 is available in standard packages including 8-lead SOIC, PDIP and 8-lead TSSOP.

Den

Part Number

Vcc

Temp. Ranges

Pkg(Pins)

512K

23A512

2.7-3.6V

I, E

SN, ST, P

23LC512

1.5-1.95V

I, E

SN, ST, P
