品牌：JSC(Emlsi)
型号：EM641FV16F-45LF
512K x8 bit Super Low Power and Low Voltage Full CMOS Static RAM
Features Introdution
|

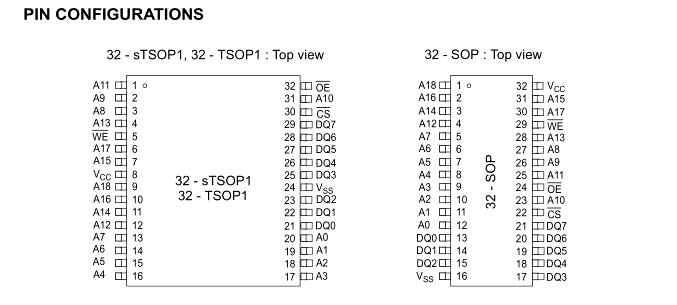

• Process Technology : 0.18µm Full CMOS • Organization : 512K x 8 bit • Power Supply Voltage : 2.7V ~ 3.6V • Low Data Retention Voltage : 1.5V (Min) • Three state output and TTL Compatible • Package Type - 32-sTSOP1, 32-TSOP1, 32-SOP
|
The EM641FV8F families are fabricated by EMLSI’s advanced full CMOS process technology. The families support industrial temperature range and Chip Scale Package for user flexibility of system design. The families also supports low data retention voltage for battery back- up operation with low data retention current. |
Key Parameters
| Product Family | Operating Temperature | Vcc Range | Speed | Power Dissipation | PKG Type |
|
| Standby (ISB1, Typ.) | Operating (ICC1.Max.) | |||||
| EM641FV8F | Industrial (-40 ~ 85oC) |
2.7 ~ 3.6 V | 45/55/70 ns | 2) | 3 mA | KGD |
| EM641FV8FS - xx1)LF | 32-sTSOP1 | |||||
| EM641FV8FT - xx1)LF | 32-TSOP1 | |||||
| EM641FV8FV - xx1)LF | 32-SOP | |||||
|
