High-speed access time: 10ns, 12ns

High- performance, low power CMOS process

Multiple center power and ground pins for

greater noise immunity

Easy memory expansion with CS# and OE#

TTL compatible inputs and outputs

Single power supply

VDD 2.4V to 3.6V

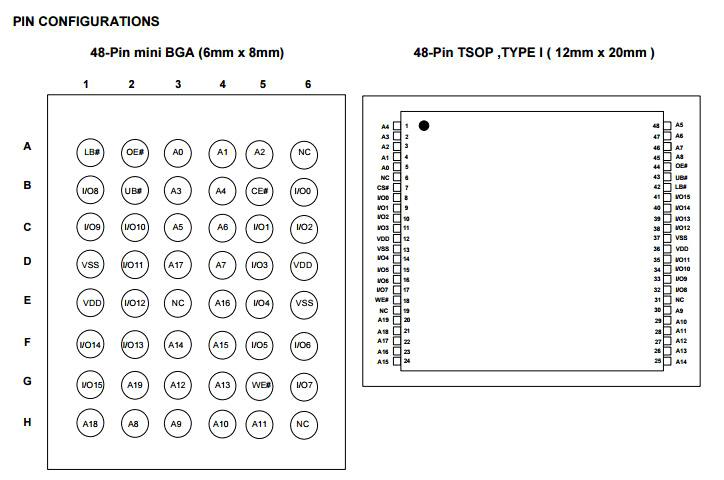

Packages available :

- 48 ball mini BGA (6mm x 8mm)

- 48 pin TSOP (Type I)

Industrial and Automotive temperature support

Lead-free available

Data Control for upper and lower bytes

The ISSI IS61/64WV102416DBLL are high-speed, 16M bit

static RAMs organized as 1024K words by 16 bits. It is

fabricated using ISSI's high-performance CMOS technology.

This highly reliable process coupled with innovative circuit

design techniques, yields high-performance and low power

consumption devices.
