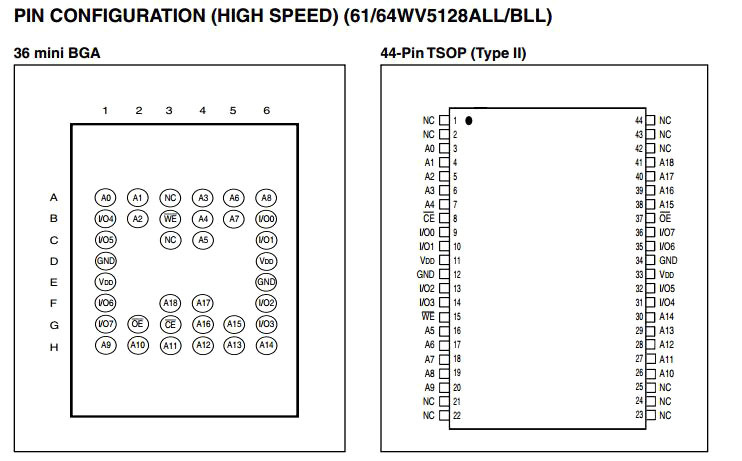

HIGH SPEED: (IS61/64WV5128ALL/BLL)

High-speed access time: 8, 10, 20 ns

Low Active Power: 85 mW (typical)

Low stand-by power: 7 mW (typical)

CMOS standby

LOW POWER: (IS61/64WV5128ALS/BLS)

High-speed access time: 25, 35 ns

Low Active Power: 35 mW (typical)

Low stand-by power: 0.6 mW (typical)

CMOS standby

Single power supply

—Vdd 1.65V to 2.2V (IS61WV5128Axx)

—Vdd 2.4V to 3.6V (IS61/64WV5128Bxx)

Fully static operation: no clock or refresh

required

Three state outputs

Industrial and Automotive temperature support

Lead-free available

The ISSI IS61WV5128Axx and IS61/64WV5128Bxx

are very high-speed, low power, 524,288-word by

8-bit CMOS static RAMs. The IS61WV5128Axx and

IS61/64WV5128Bxx are fabricated using ISSI's highperformance

CMOS technology. This highly reliable process

coupled with innovative circuit design techniques,

yields higher performance and low power consumption

devices.
