256-Kbit nonvolatile static random access memory (nvSRAM)

 25 ns and 45 ns access times

 Internally organized as 32 K × 8 (CY14B256KA)

 Hands off automatic STOREon power-down with only a small

capacitor

 STORE to QuantumTrap nonvolatile elements is initiated by

software, hardware, or AutoStore on power-down

 RECALL to SRAM initiated on power-up or by software

 High reliability

 Infinite Read, Write, and RECALL cycles

 1 million STORE cycles to QuantumTrap

 20 year data retention

 Real time clock (RTC)

 Full-featured real time clock

 Watchdog timer

 Clock alarm with programmable interrupts

 Capacitor or battery backup for RTC

 Backup current of 0.35 µA (Typ)

 Industry standard configurations

 Single 3 V +20%, –10% operation

 Industrial temperature

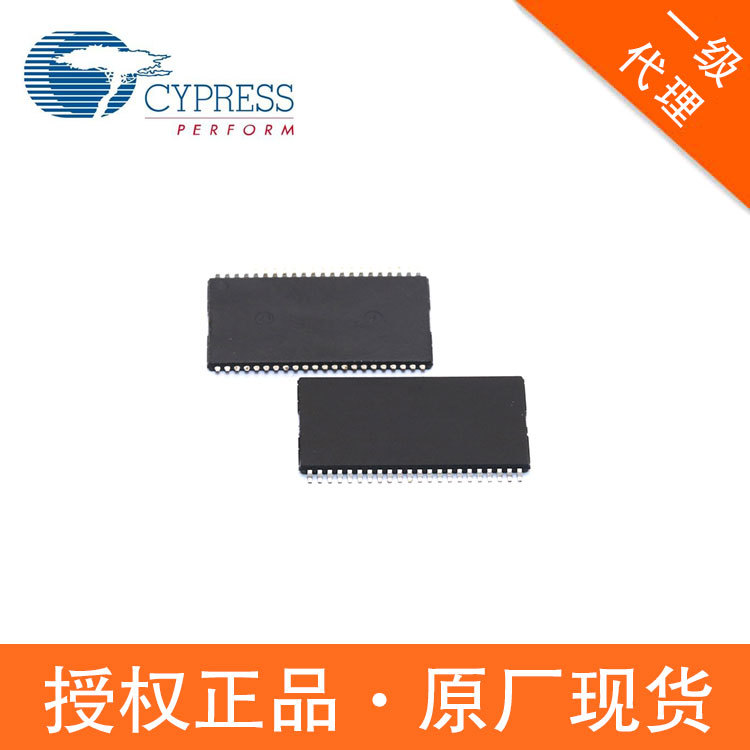

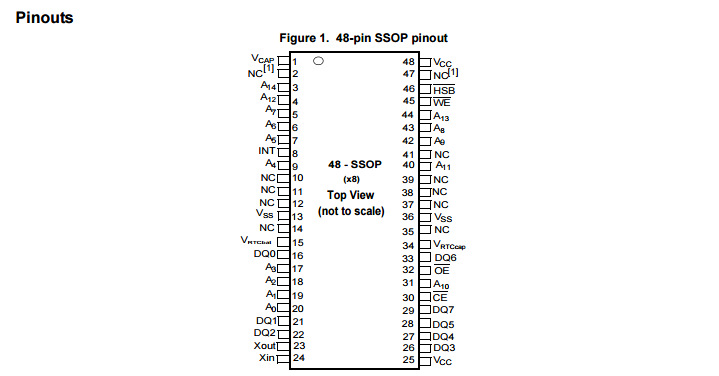

 48-pin shrink small-outline package (SSOP)

 Pb-free and Restriction of hazardous substances (RoHS)

compliant

The Cypress CY14B256KA combines a 256-Kbit nonvolatile

static RAM with a full featured real time clock in a monolithic

integrated circuit. The embedded nonvolatile elements

incorporate QuantumTrap technology producing the world’s

most reliable nonvolatile memory. The SRAM is read and written

an infinite number of times, while independent nonvolatile data

resides in the nonvolatile elements.

The real time clock function provides an accurate clock with leap

year tracking and a programmable, high accuracy oscillator. The

alarm function is programmable for periodic minutes, hours,

days, or months alarms. There is also a programmable watchdog

timer for process control.
