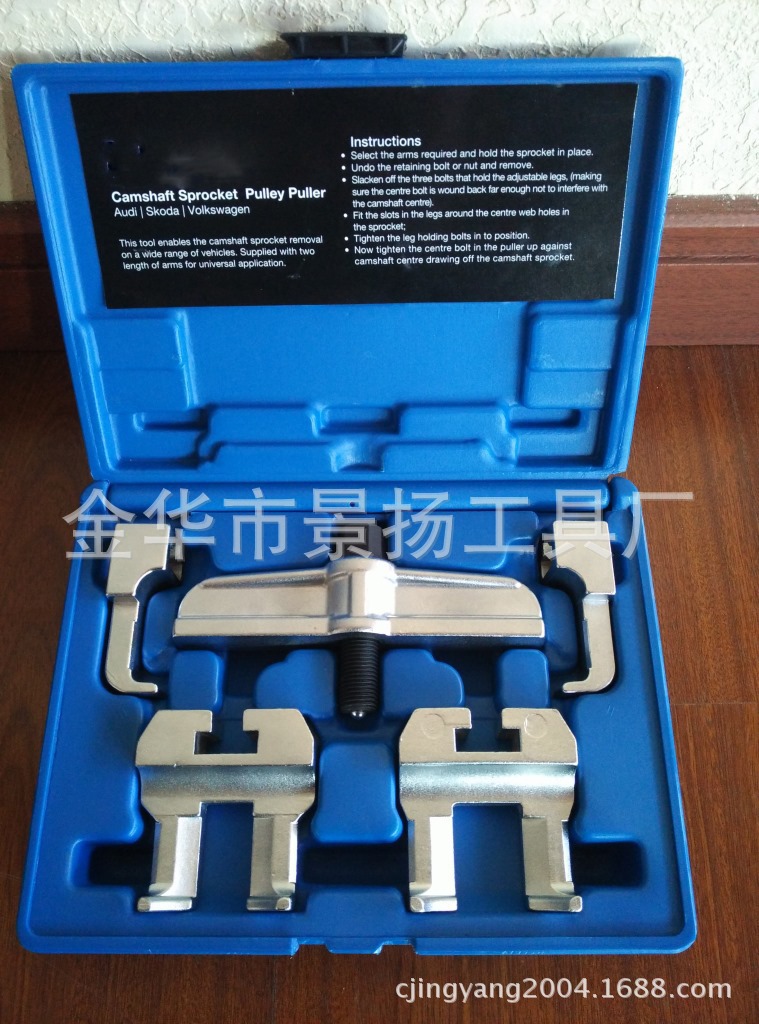

Specifically designed for use on Audi and Volkswagen V6/V8 engines with 4/6 cylinders and 5/6 spoke camshaft pulleys.
The three type of pulling arms will fit any number of spokes on the camshaft sprocket.
Enables the camshaft sprocket removal on a wide range of vehicles.Supplied with two length of arms for universal application.
Instructions:
Select the arms required and hold the sprocket in place.
Undo the retaining bolt or nut and remove.
Slacken off the three bolts that hold the adjustable legs,(making sure the centre bolt is wound back far enough not to interfere with the camshaft centre).
Fit the slots in the legs around the centre web holes in the sprocket.
Tighten the leg holding bolts in to position.
Now tighten the centre bolt in the puller up against camshaft centre drawing off the camshaft sprocket.
Contents:
1.23mm wide spokes for odd number of spokes.
2.17mm narrow for spokes.
3.2 x universal tool for even number of spokes.
4.Hex head 17mm with ball end for reducing damage to sprocket.
