Model Number

SH-DMSD50

SH-DMSD200

SH-DMSD400

Accuracy

CW:±3%
CCW:±4%

Maximum

operating range

50cN-m
4.42in-lb
5.1kg-cm

200cN-m
17.7in-lb
20.41kg-cm

400cN-m
35.39in-lb
40.82kg-cm

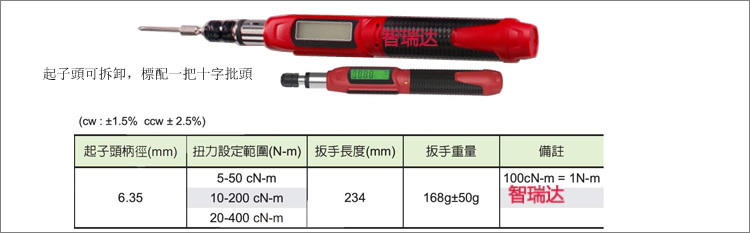

SettingRange

5~50cN-m
0.44~4.42in-lb
0.51~5.1kg-cm

10~200cN-m
0.88~17.7in-lb
1.02~20.41kg-cm

20~400cN-m
1.77~35.39in-lb
2.04~40.82kg-cm

Minimal scale unit

0.1 cN-m
0.01 in-lb
0.01 kg-cm

0.1 cN-m
0.01 in-lb
0.01 kg-cm

0.1 cN-m
0.01 in-lb
0.01 kg-cm

Number of memory parameters

30

LED

2 LED(1 GREEN + 1 RED )

Vibration warning

Yes (if torque achieves a setting value of 90 %, the vibration warning will begin)

Operating modes

Peak hold(K) / Track(F)

Torque Units

cN-m, in-lb, kg-cm

Batterylife
(Continuous operation)

110hrs.

Batterylife
(Standby mode)

1 year

Operating temperature

-10℃~60℃

storage

temperature

-20℃~70℃

Humidity

Up to 90%non-condensing

Drop test

1m

Shaking test

10G

Service life test

10000 cycle

Environment test

Pass

Electromagnetic- Compatibility (EMC) test

Pass
