糖度计RZ113  盐度计RZ112  冰点仪RZ115 外观一致  操作步骤一致  区别在于目镜的显示，目镜详细显示请在主图使用放大镜查看！

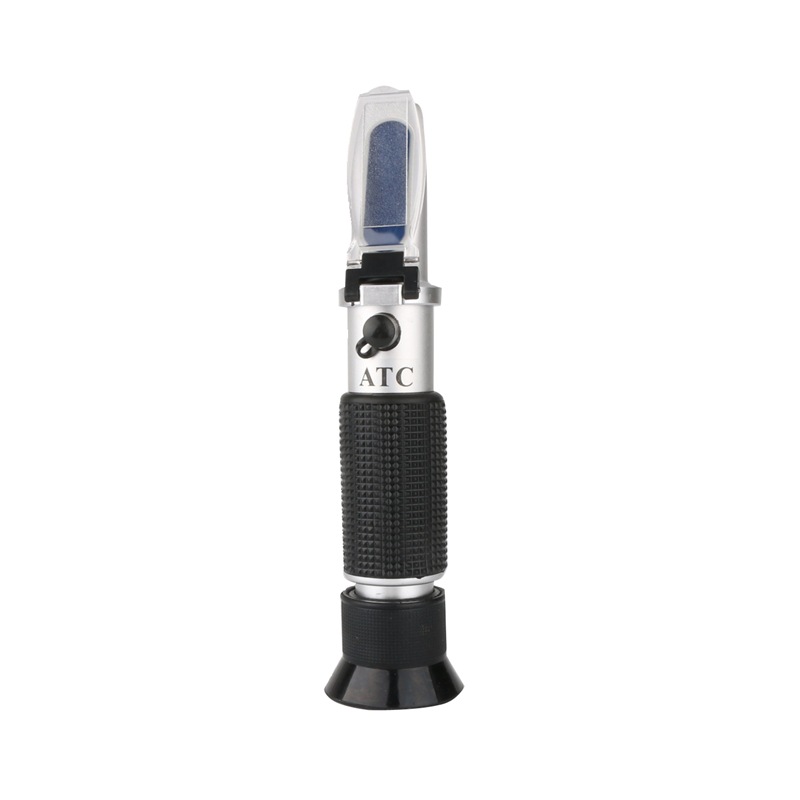

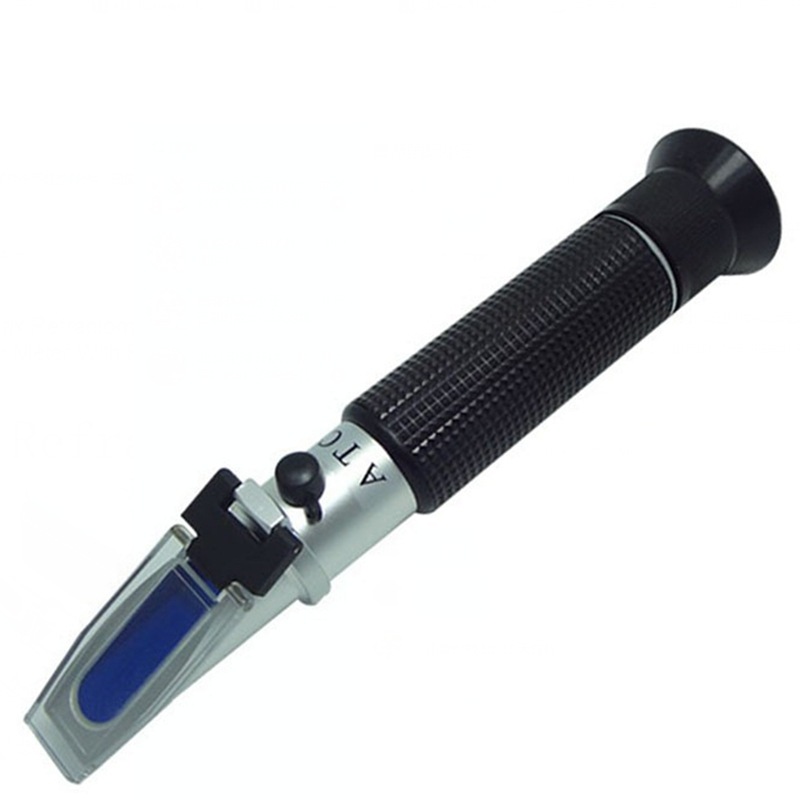

RZ113 手持式糖量计手持糖量计系精密光学仪器。用来直接测定含糖溶液的浓度及间接测定其它溶液的浓度。

该仪器使用方便,测量快速,准确。用于制糖,食品,饮料,酿酒,医院,制药及农业科研等行业。此外,还可用来测定纺织浆液,各种机械的液压系统中乳化液的浓度等。

用途：

广泛用于制糖.食品.饮料.农业科研.化工.纺织.机械加工等行业.

手持折光仪测量范围0-32% 水果甜度计.饮料糖度计盐度计.糖度计,水果糖度计.手持糖度计.折光仪, ,盐度计.手持糖度折光仪.机械、化工手持糖度、养殖糖度计、造酒手持糖度折光仪、食品用手折光仪.

它具有快速、准确、重量轻、体积小等优点。

使用方法：

打开盖板（3），用软布仔细擦净检测棱镜（2）。取待测溶液数滴，置于检测棱镜上，轻轻合上盖板，避免气泡产生，使溶液遍布棱镜表面。将仪器进光板（3）对准光源或明亮处，眼睛通过目镜观察视场，转动目镜调节手轮（6），使视场的蓝白分界线清晰。分界线的刻度值即为溶液的浓度

技术参数

测量范围：0-32%
精度：0.2%
ATC自动温度补偿性
主材为：铝
仪器配件：

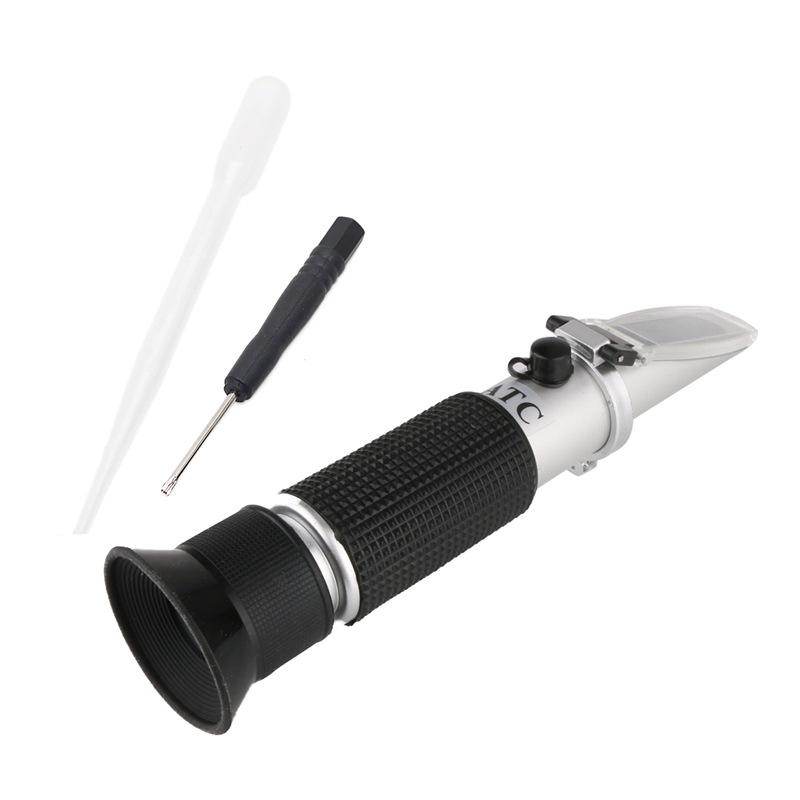

仪器一只，吸管一个，螺丝刀一个，包装盒子一只，说明书一份，擦拭布一份

单个产品包装重量：228克

This hand-held optical refractometer measures the density of sugars in the solution and gives you an instant gravity readings at any point during the boil, or run off from the mash. You do not need to convert the reading from Brix to specific gravity or do an adjustments for temperature. Great for quick and frequent check on the gravity of your running or while sparging, and also for those who do not like to deal with the temperature compensation necessary with a hydrometer. Unlike a hydrometer, it only requires a very small amount sample, about 2-3 drops of sample only.

fruits, vegetables & grasses: monitor and control sugar concentrations in foods, beverages, crops and plants, checking the “ripeness”of fruit in the field and verifying product quality after harvesting and/or controlling concentrations during processing and packaging to ensure product quality

wine or beer: use Brix readings to get wort sugars and help determine finished alcohol readings (for alcohol reading, best use in conjunction with a hydrometer)

metalworking fluids:helps in maintenance of CNC coolants and water soluble drawing & stamping compounds and commonly used for controlling the concentration of various industrial fluids like cutting lubricants and flux rinsing compounds

The need to consult temperature correction charts is eliminated with the built-in 10-30°C ATC. The unit also comes with a manual calibration knob that is secured with a lock nut and has a brighter display than the more narrow range refractometers.One of the popular instrument with many homebrewers!

Brix Scale

Full range0 to 32% Brix scalewith0.2% scale division

Engineered with sturdy metal body, made ofdurable Aluminum

Hand held and require ambient light source only

Rubberized grip handle

Adjustable diopter (focusing ring)

Compact and portable

Heavy-duty and lightweight

Built to last long

Largest and sharpest display scale available

Soft and flexible eyepiece for comfortable viewing

Easy to calibrate

High quality and accurate testing results are guaranteed

Provide quick,accurate measurementsof aqueous solutions

Measuring Range:0~ 32% Brix Scale

Accuracy:±0.2% Brix

Scale Divisions:0.2% Brix

Automatic Temperature Compensation (ATC): 10°C~30°C (50°F~86°F)

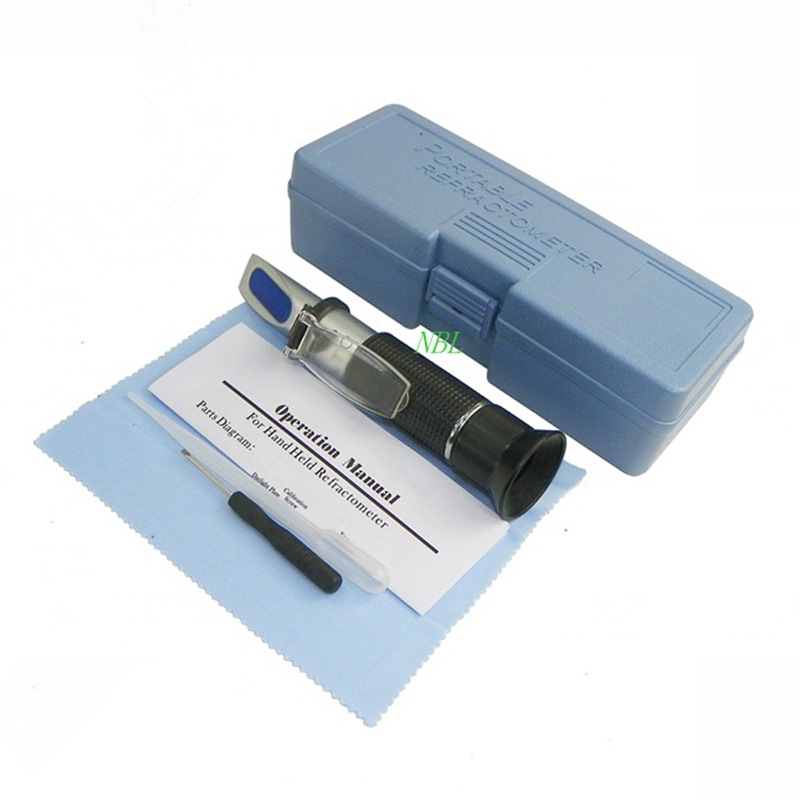

1 x 0~32% Brix Wort SG Refractometer

1 x Calibration mini-screwdriver

1 x English Instruction manual

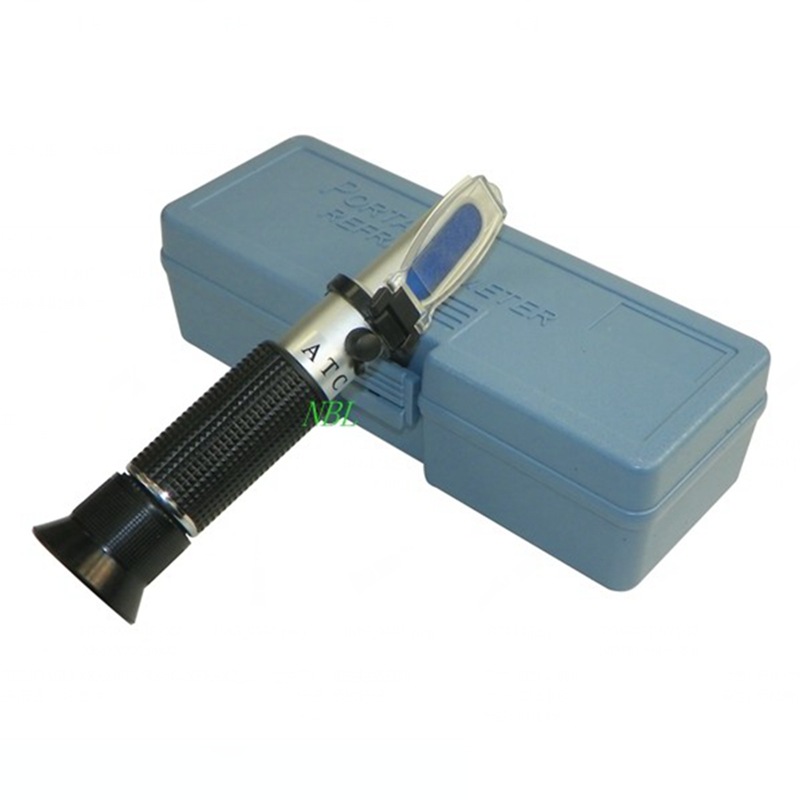

1 x Plastic Case

1 x Moisture absorbent pack

EASY TO USE:Simply place about 2-3 drops to the prism face, close cover and make sure the glass has no dry spots or air bubbles. Wait 30 seconds to allow the sample to come to ambient temperature and look through the eyepiece while aiming your refractometer at a light source.
