产品型号：1616

适用范围极为广泛，可适用于衣柜、橱柜、酒柜、鞋柜等。同时也可挂于墙壁作为起夜、进门灯使用

1、采用12颗高亮度SMD LED

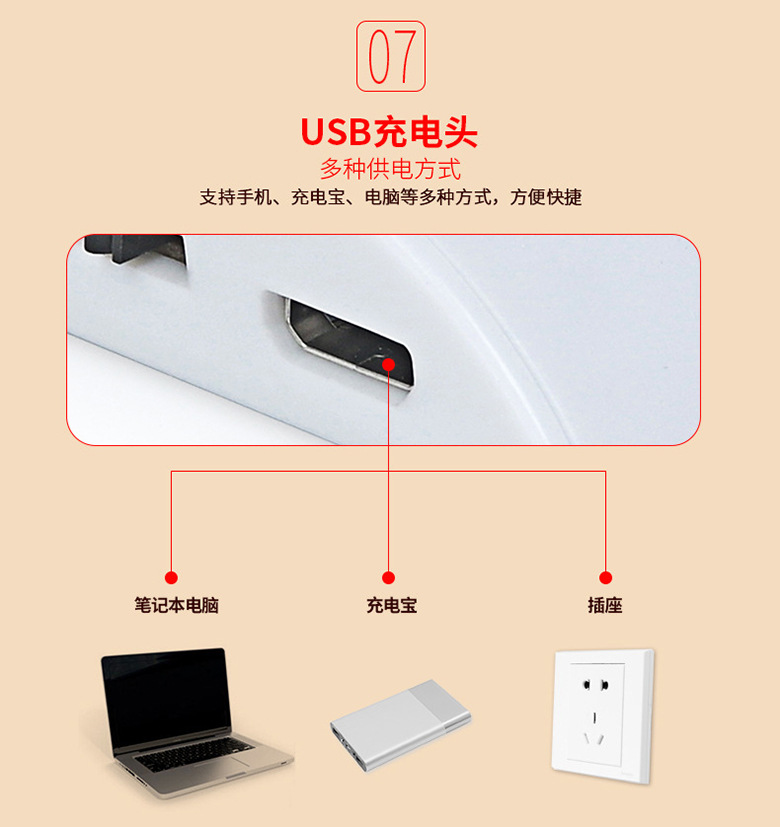

2、使用USB锂电池充电，无需更换电池，使用更加方便

3、充电电池容量：600毫安

整机工作电流： 180  毫安

4、按一天使用20次，每次亮灯15秒，可连续使用2个月左右才需充电

5、LED寿命： 30000 小时以上 ,LED亮度：240lm以上

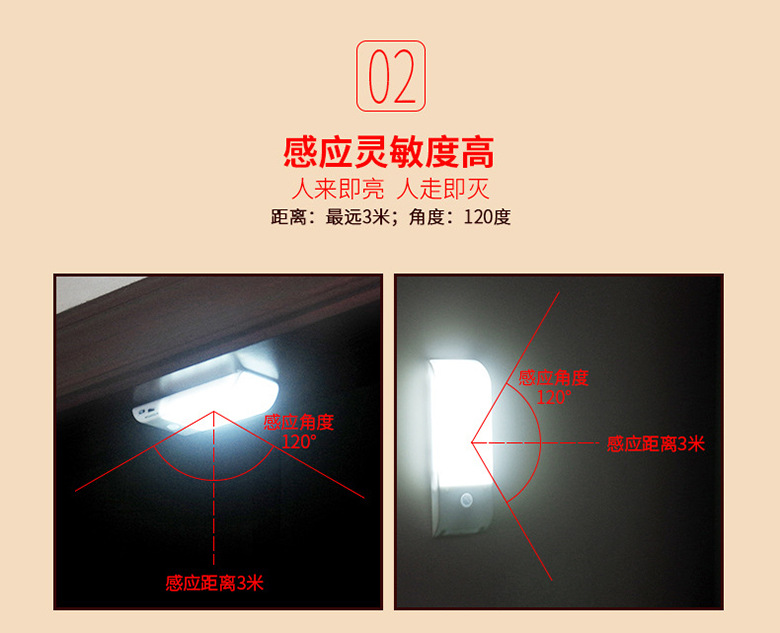

6、感应灵敏距离：最远3米,感应灵敏角度：水平60度，垂直30度

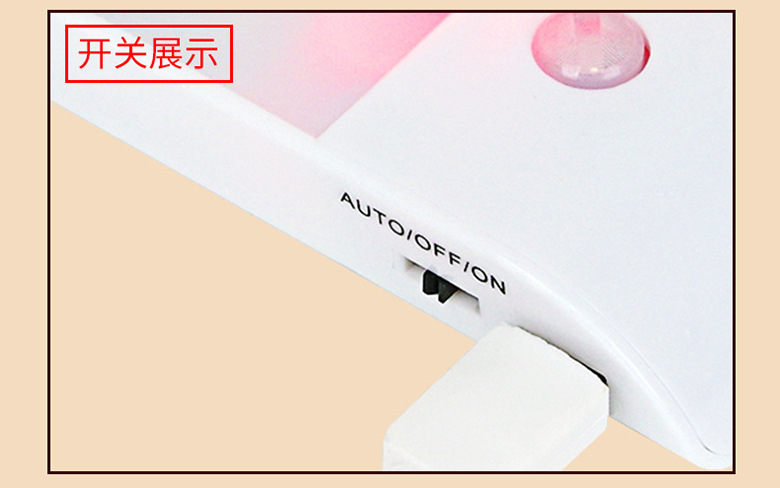

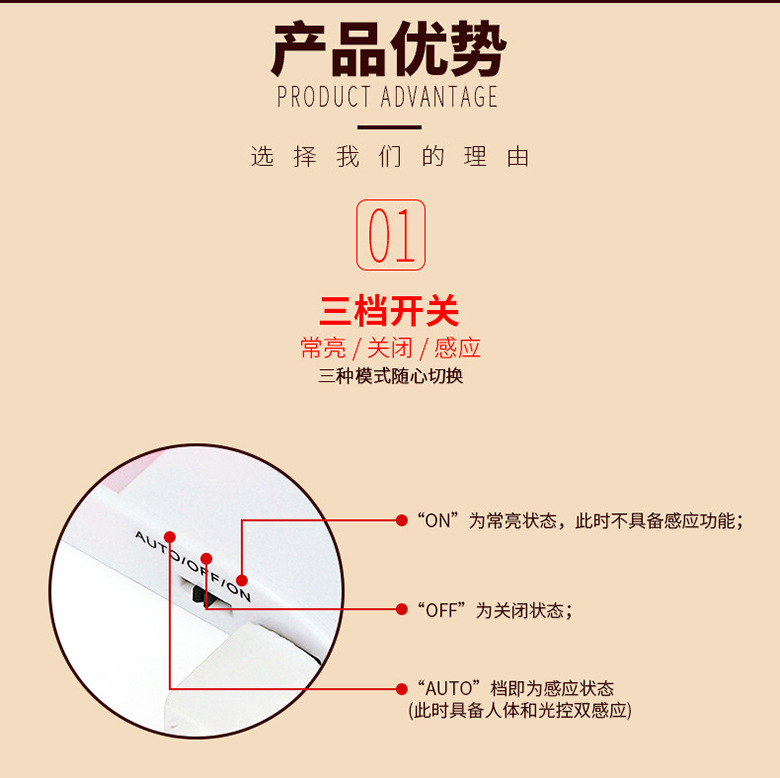

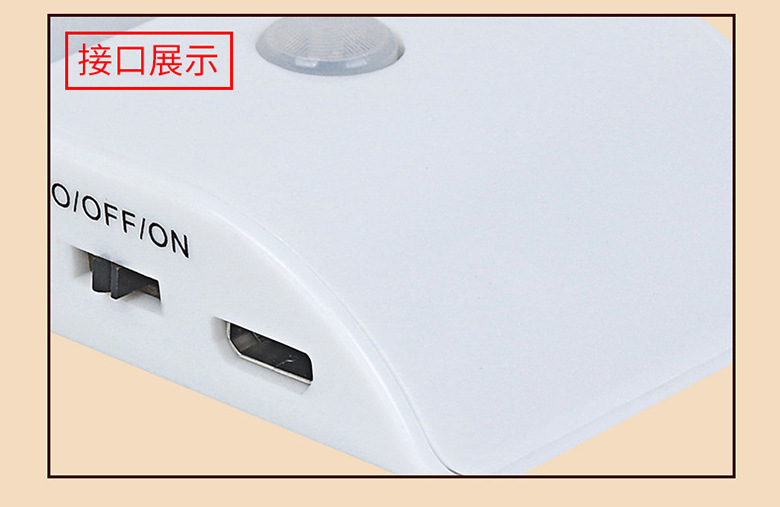

7、三档开关：

“ON”为常亮状态，此时不具备感应功能；

“OFF”为关闭状态

“AUTO”档即为感应状态(此时具备人体和光控双感应)

8、产品工作环境温度：0℃-40℃

工作环境湿度：5%-93%

9、工作电压DC3-4.2V

10、产品毛重：90g

11、产品尺寸：120X38X17mm(长X宽X高）

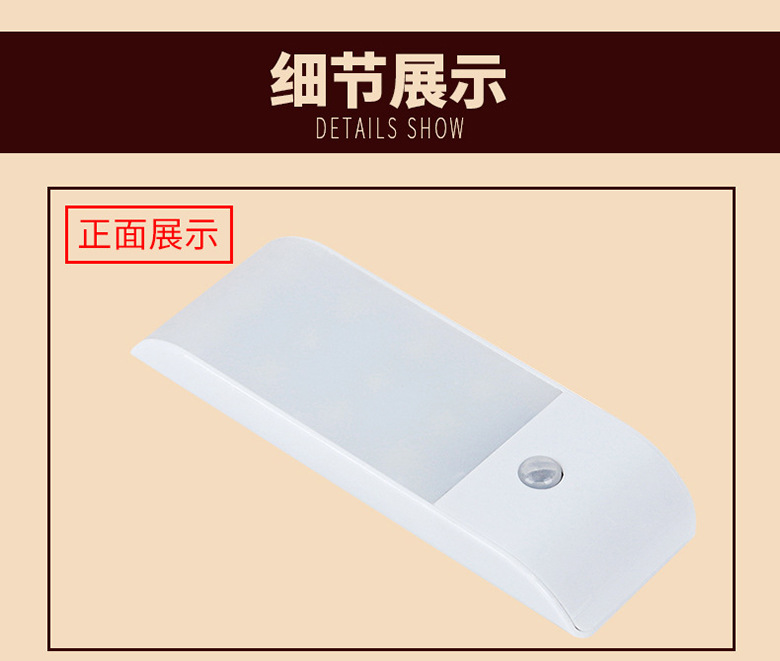

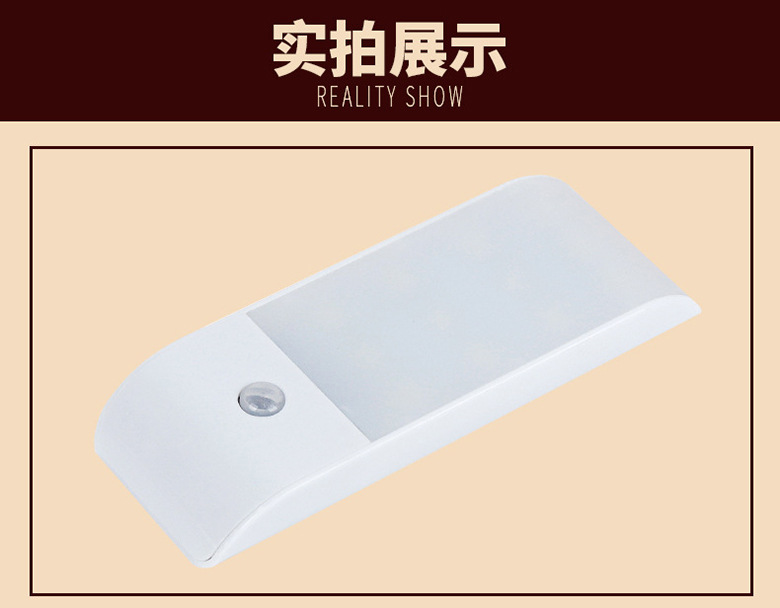

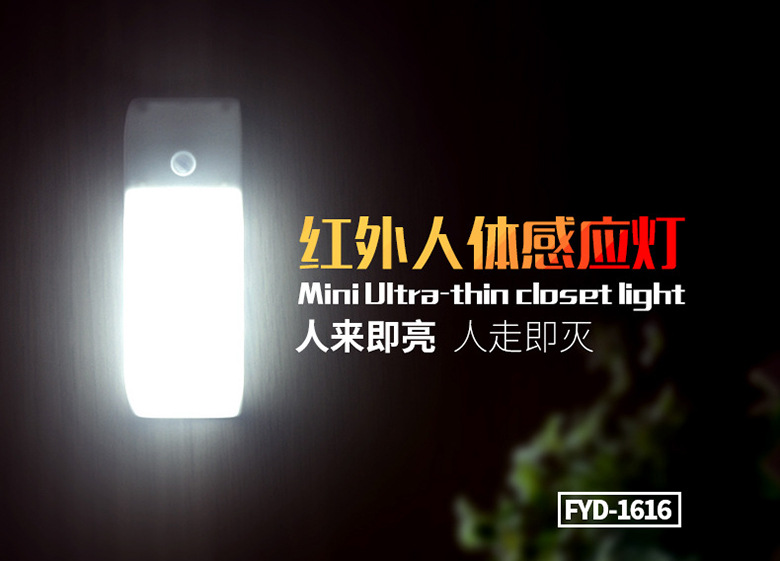

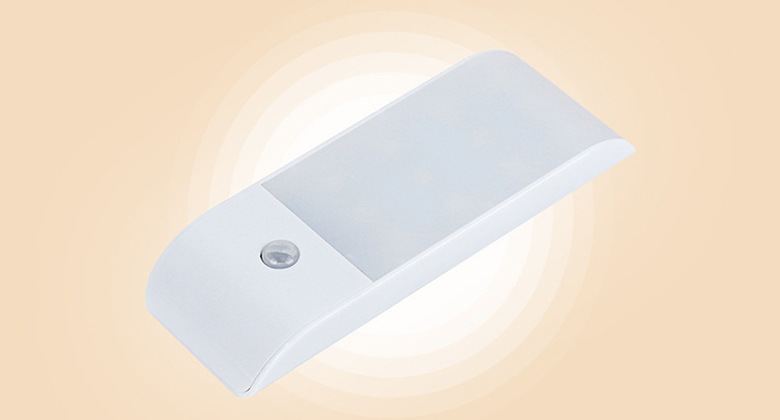

Mini Ultra-thin closet light

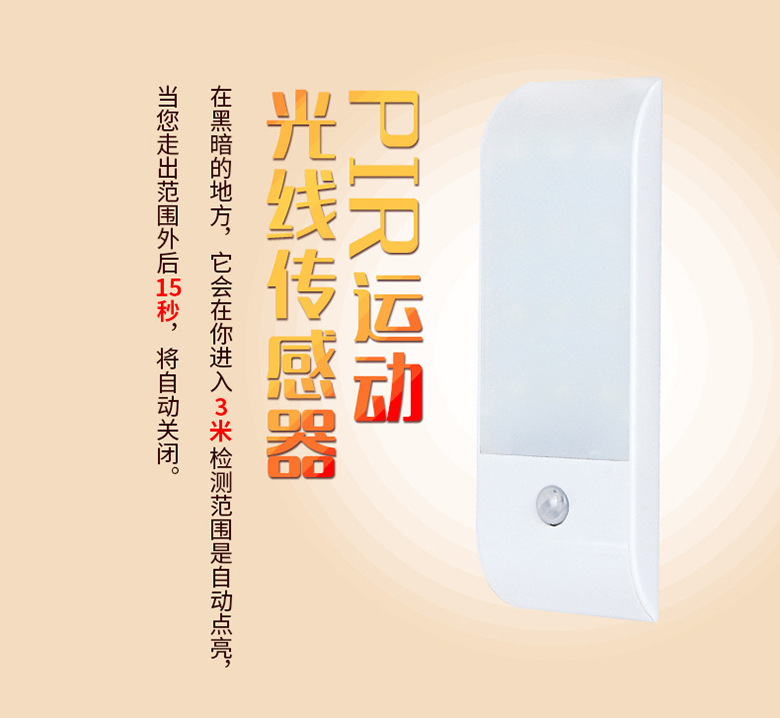

PIR Motion & light sensor: At dark place, it will light up automatically when you get into 10ft detection range, and auto go out 15 seconds after you get out of the range;

Suitable for stairway, drawer, under-cabinet, pantry, bedroom, wardrobe, workshop, bookshelf, attic, closet, basement, hallway, corridor, headboard, trunk lighting, etc.

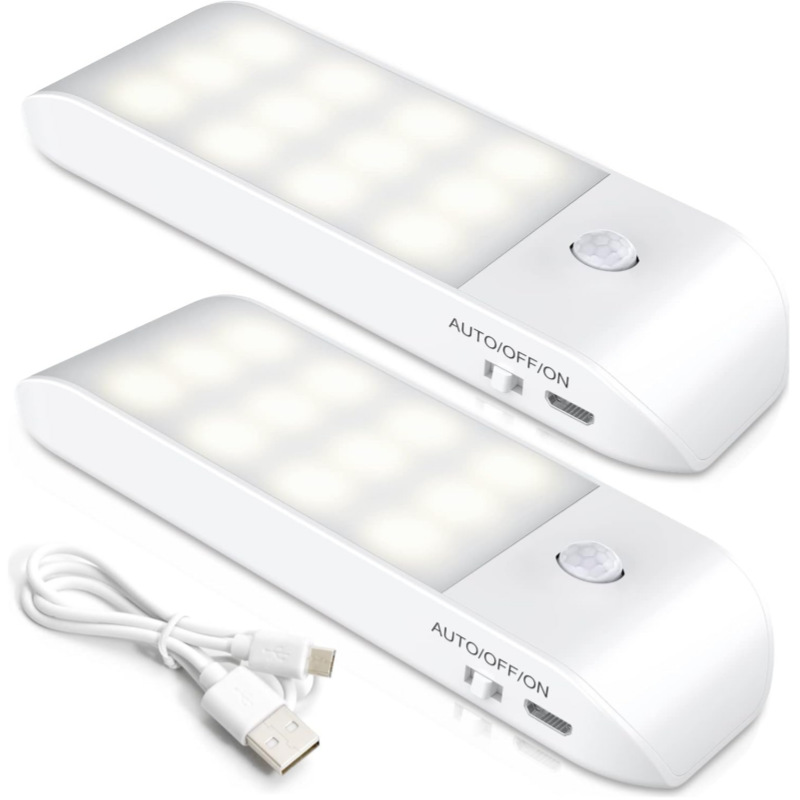

Three modes

ON: constant lighting

OFF: turn light off

AUTO: auto-sensing state, light up automatically in the dark when motion is

Rechargeable: Built-in 600mah lithium battery,It can last for 4 hours when fully charged at ON mode and Last 2 months at AUTO mode. Compatible with wall charger, PC USB port;

High brightness: pure white 180lm, 12pcs high bright Epistar SMD LED chips, environment friendly and low power consumption;

Compact motion sensor LED under cabinet light adopt with high bright Epistar 2835 LED light source, combining passive infrared (PIR) technology to detect motions.

Under AUTO mode, it will light up automatically in the dark when a motion is detected and auto turn off for hands-free convenience.

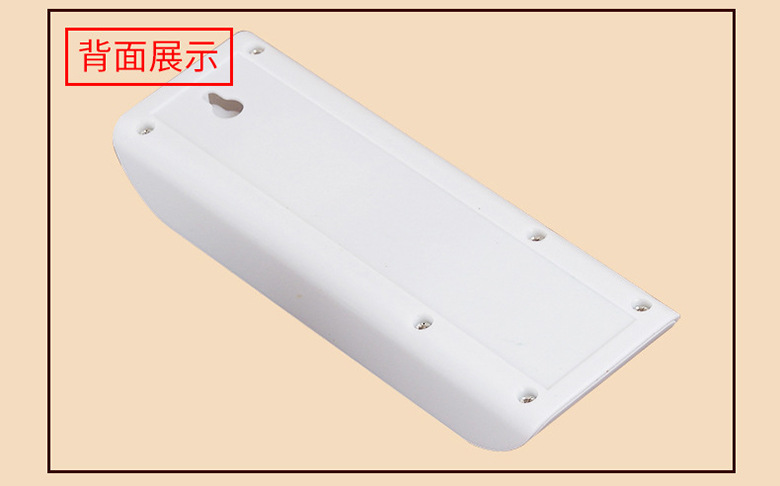

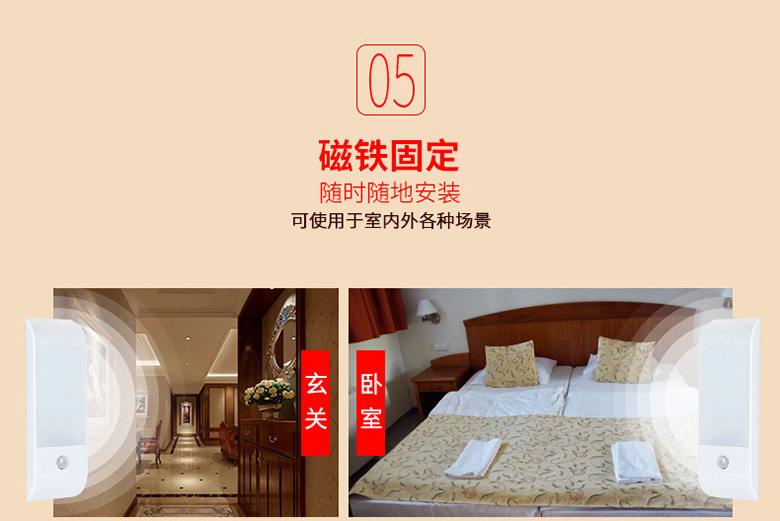

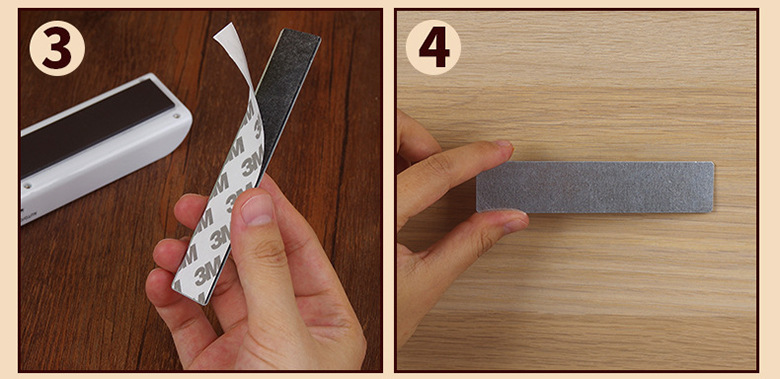

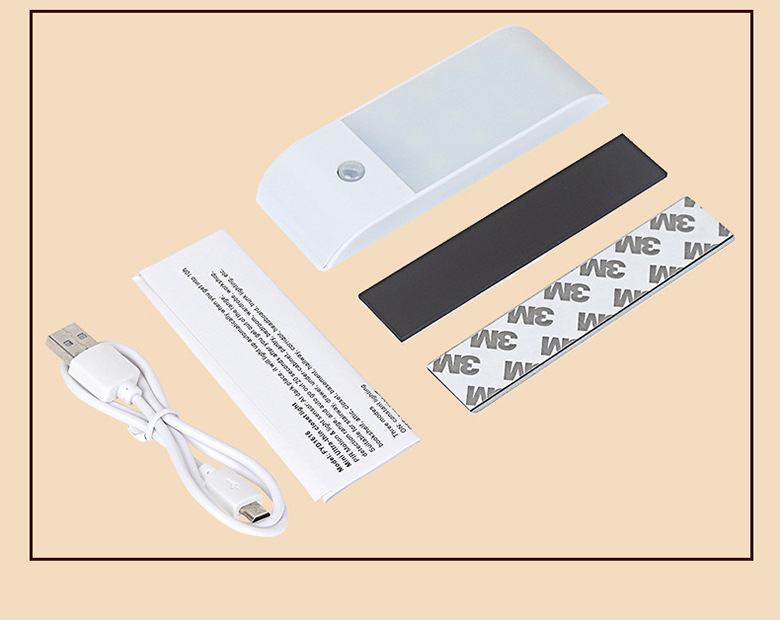

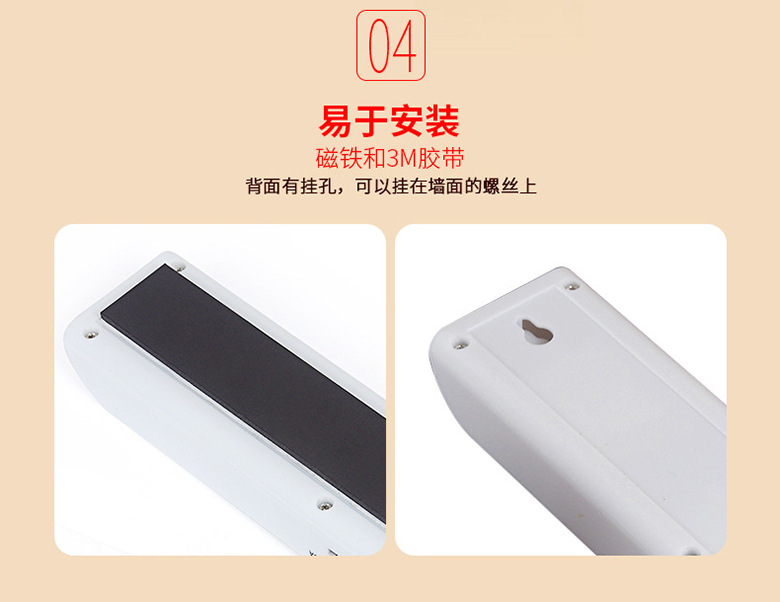

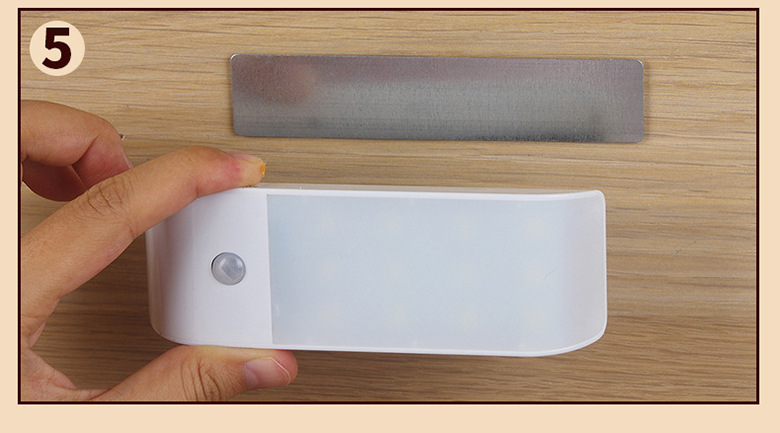

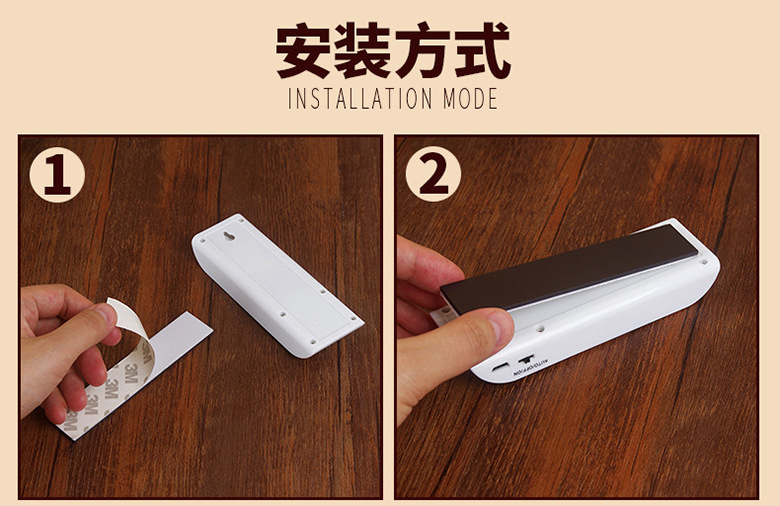

Easy installation: magnet and 3M adhesive tape, could be hung and stick-on No tools, screws or nuts are required when installation.

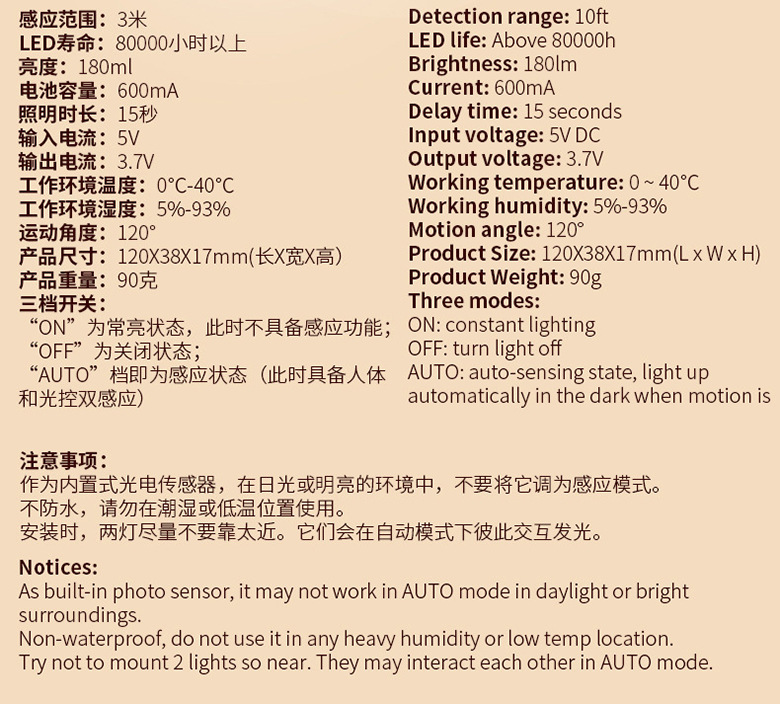

Detection range: 10ft

LED life: Above 80000h

Current: 600mA

Delay time: 15 seconds

Input voltage: 5V DC

Output voltage: 3.7V

Brightness: 180lm

Working temperature: -10 ~ 50℃

Motion angle: 120°

Product Size(L x W x H): 120X38X17mm

Notices

-As built-in photo sensor, it may not work in AUTO mode in daylight or bright surroundings.

-Non-waterproof, do not use it in any heavy humidity or low temp location.

-Try not to mount 2 lights so near. They may interact each other in AUTO mode.
