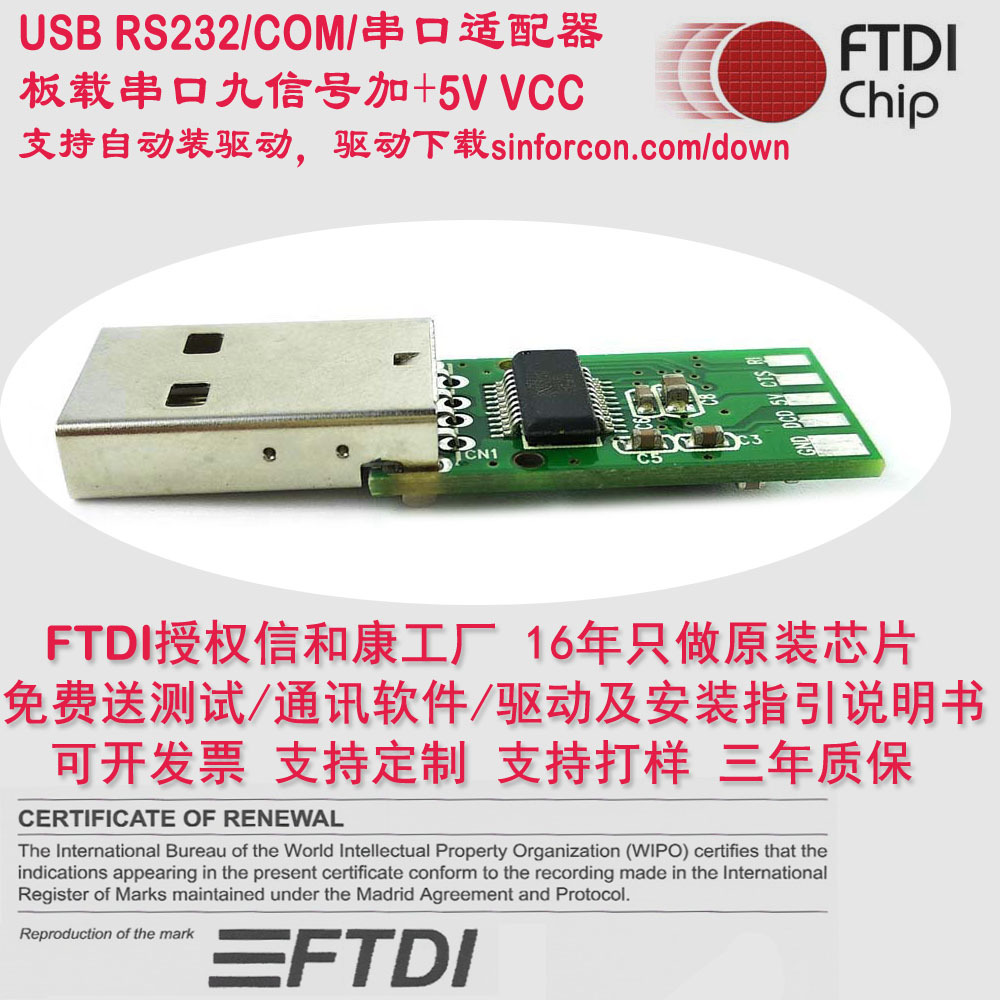

FTDI ft231x usb rs232 高速串口转换板

USB转RS232串口板模块

FTDI芯片 原装进口 性能稳定 实测7*24小时无乱码

单口RS232 标准信号，支持DB9 九针全接

支持WIN8/10/11 支持mac Android Linux, win CE, Server, etc

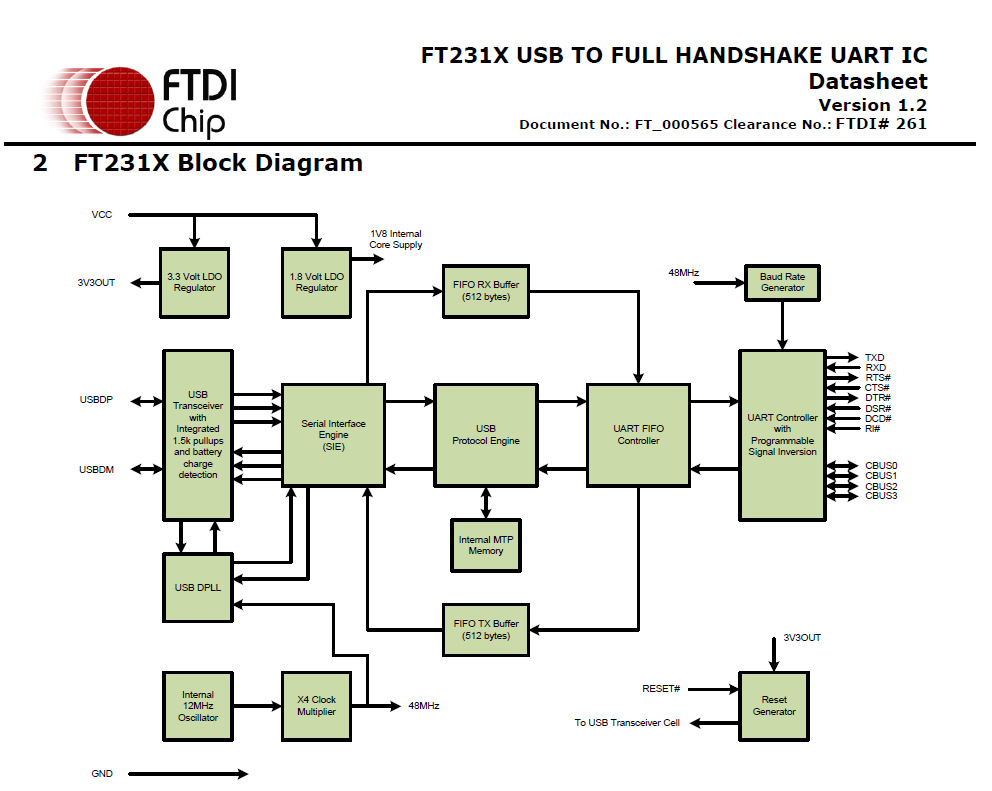

About FT231X

Single chip USB to asynchronous serial data transfer interface.
Entire USB protocol handled on the chip. No USB specific firmware programming required.
Fully integrated 2048 byte EEPROM for storing device descriptors and CBUS I/O configuration.
Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA.
Data transfer rates from 300 baud to 3 Mbaud.
512 byte receive buffer and 512 byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.
FTDI royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases.
Configurable CBUS I/O pins.
Transmit and receive LED drive signals.
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity
Synchronous and asynchronous bit bang interface options with RD# and WR# strobes.
Battery Charger Detection. May be used by mobile devices to detect the presence of a charger on the USB port to enable higher current / faster charging of batteries.
Device supplied pre-programmed with unique USB serial number.
Supports bus powered, self powered and high-power bus powered USB configurations.
Integrated +3.3V level converter for USB I/O.
True 3.3V CMOS drive output and TTL input.
(operates down to 1V8 with external pull ups and is also 5V tolerant)
Configurable I/O pin output drive strength.
Integrated power-on-reset circuit.
UART signal inversion option.
Internal 3.3V/1.8V LDO regulators
Low operating current of 8mA (typical) and USB suspend current of 125uA (typical) current.
Low USB bandwidth consumption.
UHCI/OHCI/EHCI host controller compatible.
USB 2.0 Full Speed compatible.
Extended operating temperature range: -40c to 85c
Available in compact Pbfree 20 Pin SSOP and QFN packages (both RoHS compliant).

Typical application

USB to RS232/RS422/RS485 Converters
Upgrading Legacy Peripherals to USB
Cellular and Cordless Phone USB data transfer cables and interfaces
Interfacing MCU/PLD/FPGA based designs to USB
USB Audio and Low Bandwidth Video data transfer
PDA to USB data transfer
USB Smart Card Readers
USB Instrumentation
USB Industrial Control
USB MP3 Player Interface
USB FLASH Card Reader and Writers
Set Top Box PC - USB interface
USB Digital Camera Interface
USB Hardware Modems
USB Wireless Modems
USB Bar Code Readers
Dedicated Charger Port (DCP) detection enabling battery charging at higher current for faster charge times.
