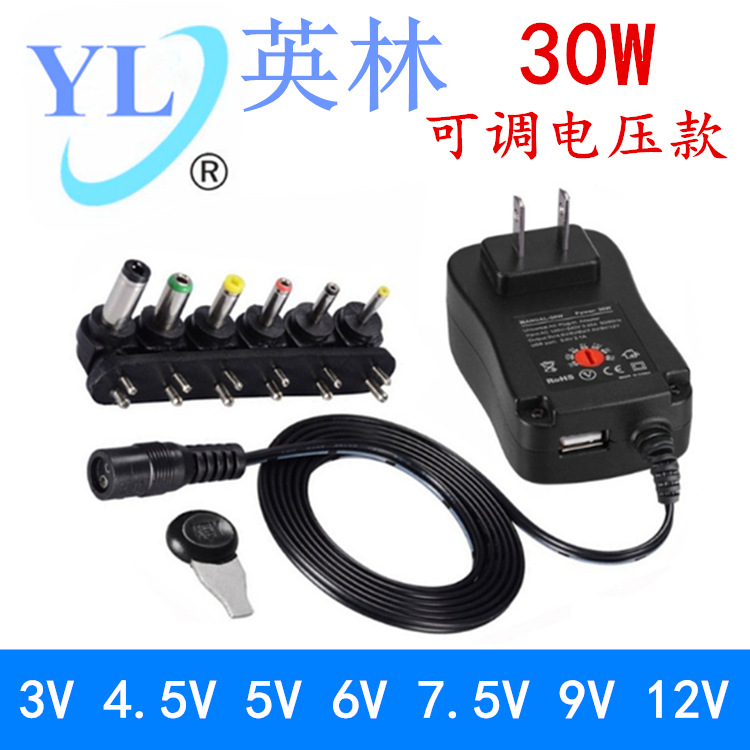

输入(input)：100-240V
输出(output)：30W 多功能 带6个转接头
3V4.5V5V6V7.5V9V12V
USB输出5V2.1A
接口: 2.5*0.7mm 3.0*1.1mm 3.5*1.35mm 4.0*1.7mm 5.0*2.1 mm 5.5*2.5mm
产品特点：
1.输出短路保护
2.过压过载过滤保护
3.采用进口元器件，可靠性能高
4.抗干扰性能好
5.直流纹波小，工作效率高
6.工作温度低，使用寿命长
7.输入电压范围宽，符合使用标准
8.绝缘性能好，抗电强度高
9.具有短路，过载，过压保护功能

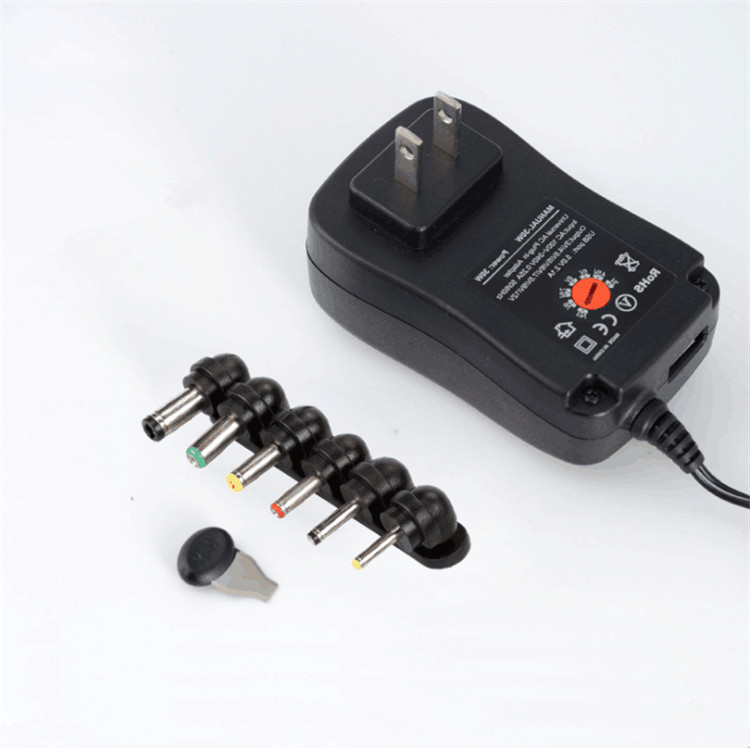

Features:
CE / RoHS Certification
100% Brand new 100V-240V AC to DC Power Adapter supply
Input: 100-240VAC 0.3A 50/60Hz
Power: 30W
Output volt: 3V 4.5V 5V 6V 7.5V 9V 12V （Manual adjustment）
Output Current: 2.5A Max, compatible with 500mA, 1A, 1.5A

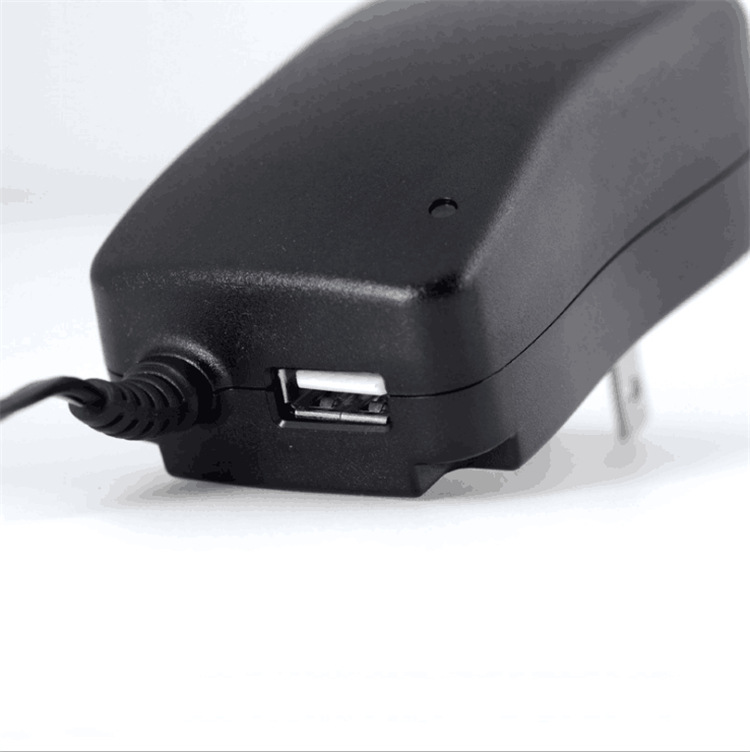

USB Output: 5V==2.1A Max
Usage: For moblie phone,TV Box, CCTV, Camera, audio player, telephone, CD, VCD, repeater, walkie talkie, computer, electronic organ, game machine, small TV set, health care equipment, computer and electronic equipment, etc.
Note: Firstly please move the switch to the Output Volt YOU NEED and then Connect the Power！
Specifications:
DC Plug Size(Outer Diameter & Inner Diameter): 2.5*0.7mm, 3.0*1.1mm, 3.5*1.35mm,4.0*1.7mm, 5.0*2.1mm, 5.5*2.5mm
DC Pin Type: The polarity can not change,The center is the positive pole(+) and the outside is negative(-), the size of the two pin with the joint is different.
Plug Specification: US / EU / UK / AU Plug
Cable Length:115cm
Color:Black
Size:85*50*34mm
Net weight: 130g - 145g
Package:PVC bag
Packing Included:
1pcs X AC Adapter
1pcs X KEY
1sets X Connectors（6 tips）
Related Products:
In our store, we offer: Output volt 5V / 6V / 7.5V / 9V / 12V Output current:1A / 2A / 2.5A / 3A .
产品参数:
品牌：AC ADAPTER
产品名称：3-12V可调电压电源
型号：30W多功能电源配器
额定功率：30W
输入电压：AC100-240V 0.25A 50/60Hz
输出电压：3V/4.5V/5V/6V/7.5V/9V/12
USB输出：5.0V2.1A
电源线长：1.5M（可按户要求订做）
DC头输出：2.35*0.75 3.0*1.1 3.5*1.35 4.0*1.7 5.5*2.1 5.5*2.5
材质：ABS+PC+Fireproofing marterial
AC插头：美规、欧规、英规、澳规
充电保护：过充保护、过流保护、温度保护、短路等保护
