型号：F4322-20M 配置：手持4.3寸，直径22mm不锈钢探头，高清1200线 ，镜头角度145度，20米管道内窥镜，4500MA抽屉式充电宝，带电量显示，6W灯可调，配1个保护套。

--------------------------------------------------------------------

型号：F4322-30M 配置：手持4.3寸，直径22mm不锈钢探头，高清1200线 ，镜头角度145度，30米管道内窥镜，4500MA抽屉式充电宝，带电量显示，6W灯可调，配1个保护套。

--------------------------------------------------------------------

型号：F4322-40M 配置：手持4.3寸，直径22mm不锈钢探头，高清1200线 ，镜头角度145度，40米管道内窥镜，4500MA抽屉式充电宝，带电量显示，6W灯可调，配1个保护套。

--------------------------------------------------------------------

型号：F4322-50M 配置：手持4.3寸，直径22mm不锈钢探头，高清1200线 ，镜头角度145度，50米管道内窥镜，4500MA抽屉式充电宝，带电量显示，6W灯可调，配1个保护套。

--------------------------------------------------------------------

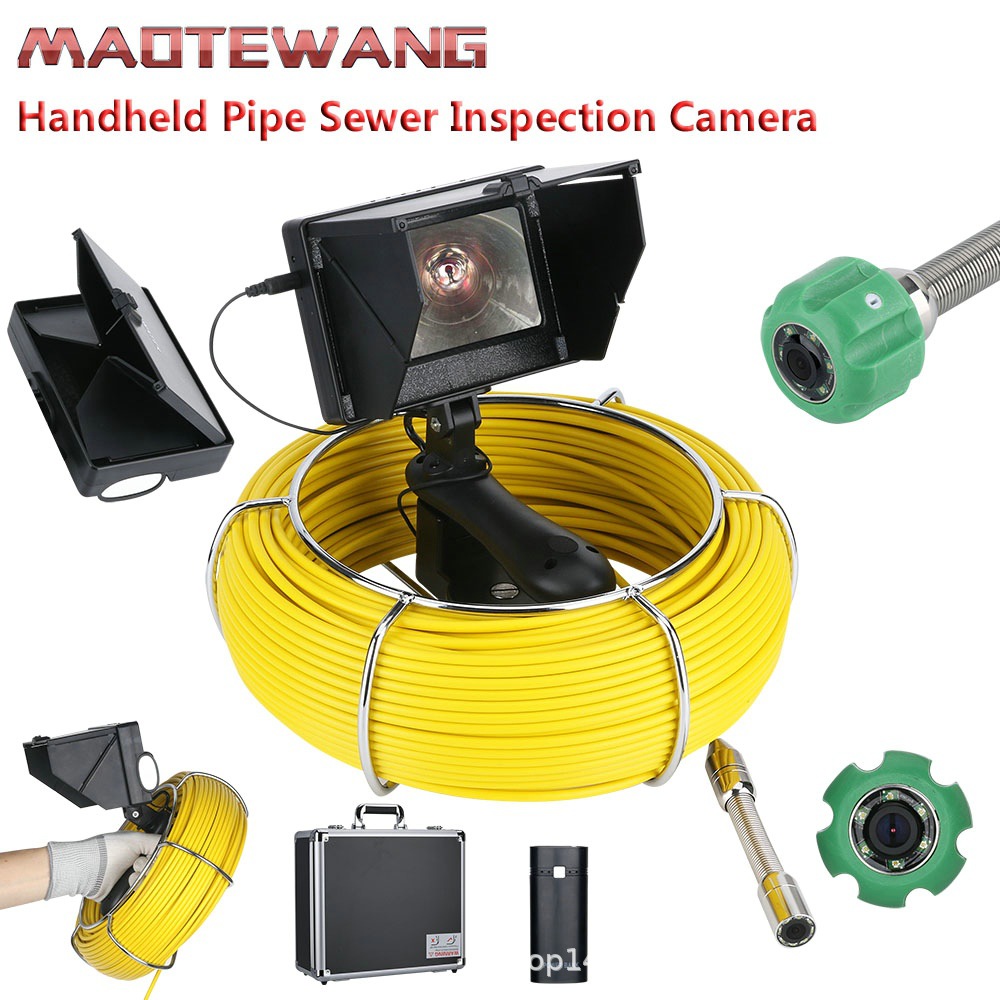

30M 4.3 inch 17mm  Handheld Industrial Pipe Sewer Inspection Video Camera  IP68 Waterproof Drain Pipe Sewer Inspection Camera System 1000 TVL Camera with 8pcs LED Lights

1.The pipe inspection camera combines a camera-tipped probe with 4.3 inch monitor for viewing hard-to-reach inspection area.

2.The  sun visor provides clear viewing in outdoor inspection and extra protection for the monitor.

3.It comes with a fully padded case which stores all kits for easy transport and use.

4.4400MAH power bank,after testing,the battery can be used more than 6 hours

5. It eliminates the needs of tearing drywall to locate leaks and helps to solve pipe problems. It is a must have for any homeowner, contractor and even professional plumbers!

Applications:

 Water supply pipelines, air conditioning pipeline, cable ducts, pipeline vacuum systems, lead industrial pipelines, underground pipelines for construction, rescue work in small spaces, underground cave exploration, underwater research.

Specification:

1.4.3 inch TFT color monitor with sun-visor for bright environment outside

2.Display resolution：480*272

3.Battery:Built-in two sections 18650 removable battery,capacity:4400MA

4.Charger :5V1A (Universal with home mobile phones and car chargers）

5.Charger time：about 5 hours

6. Power electricity display :YES

7.Battery continuous working time : about 6 hours

8.investigation depth:30M( selectable line length)

9.material: fiber tube with /high intensity

10.camera light source: 8 PCS LED with high while light(adjustable)

11.camera viewing angle: 145°,Clear images displaying with HD 1000TVL megapixels  camera.

12.camera size/material: 17MM*31MM /stainless steel

13.camera protective cover parts size/material:A:(25MM* 28MM /plastic-steel),B:(50MM* 28MM /plastic-steel)

14.camera picture: color

15.Aluminum box size: 400 *310 *185 (mm)

16.Package size: 410*318*185mm

Package List:

 1 *  4.3 inch LCD Monitor

 1 *  HD 1000TVL Camera

 1 *  30M Fiberglass Cable

 2 *  Camera Proof Cover

 1 *  4400mah Power bank

 1 *  USB charging cable

 1 *  Screw Driver

 1 *  Aluminum box

 1 *  User Manual (English)
