Technical Parameters:

1. Tricolor LED displaying
2. 126 channels automatically jumping frequency, high anti-jamming ability to ensure working reliability.
3. 7 groups ID code settable, user can use 7 groups individual wireless system without any interference with each other in the same place.

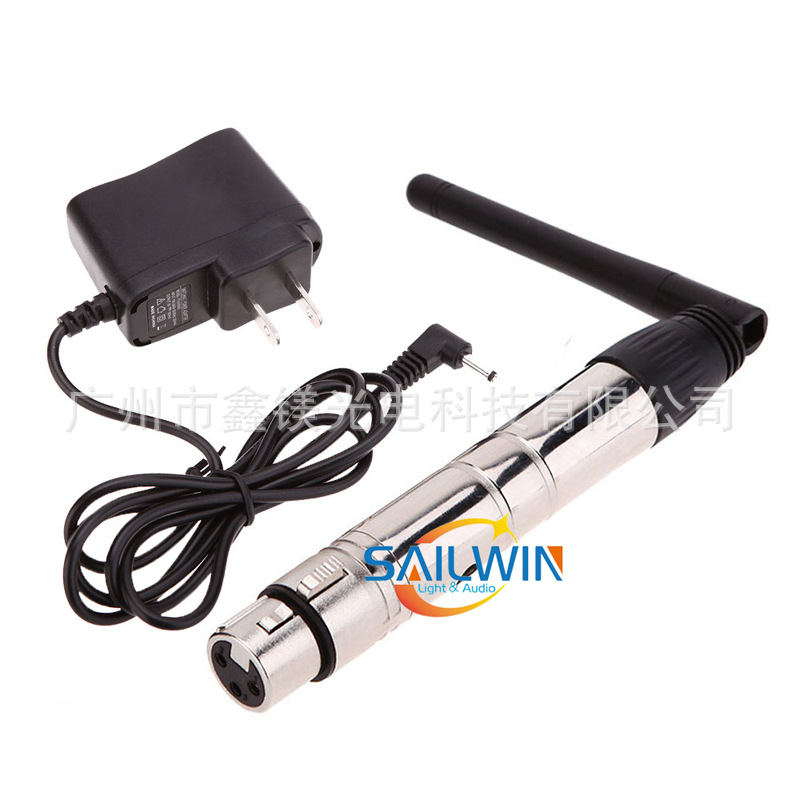

4. Input voltage: 5VDC 500mA MIN
5. Communication distance: 700M
6. Work frequency section: 2.4GHz ISM band, 126 channels frequency section.
7. Max transmitting power rate: 20dBm
8. Receiver sensitive: -94dBm

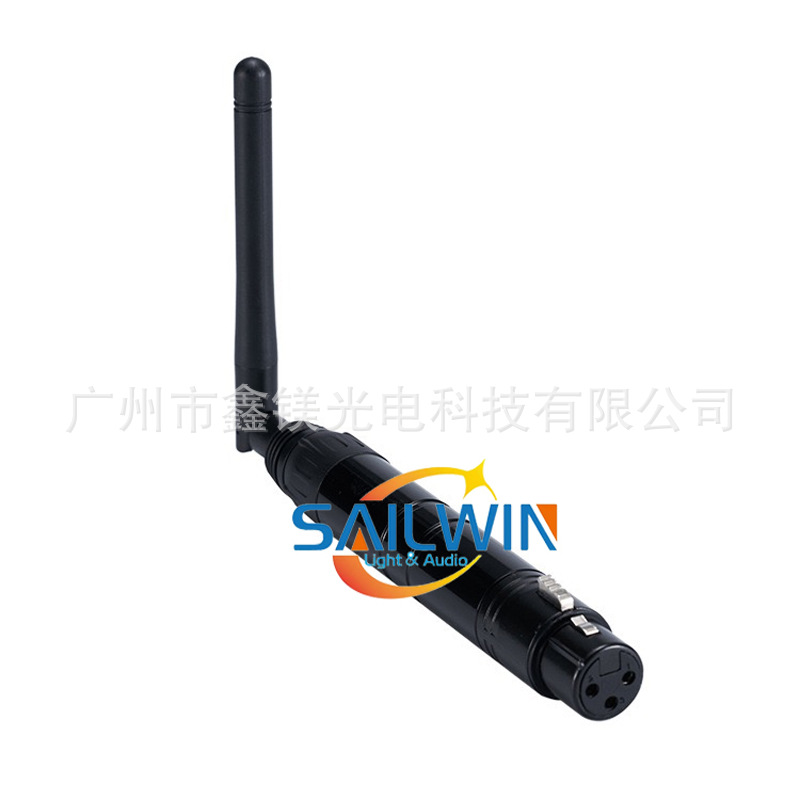

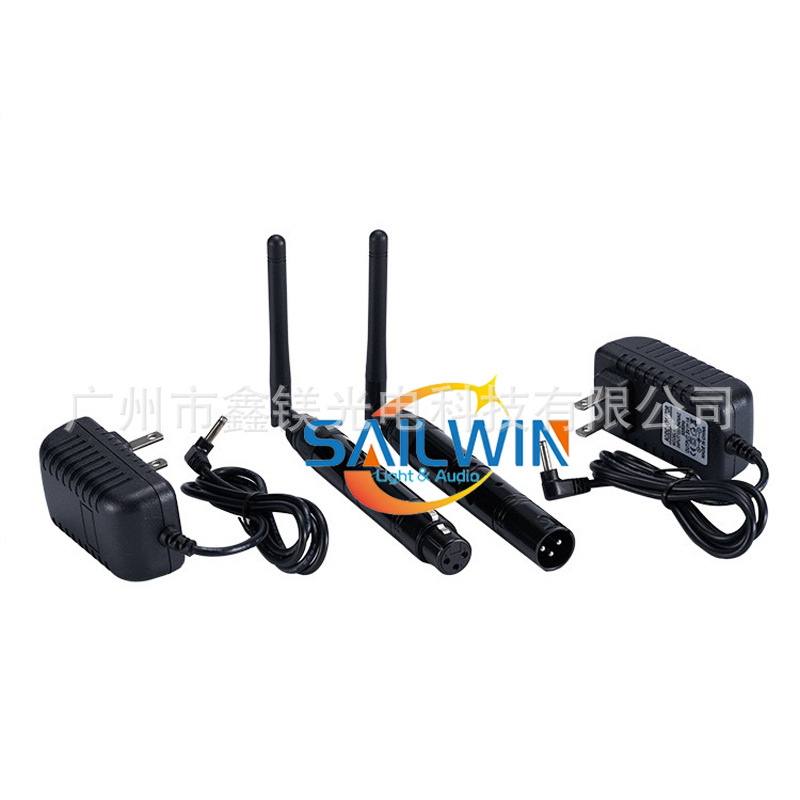

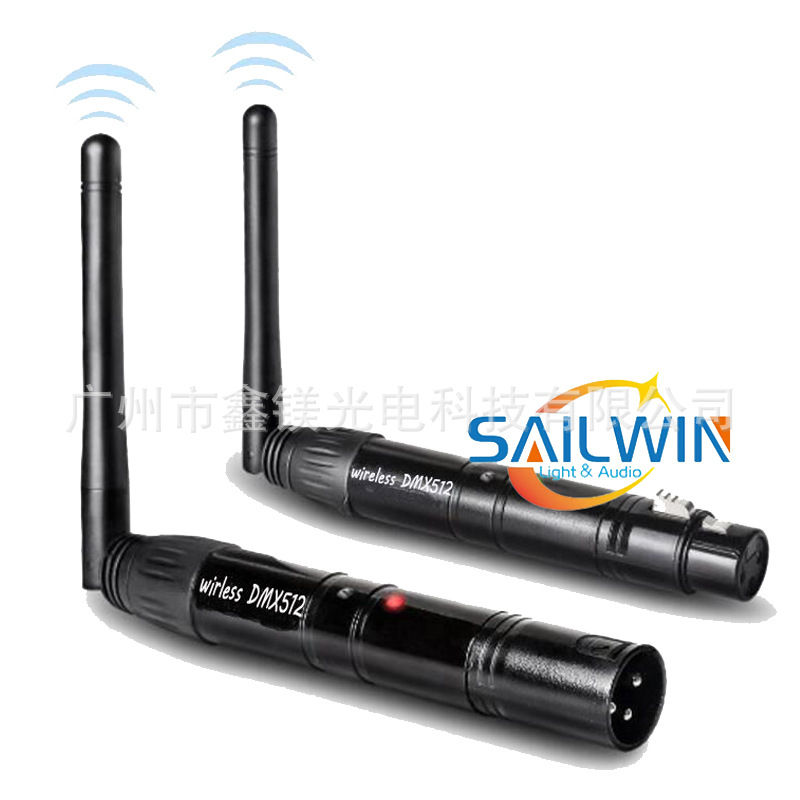

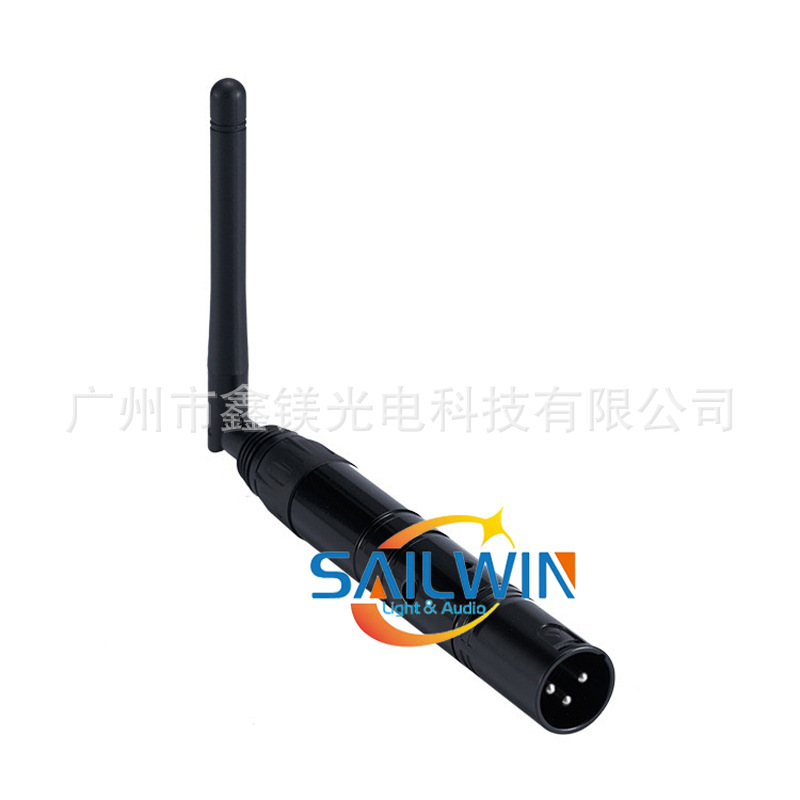

9. Signal port: 3 pin male plug (for transmitter) & female plug (for receiver)

Product Outline:

Operating manual:

ID code and LED color corresponding correlation:

1: RED

2: GREEN

3: RED+GREED = YELLOW

4: BLUE

5: RED+BLUE = PURPLE

6: GREEN+BLUE = CYAN

7: RED+GREED+BLUE = WHITE

Press key 1 time to indicate ID setting, press again to set ID, then ID value adding 1 each time by press.

Working condition:

LED constant lit up: no DMX or wireless signal

Red LED flash: transmitting

Green LED flash: Receiving

RF frequency------2. 400-2. 525G, total 126 channels, it is searching automatically.

ID Code------1-7 groups ID code, press "Key" for setting, it only can works under same ID code of transmitter and receiver.
