产品描述
它是将YPbPr（色差）和左右声道转换为HDMI输出，支持全高清1080P分辨率，让P用户展示自己的形象，不仅在PC的显示器，但也可以在电视上，转换是带着R / L音频。转换器提供的数娱乐中心，HDTV零售及展示场所，HDTV，机顶盒，DVD和投影机的工厂，噪音空间和安全问题，数据中心控制，信息分配，会议室演示，学校和企业培训环境的解决方案。
产品特性
1，使用简单：安装在几秒钟内，无需设置。

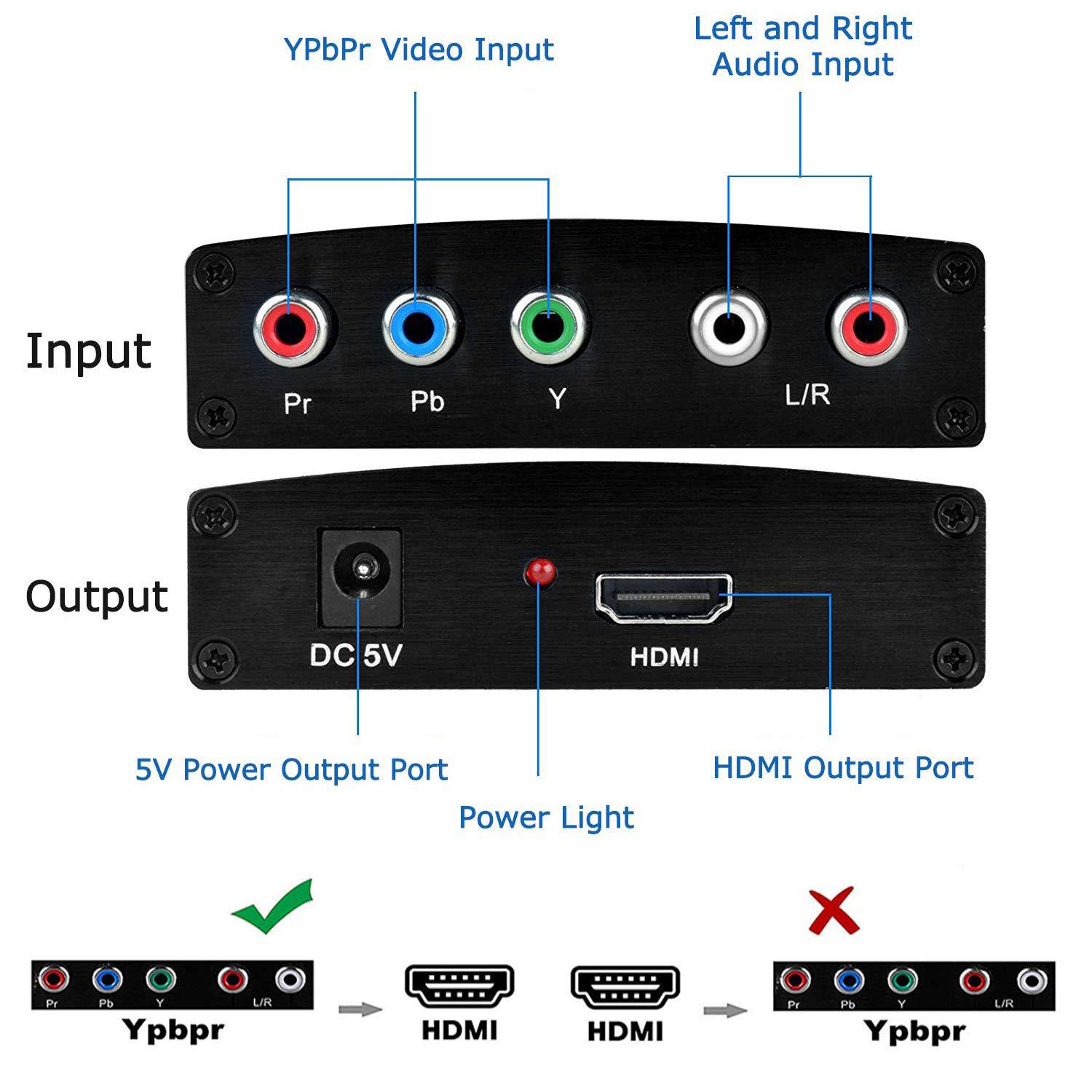

2，它可以转换完整的YPbPr+L/R音频为HDMI输出。
3，支持HDCP1.2
4，每通道支持165MHz的/1.65Gbps的（6.75Gbps所有通道）带宽HDMI输出。
5，支承实模拟视频输出高达UXGA和1080p，10位DAC
6，LED指示信号和电源模式。
7，电源（5V 1A）

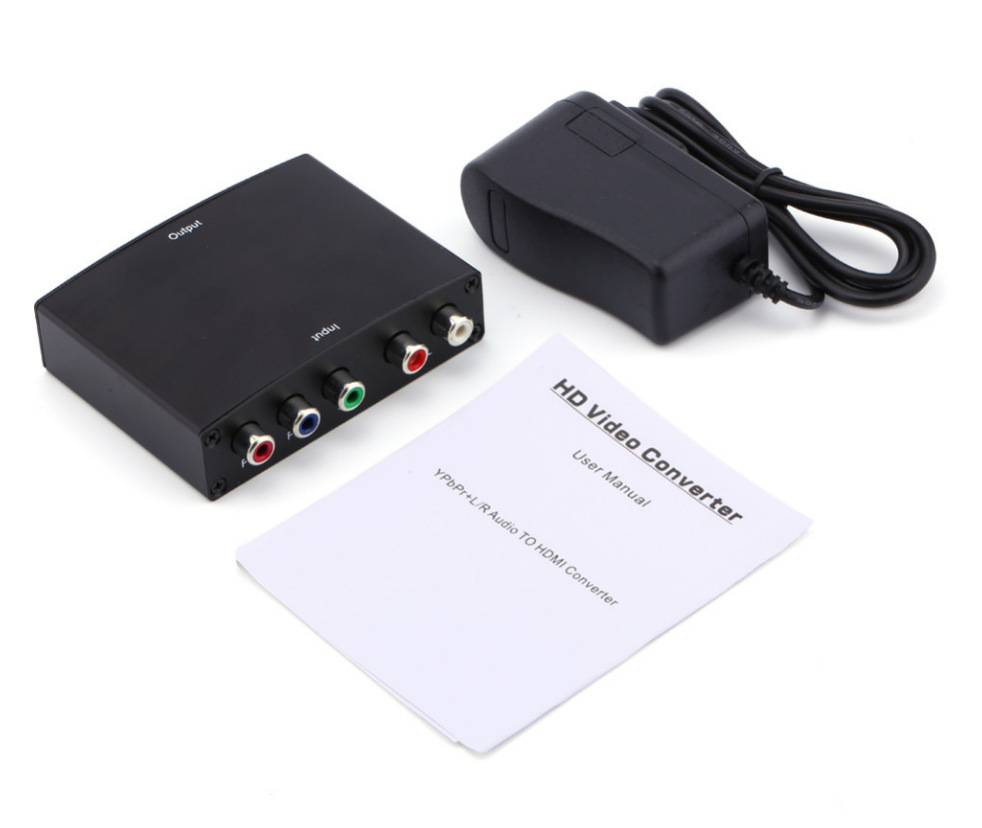

产品配件
色差转HDMI转换器---------------1台
DC 5V电源适配器-----------------1个
用户说明书------------------------1本
产品技术参数
Signal Inputs/Output |
|
Input Video Signal | 0.5-1.0 volts p-p |
Input DDC Signal | 5 volts p-p (TTL) |
MaximumSingleLinkRange | 1600X1200, 1080P |
Output Video | HDMI + HDCP1.0/1.1 |
YPbPr | 640x480 60Hz 72Hz 75Hz 800x600 60Hz 72Hz 75Hz 1024x768 60Hz 70Hz 75Hz 1280x1024 60Hz 1600x1200 60Hz |
DTV/HDTV | 480i/576i/480p/576p/720p/1080i/1080P |
Operating Frequency |
|
Frequency | Up to165MHz |
Video Amplifier Bandwidth | 1.65Gpbs/165MHz |
Resolutions(HDTV) |
|
Interlaced(50&60Hz) | 480i,576i,1080i |
Progressive(50&60Hz) | 480p,576p,720p,1080p |
Mechanical |
|
Size(LxWxH) | 88x68x25.5mm |
Weight(Net) | 0.68Kg |
Warranty |
|
Limited Warranty | 1 Year Parts and Labor |
Environmental |
|
Operating Temperature | 0 to +70℃ |
Operating Humidity | 10% to 85 % RH (no condensation) |
Storage Temperature | -10 to +80℃ |
Storage Humidity | 5% to 95 % RH (no condensation) |
Power Requirement |
|
External Power Supply | DC 5V 1A |
Regulatory Approvals |
|
Converter Unit | CE,FCC,ROHS |
Power Supply | CE,FCC,PSE,TK,UL |
Accessories Adapter |
|
AC Power Adapter | US standard, UK standard and so on |
User Manual | English Version
|
英文描述参考：
YPBPR to HDTV converter color to HDTV ypbpr to hdmi RGB to HDTV converter
This is a component video (YPbPr) converter. It converts YPbPr input into HDMI output. The conversion is along with the R/L audio. It offers solutions for digital entertainment center, HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments
This HDMI converter has many features that enable it to perform in a superior manner. Among those features you will find:
1、Easy to Use: Install in seconds, no need of setting.
2、Conversion: It could convert YPbPr video and R/L audio into complete HDMI.
3、Supports highest video resolution up to 1080p
4、Supports 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth.
5、Supports 8bit per channel (24bit all channel) deep color
6,Supports uncompressed audio such as LPCM
7,Supports compressed audio such as DTS digital,dolby digital(including DTS-HD and dolby true HD)
SPECIFICATION
Signal inputs/output |
|
Input DDC signal | 5volts p-p(TTL) |
HDMI connector | Type A(19pin) female |
Video connector | 3 RCA component |
Audio connector | SPDIF |
Output video | HDMI 1.2a |
Operating frequency |
|
Vertical frequency range | 50/60HZ |
frequency | 1.65gbs/165MHZ |
Resolutions(HDTV) |
|
Interlaced(50&60HZ) | 480i,576i,1080i |
Progressive(50&60HZ) | 480P,576P,720P,1080P |
mechnaical |
|
Size(L-W-H) | 88m W x 25.5mm H x 68mm D |
Weight for shipping | 0.12kgs |
warranty |
|
Limited warranty | 1 year parts and labor |
environmental |
|
Operating temperature | 0℃to +70℃ |
Operating humidity | 10% to 85% RH(no condensation) |
Storage temperature | -10℃to +80℃ |
Storage humidity | 5% to 90% RH(no condensation) |
Power requirement |
|
External power supply | 5V DC@2A |
Power consumption(max) | 5w |
Reguory approvals |
|
Converter unit | FCC,UE,UL |
Power supply | UL CE,FCC |
Accessores adapter |
|
AC power adapter | Us standard ,uk standard and so on |
User manual | English version |
|
|
