原装 通用 Satellite Finder Meter   厂家直供 欢迎洽谈！

Satlink WS-6979 DVB-S2 寻星仪 调星仪

有欧规版，美规版，英规版，澳规版，中文版，供选择

注意：需要发哪个版本请拍下说明或备注；                 默认：英文 欧规版 EU 发货。机器内置有多国语言；

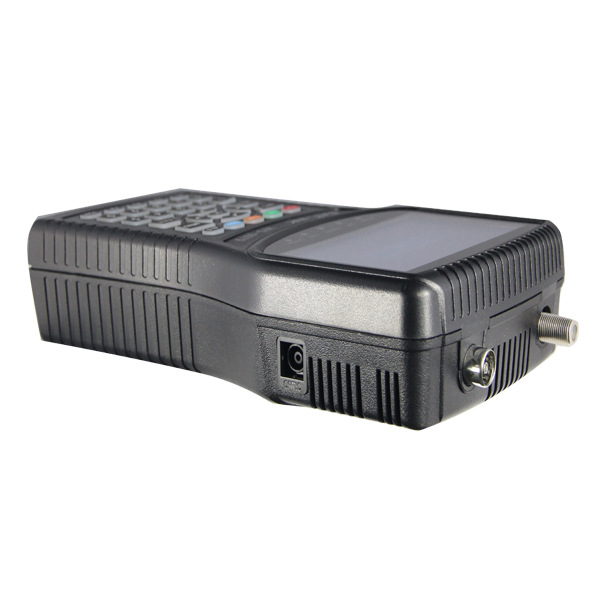

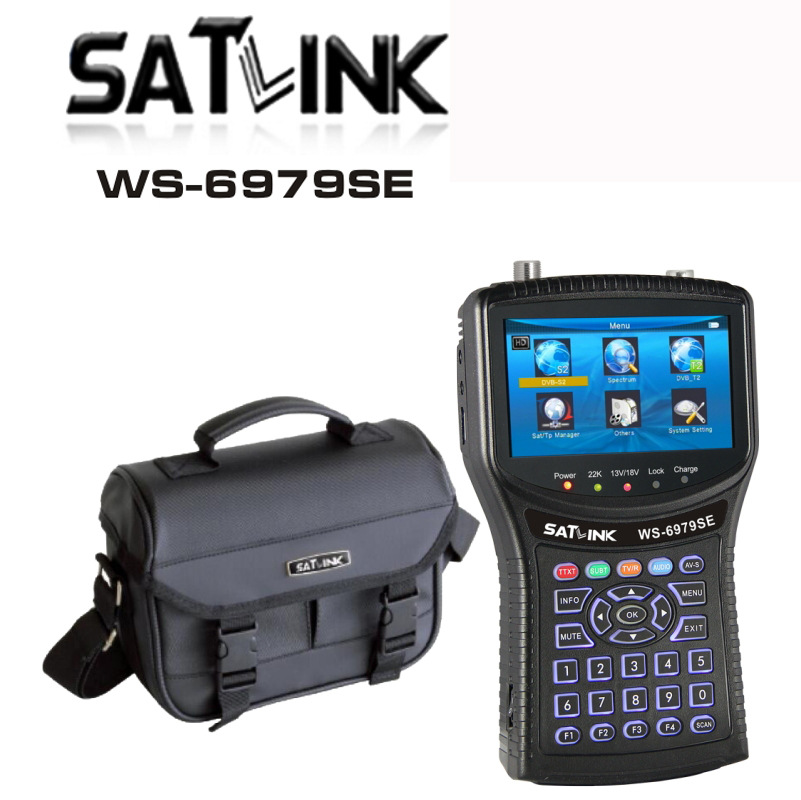

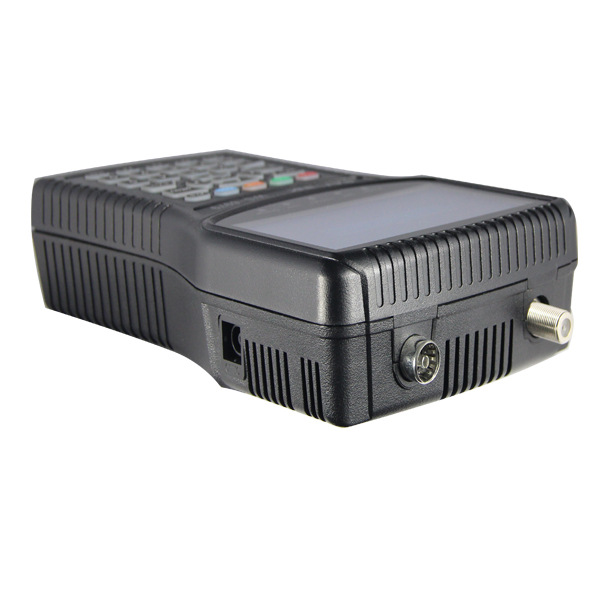

Original Satlink WS-6979 DVB-S2&DVB-T2 Combo Finder Meter

Spectrum analyzer constellation finder

Feature:

4.3 Inch High Definition TFT LCD Screen
Fully DVB-S/S2/T/T2, MPEG-2/MPEG4 compliant
MPEG-2/H.264 Hardware decoding

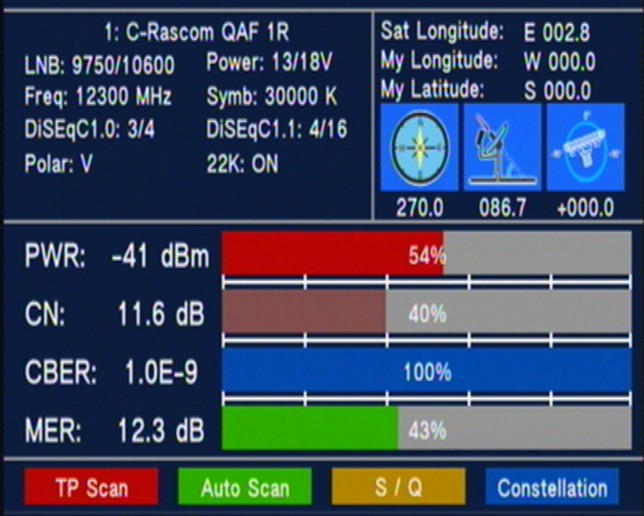

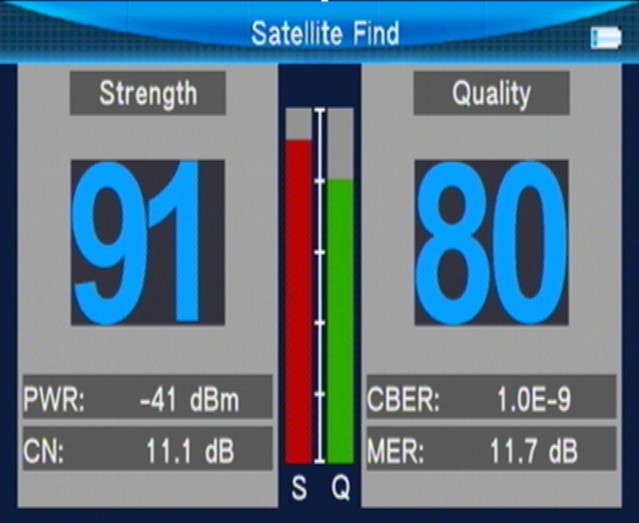

Digital meter for signal strength and quality

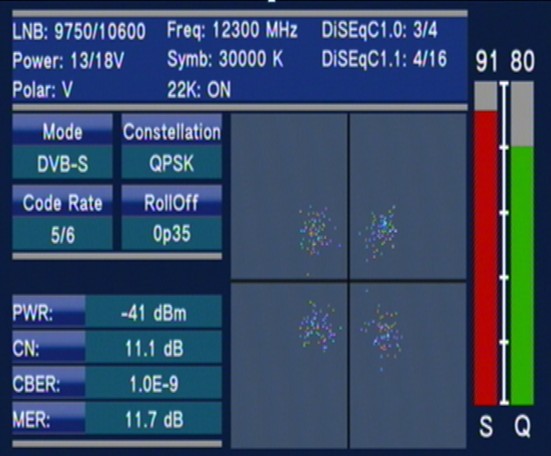

Constellation analyzer

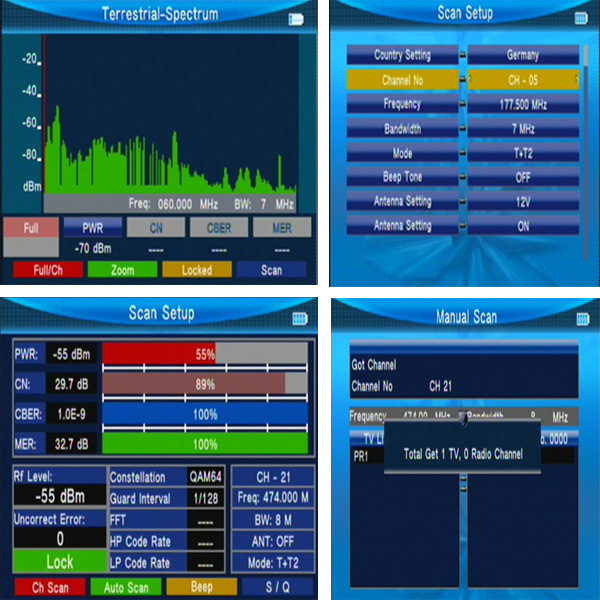

Spectrum analyzer

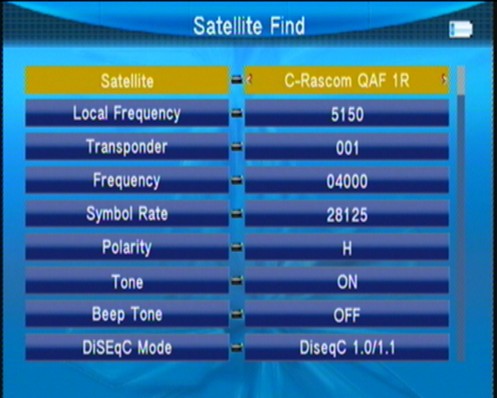

Supports scan of Auto, Blind, Manual or NIT
Sound and Light Alarm for Locking Signal
Auto Calculate Angle of AZ ,EL
Supports DISEQC 1.0/1.1/1.2 ,0/22khz Tone
Speaker Integrated
Support both AV out and AV in
LNB short protect
7.4V/3000mAh Li-Ion Battery Included
Software upgrade via USB port
Easy to carry

 Specification:

-TRANSMISSION STANDARDS
-DVB-S2/S,DVB-T/T2
-SATELLITE INPUT/DEMODULATION
-Connector Type    F Type
-Input Frequency    950 to 2150 MHz
-Signal Input Level-65 to -25 dBm
-Band Switch Control    22KHz
-LNB Supply 13V/18V, IMax 400mA
-Demodulation Type    QPSK,8PSK,16APSK
-Symbol Rate    2-dvb-tt2 inputdemodulation
-connector type female type
-input frequency    48 to 862 mhz
-signal input level -79.5dbm (max)
-ant supply 5v,12v/17v imax 100ma
-demodulation type    qpsk,16qam.64qam,256qam
-lcd features
-lcd type    tft transmissive
-number of dots    480(rgb) x272
-active area (wxh)    95.04x53.86 mm2
-av output interface
-connector type 3.5 mm jack
-video output cvbs,
-audio output stereo audio l/r output
-hdmi output connecter
-format hdmi 1.3a
-av input interface
-connector type    3.5 mm jack
-video input    cvbs,
-audio input    stereo audio l/r input
-audio/video processing
-video decompression    mpeg-2 mp@hl, mpeg-1 decoding,mpeg-4 asp@l5 hd resolution,h.264-mp&hp@l4,hw jpeg decoding
-resolving rate    pal-25 frame@720*576,ntsc-30 frame@720*480,
-signal compatibility    support conversion for different video formats
-video format    4:3,16:9,by pan & scan and letter box conversion
-audio decompression    mpeg-1 layer i/ii ,mpeg-2 layer i/ii,
-audio output mode    stereo, mono,r/l
-data service port
-connector    usb
-data protocol    usb2.0 interface
-file management system    ntfs,fat32,fat16
-file format    wma,mp3,mp4,avi,jpg,jpeg,bmp,img
-microprocessor
-microprocessor    novatek
-clock frequency    500mhz
-sdram memory    1gbit ddr3
-power supply
-li-ion battery7.4v/3000mah(the machine behind labeling shall prevail)
-adapter    output:dc12v/1.5a, intupt :100-240vac 50/60hz(will be subject to actual configuration)
-power consumption    max. 10w
-physical characerstics
-size (w x d x h)    9.5x15.5x4.5(cm3)
-net weight    2kg

*packing details:

1 x digital satellite meter
1 x user's manual
1 x av cable
1 x car charger cable
1 x power adaptor
1 x dc 12v connect line
