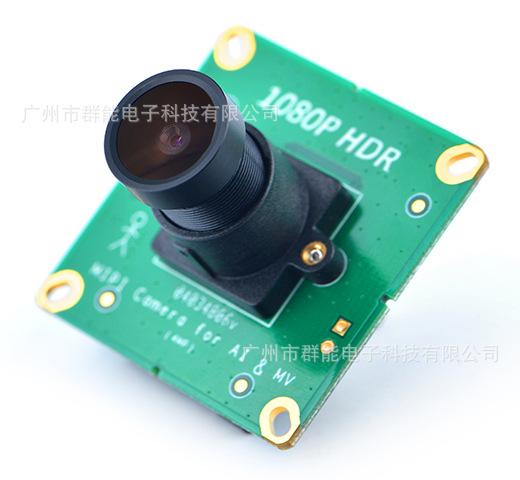

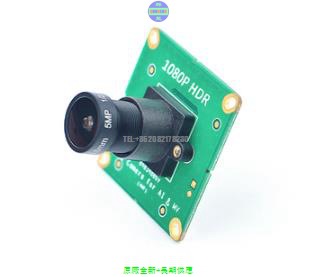

[MCAM400摄像头]400万像素HDR MIPI摄像头模块，支持安卓8.0

1 Introduction

• The MCAM400 module uses Omni Vision's 4MP CMOS OV4689 image sensor. It has MIPI output interface and supports up to 2688 x 1520 photographing and 1920x1080@120fps video recording.

2 Features

• Omnivision OV4689 4M pixels Sensor
• 4-lane MIPI interface
• M12 lens
• Build in IR Cut-Off filter motor driver

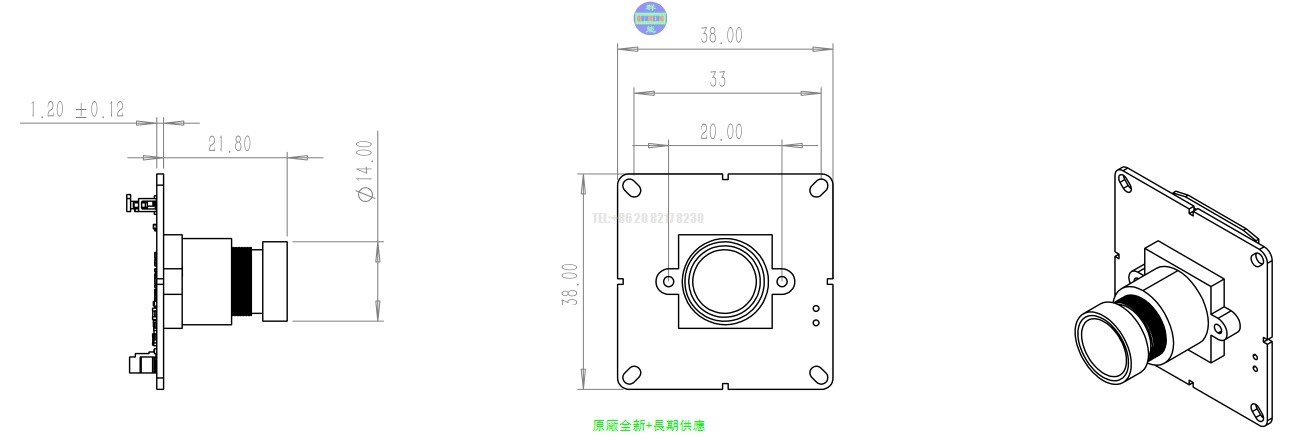

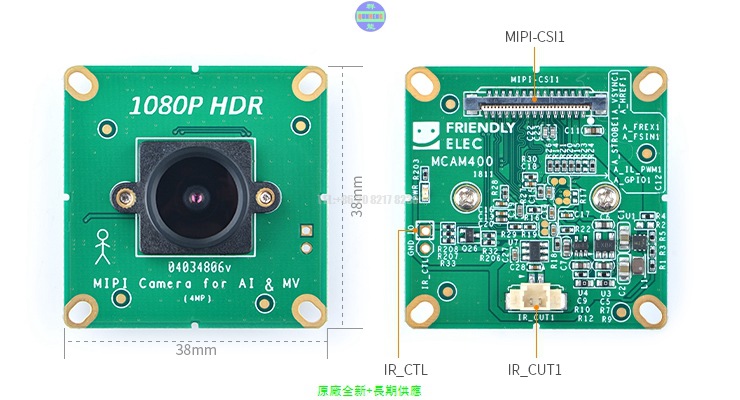

• Module Size: 38mm x 38mm

3 Sensor Spec

• Sensor size: 1/3"
• Active pixels: 2688H x 1520V
• Pixel size: 2.0 um x 2.0 um
• Output format: 10-bit RAW RGB
• Max S/N ratio: 38.3dB
• Dynamic range：64.6dB@1xgain
• Sensitivity: 1900mv/lux-sec
• Temperature range:
  • operating: -30℃ to +85℃ junction temperature
  • stable image: 0℃ to +60℃ junction temperature

4 Lens Spec

• 5MP Fixed Lens with IR Filter
  • Focal Length (EFL): 3.3 mm
  • Fno： 2.2
  • MAX FOV D/H/V： 135℃/110℃/80℃
  • FBL and BFL: 4.28mm, 4.38mm
  • TTL: 21.5mm
  • TV Distortion : < -15%
  • Optical Structure: 4G+IR CUT
  • Wavelength：400nm-650nm
  • Thread Size：M12x0.5
  • Barrel Material： Aluminium Alloy

• 5MP Fixed Lens without IR Filter
  • Focal Length (EFL): 3.6 mm
  • Fno： 2.0
  • MAX FOV D/H/V： 132℃/102℃/76℃
  • FBL and BFL: 7.67mm, 5mm
  • TTL: 21.5mm
  • TV Distortion : < -35%
  • Optical Structure: 5x6G
  • Thread Size：M12x0.5
  • Barrel Material： Aluminium Alloy
  •
