产品参数：
生产商：广州不夜天舞台灯光
产品名称：单管LCD显示屏款 二氧化碳气柱机
型号：TP-T25
电压: 110V/220
频率:50/60Hz
功率: 200W
模式：DMX512/手动电控/遥控

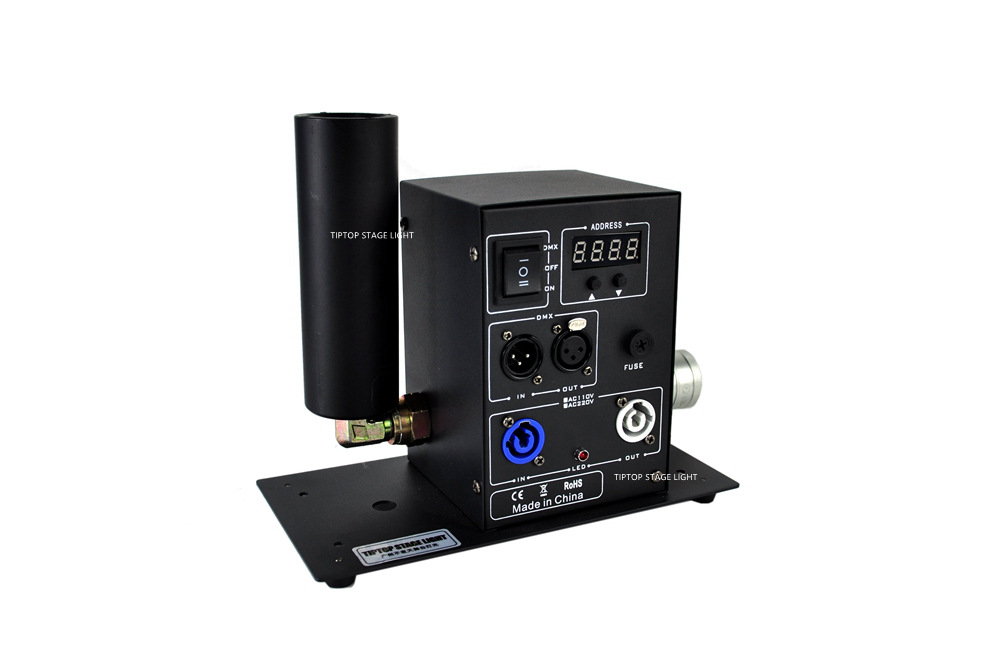

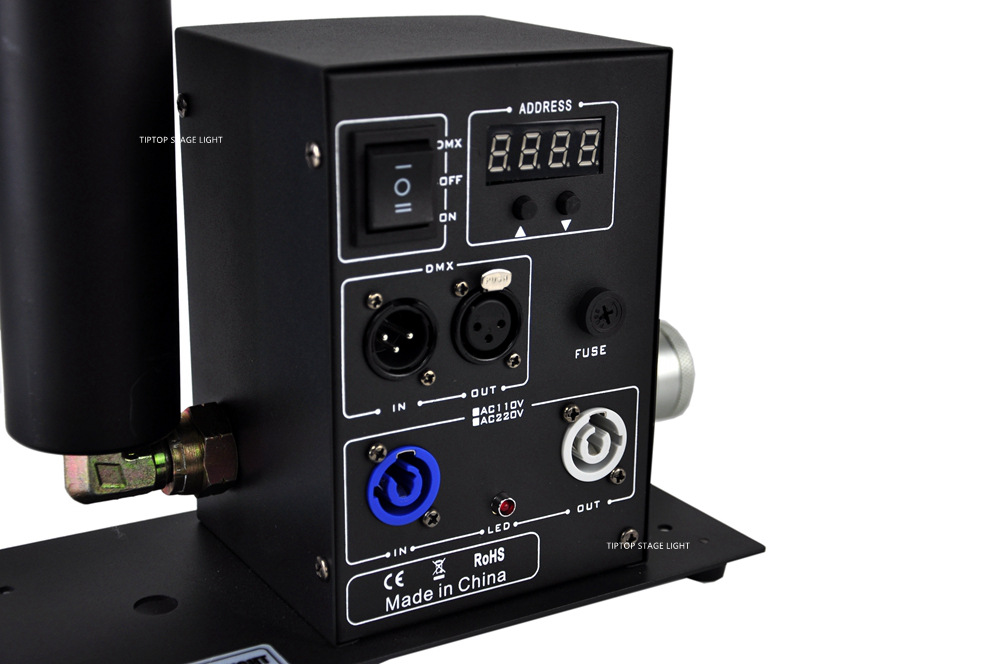

地址码调整：液晶显示屏 双按键
通道：1
防水等级：IP20

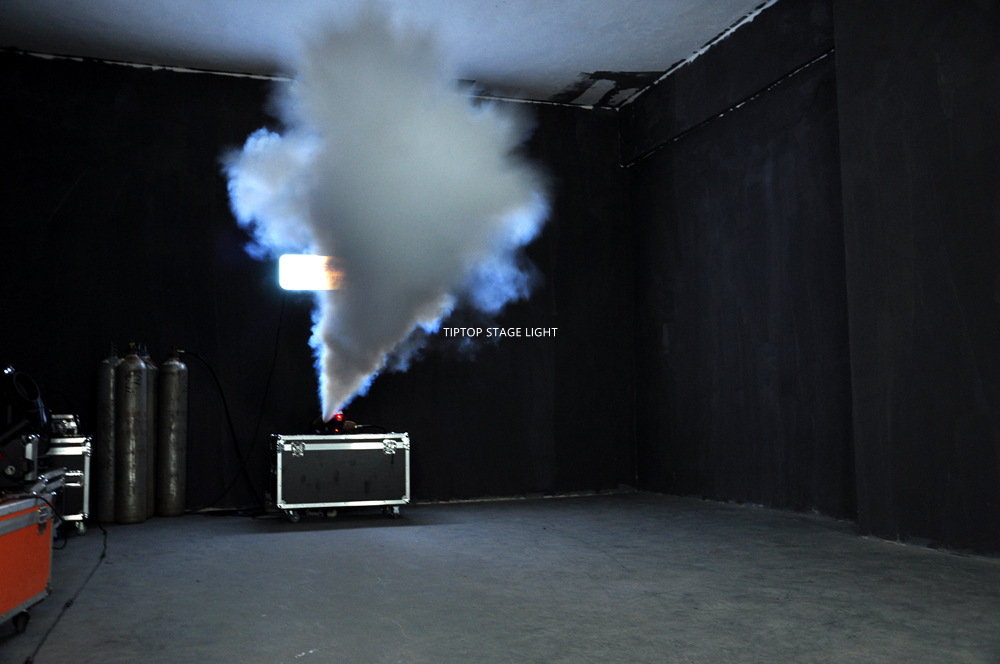

喷射高度：6-8米
机器尺寸：27.5x12.5x22cm
气管接口：欧规/美规/中规/英规 可选
气管：6米高压高硬度气管，内置多层钢丝，不易鼓包和漏气 最大支持400bar（其他尺寸气管可选，加长的话有额外费用）

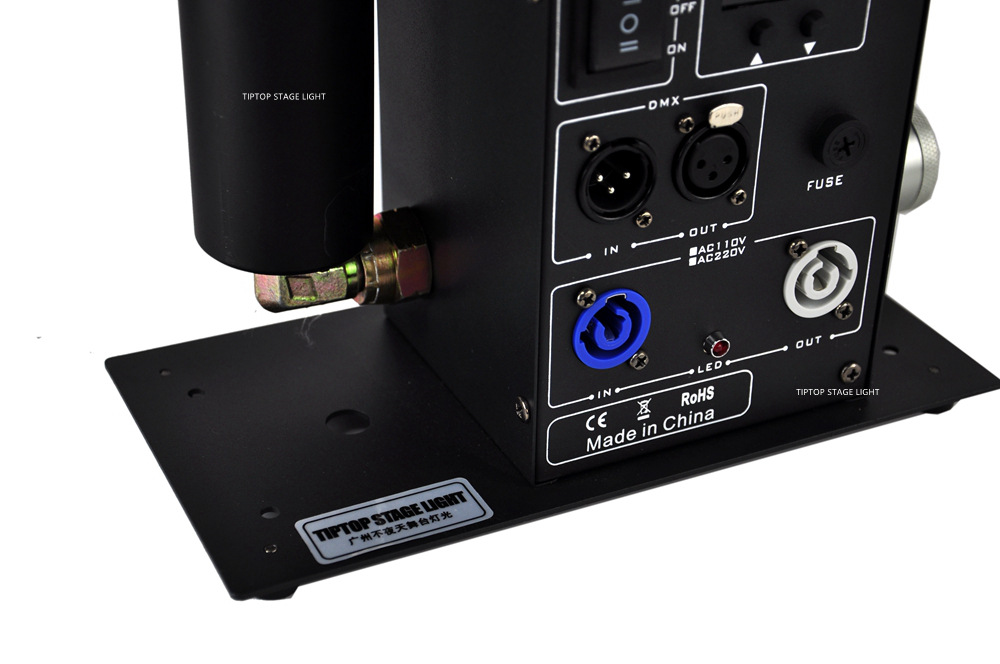

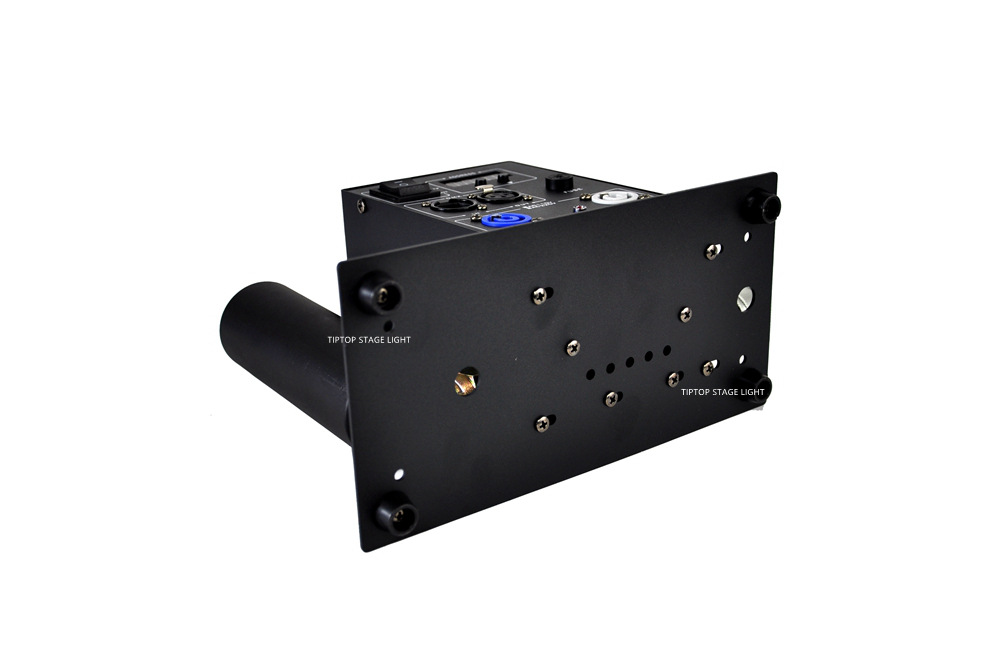

特色：喷管可单独调整喷射角度。底座配安装孔，可以链接灯钩把机器安装到桁架上。
气阀品牌：鸿森高品质黑色高压气阀，内置金属活塞，不容易卡死或者漏气。

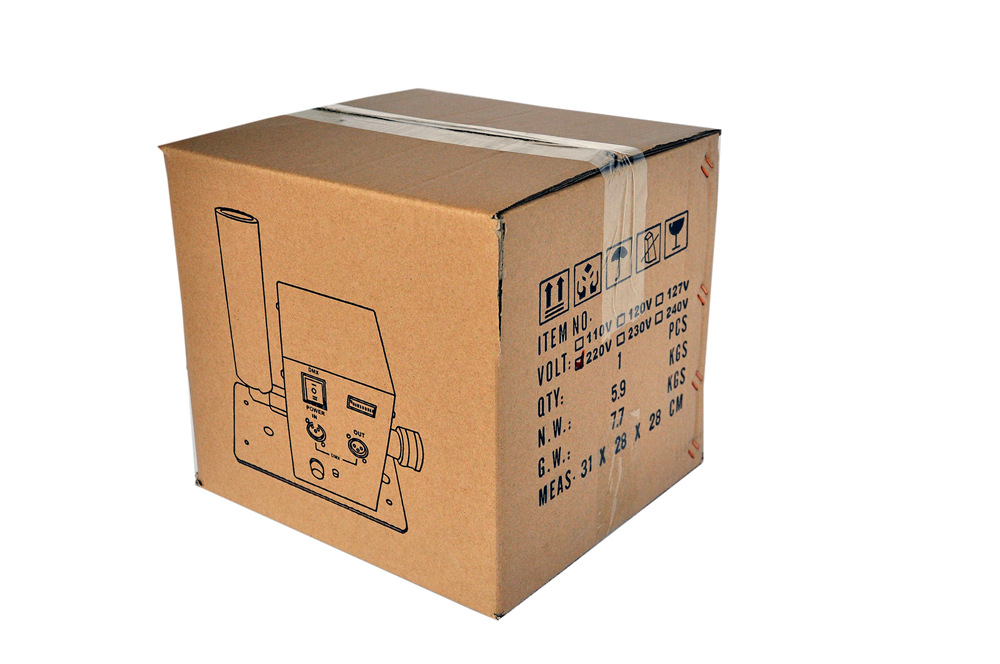

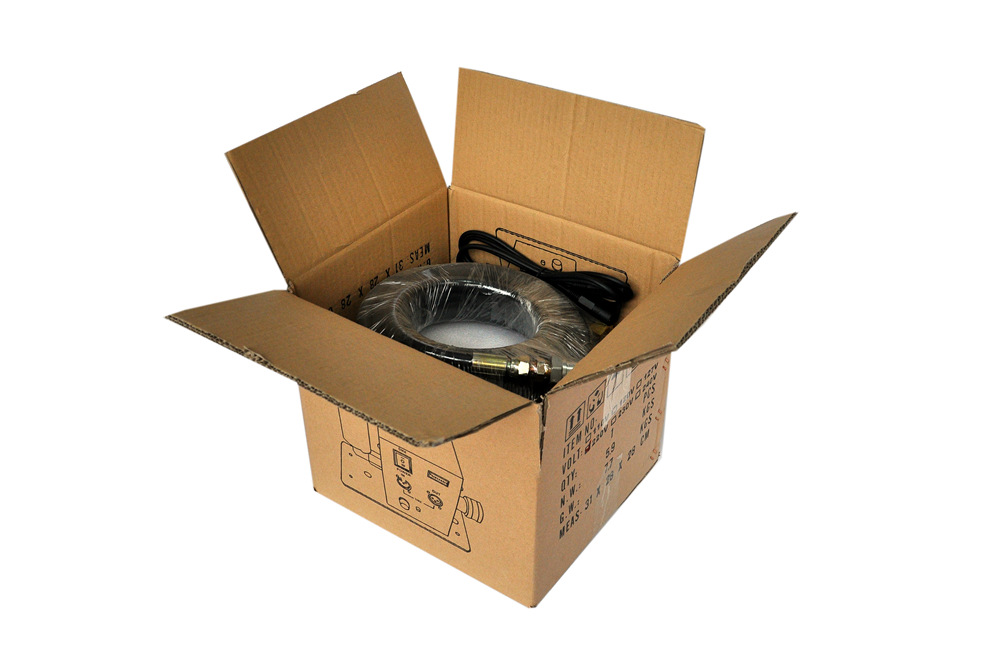

1装1纸箱=包装尺寸：31*28*26cm(1台/件）
1台纸箱=净重：6kg

1装2纸箱=包装尺寸：59*32*28cm(1台/件）
1装2纸箱=净重：12.5kg

标准包装情况（每件包含）
1 x 单管气柱机
1 x 6米气管
1 x 电源线
1 x 信号线
1 x 遥控器 （一般我们会取掉电池 需要电池请备注）
1 x 说明书

*建议喷射时间控制在1-3秒内，长时间喷射容易导致液态二氧化碳冷冻堵塞气阀阀组，若持续喷射，阀组非常容易损坏。错误操作导致的阀组损伤不在质保范围内，请注意。
*气柱机内置的高压气阀可以承受气瓶的气压，气瓶部位无需再次连接减压阀，可以使用气管直接连接。
*请注意。如产品出口，请与我司联系确认客户国家信息和气管接口款式。
*气柱机的气阀和电源是单电压，110V或者220V，采购前切记注意当地电压。
*标准气管的长度是6米，我们也提供其他尺寸气管选择。有疑问请联系我司销售。
*请注意机器需要使用液态二氧化碳气瓶，而且气瓶内部有管路从气瓶口直插罐底，租赁气瓶时请务必注意。
*遥控器内电池我们一般是取出，如果需要电池请联系我司销售，或者客户可以从当地采购电池，电池型号23A 12V.
*标准包装是纸箱包装，航空箱1装4或者1装6可选，价格需额外支付。

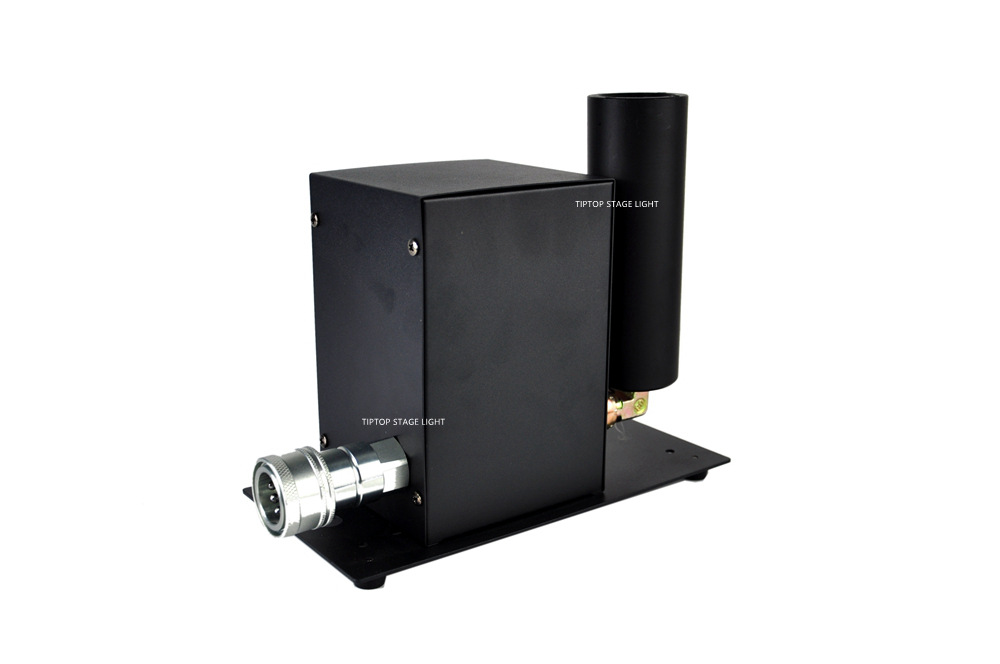

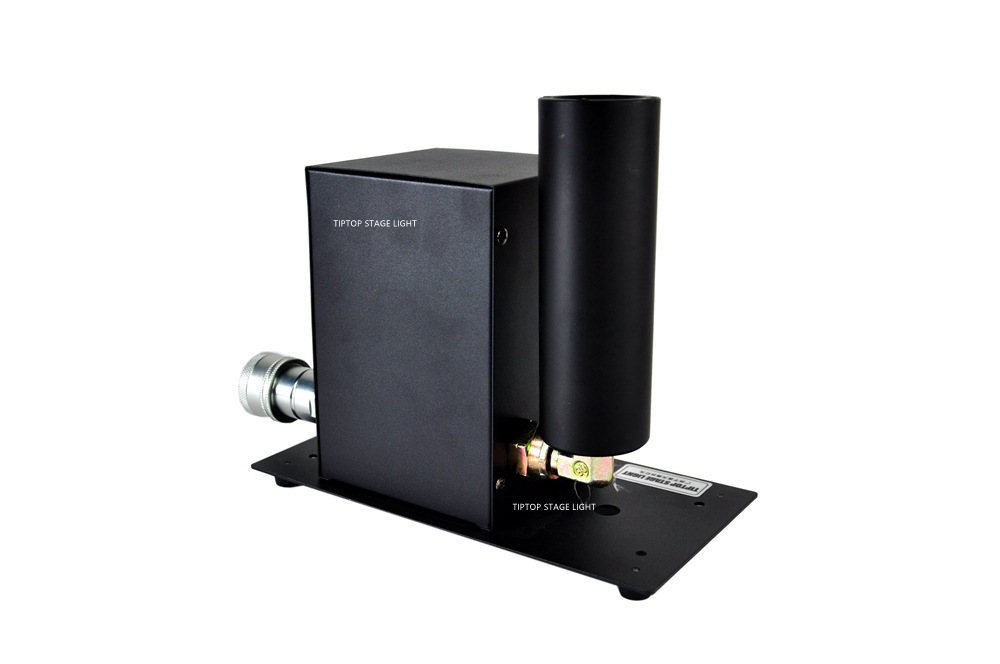

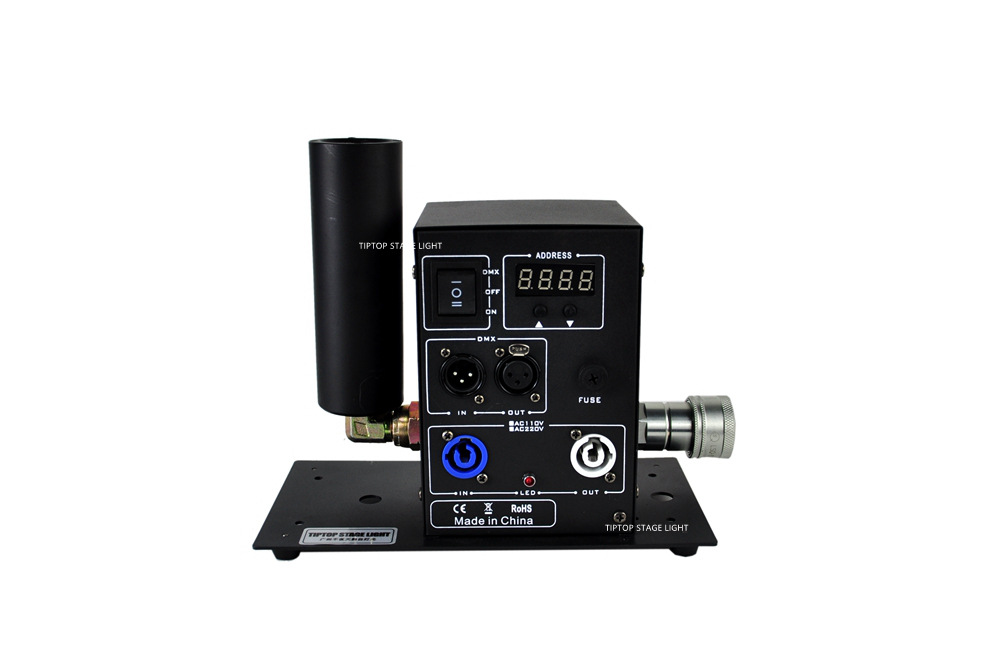

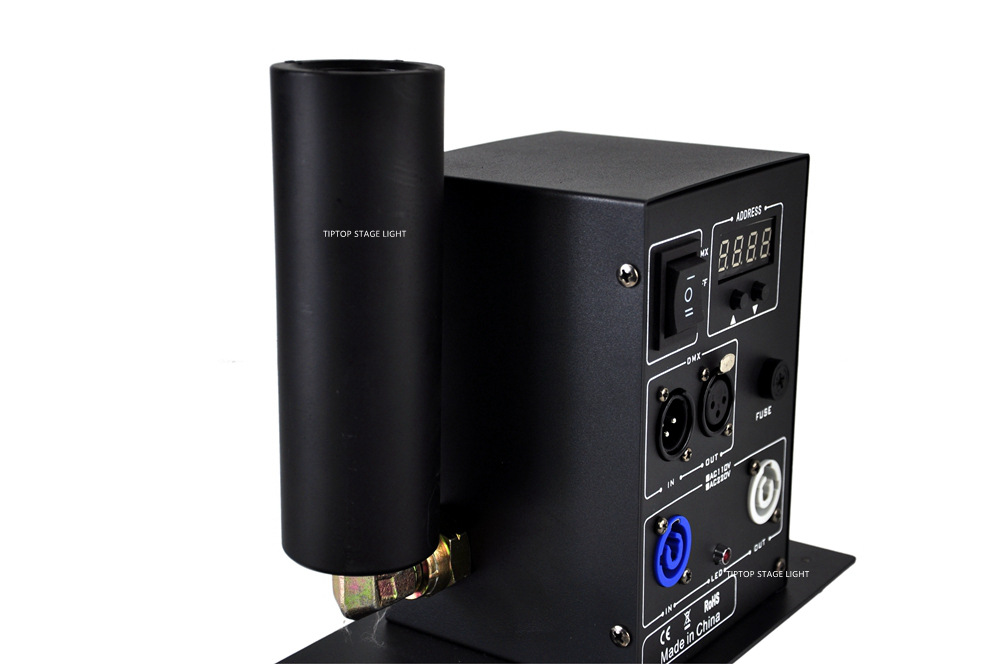

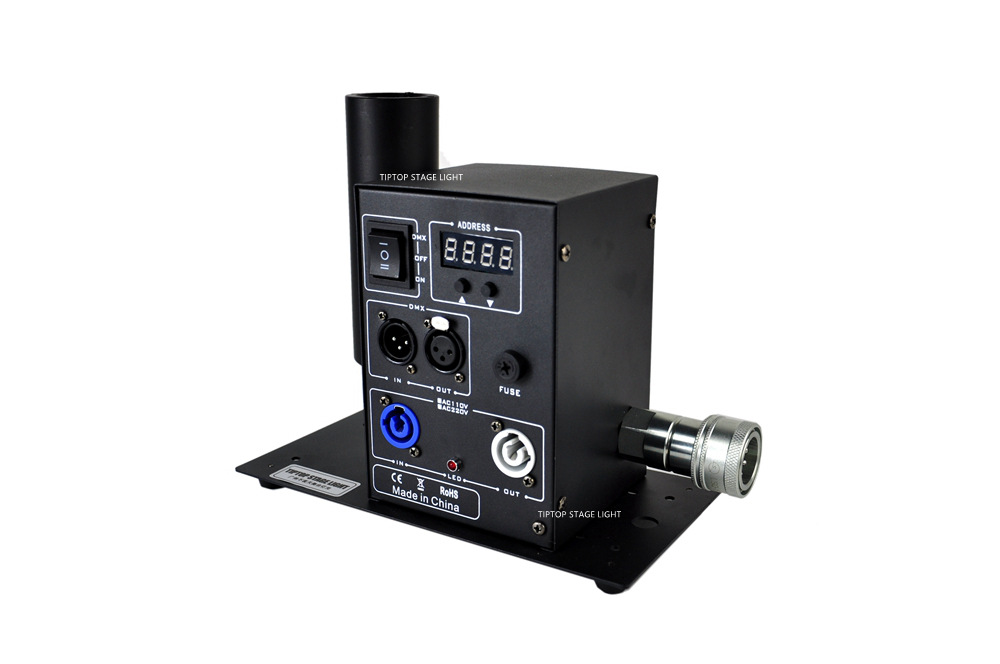

Product name: Single Pipe LCD Display CO2 jet machine
Brand: TIPTOP
Mode: TP-T25

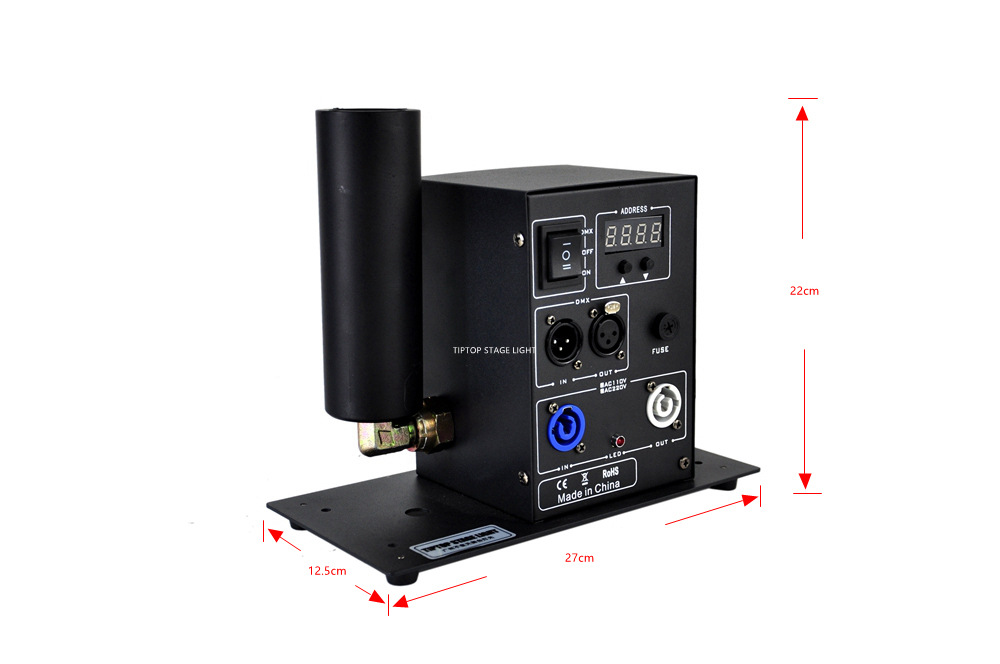

Height: 22cm
Length: 27.5cm
Width: 12.5cm
Gas input: liquid CO2 gas
Control way: DMX512+Manual (Power on/off)+Remote control
DMX channels: 1
Linkable: yes, via DMX
Voltage: AC100V / 220V
Power: 200W

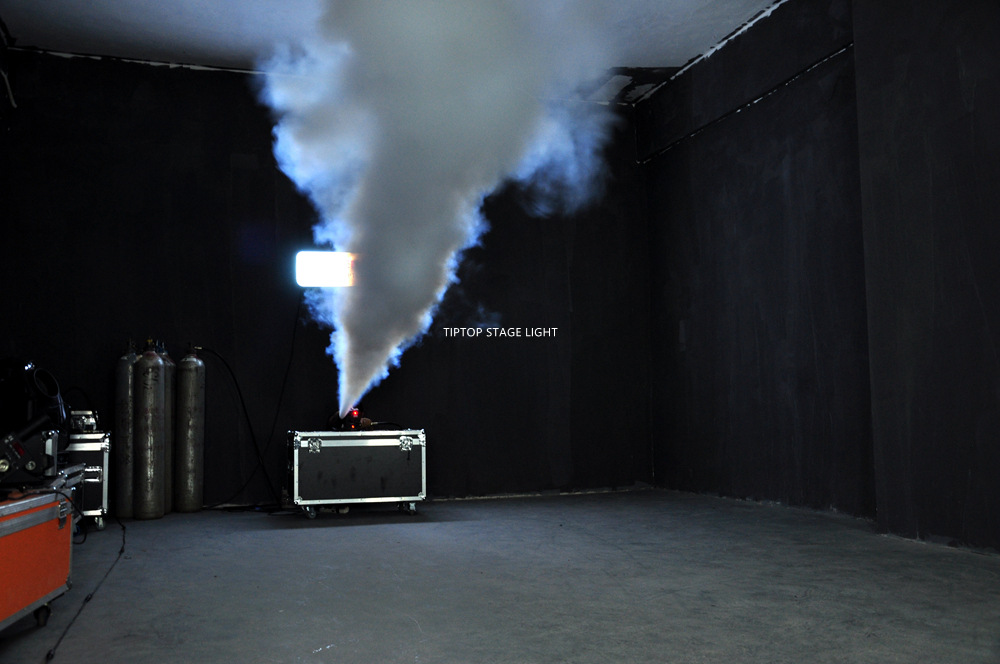

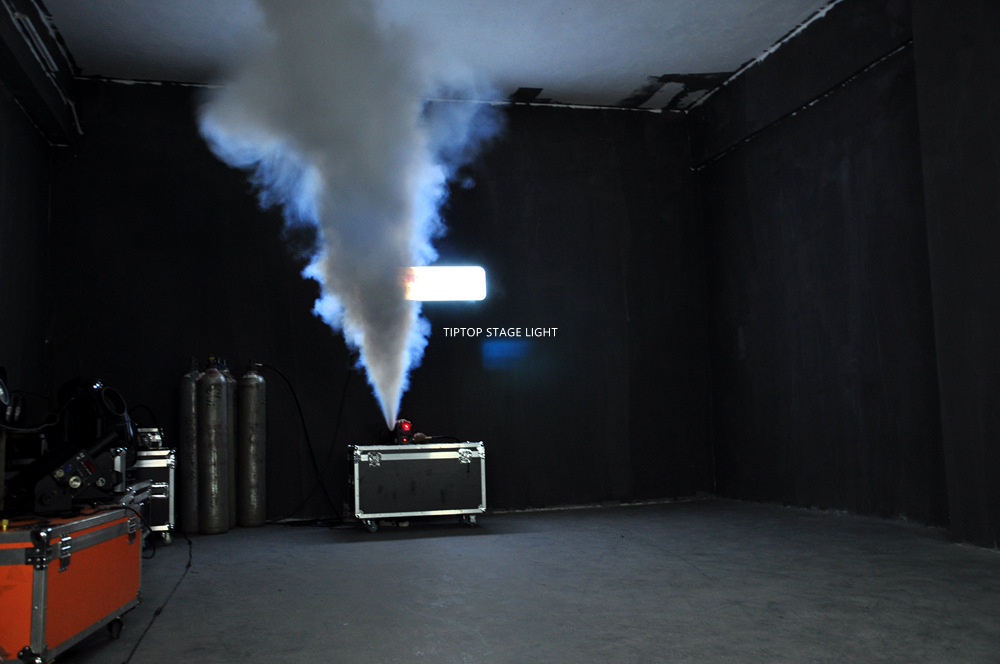

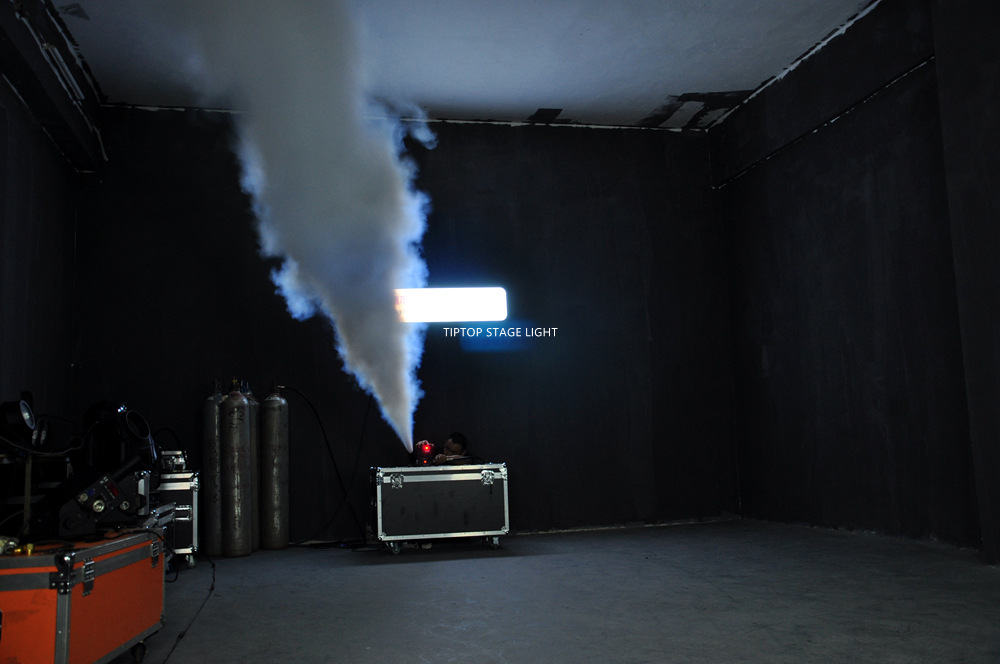

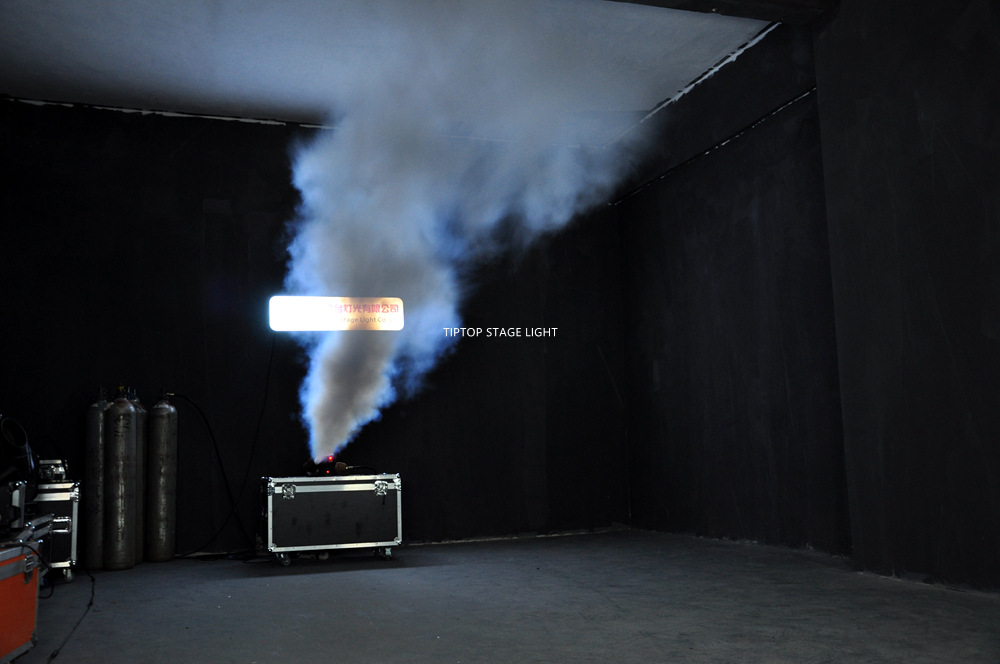

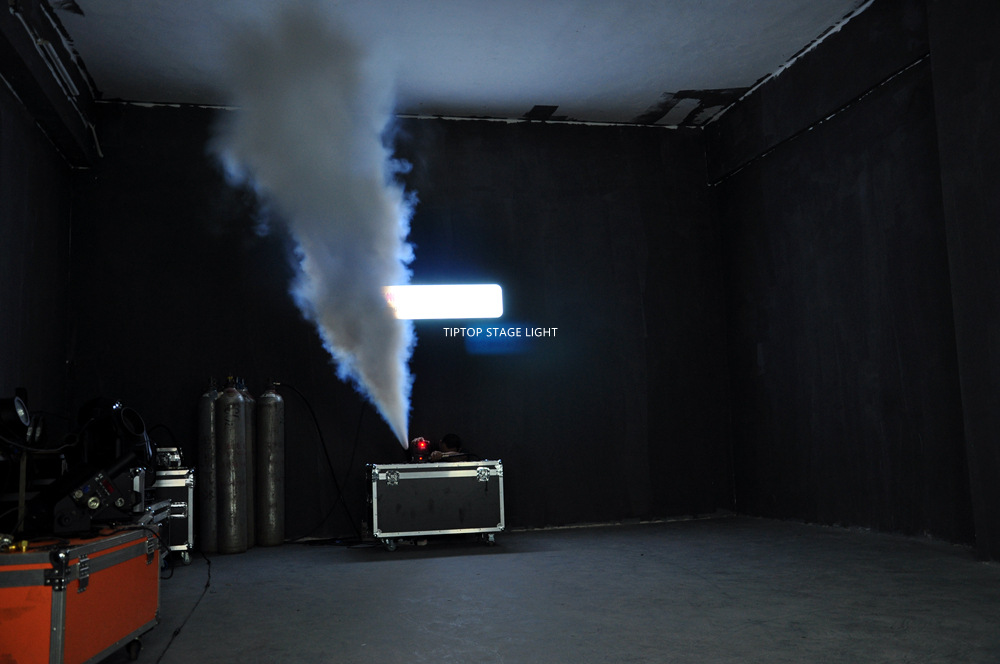

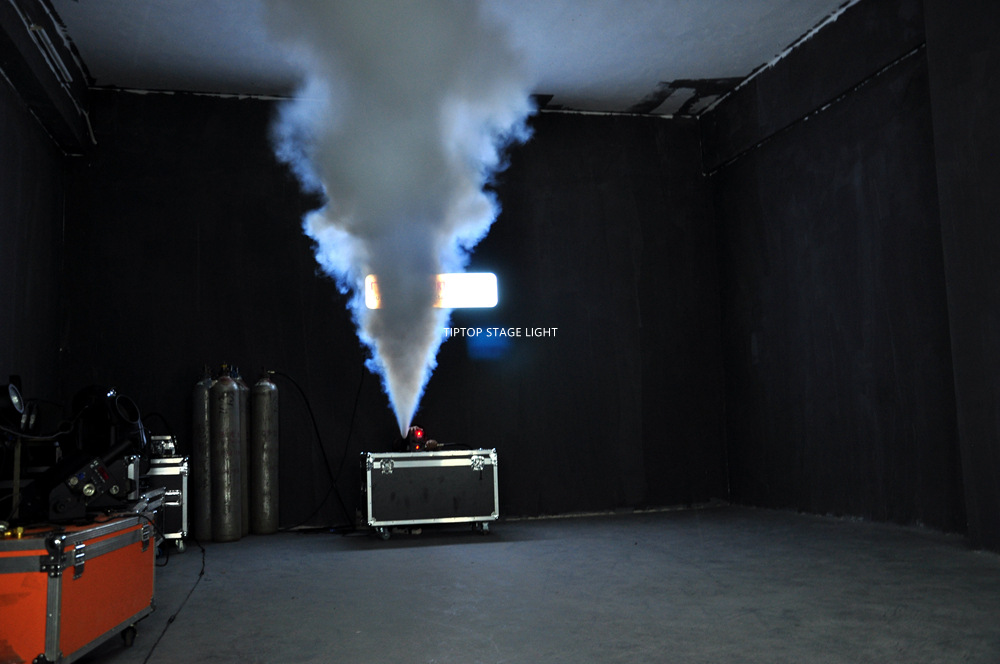

Co2 gas jet height: 6-8 meter
Nozzle materials: ABS
Waterproof rating: IP20

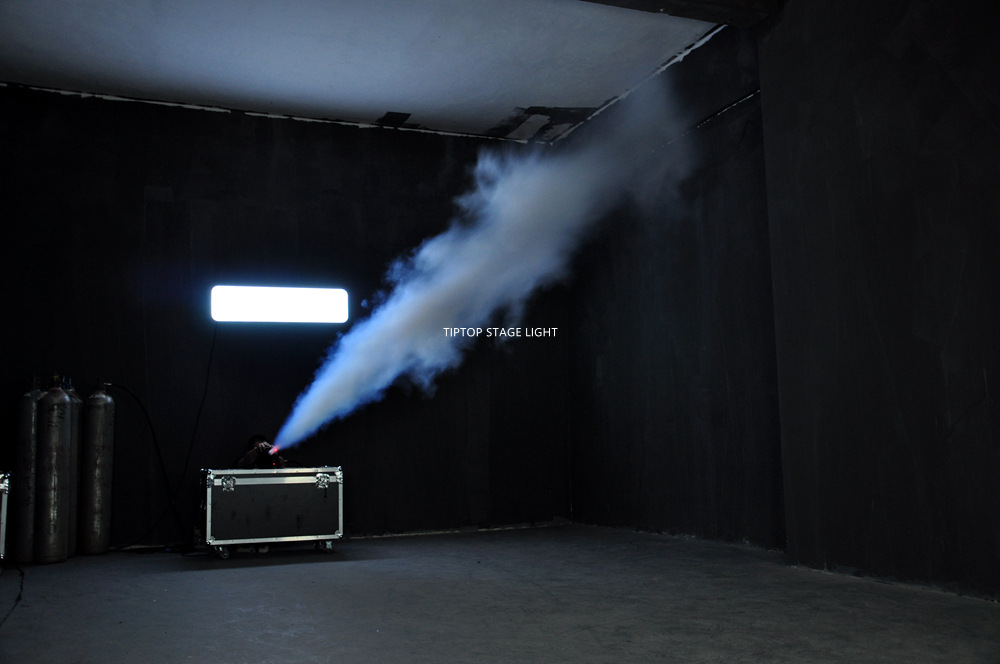

Co2 gas shot angle: adjustable 0-100 degree
Solenoid gas Valve: Hongsen brand
Hose length: 6 meters （other length gas hose is optional)
Gas hose type: support maximum 400 bar.

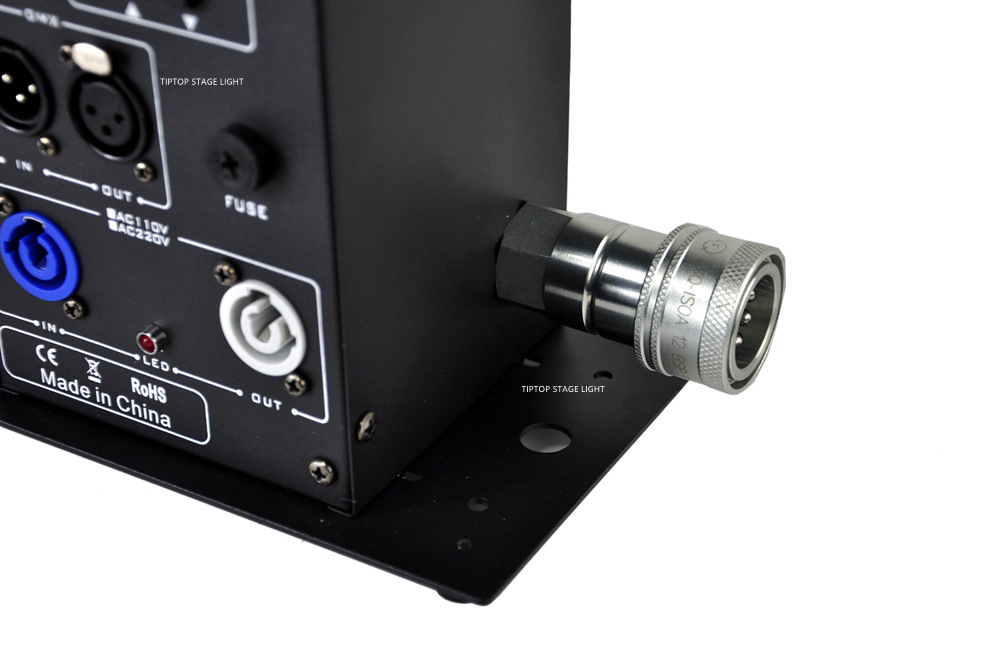

Gas hose fitting: EU/US/CN/UK type optional.
Product warranty time: 1 year

1IN1 Carton box= 31*28*26cm
1 unit packing weight= 6kg

2IN1 Carton box =59*32*28cm
2 unit packing weight =12.5kg

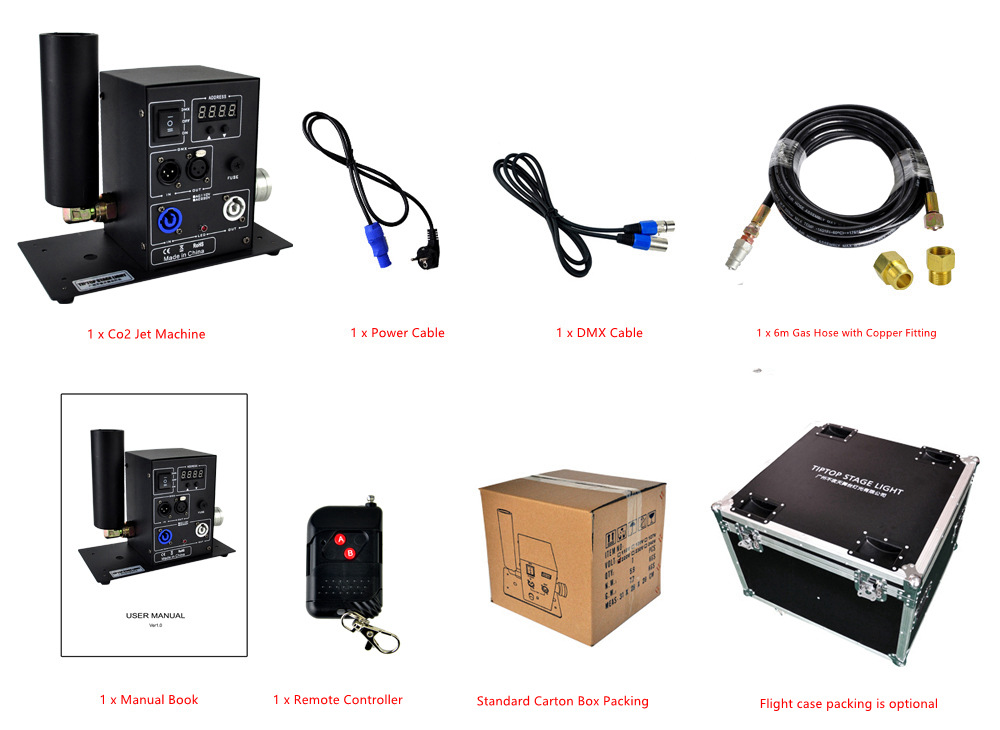

Packing list for each unit:
1 x single tube co2 jet machine
1 x 6m gas hose
1 x power cable
1 x DMX cable
1 x remote controller (normally no add battery inside. If you need please tell us)
1 x manual book

*Standard gas hose is 6m long. we can offer other length gas hose to choose. if you need other length please contact our sales manager.

FAQ:
1: What kind of gas should I choose?
A: Liquid co2 gas. please note the co2 gas tank inside have a suck pipe from nozzle to tank bottom. when you rent the co2 gas tank please confirm with your local supplier.

2: Can I connect the machine to gas tank directly?
A: Yes. no need additional gas regulator to reduce the gas pressure. the gas valve and gas hose can support.

3: Can I jet more than 5-10 seconds?
A: we suggest customer choose DMX mode and jet within 1-3 seconds. Long time jet will damage the valve and loose warranty.

4: Can I choose longer gas hose?
A: the standard length is 6m. if you need longer or shorter gas hose please contact our sales manager.

5: how to control the machine?
A: the machine standard control is power control and DMX control. we also offer remote controller (when you use remote controller need to press switch to DMX position and no connect the DMX cable to DMX controller)

5: Can I choose flight case packing?
A: the standard packing way is carton box. 4IN1/6IN1 flight case is optional. If need please contact us.

6：what is the battery model for remote controller?
A: 23A 12V small one.

7: how to connect 2 machine with one CO2 gas tank?
A: we offer T shape connector with gas hose to connect 2 machine with one CO2 gas tank. if you need it please contact our sales manager.
