Spray & Battery Powered Fan Umbrella Instruction Manual
1. Product Basic Information

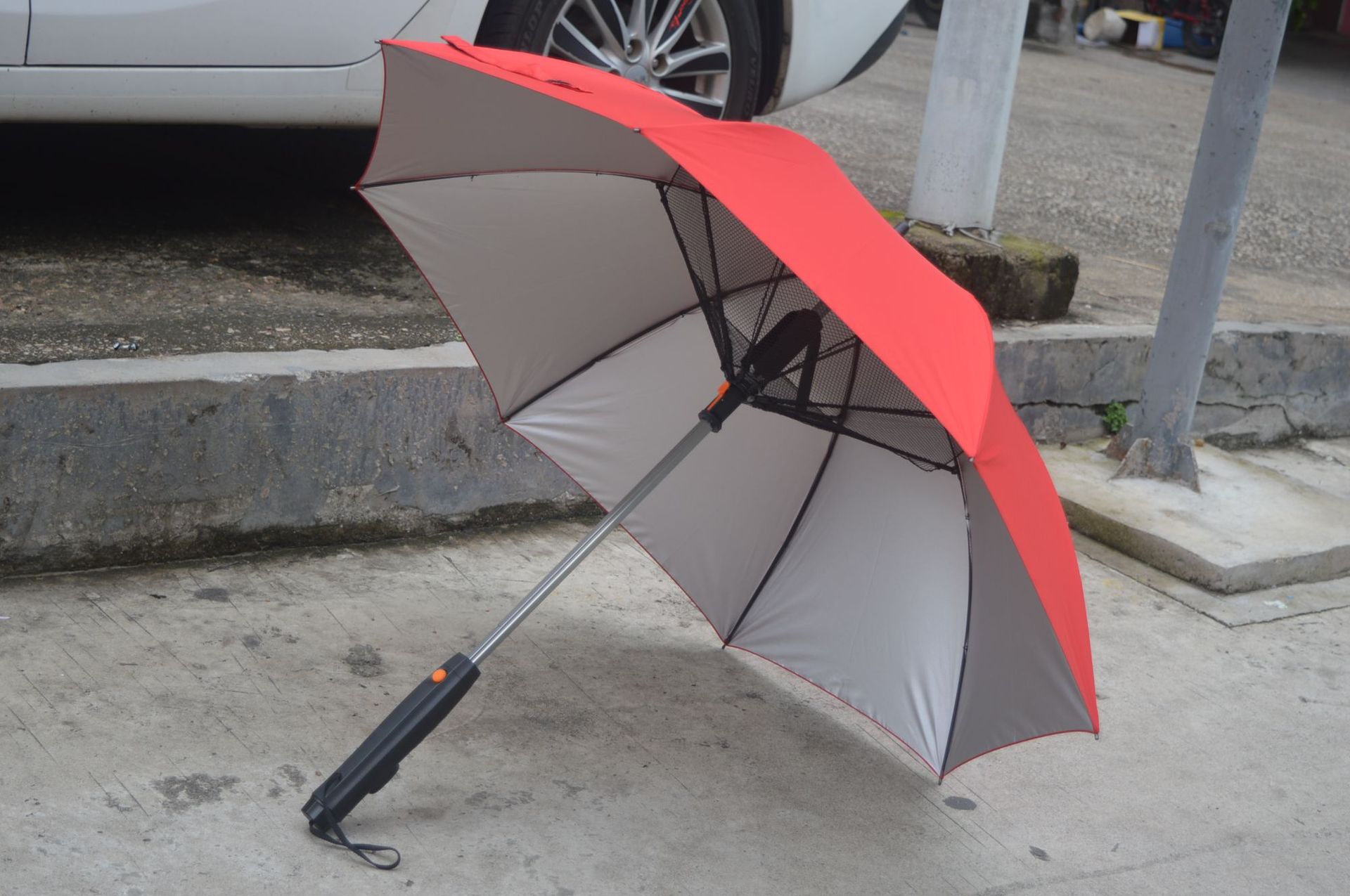

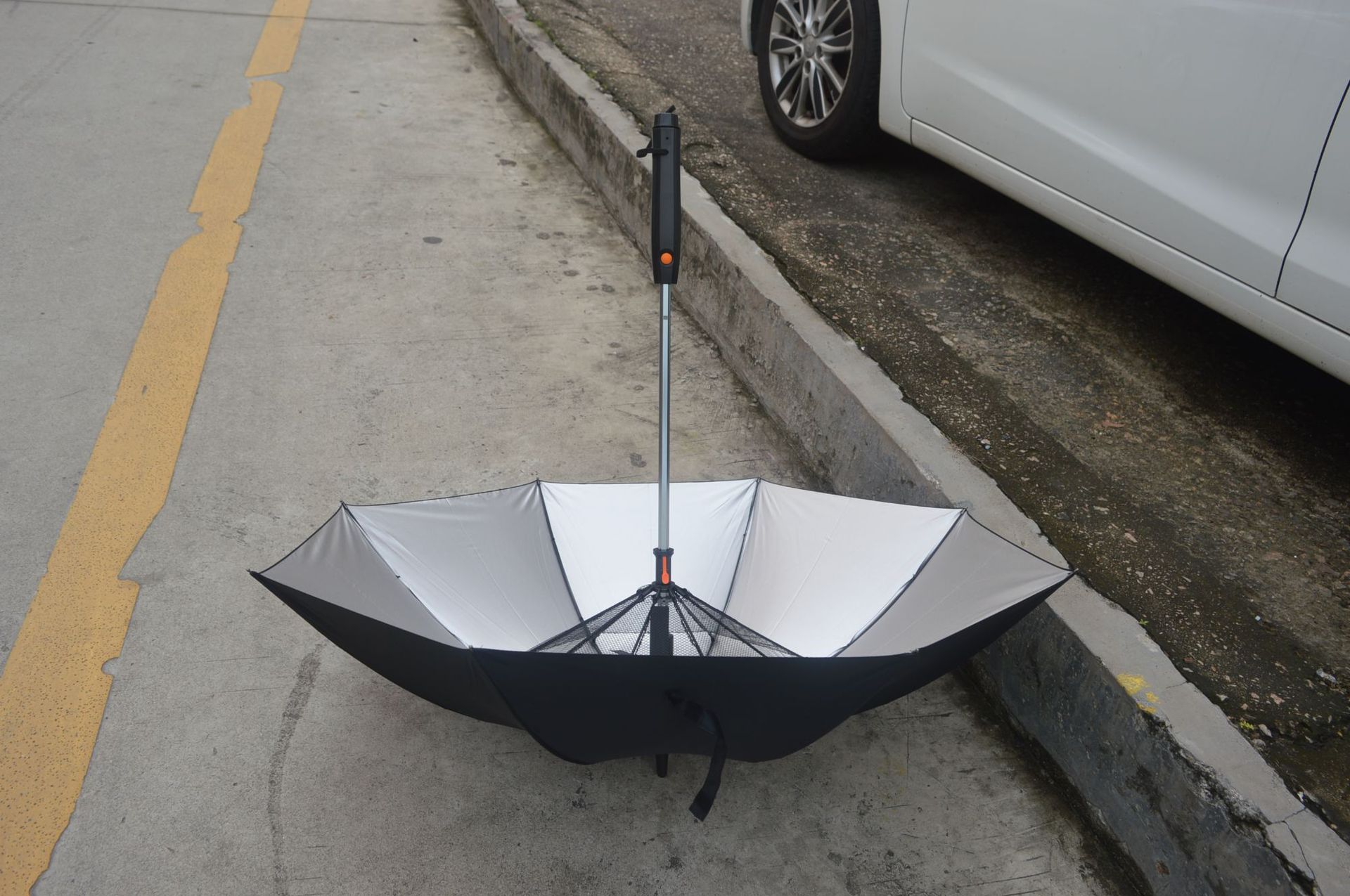

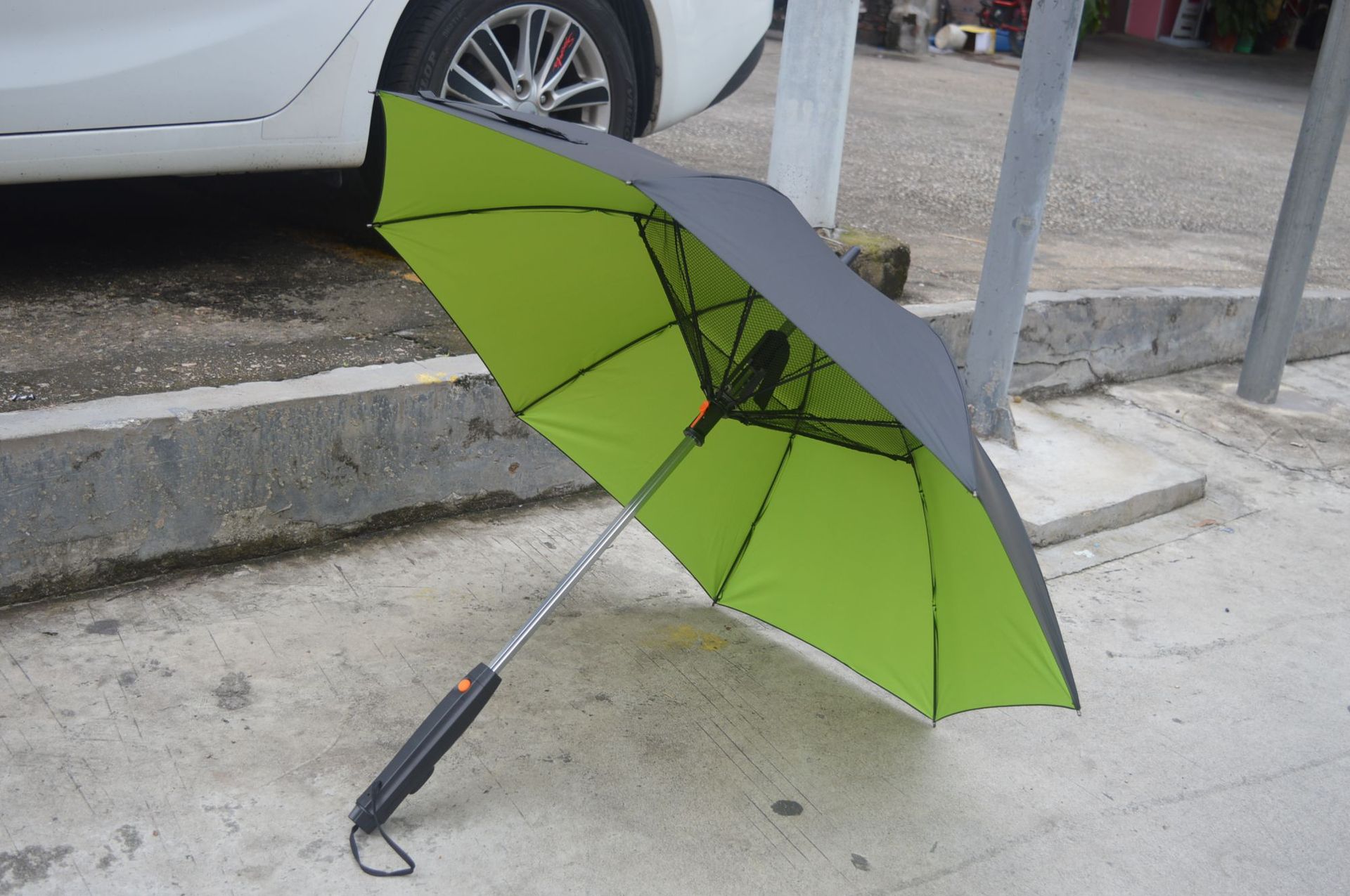

Product Name: Fan Umbrella – Spray & Battery Powered Version
Brand: HUA JIANG
Product Size: 58.5cm×8K, total umbrella length: 89cm, canopy diameter: 100cm
Canopy Material: 100% polyester fabric with professional UPF50 sun protection, effectively blocking ultraviolet rays.
Umbrella Frame Material: Fiberglass
Shaft Material: Lightweight aluminum alloy, featuring sturdiness, light weight, rust resistance and corrosion resistance.

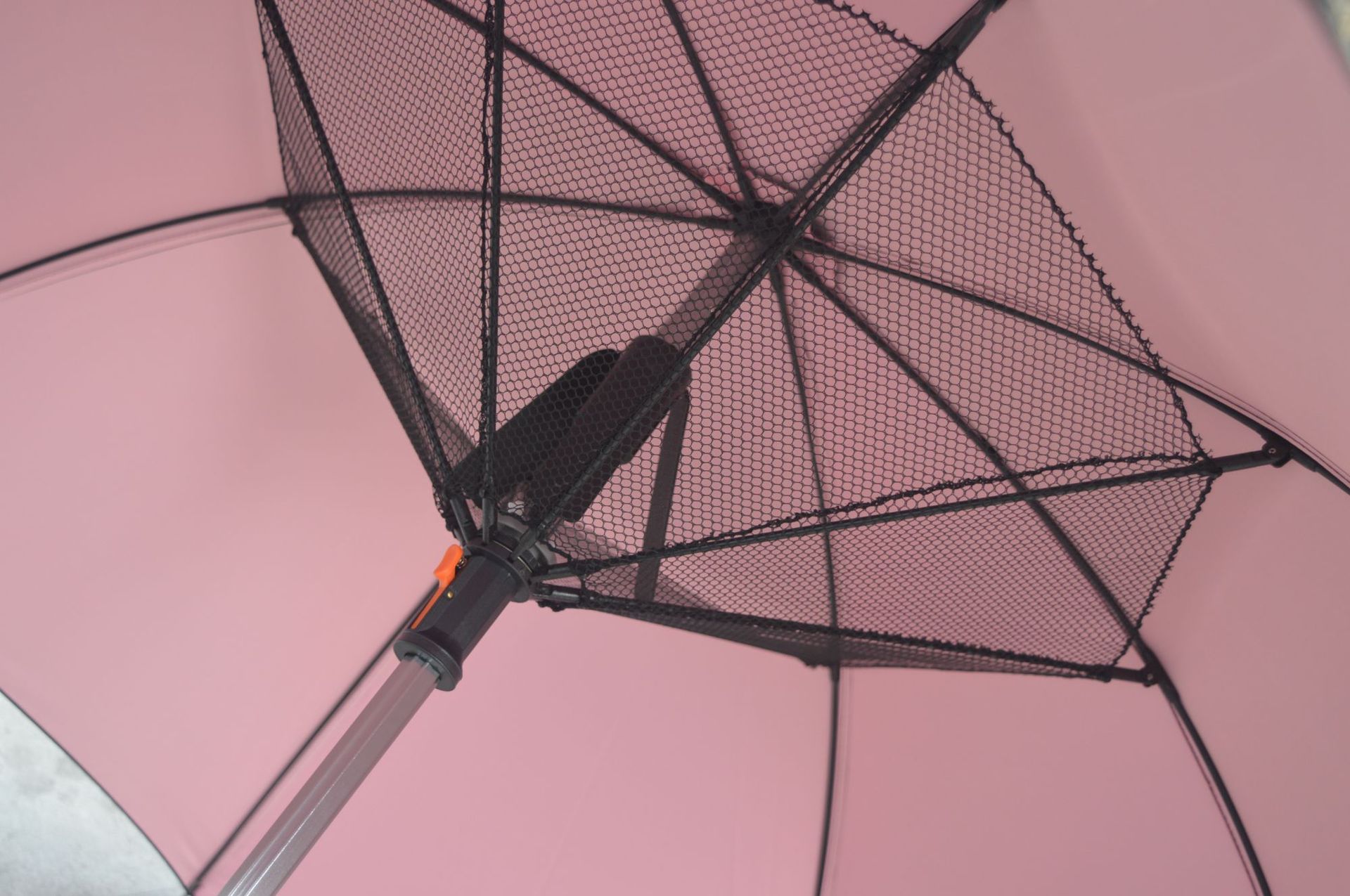

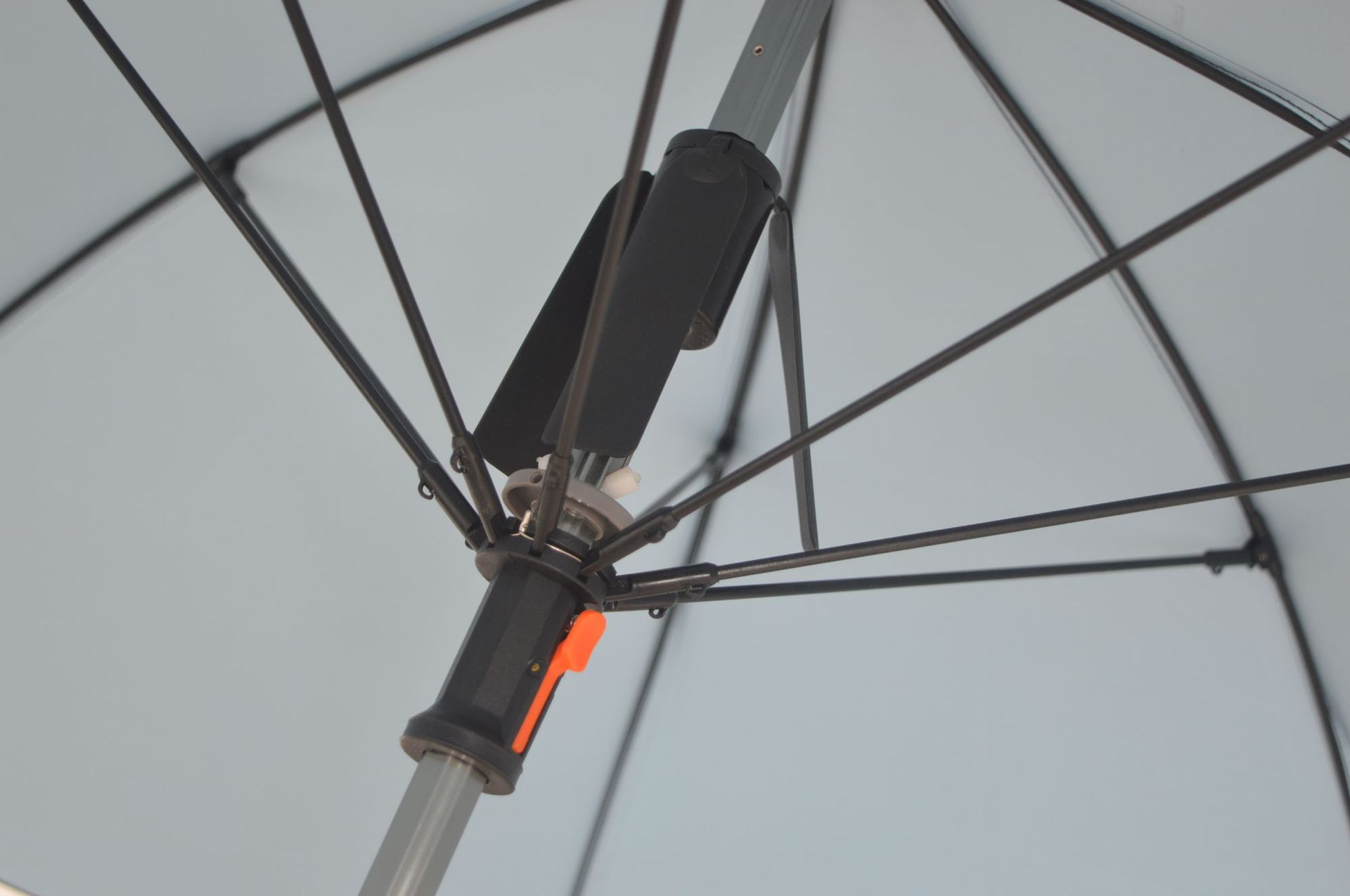

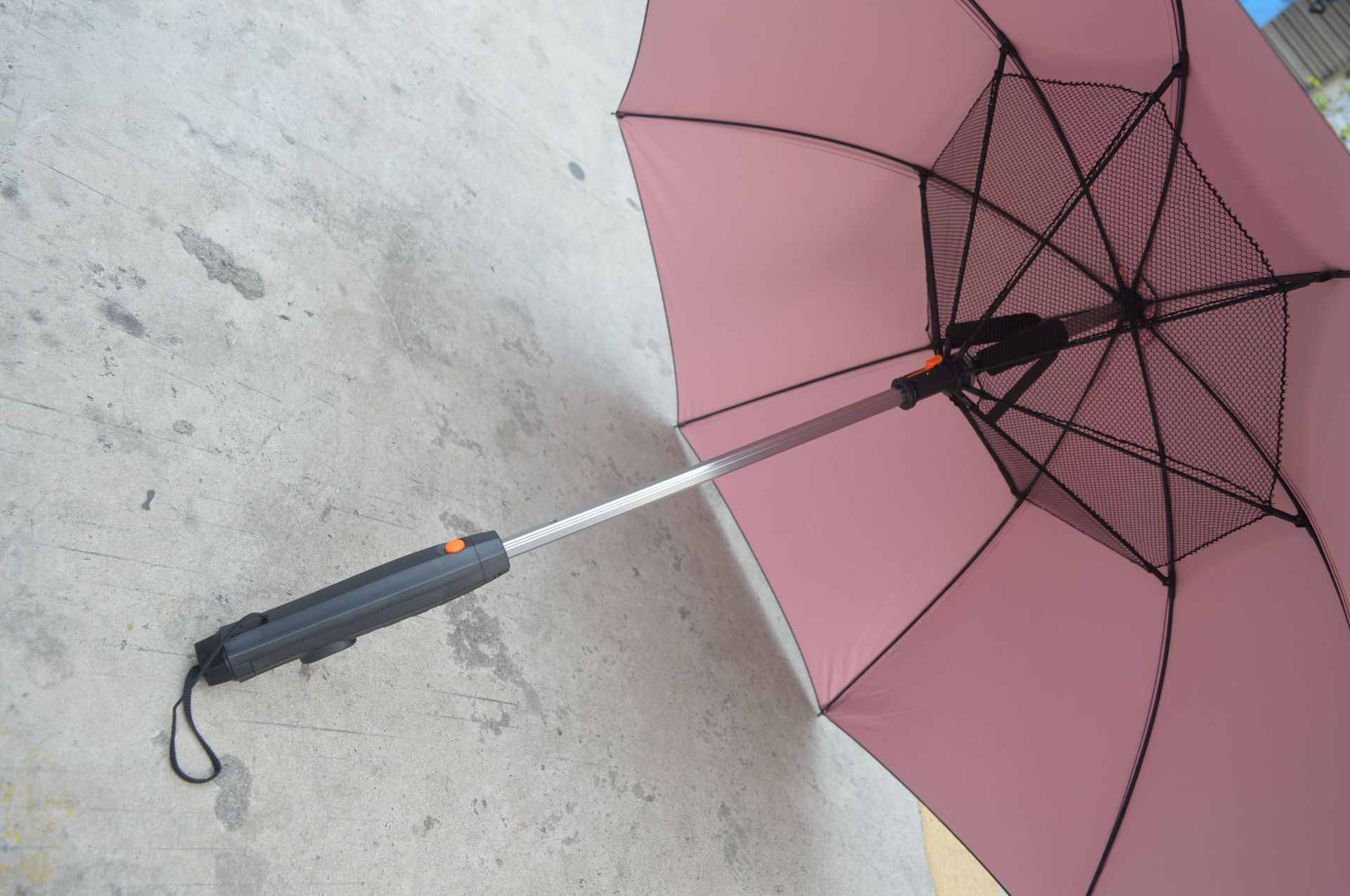

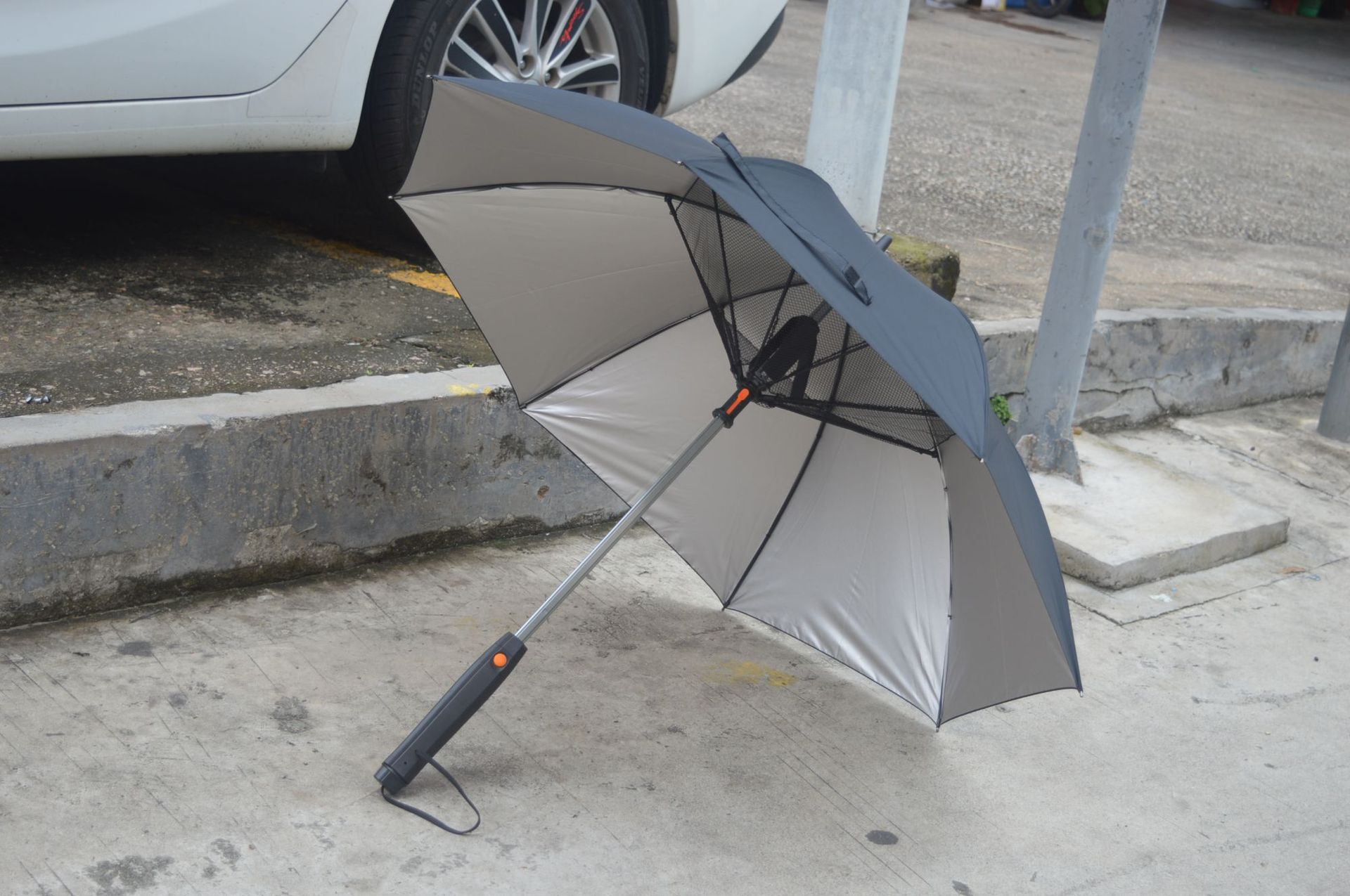

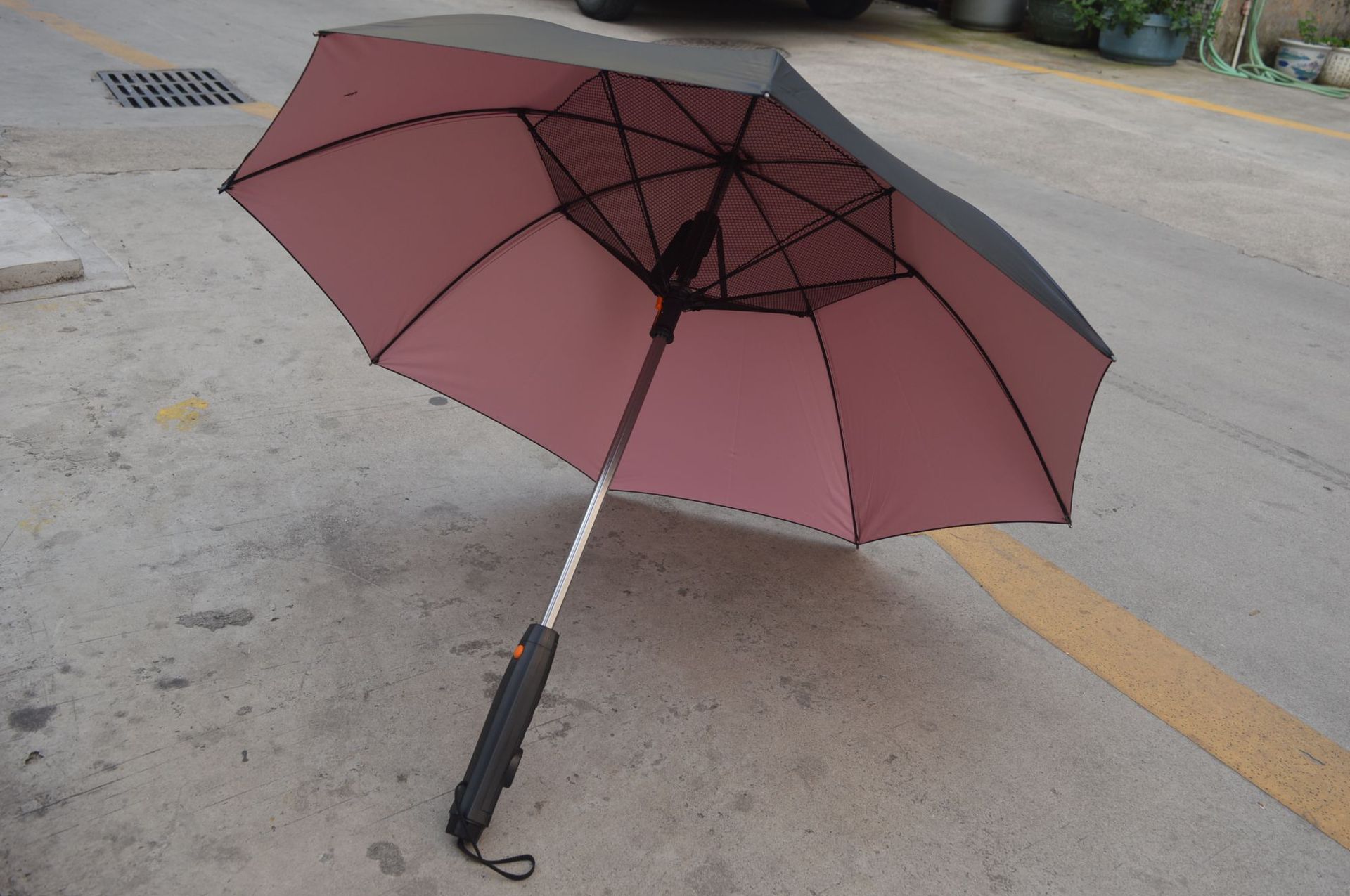

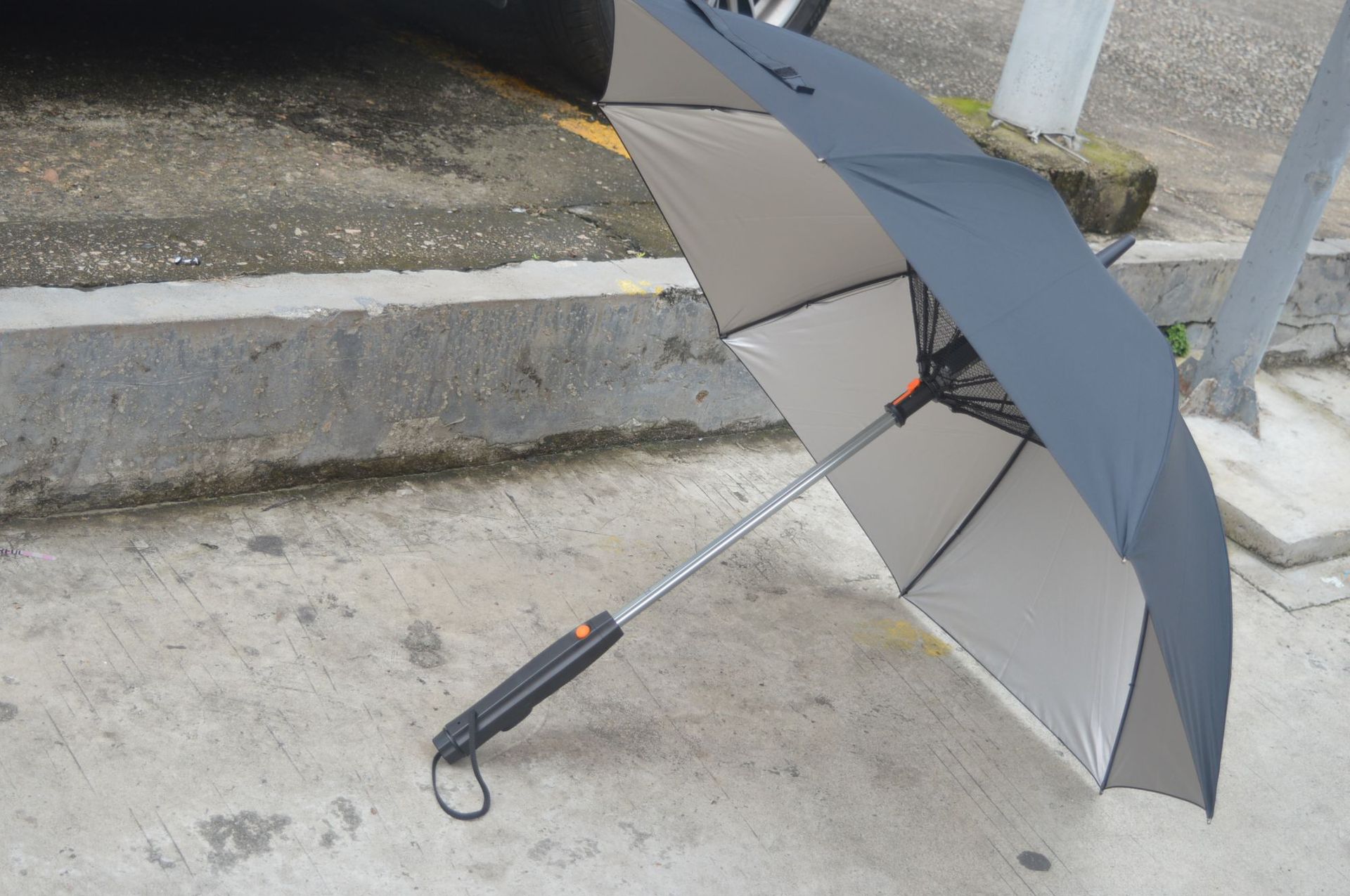

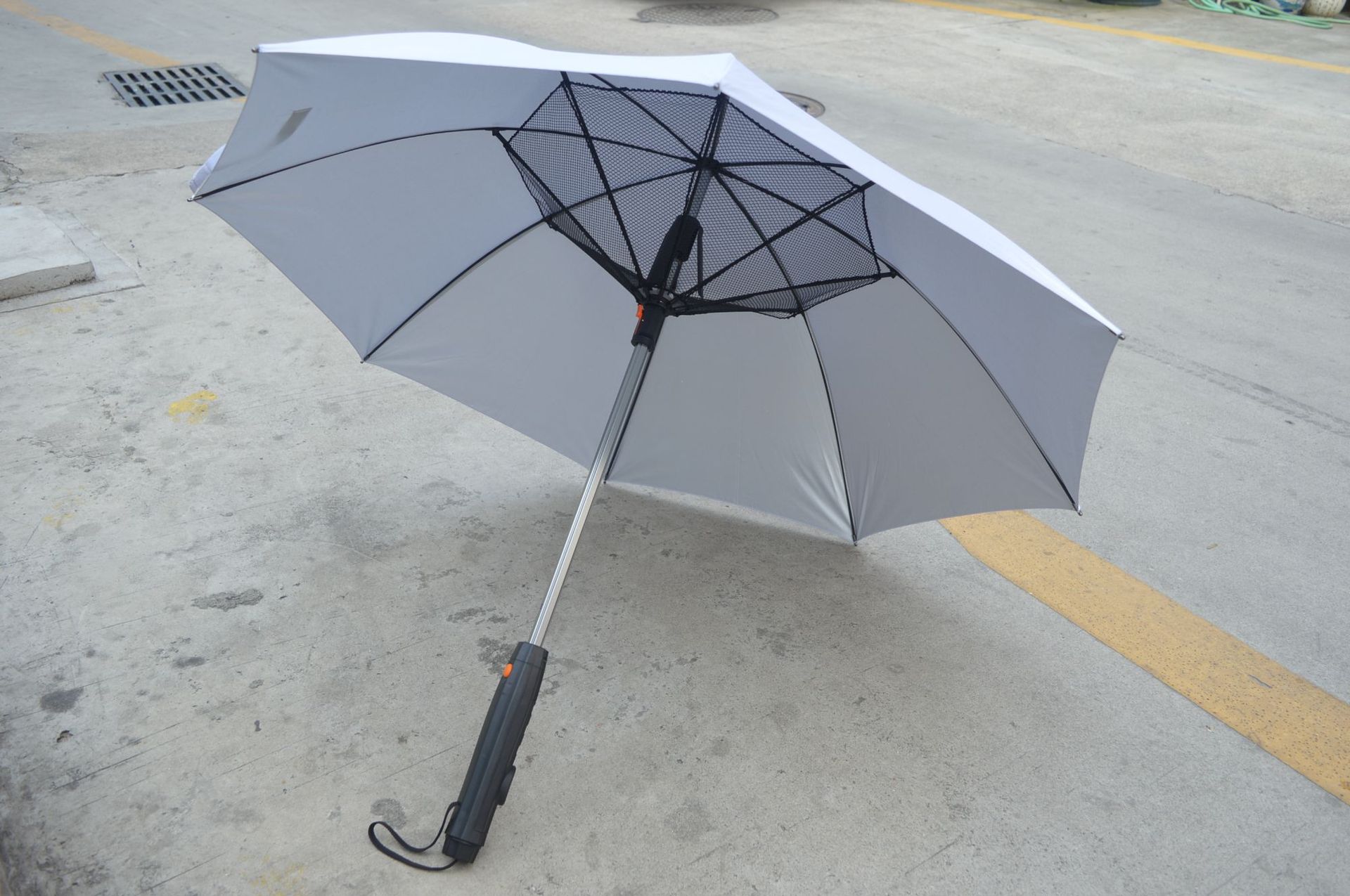

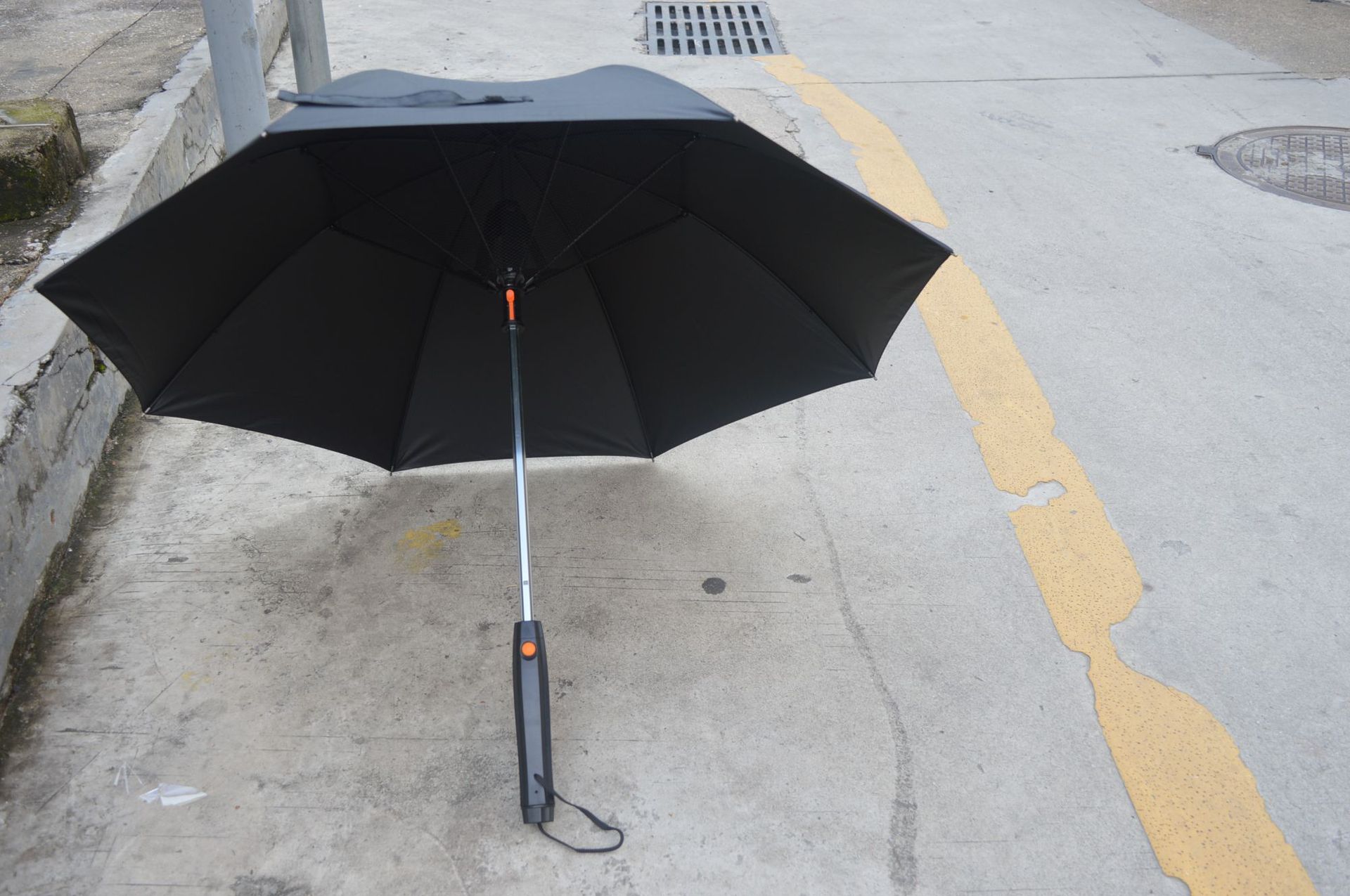

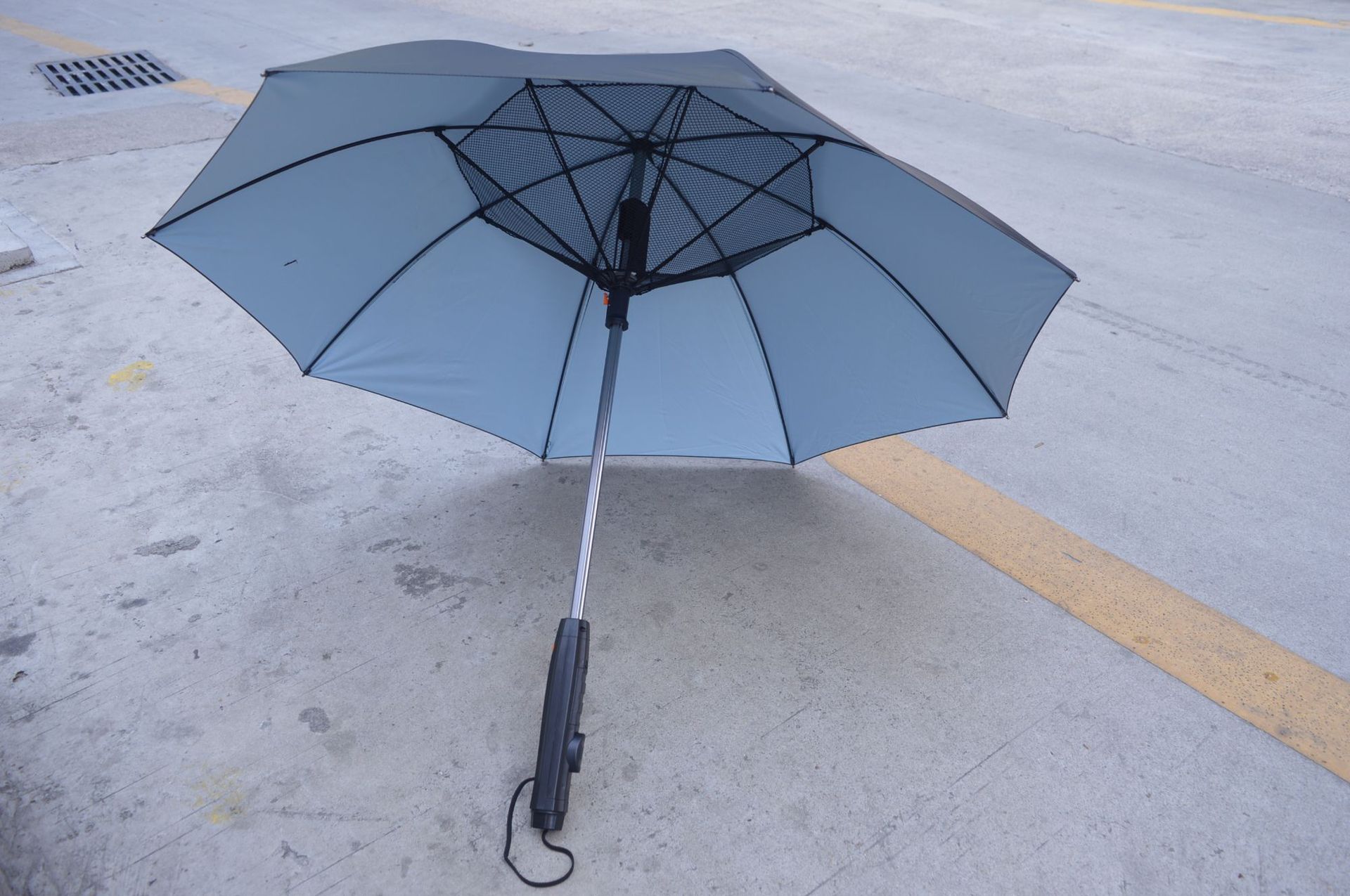

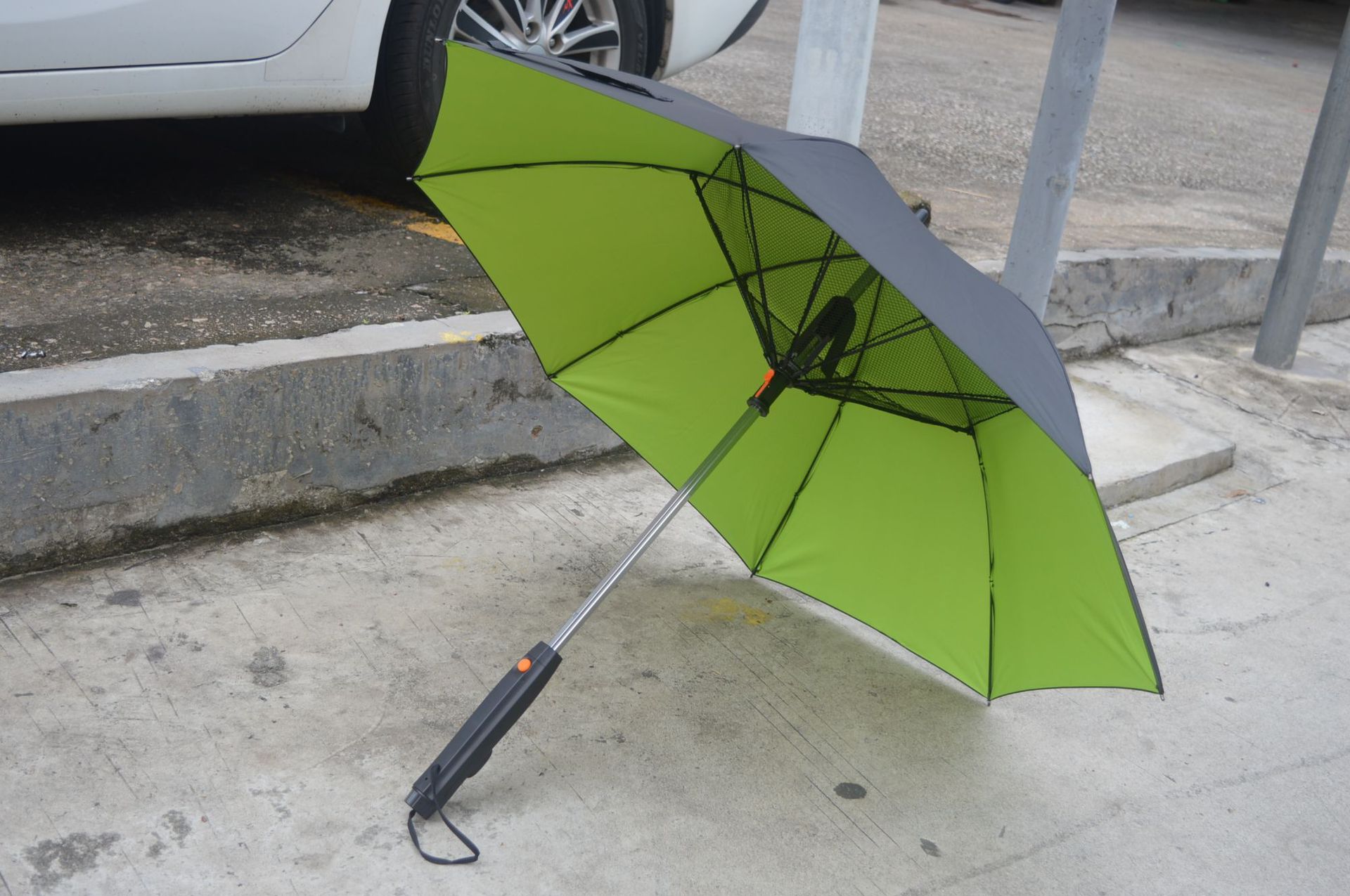

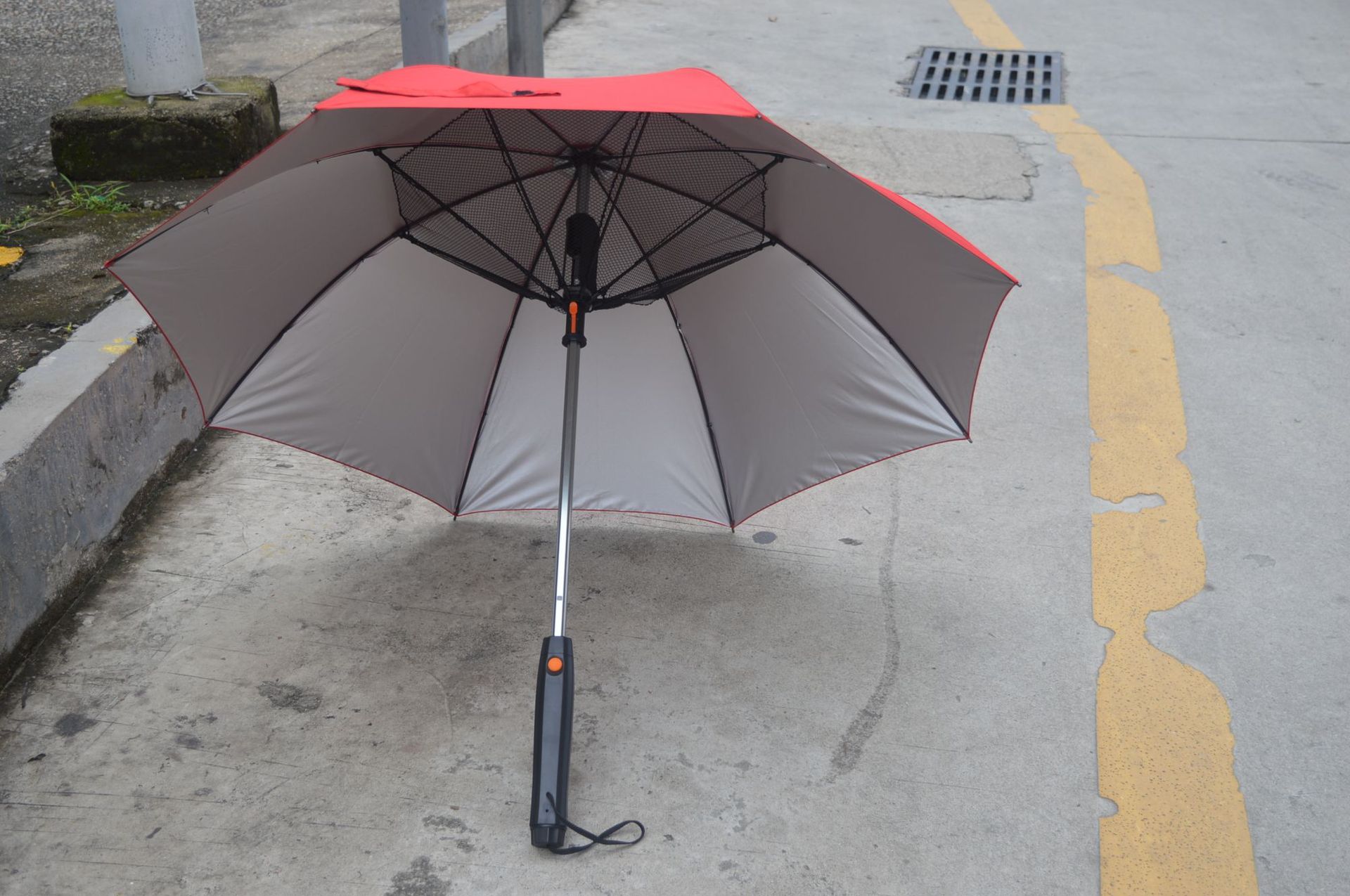

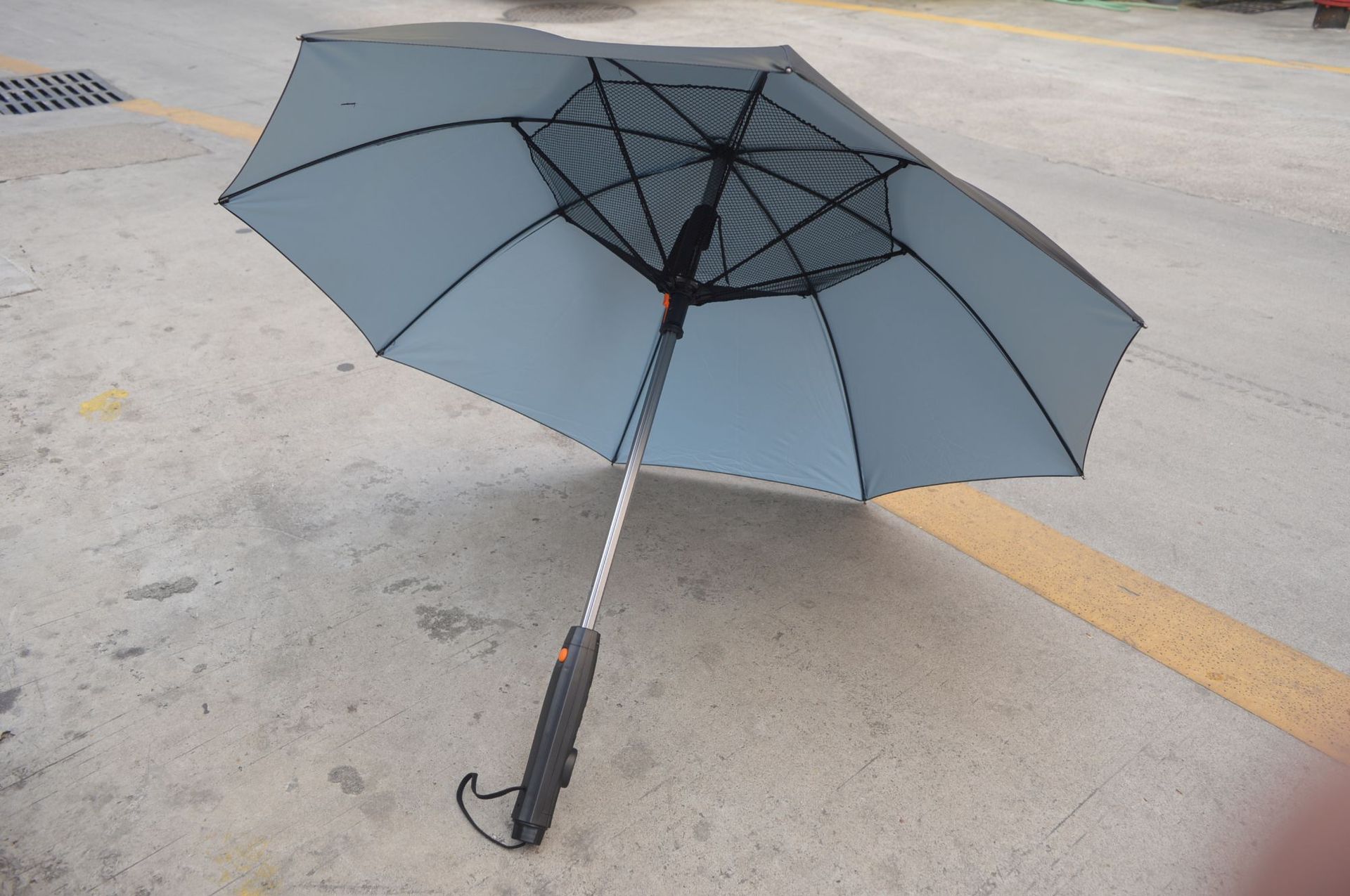

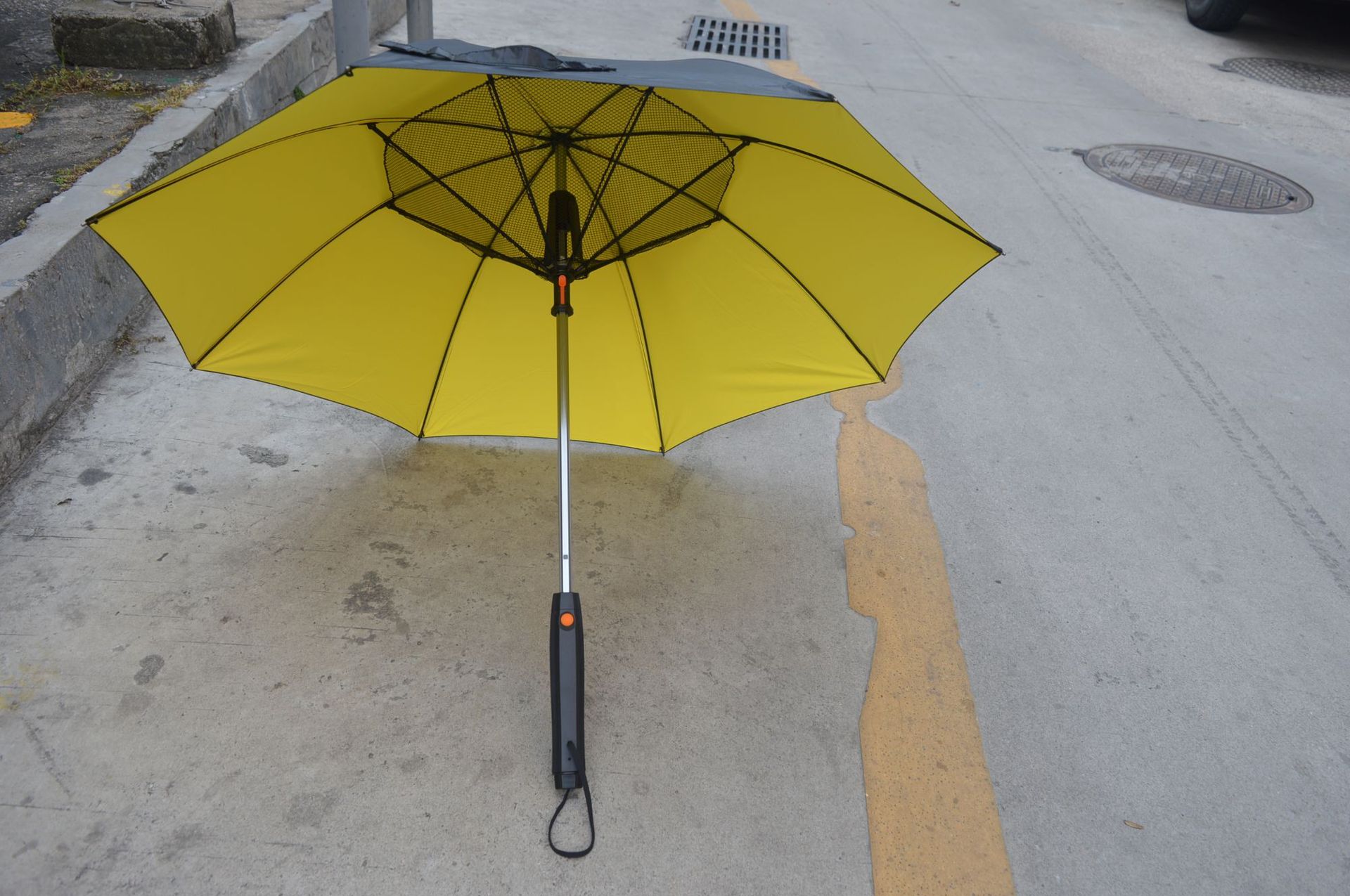

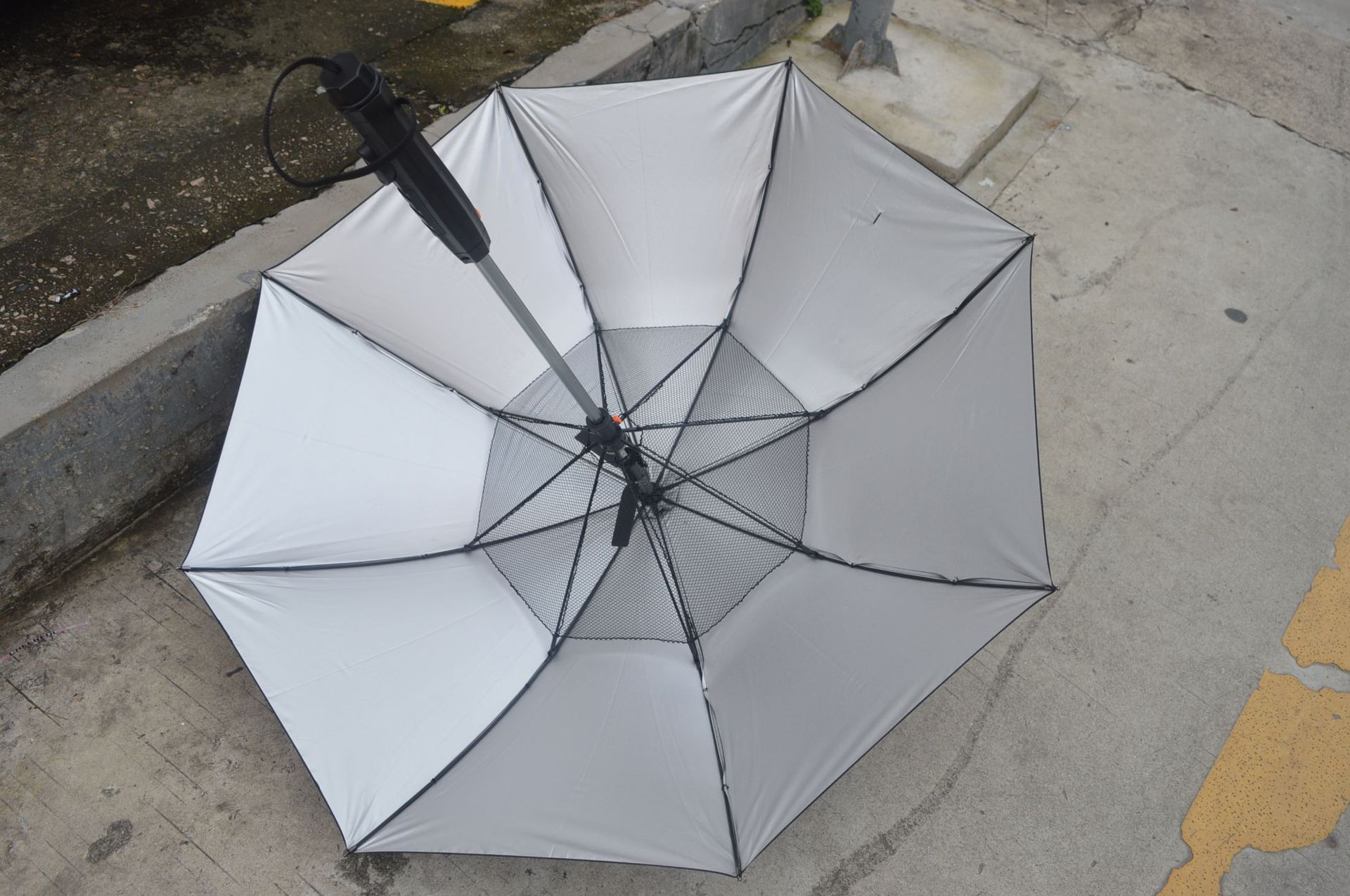

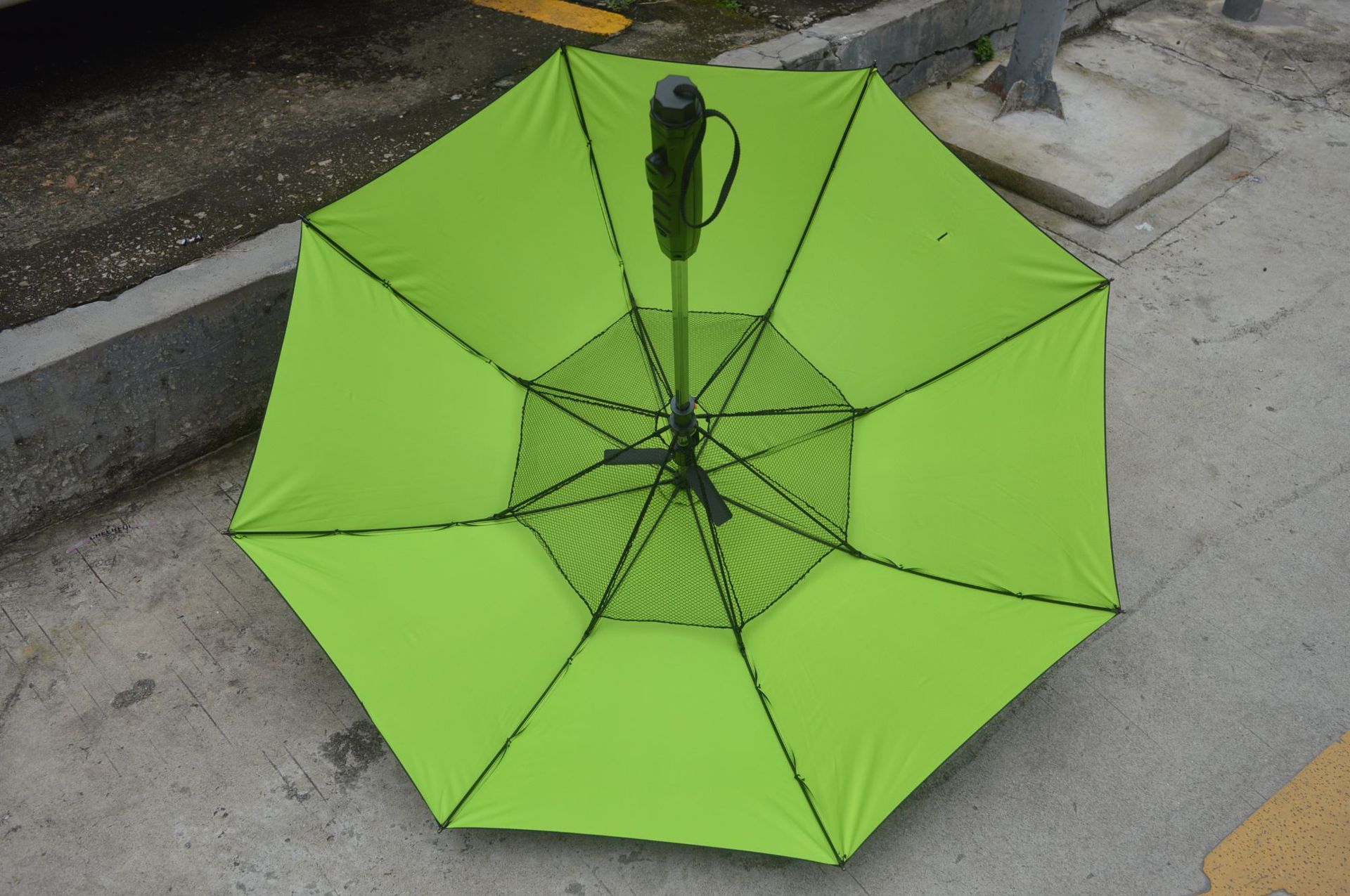

Core Configuration: Equipped with a brushless motor fan and protective mesh cover to prevent hand pinching injuries; built with an ultra-fine atomization spray system for rapid cooling and humidification.
Power Supply Mode: Detachable battery handle powered by 4 AA batteries, featuring easy installation and convenient battery replacement.
Executive Standard: GB/T 23147-2018
Country of Origin: China
Manufacturer: Shenzhen Huajiang New Umbrella Industry Co., Ltd.
Manufacturer Address: Building A, No.4 Tongxin South Road, Pingdi Subdistrict, Longgang District, Shenzhen
2. Battery & Spray Installation and Operation Steps
1. Unscrew the rear cover

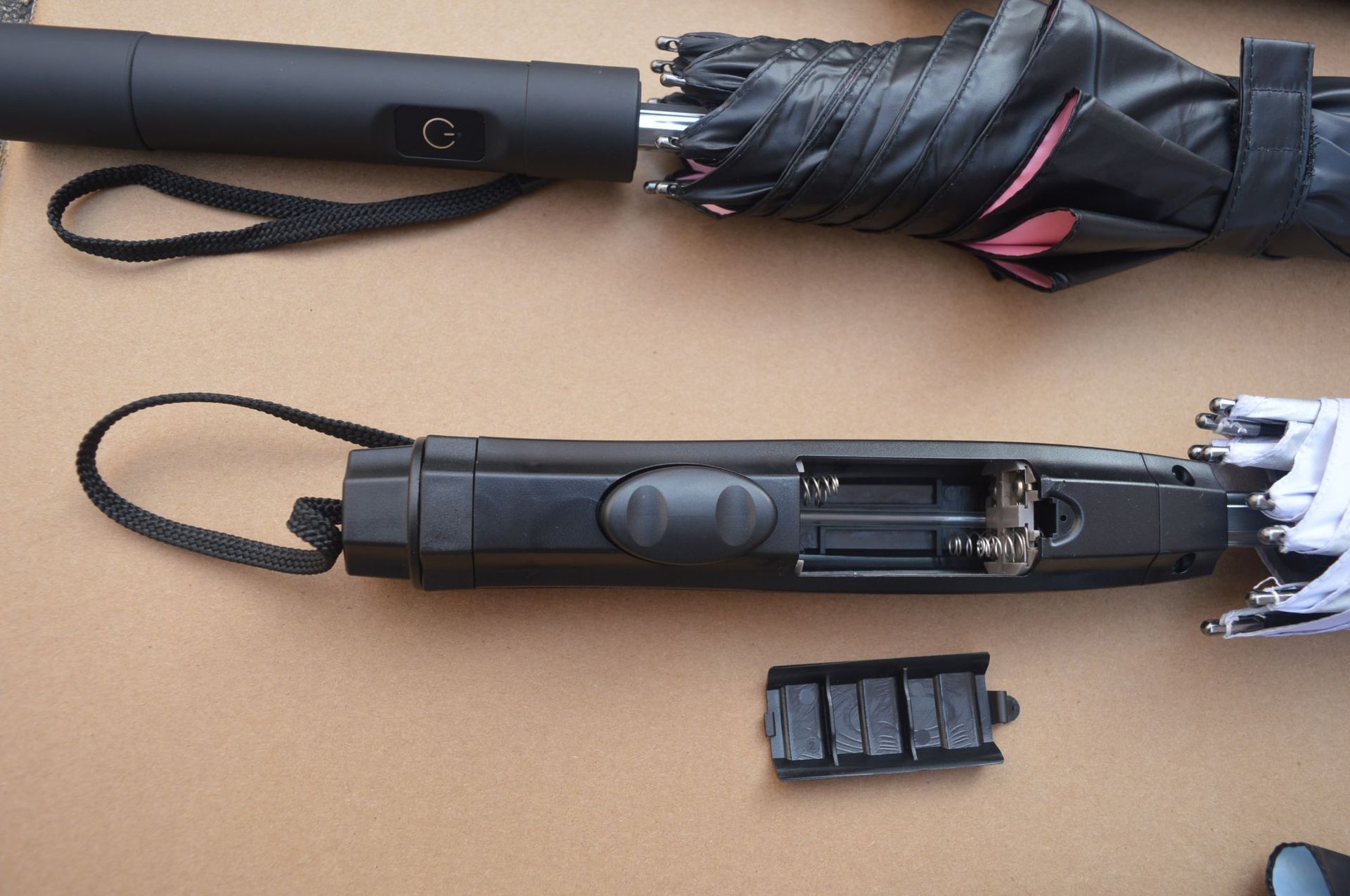

Grip the side of the handle, open the battery buckle rear cover, and separate the rear cover from the main handle body to expose the built-in battery slot.
2. Install batteries
Install 4 AA batteries according to the positive and negative polarity marks printed inside the battery slot. Align the raised metal positive terminal of the battery with the “+” mark and the spring terminal with the “-” negative mark inside the slot, then close the battery cover. Place the batteries in parallel strictly as marked. Do not install batteries in reverse. Do not mix old and new batteries or batteries of different models to avoid equipment malfunction.
3. Fill with clean water
After installing the batteries, twist off the bottom cover of the handle and remove the water bottle (bottle mouth diameter: 30mm). Fill the bottle with clean water or purified water, and place the silicone water suction tube inside the bottle. Do not fill with impure tap water, seawater, essential oil, chemical reagents or other liquids, which may cause nozzle blockage and body corrosion damage.
Fit the water bottle parallel to the tail of the handle and tighten it clockwise for complete sealing. Ensure the rear cover is firmly fixed without looseness or gaps to prevent water leakage.
4. Function Operation
Short press the fan control switch (orange button) on the side of the handle to turn on the independent fan mode. Press the spray switch to activate the dual cooling mode (fan + spray). Multiple presses will pump water to the top of the umbrella and spray water out from the nozzle holes with simple and convenient operation.
3. Precautions
1. Gently shake the canopy before opening the umbrella to separate adhered umbrella fabric. The canopy is coated with sun protection coating. Do not scratch or pull the canopy forcefully to prevent coating peeling and fabric damage, then press the opening switch to open the umbrella normally.
2. The spray function only supports clean water and purified water. Dirty water, seawater, chemical liquids and all oily liquids are prohibited. Long-term use of impure liquids will cause nozzle blockage and movement damage.
3. After each use, drain all residual water from the water tank, wipe off water stains inside the handle and water tank, and place the umbrella in a ventilated area to dry completely. This avoids mold growth, peculiar odors and moisture corrosion of internal parts.
4. If the canopy gets wet in the rain, place it in an open and ventilated place to dry thoroughly before storing it in a dry environment.
5. Do not store the umbrella in humid, closed or dark environments for a long time, so as to prevent metal fittings from rusting, fabric from mildewing and circuits from malfunctioning due to moisture.
6. Avoid using the umbrella in strong wind conditions outdoors to prevent the canopy from being blown over and damaging the ribs, shaft, internal spray and fan structures.
7. Do not disassemble, squeeze or collide with the fan and spray nozzle arbitrarily. Unauthorized disassembly by non-professionals may cause equipment failure, part damage and potential safety hazards.
8. Children must use this product under adult supervision. Do not touch the operating fan outlet to avoid hand pinching and injury.
