DMX512 / 1990标准

Triac提供24通道开关输出

开关输出功能：DMX通道值0-126 = OFF，127-255 = ON

硅双向晶闸管和过零触发

每个通道的LED指示灯

用快速保险丝保护过电流

通道输出：每通道0.5A，总计12A

输出功率：每路可以支持灯具100瓦左右，合计可以支持2600瓦左右灯具。超过功率承受范围保险丝会断掉。

里面有九个程序，可以选择这些程序的速度

DMX输入连接器：XLR-D3M

DMX输出接口：XLR-D3F

电源AC 110V-220V

尺寸：482mm×146mm×80mm

净重：2.3公斤

符合CE标准，UL标准和GB7000.15-2000标准

DMX512/1990 Standard 24 channels switch output with Triac Switch output
feature: DMX channel value 0-126=OFF 127-255=ON
Silicon bidirectional thyristors and zero-crossing triggering
Technical Parameter
DMX512/1990 Standard
24 channels switch output with Triac
Switch output feature: DMX channel value
0-126=OFF, 127-255=ON
Silicon bidirectional thyristors and zero-crossingtriggering

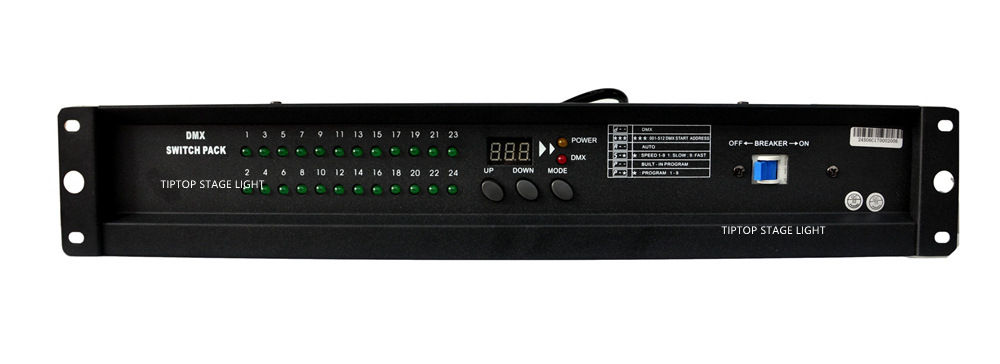

LED indicators for each channel
Over current protected with rapid fuse
Channel output: 0.5A per channel, 12A total
There are nine chase program inside and the
speed of these chase program can be selected

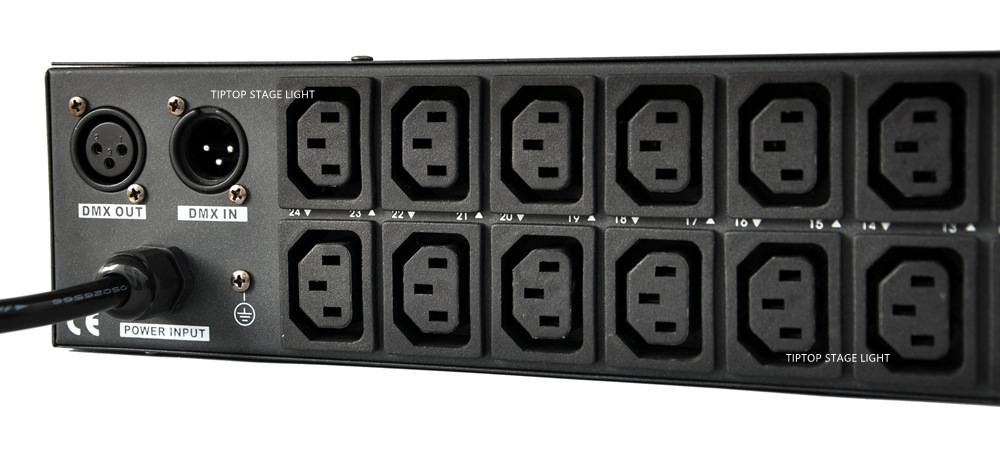

DMX input connector: XLR-D3M
DMX output connector: XLR-D3F
Power supply: AC 88～256V 50/ 60Hz
Dimension: 482mm×146mm×80mm
Net Weight: 2.3kg
Up to CE standard, UL standard and GB
7000.15-2000 standard
