多种安装方法2DX DMX分配器

  高压保护

  独立的输入和输出信号（包括信号接地线）

  独立的信号放大器系统和个人

  各通道LED灯

  Neutrik标准电源输入连接器对于任何租赁和移动演出都非常有用。

  多种安装方式可满足各种场所的使用目的。

  重量轻

DMX512 / 1990标准

输入输出：

标配：2 x 3芯信号座XLR Pin3

选项：5芯信号座可选

一路输入的两路DMX分配器

输入电压：110V-220V

尺寸：182mm×108mm×45mm

净重：0.65公斤


符合CE标准，UL标准和GB7000.15-2000标准

DMX512/1990 Standard

Input/output:

Standard: 2 x XLR Pin socket

Option: 5pin socket is optional (if you need 5pin please tell our sales manager firstly and confirm quantity you need)

Two-way DMX distributor with one input

Input Voltage: AC88-256V 50/60Hz

Dimension: 182mm*108mm*45mm

Net Weight: 0.65 Kg

Up to CE standard, UL standard and GB

7000.15-2000 standard

Advantaged feature:

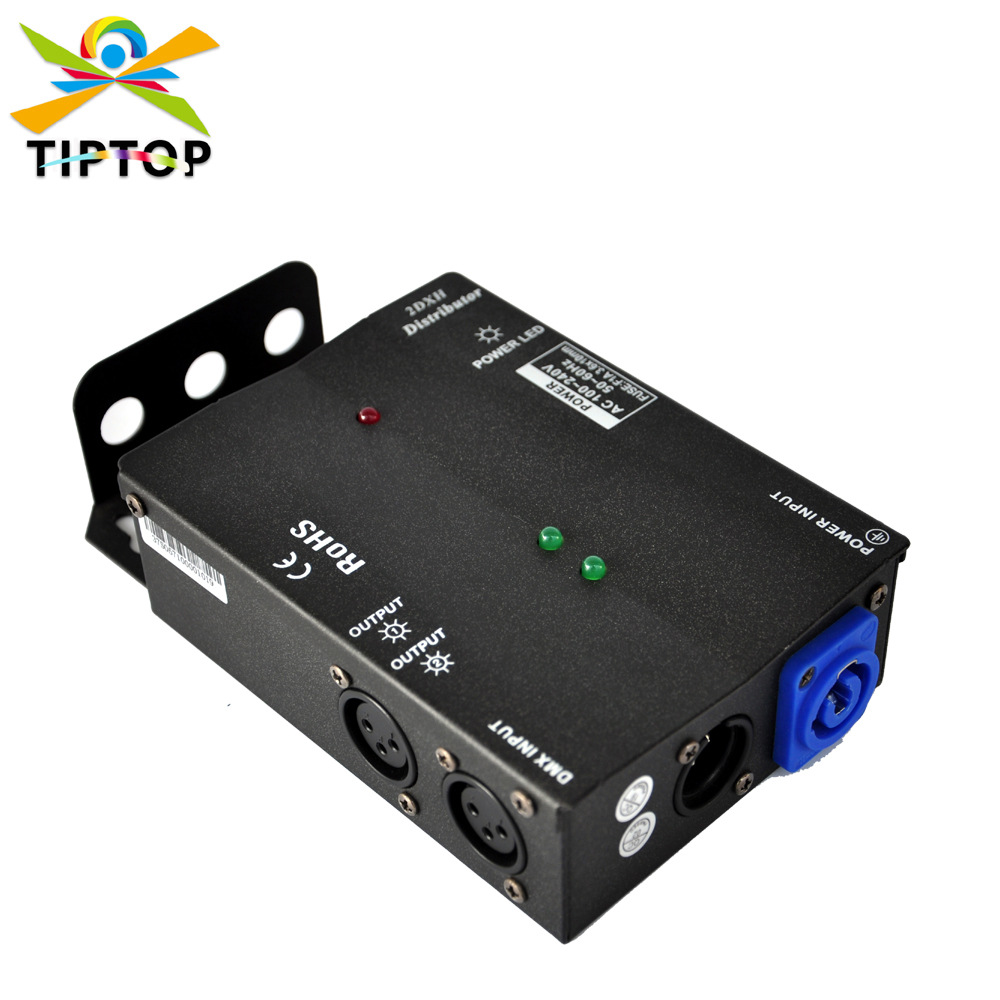

Multiple Installation Methods 2DX DMX distributor

High Voltage Protection

Independent input and output signal (include earth cable of signal)

Separate signal amplifier system and individual

LED light of each channel

Neutrik standard power input connector is very useful for any rental and mobile shows.

Multiple installation methods to meet variety places use purpose.

Wide input stable electric power supply: AC88-256V
