BEFORE INSTALLING
This information is included as a quick reference
installation guide. Refer to the control panel installation
manual for detailed system information. If the sound
strobe will be installed in an existing operational system,
inform the operator and local authority that the system
will be temporarily out of service. Disconnect power to
the control panel before installing the modules.
NOTICE: This manual should be left with the
owner/user of this equipment.
GENERAL DESCRIPTION

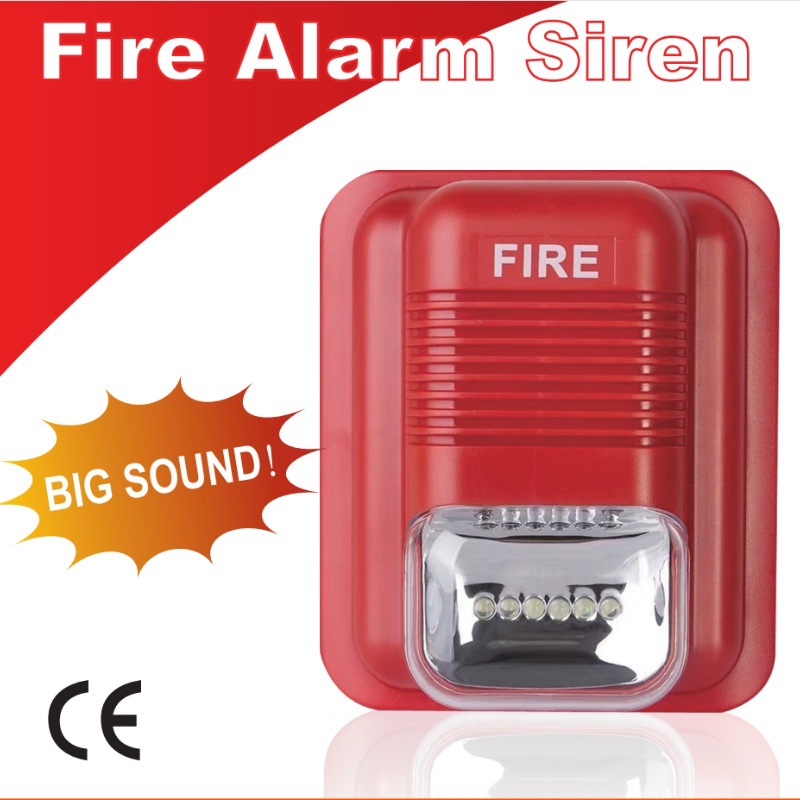

The Sounder strobe is a kind of audible and visual alarm
device installed in field, which can be activated by fire
alarm control panel in fire control center or by manual
call point installed in field. After activated, it will
generate strong audible/audible and visual alarm signal to
warn people in field.
Design and Wiring
The system designer must make sure that the total current
drawn by the devices on the loop does not exceed the
current capability of the panel supply, and that the last
device on the circuit is operated within its rated voltage.
When calculating the voltage available to the last device,
it is necessary to consider the voltage drop due to the
resistance of the wire. The thicker the wire, the smaller
the voltage drops. Wire resistance tables can be obtained
from electrical handbooks.
INSTALLATION
NOTE: All wiring must conform to applicable local
codes, ordinances, and regulations.
Mounting Indoor Wall or Ceiling Products
1. Drill 2 screw holes apart from each other 60mm
-80mm on the wall.

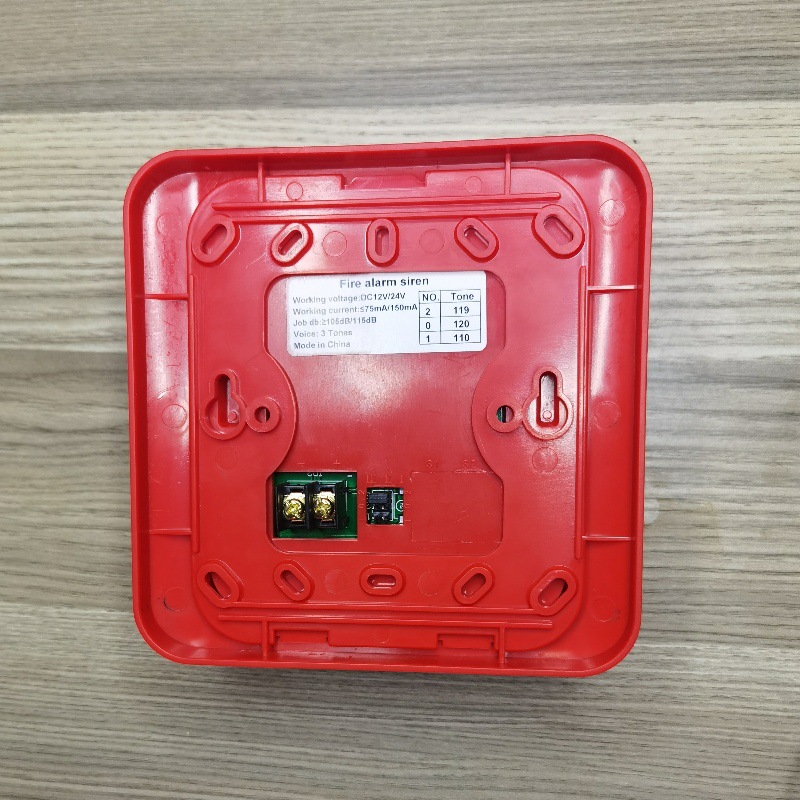

2. Connect field wiring to terminals
3. To attach product by two mounting screws.
4. Secure product by tightening the two mounting screws
in the front of the product housing
