采用瑞典lumen公司 CRMX收发技术
DMX无线系统适合512信号和任何通道数的控台和灯光设备，准确快速，互不干扰，自动纠错
可一对一发射或一发射多接收
同一地点可装多组发射器,频率自动配接
此产品非常专业,是不可替代的简单易用的产品，多台同时使用时可以最大限度的实现你想要控制的灯

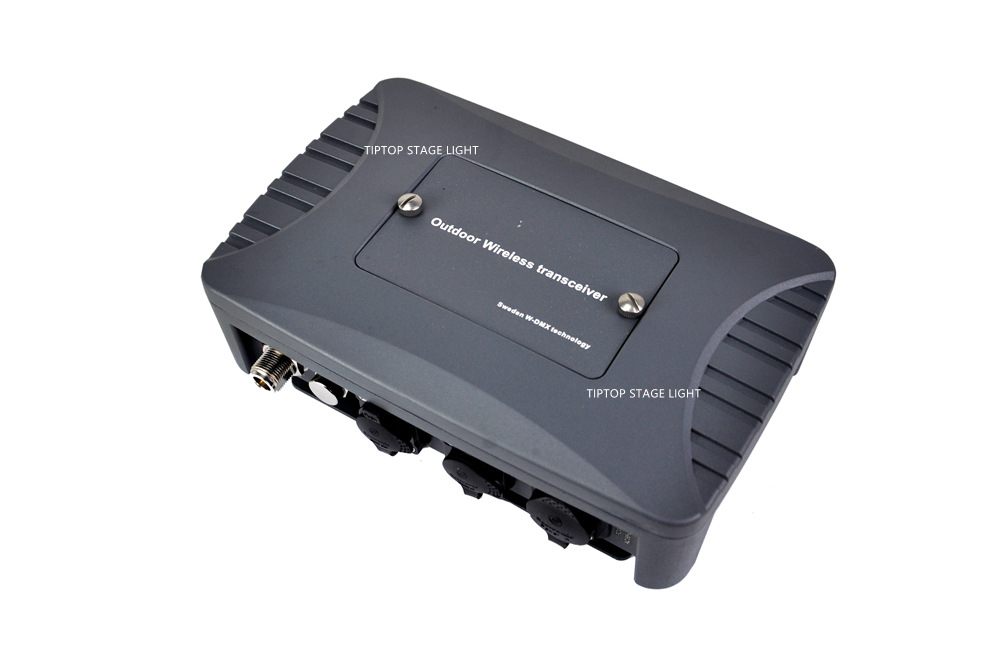

铸铝材质，防风雨、抗紫外线，适用性强，
简单易学，操作方便

发射功率:  20～26.4DBM
传输距离:  500米(空旷地)
载波频率:  2403M～2479MHz
电源供应： 88～256V 50/60Hz
体积：  226 X 157 X 81 MM
重量：  2.0 KG

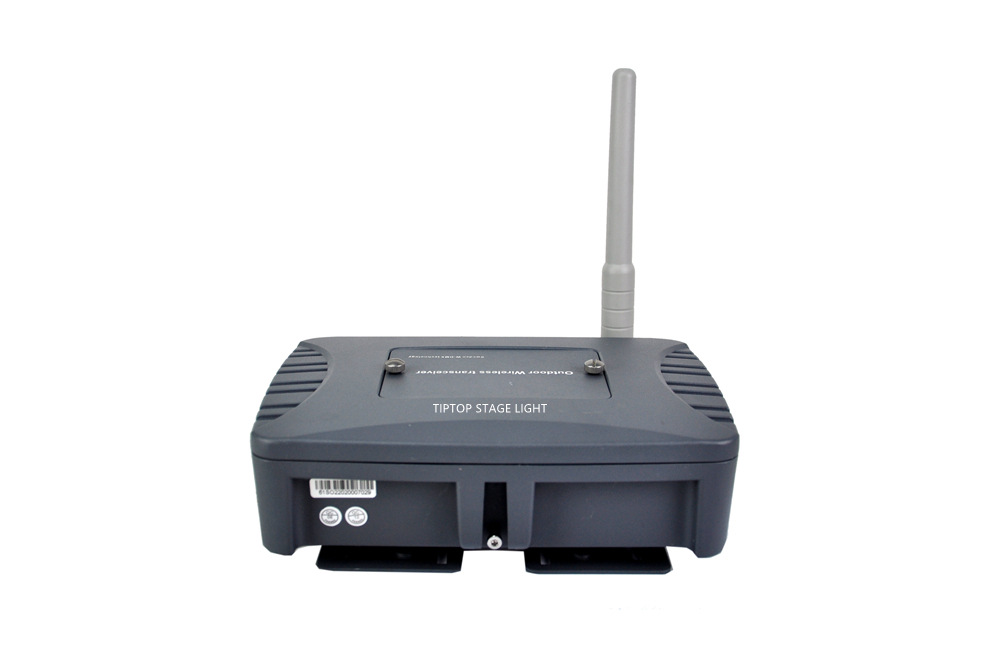

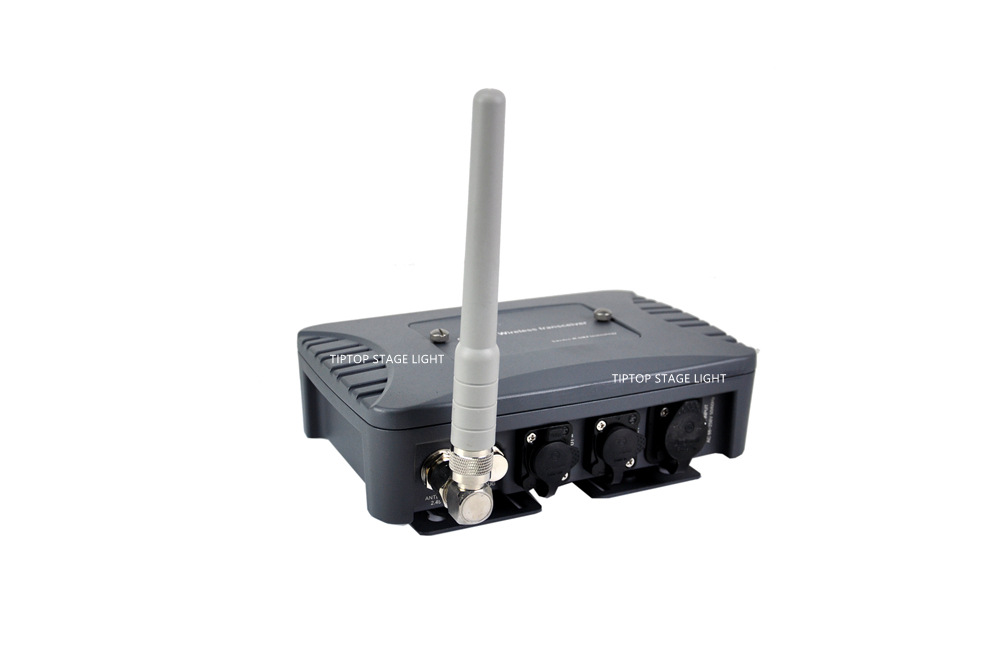

天线配置:  N头5DB天线,增益高,成本低,可传送较远距离

请遵守当地的无线电法律来使用
符合CE标准,UL标准和GB7000.15-2000标准

请注意：

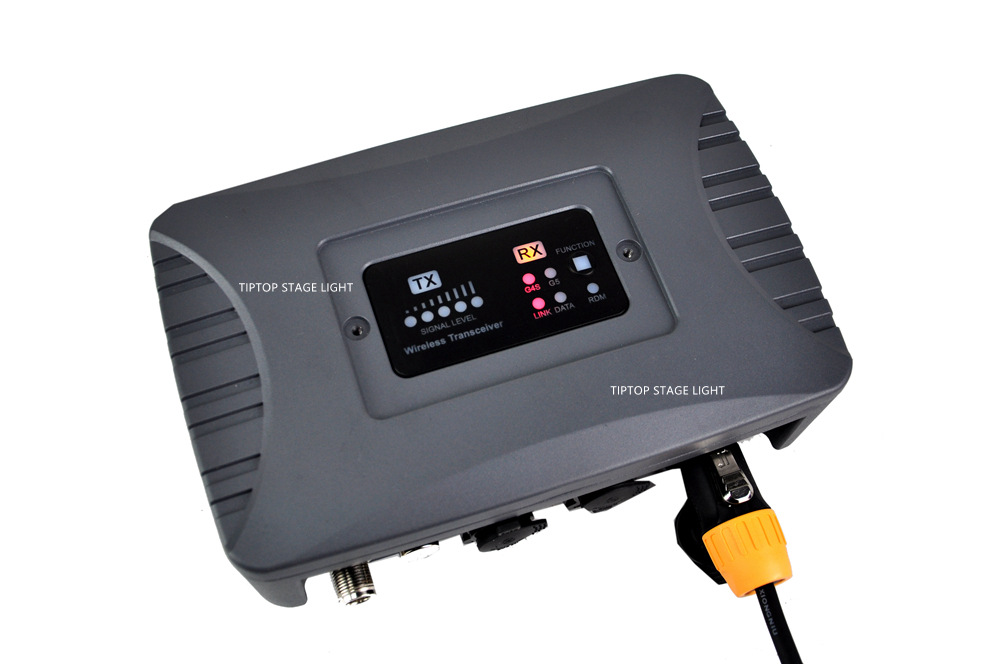

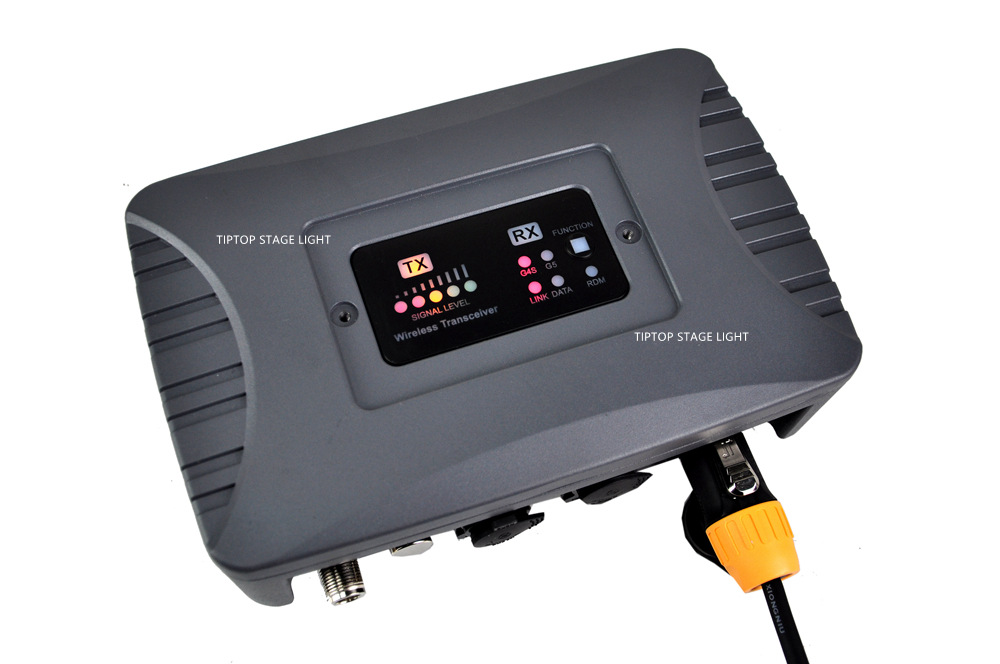

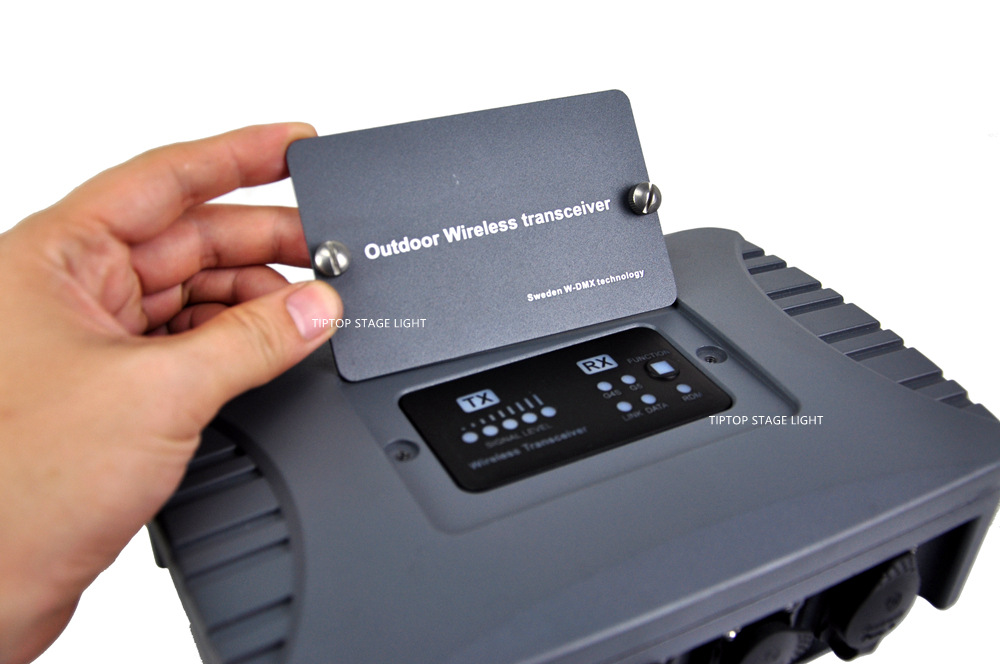

1：本机器是发送接受一体机，机器可以调整到发送或者接受状态（链接电源线通电的同时，长按Function按键，就可以切换发送和接收状态

2：切换之后会有指示灯显示。

3：本产品瑞典协议，不可以跟其它普通无线协议的灯具链接（如果其他灯具不是瑞典协议，就无法链接）

包装清单：

1 x 无线发送接收器

1 x 无线天线

1 x 支架

1 x 螺丝和螺母

1 x  电源线

1 x 信号线

1 x 说明书

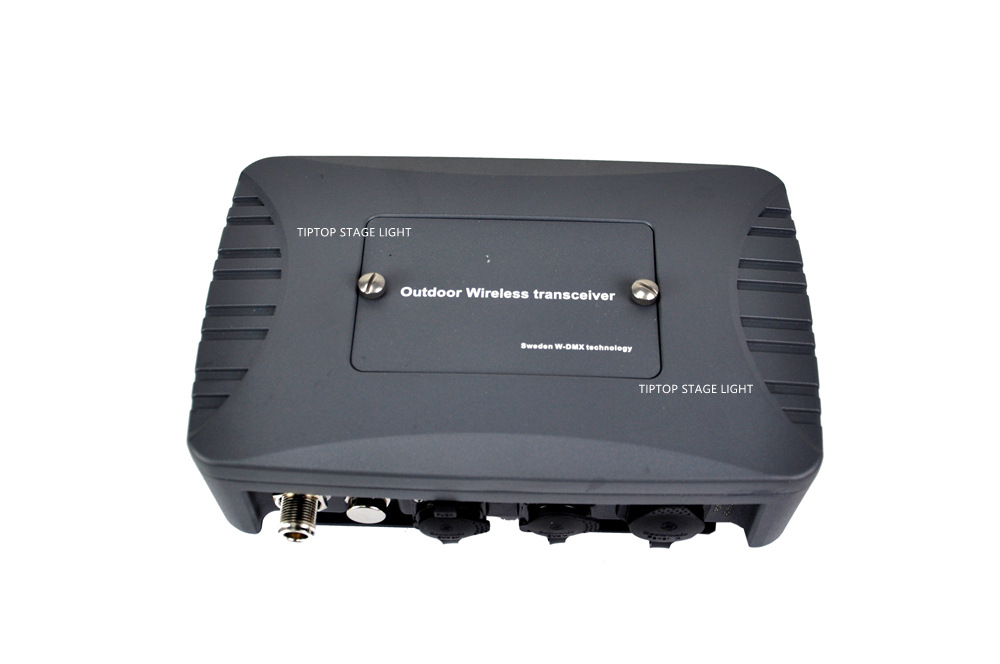

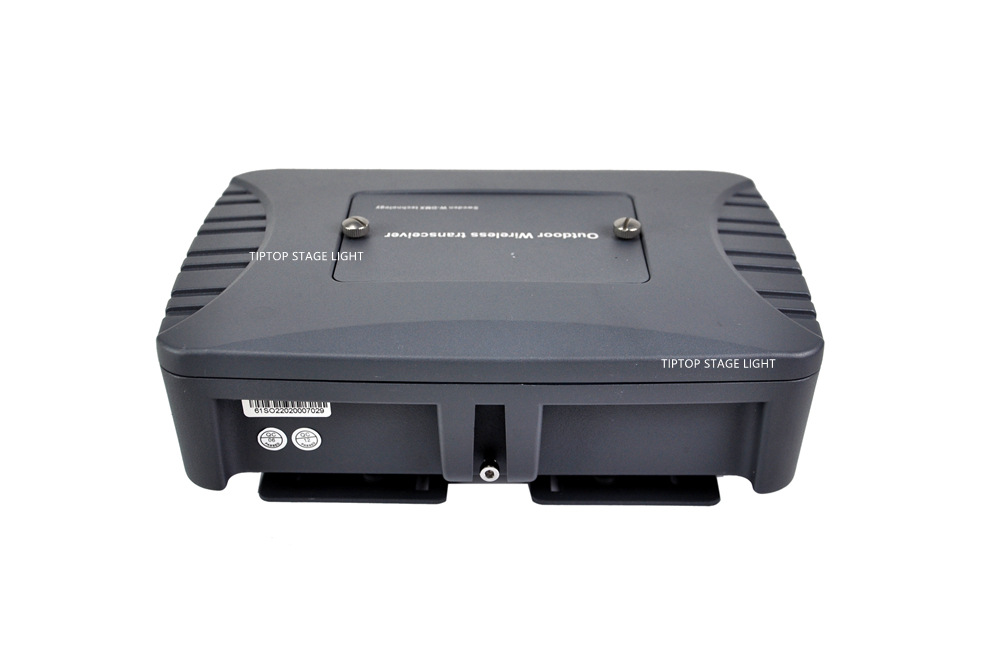

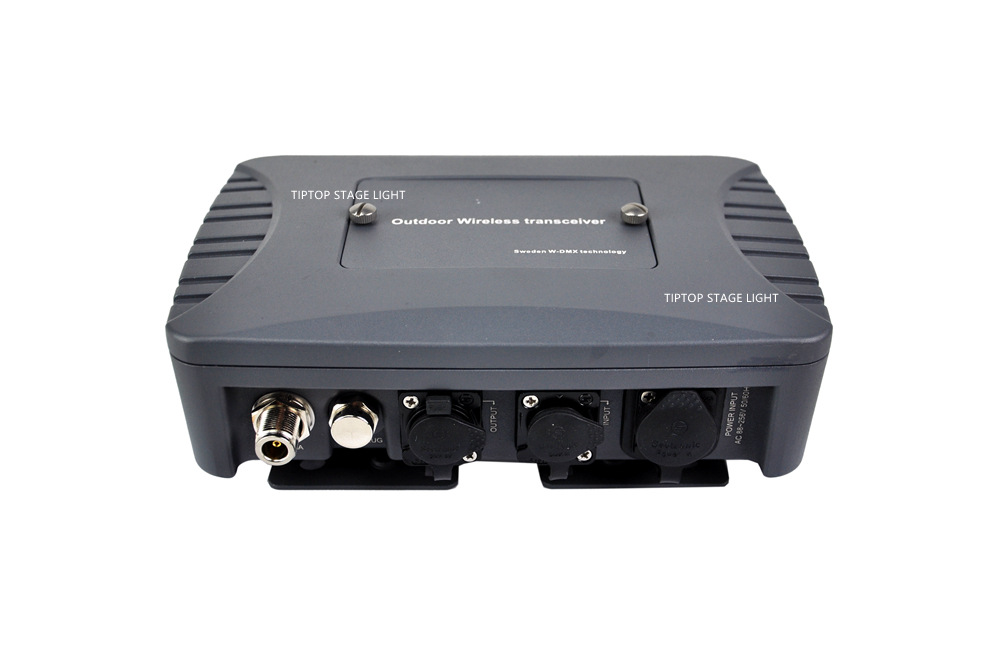

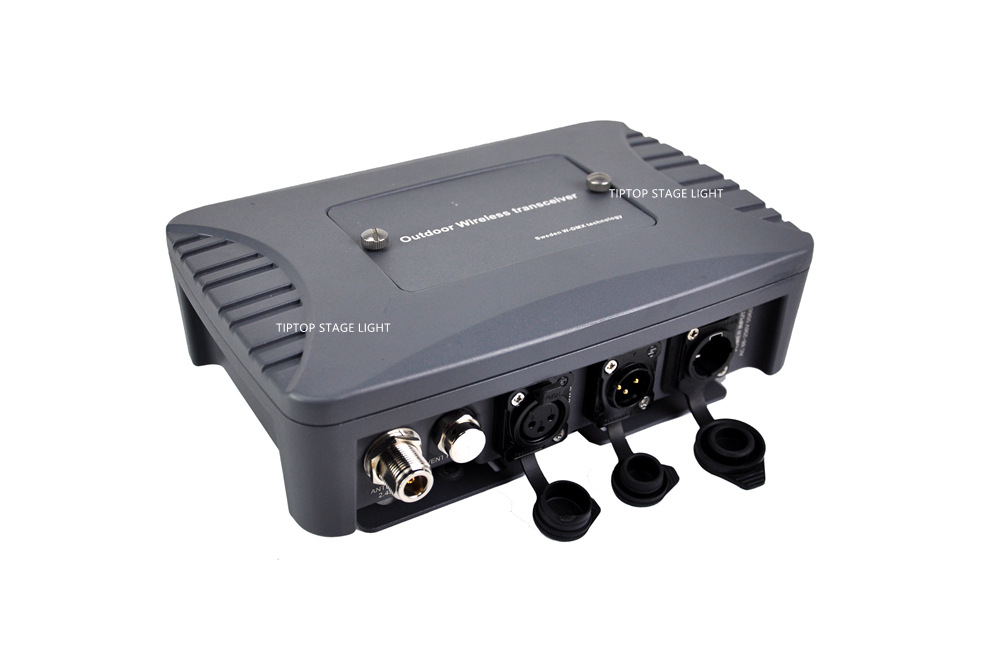

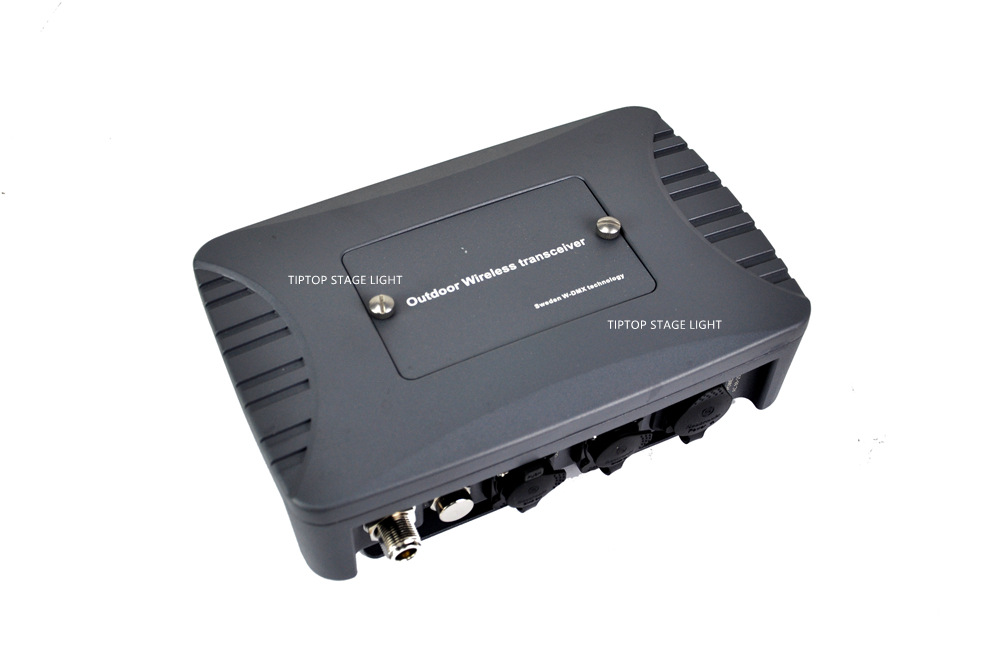

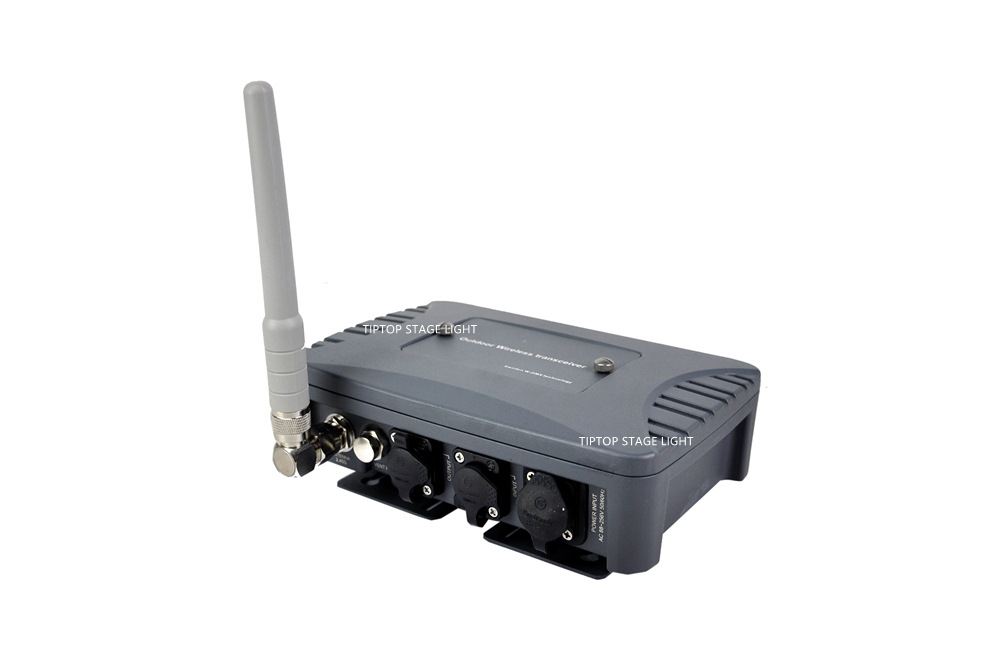

Adopt Swedish lumen company CRMX transceiver technology
DMX wireless system is suitable for consoles and lighting equipment with 512 signals and any number of channels, accurate and fast, without mutual interference, and automatic error correction
One-to-one transmit or one transmit multiple receive
Multiple groups of transmitters can be installed in the same place, and the frequency is automatically matched
This product is very professional and is an irreplaceable and easy-to-use product. When multiple units are used at the same time, you can maximize the lights you want to control.

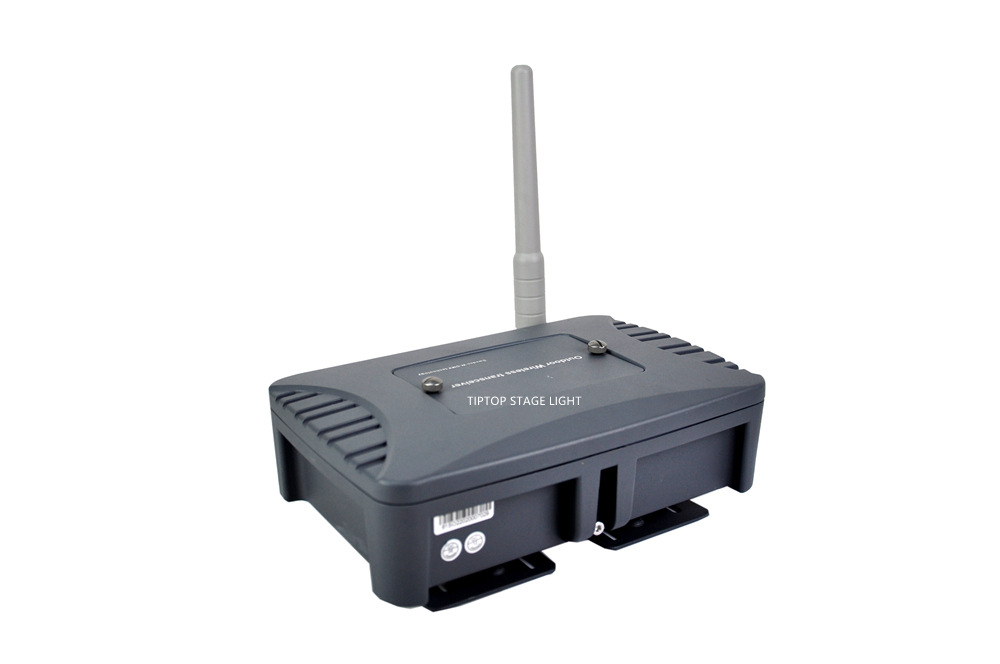

Cast aluminum material, weatherproof, anti-ultraviolet, strong applicability,
Easy to learn and easy to operate

Transmit power: 20～26.4DBM
Transmission distance: 500 meters (open space)
Carrier frequency: 2403M～2479MHz
Power supply: 88～256V 50/60Hz

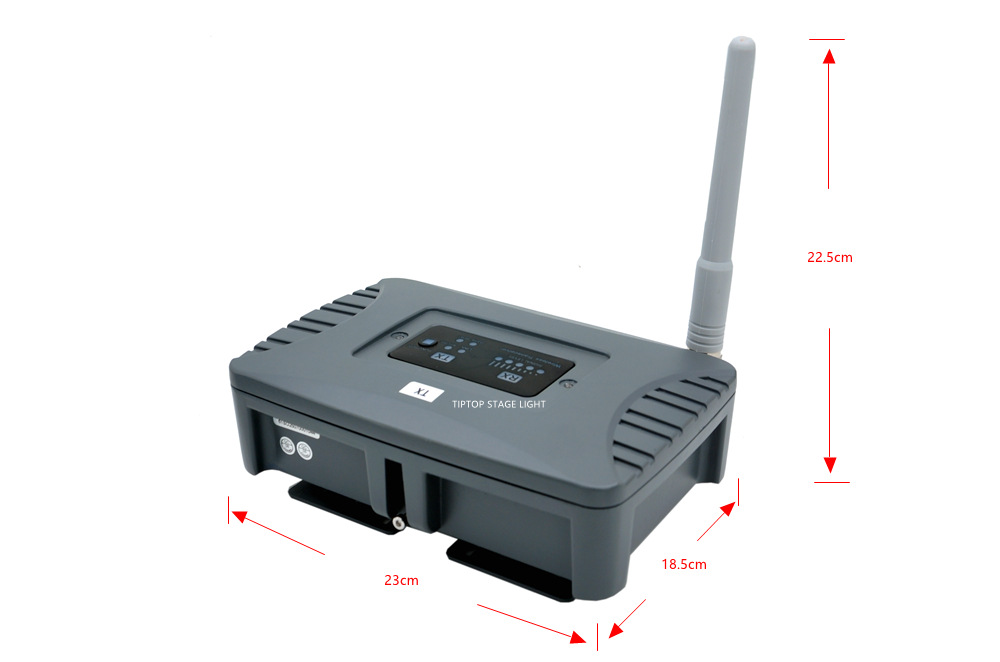

Volume: 226 X 157 X 81MM
Weight: 2.0KG

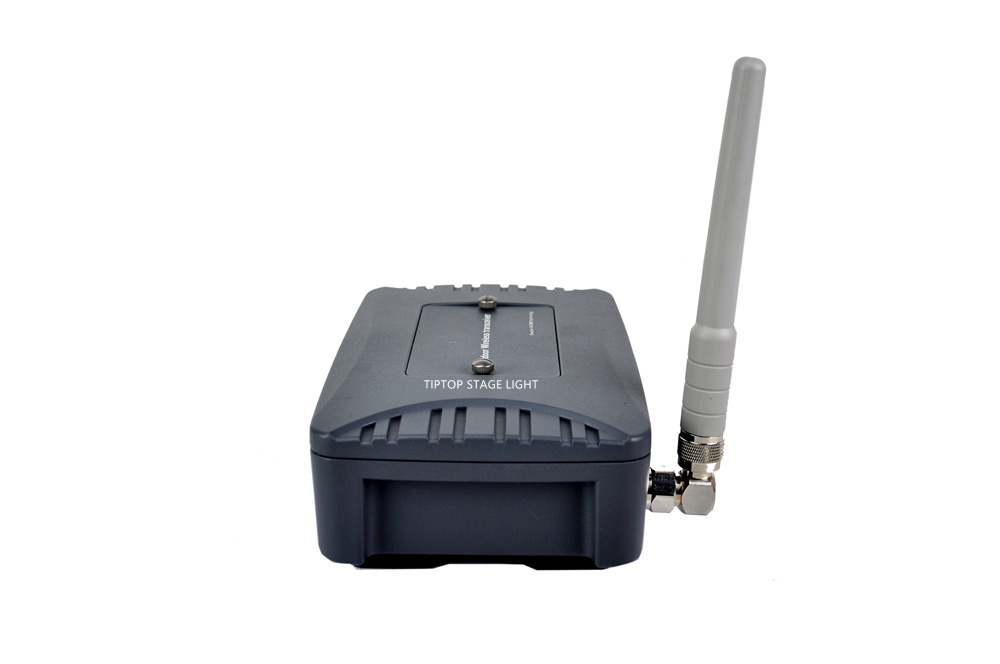

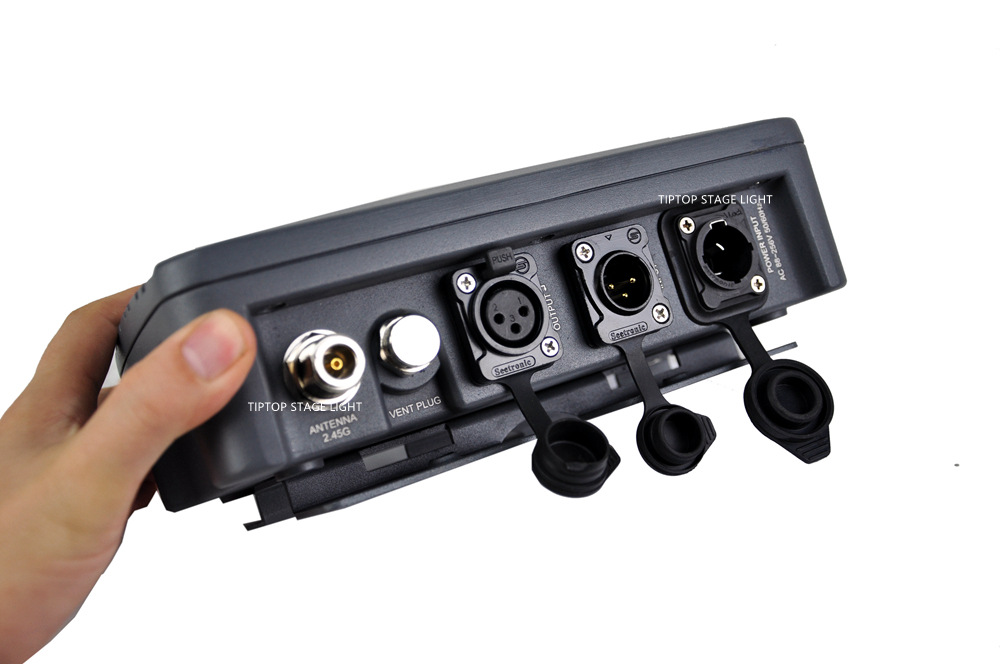

Antenna configuration: N head 5DB antenna, high gain, low cost, can transmit long distance

Please follow local radio laws for use
Comply with CE standard, UL standard and GB7000.15-2000 standard

caution:

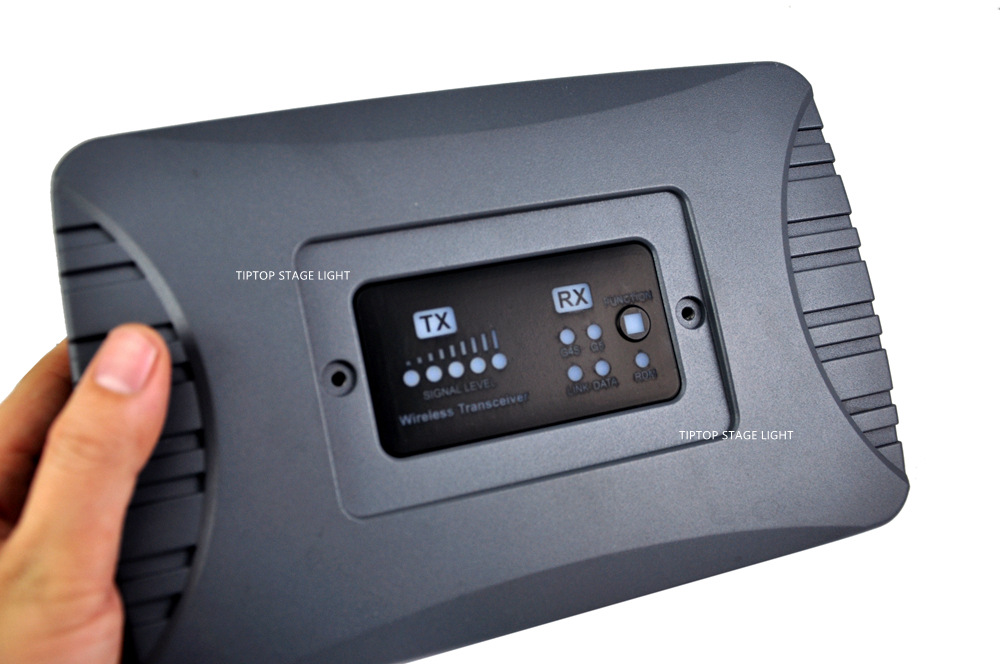

1: this is wireless transmitter and receiver 2in1 function controller. Customer can press lcd display button and change controller to transmitter or receiver,
2: the controller protocol is Sweden lumen company CRMX. If you want to connect the controller to light (build in wireless receiver). Please be careful if the protocol is same or not.

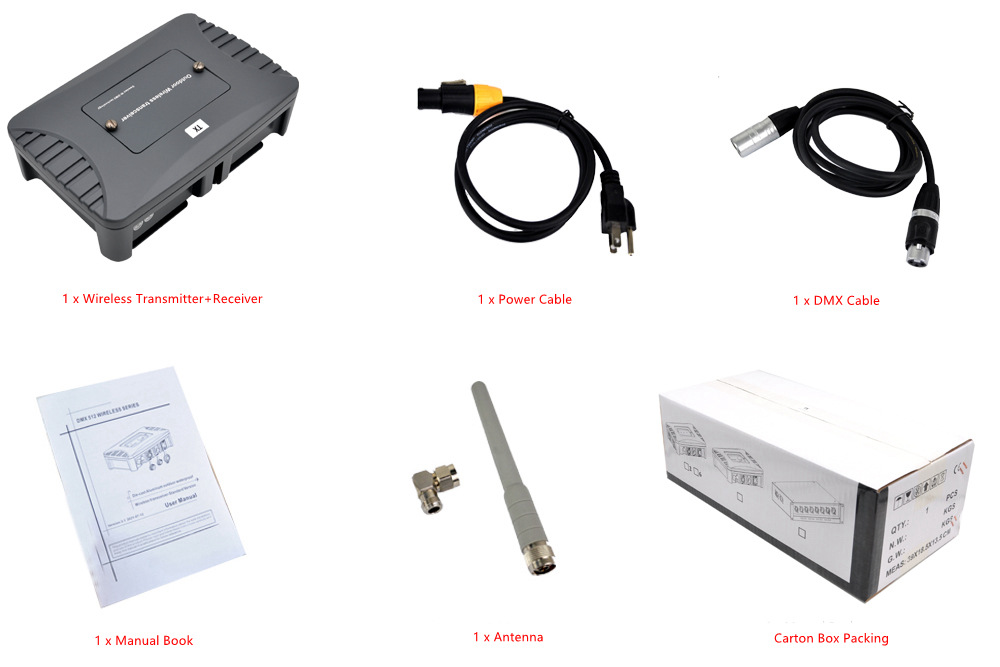

packing list:
1 x Wireless Transmitter Receiver
1 x Wireless Antenna

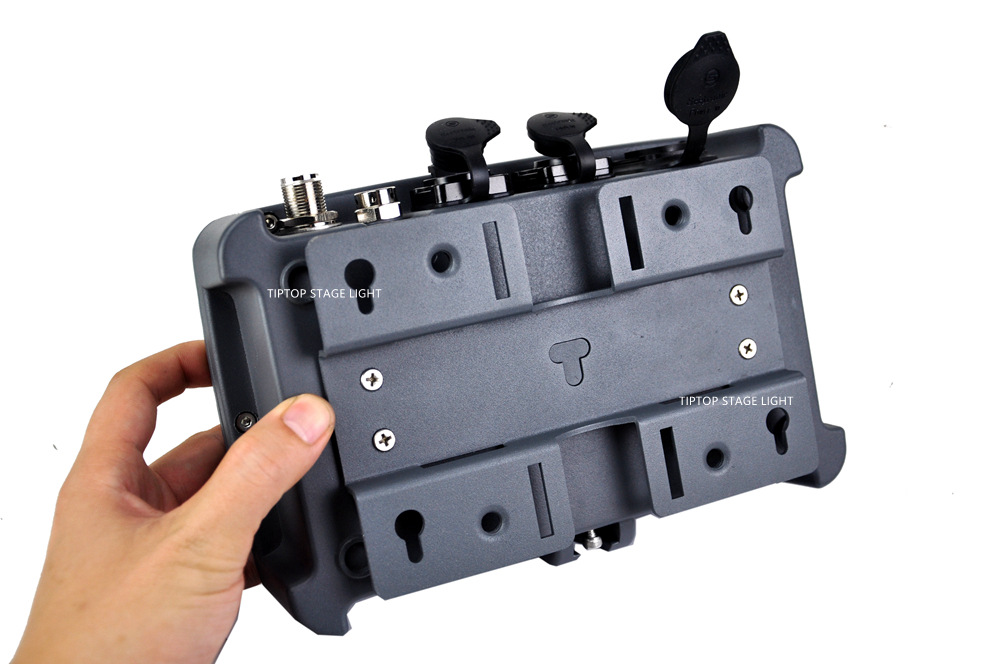

1 x bracket
1 x Screw and Nut
1 x Power Cord
1 x DMX Signal Cable
1 x Instruction Manual
