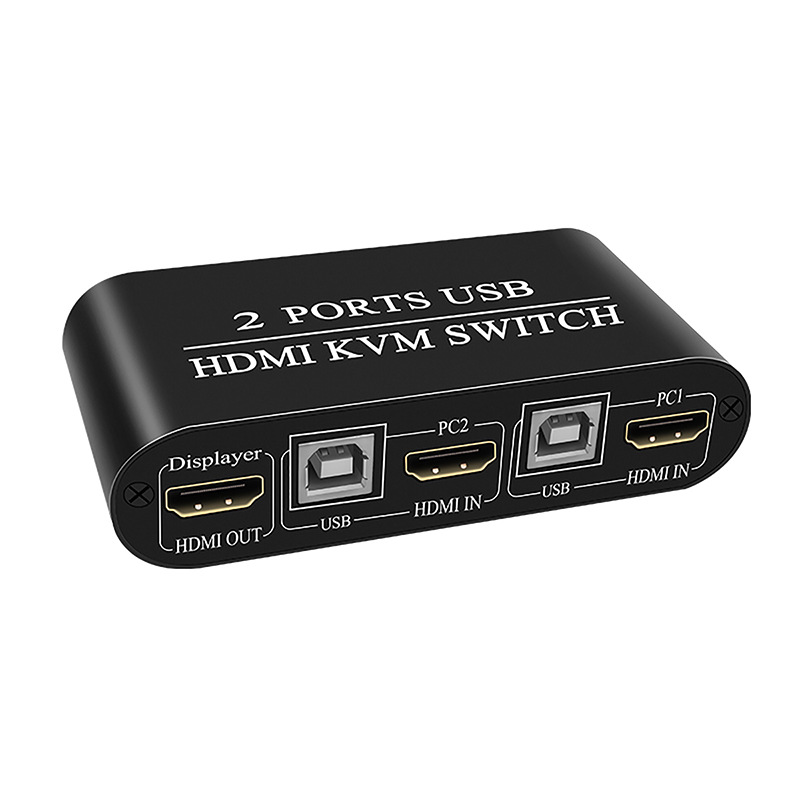

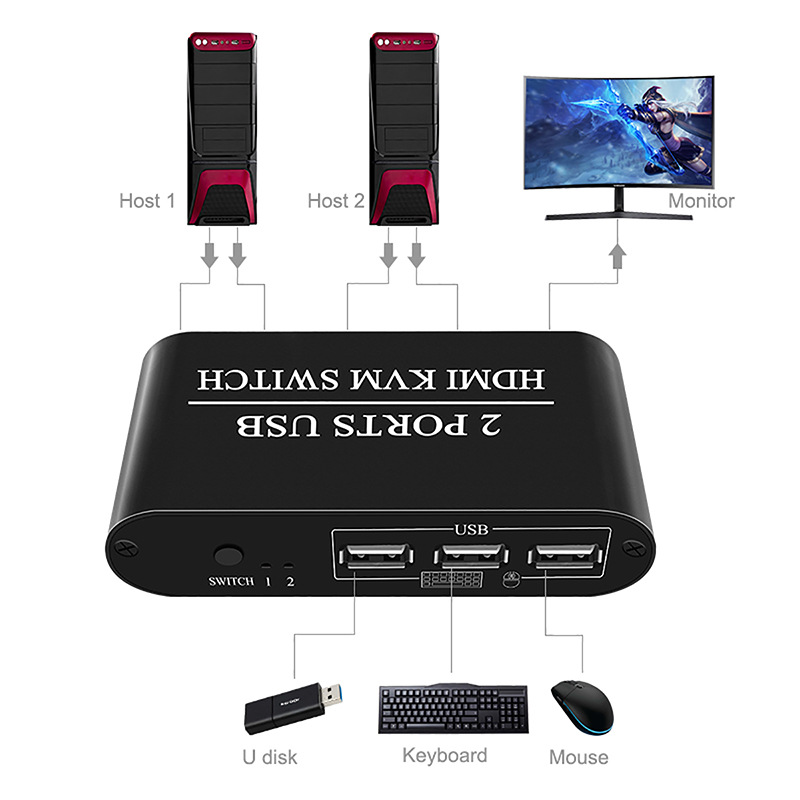

This two-in-one HDMI KVM switch realizes that 2 computer hosts share a display, and supports shared keyboard, mouse, printer, U disk and other USB devices, which can automatically adjust to the screen resolution，resolution support up to 4K 30Hz.It has excellent image processing and transmission capabilities, so that the signal output more stable. It can be used widely in video conferencing, multimedia teaching, securities finance, office space and other fields.

Ⅱ.Features

1.HDMI 1.4 port 2 inputs and 1 output, easy to use 2 computers to share a display.

2. Expand 3 USB2.0 ports, support keyboard, mouse, printer and other USB device sharing, easy to plug and unplug, wide compatibility.

3. Easy to switch, stable and fast switching to another computer to work.

4. The indicator shows the working status, easily identify the computer being connected.

5. Automatic identification resolution, HDMI interface supports DDC function, supports computer terminal to read display information, support computer terminal to read monitor information, automatically adjust resolution, resolution support up to 4K30hz.

6. Strong compatibility, compatible with Win7 / 8/10 / XP / Vista, Mac system, desktop, PS4, game console, TV box ...

7. Simple and small, save space and make your desktop more tidy.

8. Power off memory function, save keyboard hot key setting parameters after power off.

9. Plug and play, no power supply required, support hot swap.

Ⅲ.Specifications

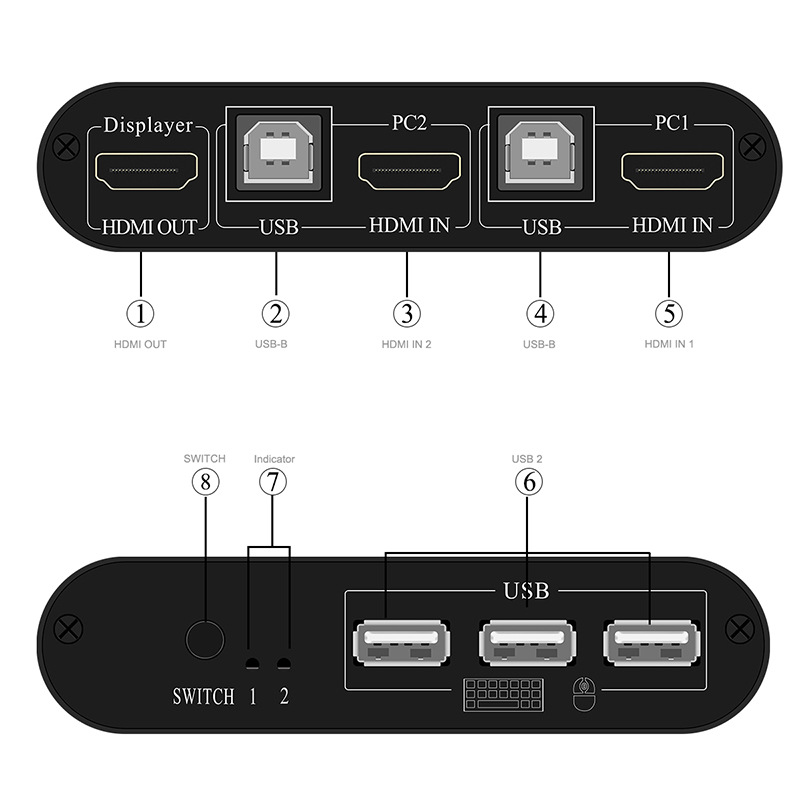

Input port：2 x HDMI

Output port：1 x HDMI

HDMI Standard：HDMI 1.4

HDMI Connector: HDMI-A Interface

USB Interface protocols：USB2.0

PC input interface type：USB-B

PC Output interface type：USB-A

Resolution: Up to 4Kx2K@30Hz(3840x2160),3D,1920*1080@60Hz,backward compatible.

Switch button：Switch PC1, PC2

Powered by USB port

Power dissipation: MAX 2W

Dimension(mm)：108x54x26

Net weight(g)：286

VI. Package Contents

1 x HDMI KVM Switch 2 in 1 out

1 x User Manual

2*USB CABLE
