DMX512 / 1990标准

带双向可控硅的12通道开关输出

开关输出功能：DMX通道值0-126 = OFF，127-255 = ON

硅双向晶闸管和过零触发

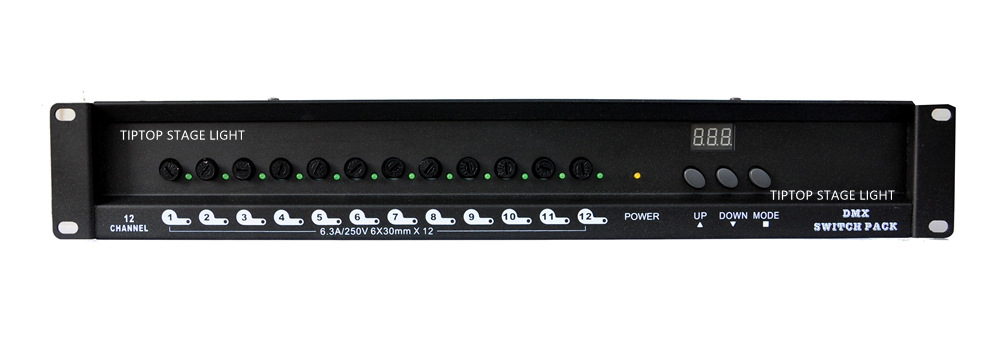

每个通道的LED指示灯

用快速保险丝保护过电流

通道输出：每通道5A，总计16A

输出功率：每路可以带1000瓦灯具，整个控制器可以带3500瓦左右灯具（合计功率）。如果超过功率承受范围保险丝会断。

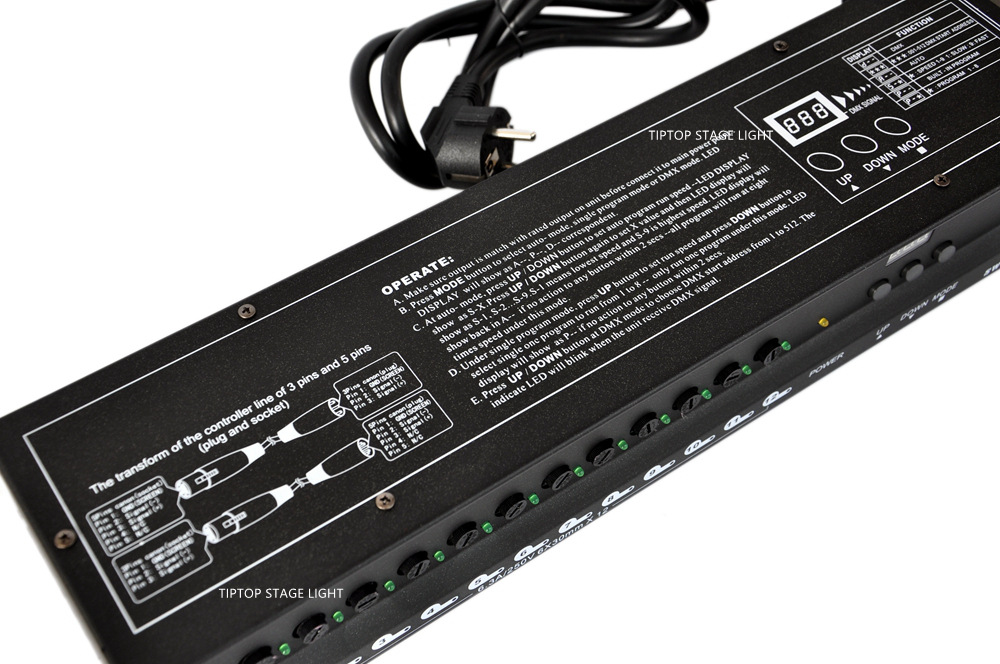

内部追踪程序有九种，可以选择这些追踪程序的速度

DMX输入连接器：XLR-D3M

DMX输出接口：XLR-D3F

电源：110V-220V

尺寸：482mm×140mm×75mm

净重：2.2kg

符合CE标准，UL标准和GB7000.15-2000标准

DMX512/1990 Standard 12 channels switch output with triac Switch output feature: DMX channel value 0-126=OFF 127-255=ON Silicon bidirectional thyristors and zero-crossing triggering
Technical Parameter
DMX512/1990 Standard
12 channels switch output with triac
Switch output feature: DMX channel value
0-126=OFF, 127-255=ON
Silicon bidirectional thyristors and zero-crossing triggering

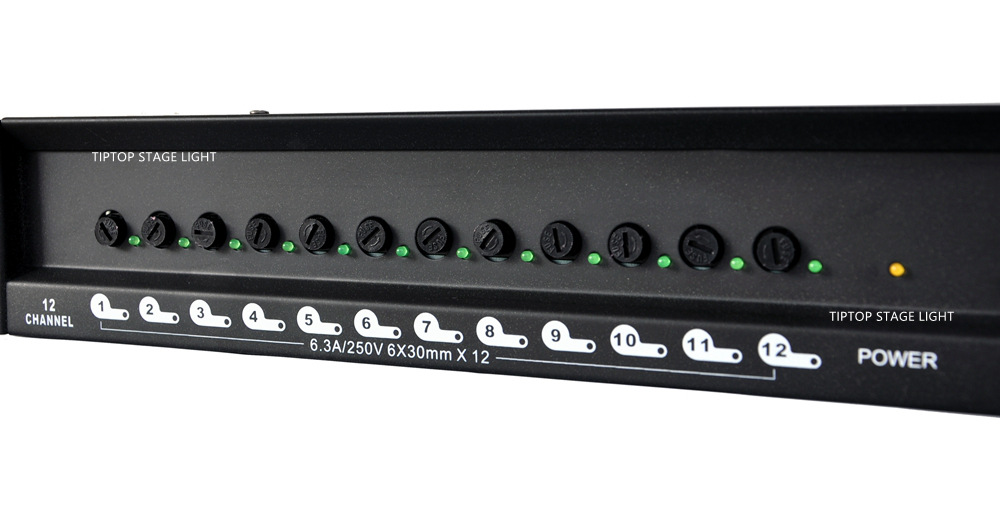

LED indicators for each channel
Over current protected with rapid fuse
Channel output: 5A per channel, 16A total
There are nine internal chase program and the
speed of these chase program can be selected

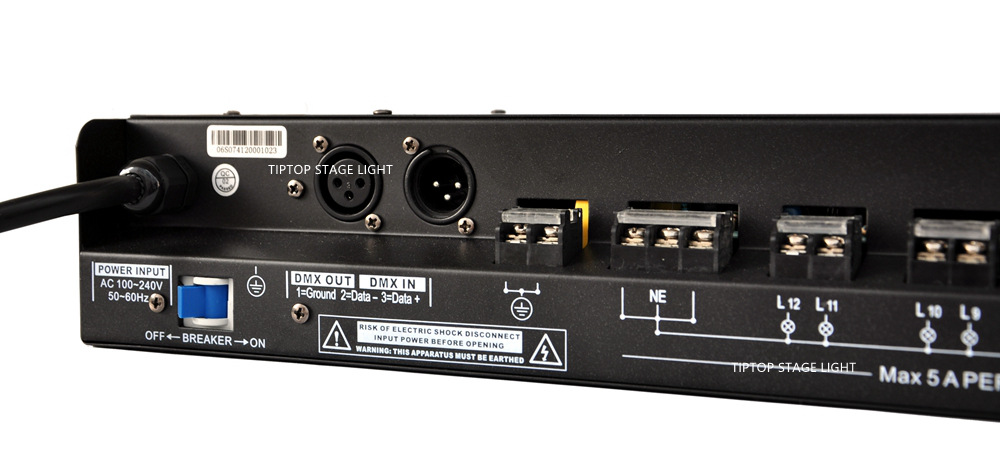

DMX input connector: XLR-D3M
DMX output connector: XLR-D3F
Power supply: AC 88～ 256V 50/60Hz
Dimension: 482mm×140mm×75mm
Net Weight: 2.2kg
Up to CE standard, UL standard and GB
7000.15-2000 standard
