Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.
I. Introduction

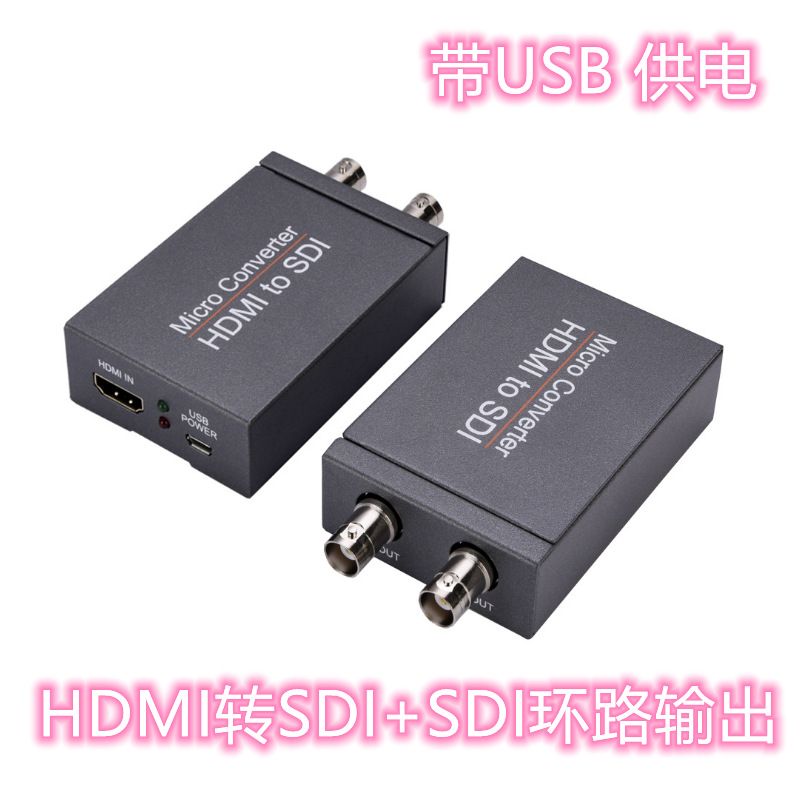

The Micro HDMI to SDI Converter allows HDMI signals to be shown on two SDI display while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on two SDI display.

II. Features
Shows HDMI source on two SDI display.
SDI interface operates at bitrates of 2.970 Gbit/s, 1.485 Gbit/s.
Supports HDMI input timings: 480i, 576i, 720p, 1080i, 1080p.

Converts HDMI signal to SDI:
720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s)
1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s)
Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)

III. Package
HDMI to SDI Converter
USB Power Supply Cable
Operation Manual

IV. Specifications
Input Port 1 x HDMI
Output Port 2 x BNC (HD-SDI/3G-SDI)
Power Supply DC 5V
ESD Protection Human body model ±8kV (air-gap discharge) ,
±4kV (contact discharge)
Dimension 97mm x55mm x 23 mm
Weight 130g
Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
elative Humidity 20 ~ 90% RH (Non-condensing)
Power Consumption (Max) 5W
