Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.

n Introduction

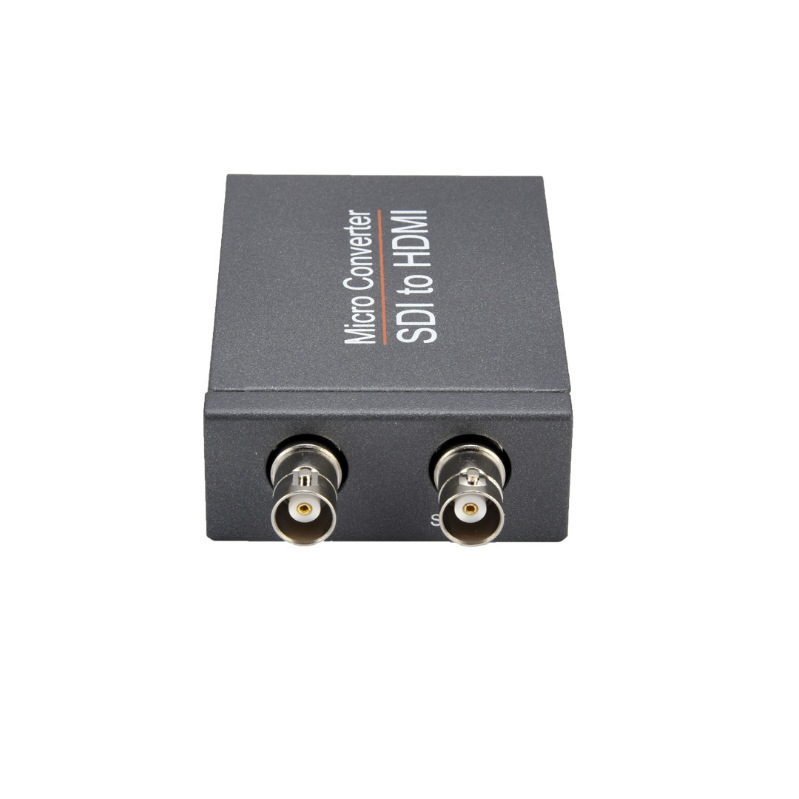

The SDI to HDMI converter allows HD-SDI and 3G-SDI signals to be shown on HDMI displays while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on HDMI displays thanks to the built in HDMI converter.

n Features

1. 1. Operation at 2.970Gbit/s, 1.485Gbit/s
2. 2. Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
3. 3. Connect with other units to extend your signal over long distances

n Package

1. 1. Mirco SDI to HDMI Converter---------------------------1PCS
2. 2. USB Power Supply Adaptor------------------------1PCS
3. 3. Operation Manual--------------------------------------1PCS

n Specificaitons

Input Port                  1 x BNC (HD-SDI/3G-SDI)

Output Port                 1 x HDMI

SDI Transmission Rates      2.970 Gbit/s

In/Output Resolution        720p\1080i\1080p

Power SupplyDC 5V

ESD Protection Human body model   ±8kV (air-gap discharge) ,

±4kV (contact discharge)

Dimension                  97mm x55mm x 23mm

Weight  130g

Operating Temperature        0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature        -20°C ~ 60°C / -4°F ~ 140°F

elative Humidity              20 ~ 90% RH (Non-condensing)

Power Consumption (Max)  5W
