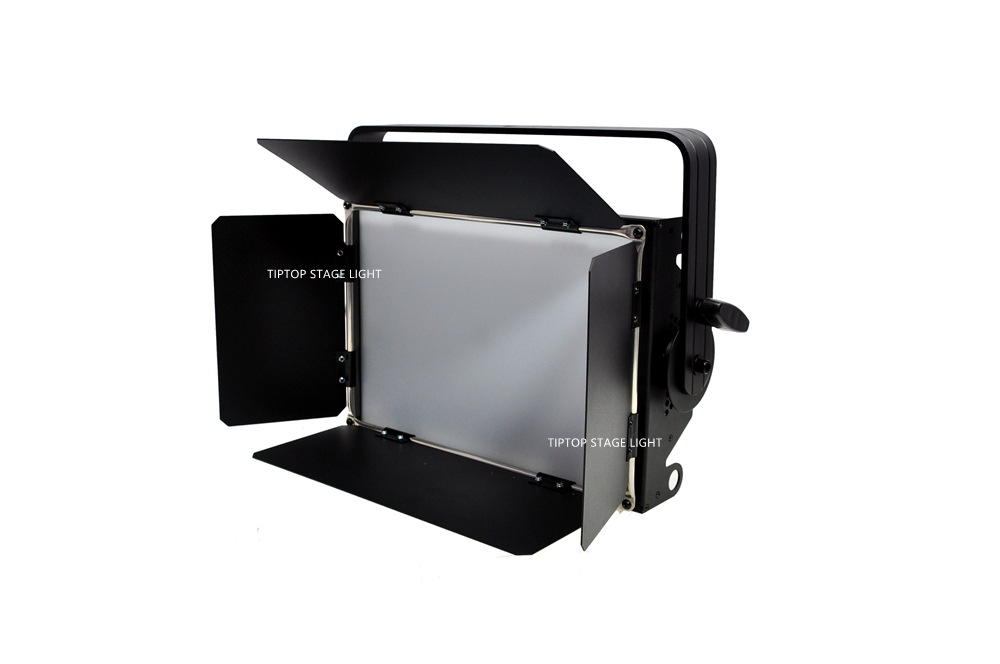

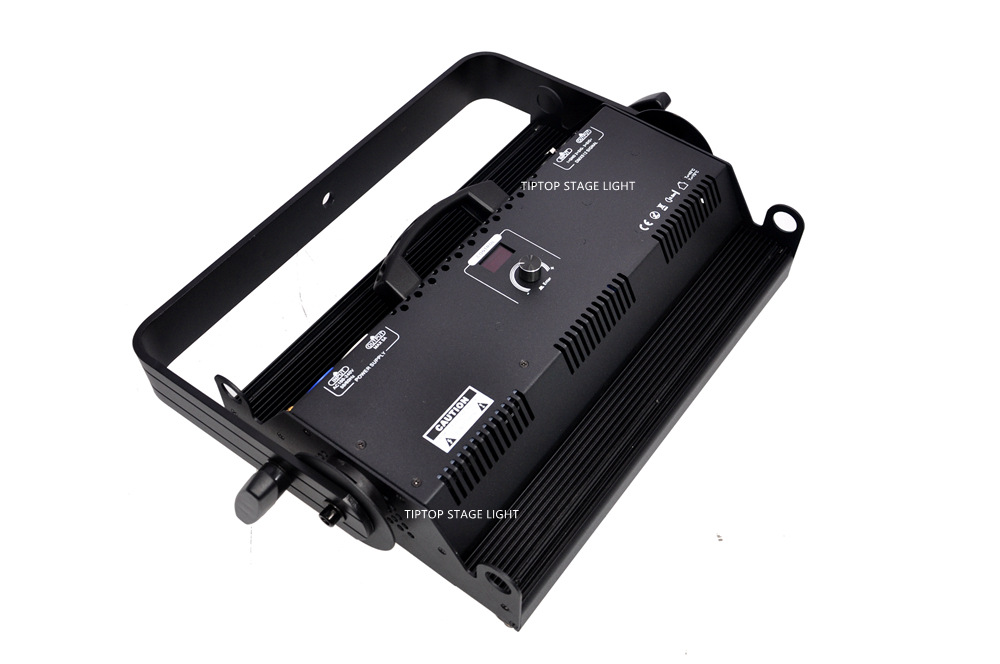

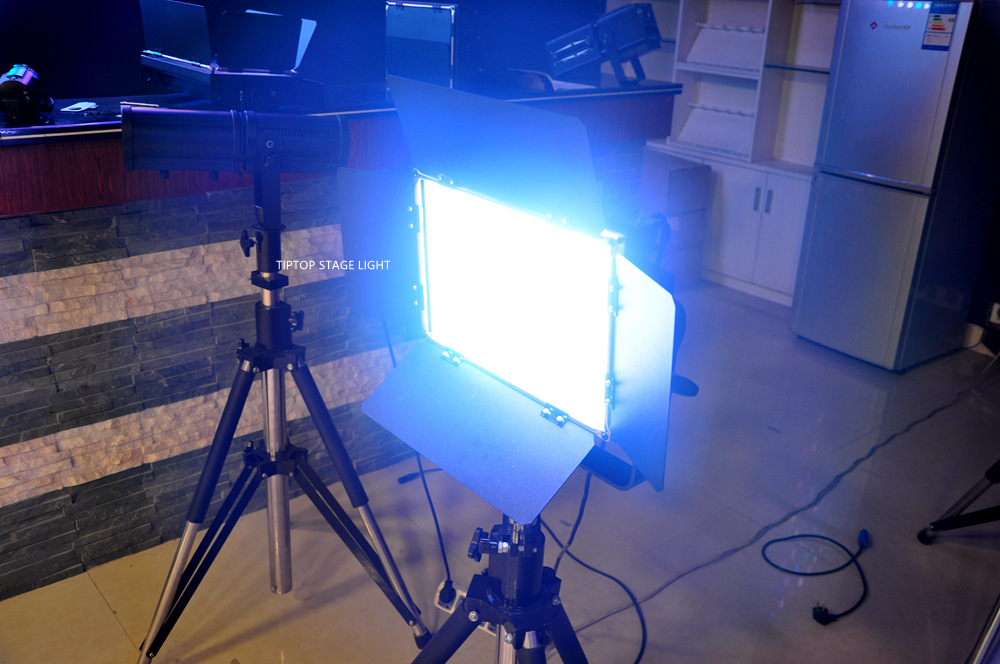

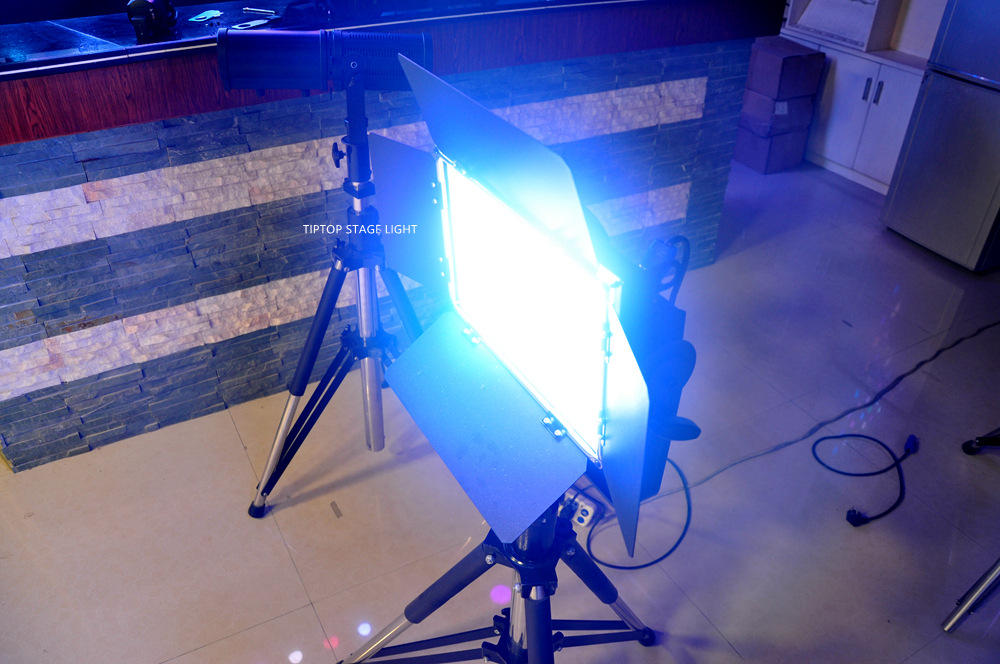

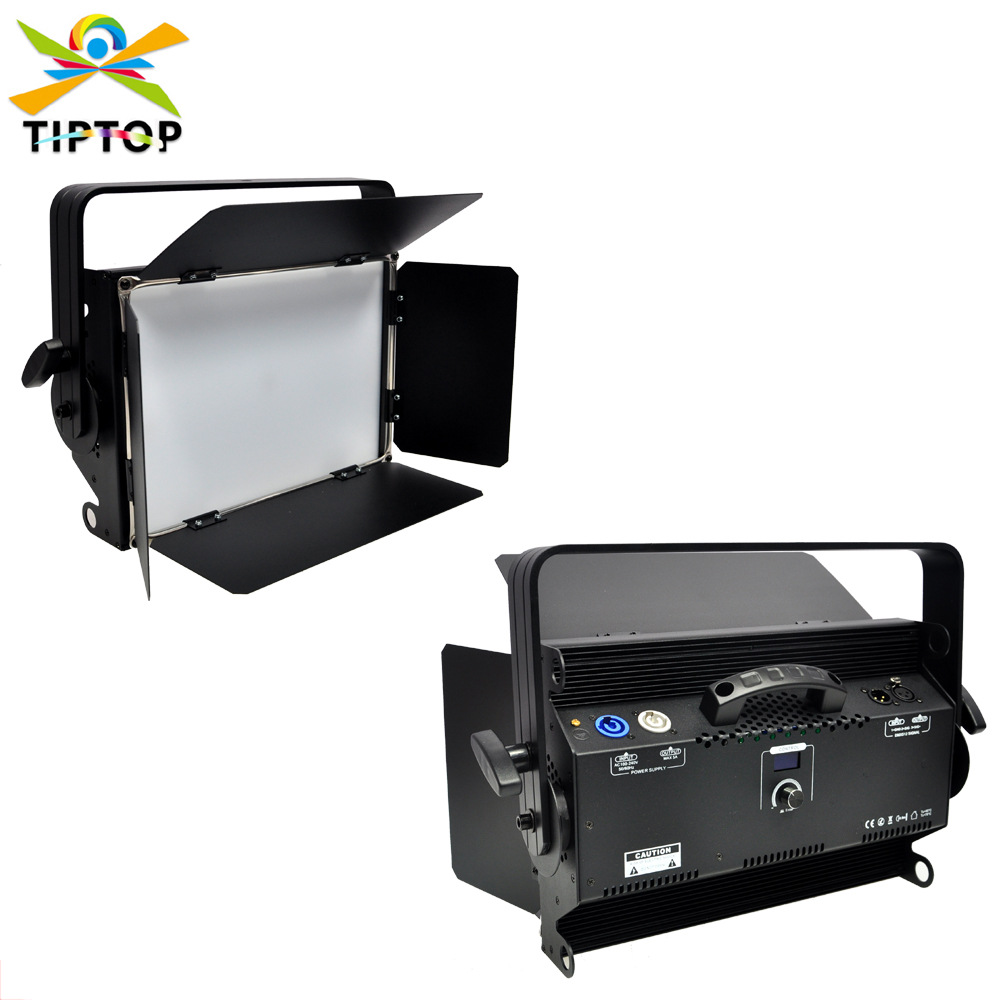

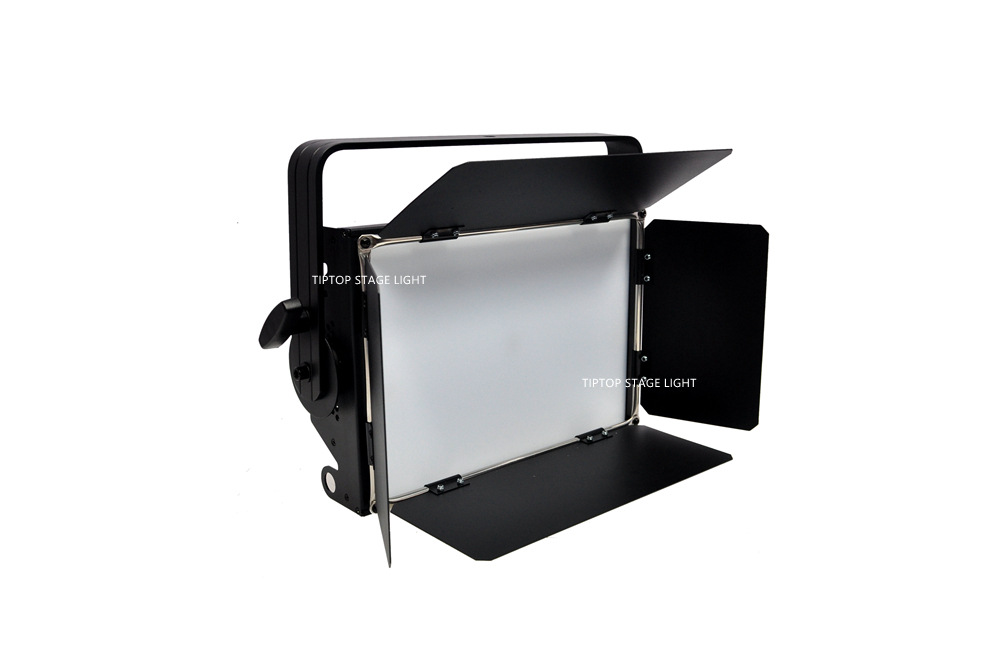

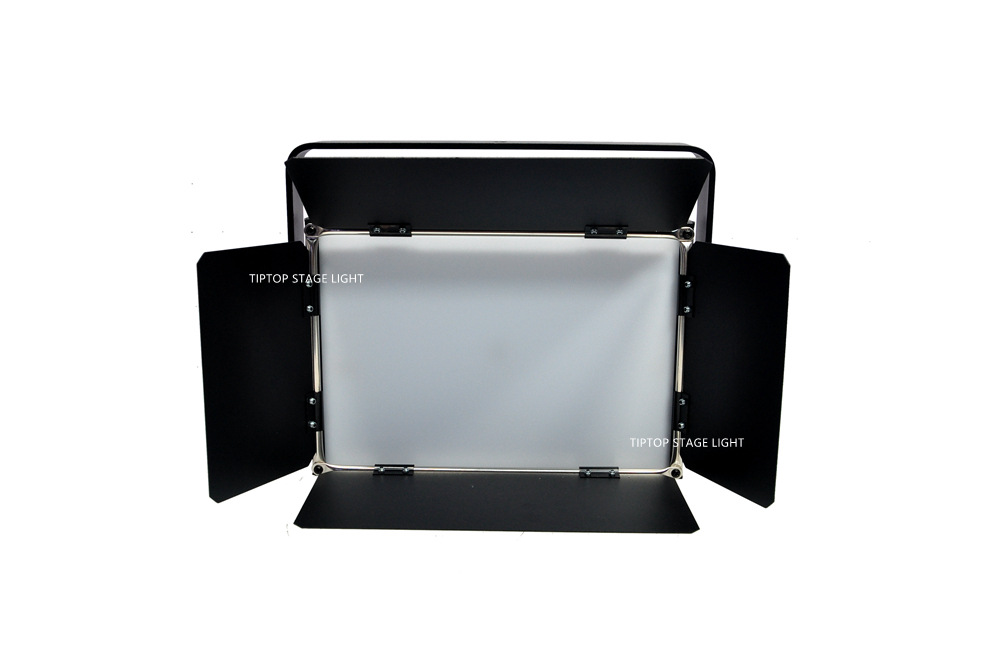

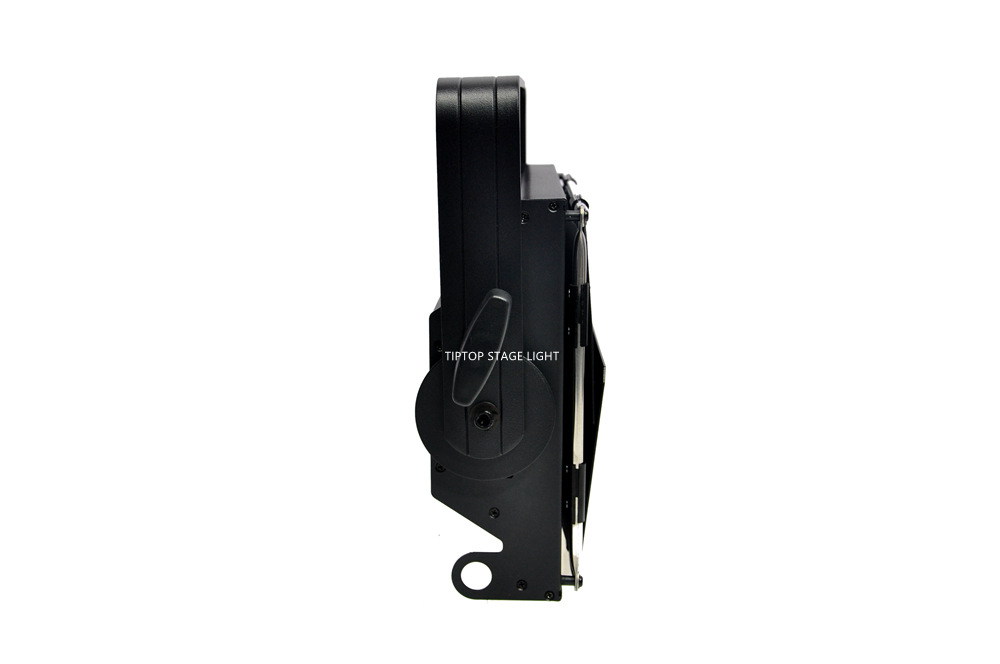

平板面光灯 产品参数:
输入电压:110V-220V
功率:100W
风机:无

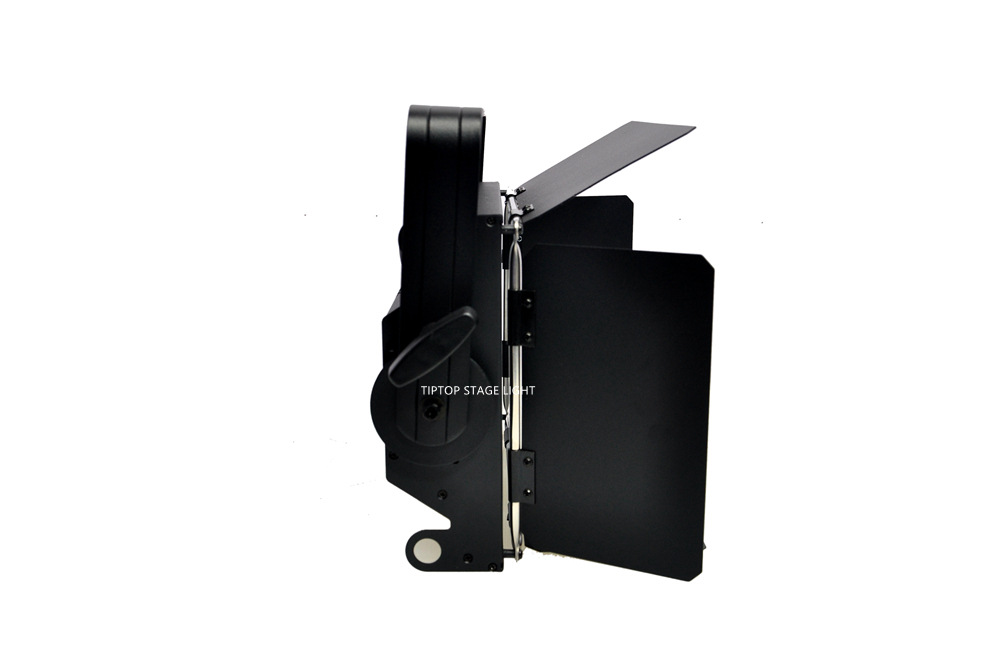

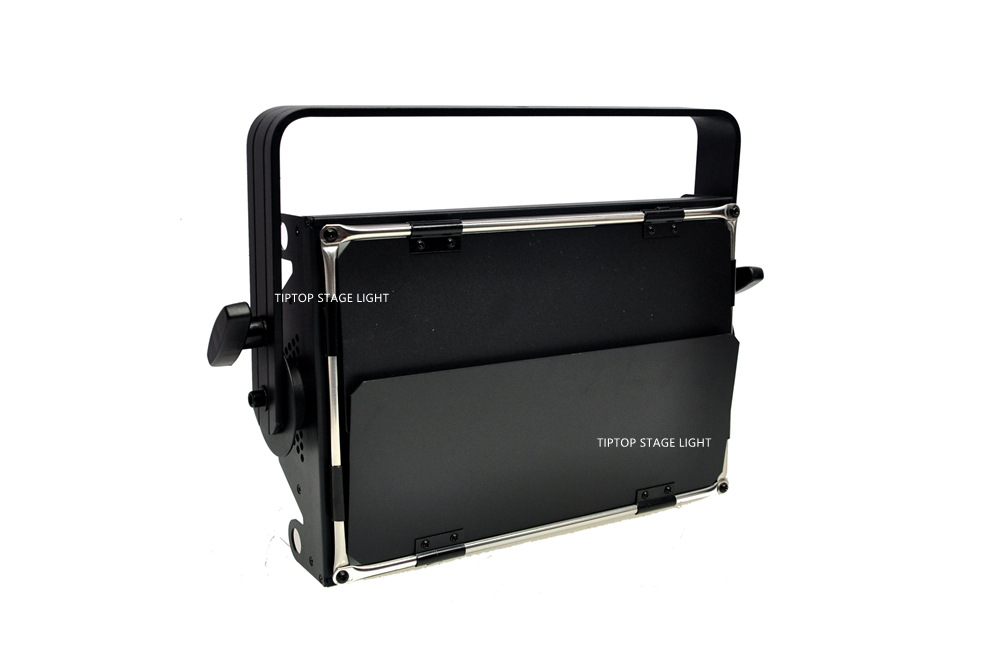

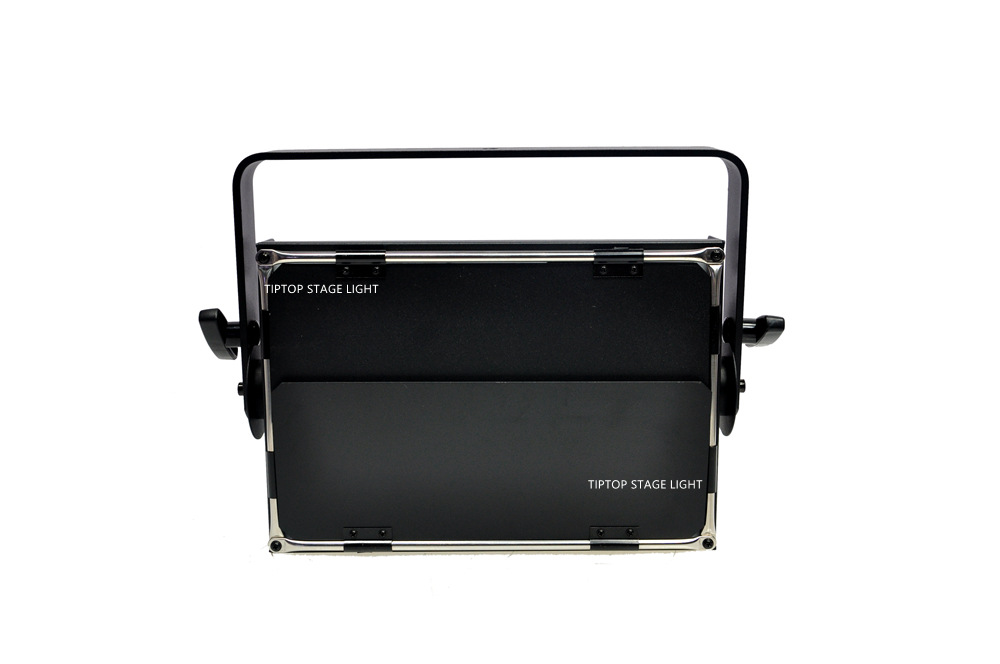

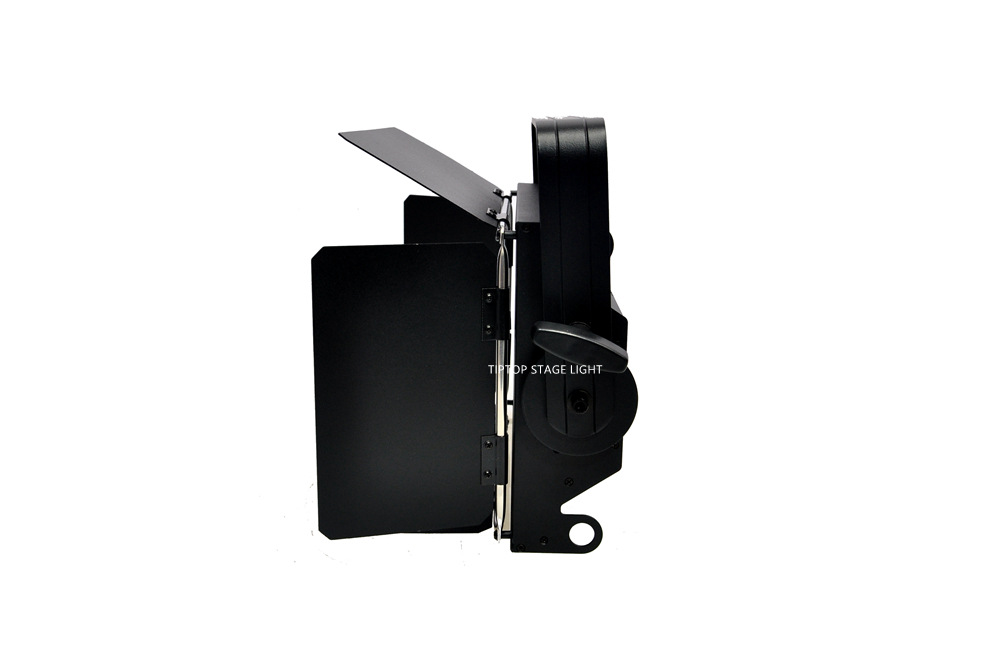

遮光叶:标配
灯珠:192颗 每颗0.5瓦 贴片灯珠
颜色:
3200K暖白
5600K冷白
3200K暖白+5600K冷白 二合一
RGBW 四合一
*颜色可选 价格不同
通道:
单色 款式:
色温:暖白3200K/正白5600K (颜色可选)
通道:1/4
特色:带RDM控制和颜色校准功能
双色 冷暖二合一:
颜色:3200K暖白+5600K冷白 二合一
通道:4/7
特色:带RDM控制和颜色校准功能
RGBW 4色款:
颜色:红绿蓝白
通道:6/11
特色:带RDM控制和颜色校准功能
高显指数:CRI大于95
控制模式:DMX512/自走/主从模式/LCD显示屏+4个轻触按键/4种调光曲线可选择

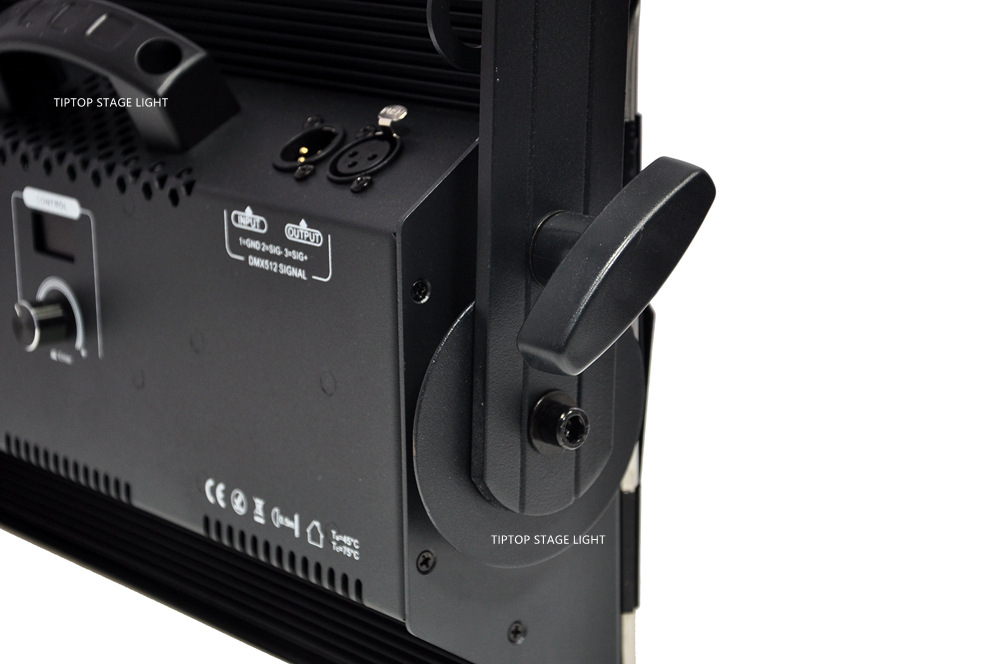

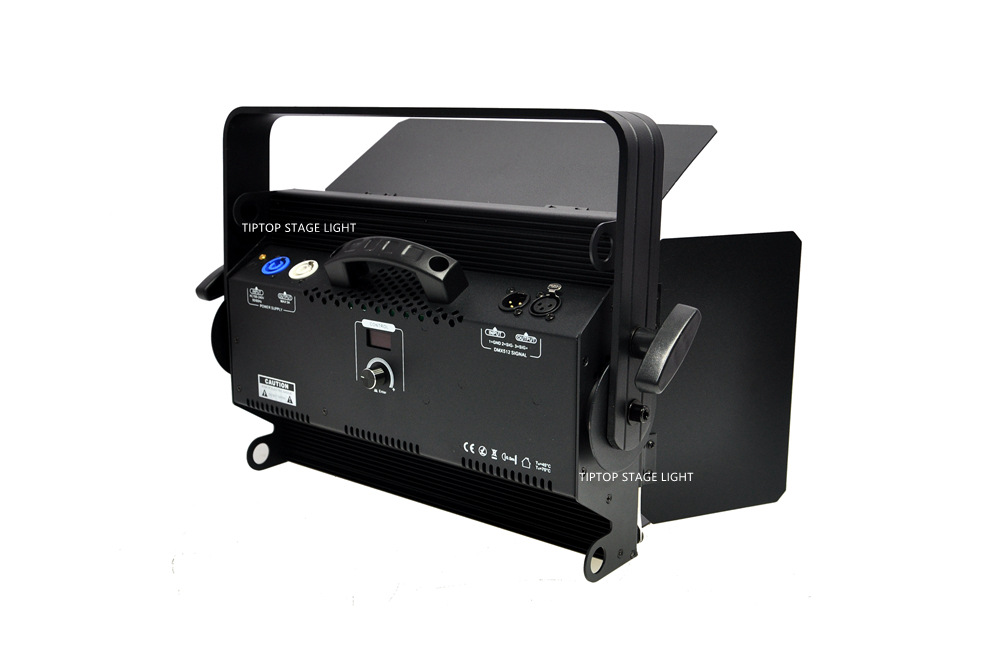

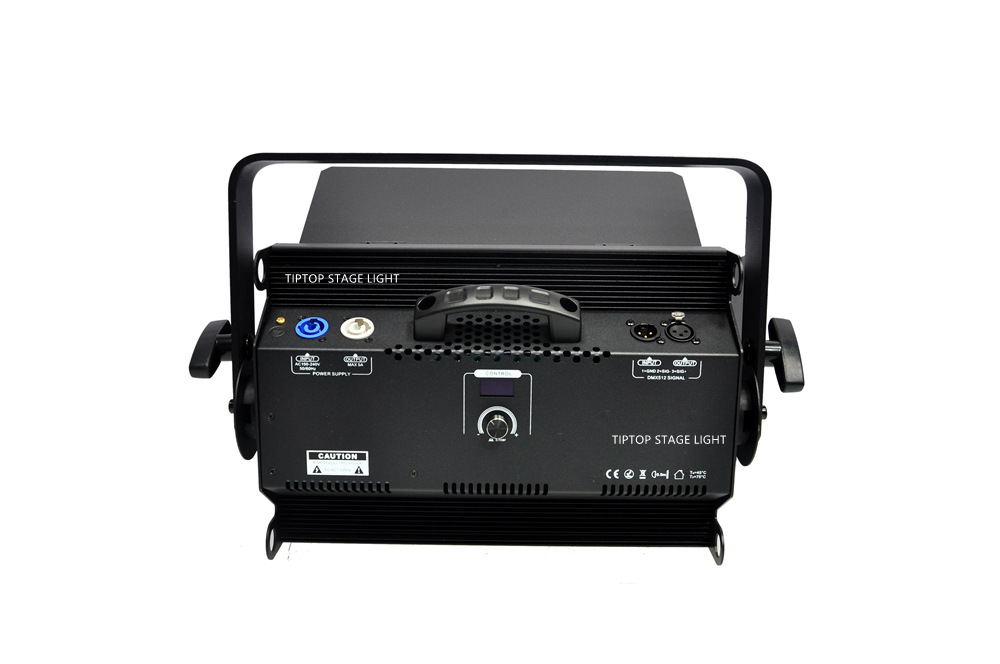

信号输入/输出:3P-XLR输入/输出,DMX512信号

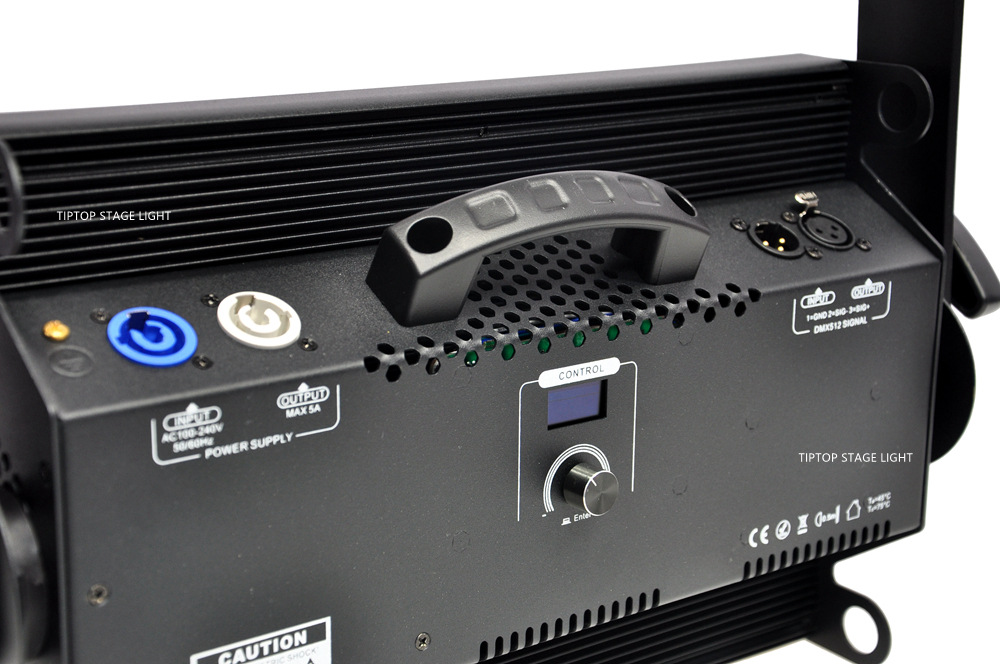

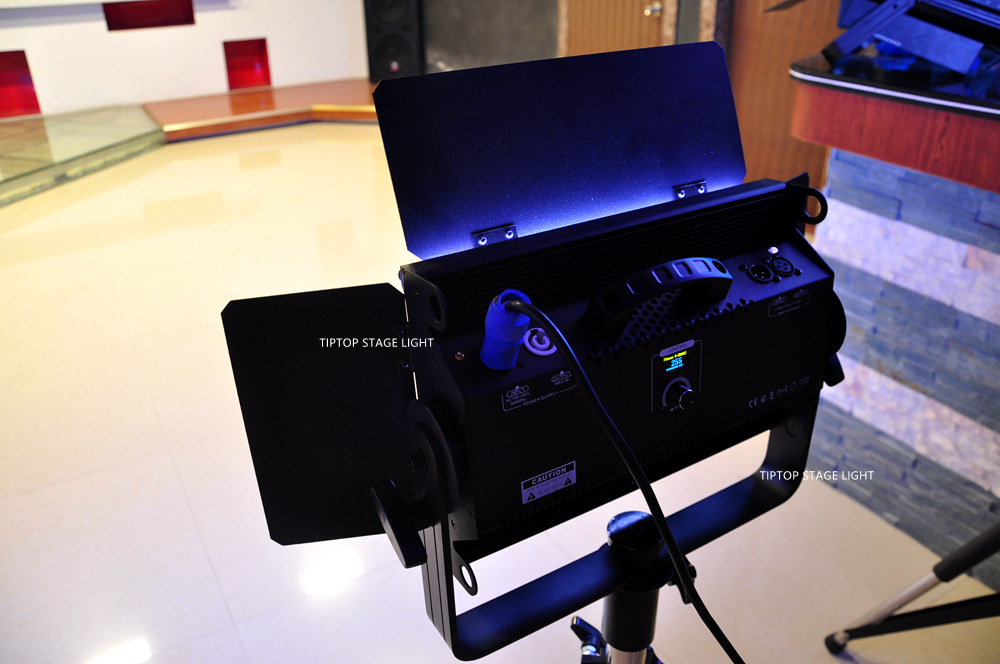

显示屏:LCD按键显示屏

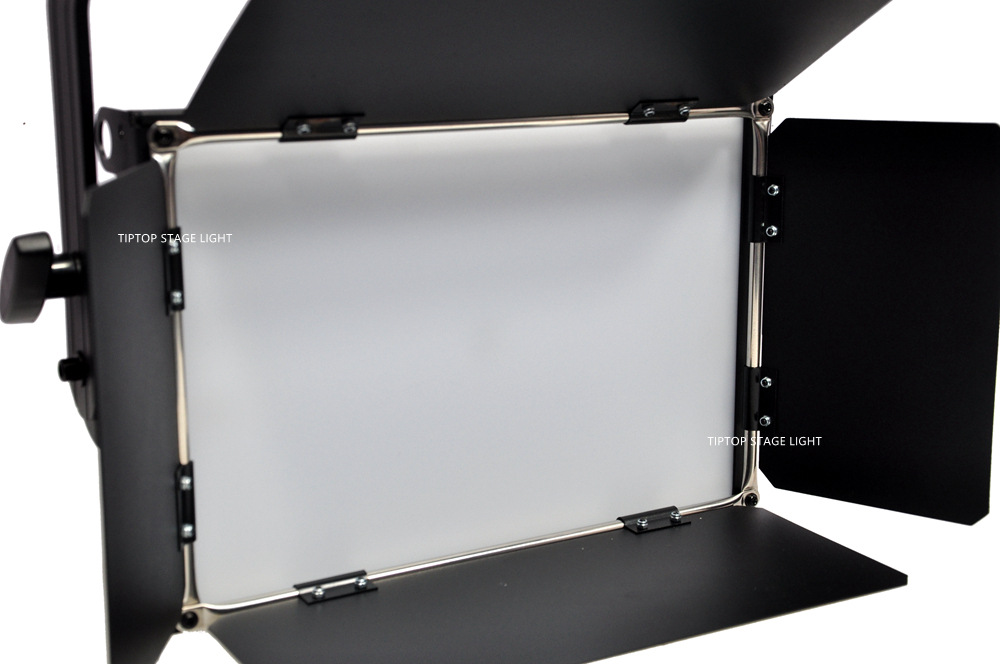

柔光:亚克力磨砂
光学系统:采用HSIC高效光学系统,16位调光,使灯具光输出更加柔和细腻
光束角度:170度
冷却系统:铝片散热
适应工作温度:零下20ºC-零上40度
防水等级:IP20
CCT通道值为1800K-10000K
包装情况(每件包含)
1 x 平板面光灯
1 x电源线
1 x说明书
包装情况:标准包装为纸箱和泡棉。航空箱可选,价格需额外支付。
三脚架:三脚架可以额外采购, 价格需额外支付。
灯钩:可选,价格需额外支付。
Voltage:AC100V~240V, 50/60Hz
Power: 100W
CRI: >95
LED source: 192 x 0.5W
Beam Angle: 170 degrees
Control Mode: RDM; DMX512; Master/Slave; Stand-alone.0-100% linear dimmer; 4 selectable dimming curves
PWM Dimming Frequency Adjust: (1200Hz ~ 20000hz)
Cooling fan: no
Color emitting optional:
3200K Warm White
5600K Cold white
3200K Warm White+5600K Cold white 2IN1
RGBW 4N1 Color
*please note this model support these colors and price is different. If you need single white color please tell us warm white or cold white you need.
DMX Channels:
Single white= 1CH/4CH
CW+WW 2IN1=4CH/7CH
RGBAL 5IN1 =6CH/11C
Packing way: carton box / flight case with wheels packing optional
Tripod: optional and need pay additional money.
Aluminum clamps: optional and need pay additional money.
Packing list for each unit:
1 x led flat panel light
1 x power cable
1 x manual book
To customer:
1: please note if you need warm white or cold white single color. Please tell us the color you want. Otherwise we can not arrange producing.
2: standard packing way is carton box. Flight case is optional. If you need more quantity or send by cheaper way. please contact our sales manager.
