支持最大输出分辨率达1080P;    60fps
支持 8/10/12位色深;
支持大部分采集软件，如VLC、OBS 、Amcap等;
支持Windows、Android和MacOS;
符合USB视频UVC规范;
符合USB音频UAC规范;
无需外接电源，体积小巧携带方便。

HDMI 分辨率：最高输入可支持1080P
视频输入格式：8/10/12位色深
视频输出模式：YUV、JPEG
视频输出分辨率:输出分辨率1080P
支持音频格式:L-PCM
输入线缆长度: ≤15米，AWG26 HDMI 标准线缆
最大工作电流:0.4A/5VDC

计算机的硬件要求

CPU:台式电脑i5-3400以上，笔记本电脑i7- 3537u2.0 GHZ以上

显卡:台式NVIDIA GT630以上，笔记本电脑NVIDIA GT735M以上

内存:4g RAM

如果是Windows 7以前的版本，请先安装驱动程序。

首次用这款采集卡，请在录制的电脑上下载安装采集软件，如：OBS,VLC等。。。

OBS 下载地址：https://obsproject.com/

英文描述参考：

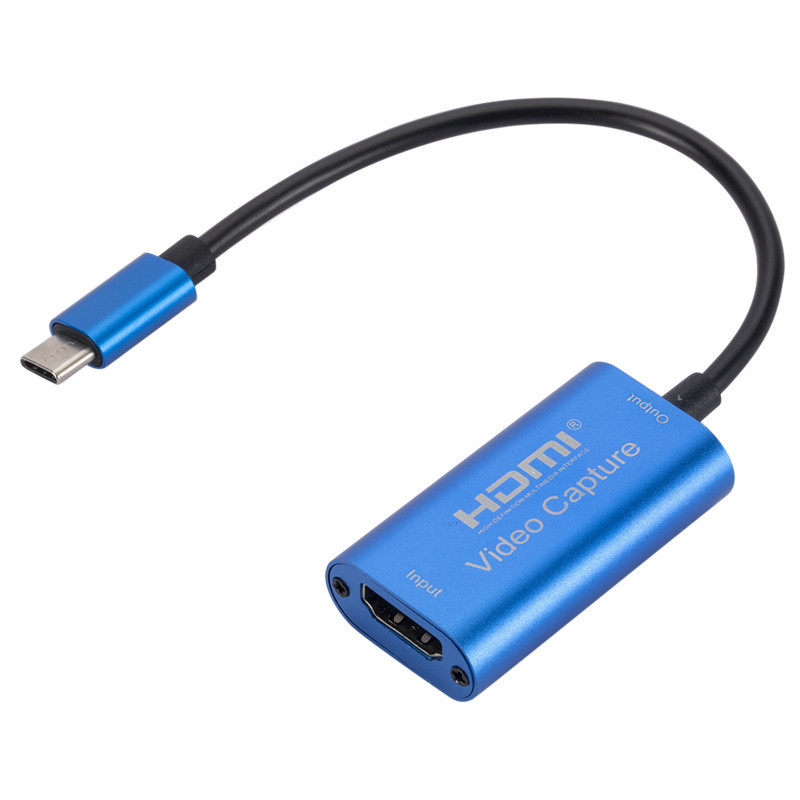

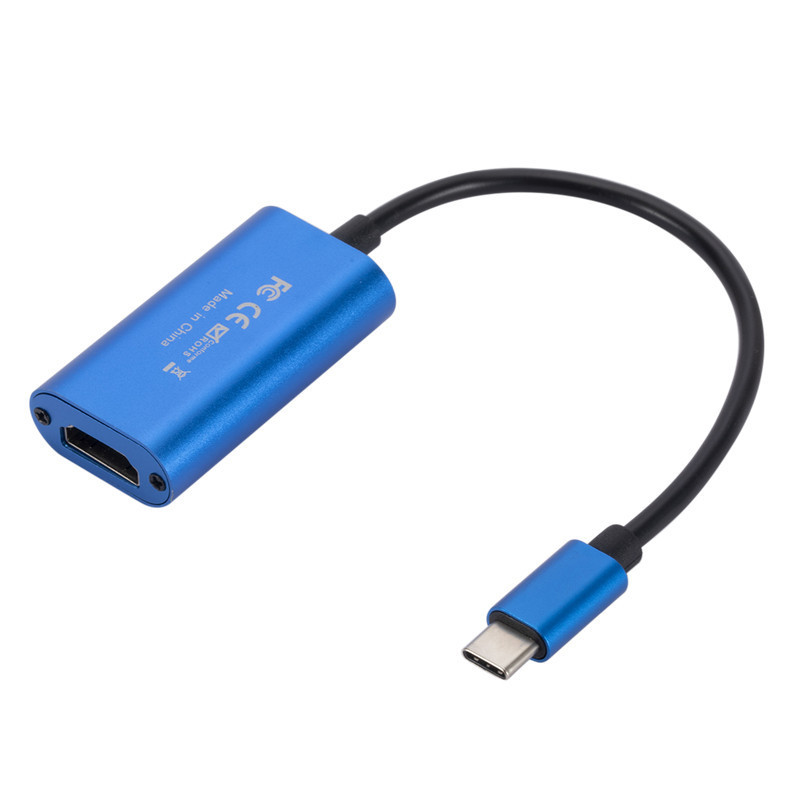

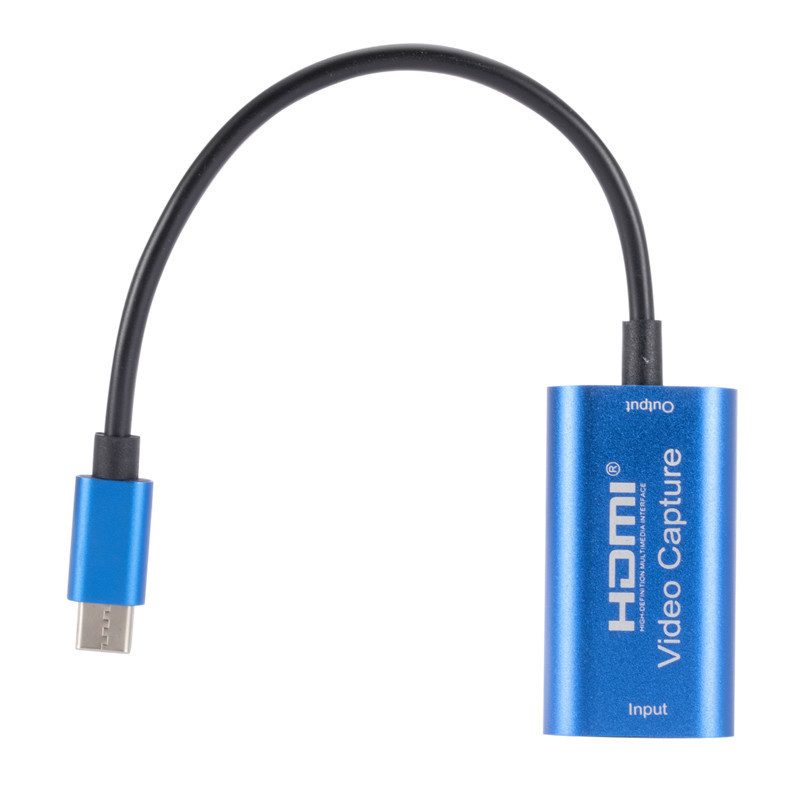

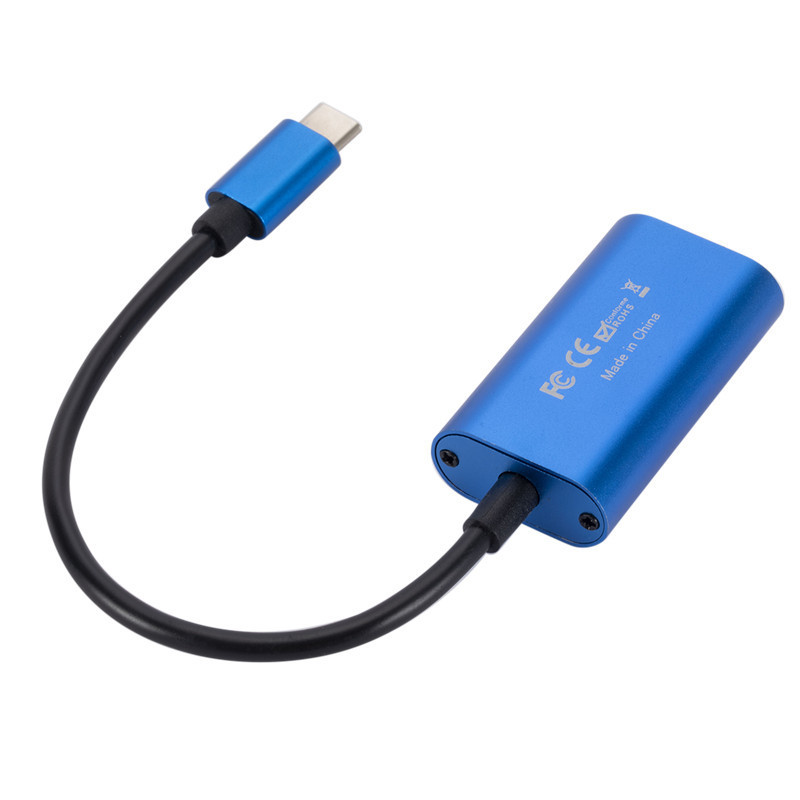

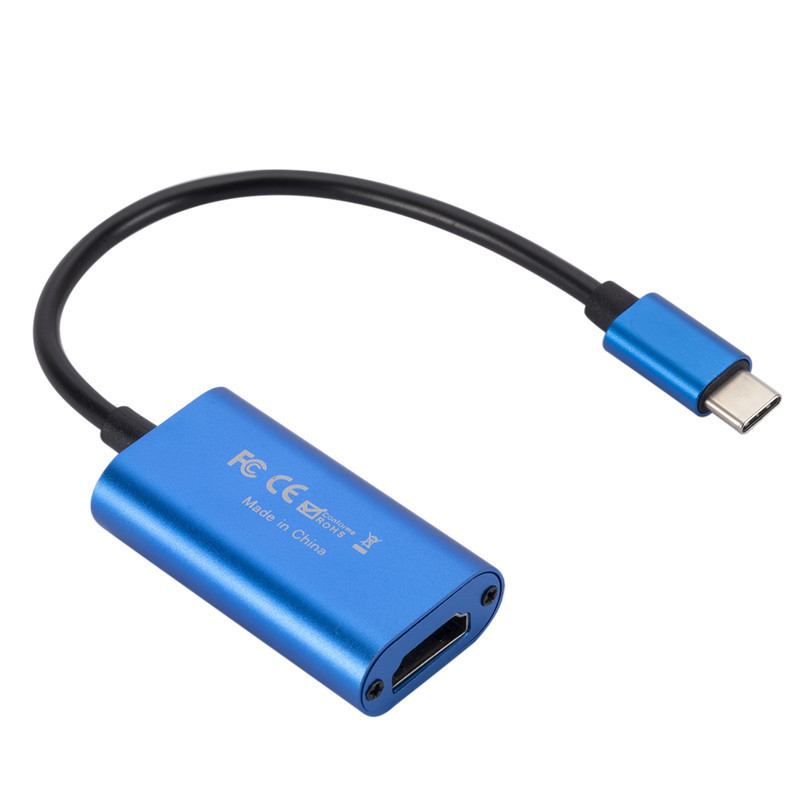

The Usb3.1capture card can capture both HDMI video and HDMI audio at the same time, and can transmit audio and video signals to computers and smart phones for preview and storage. It is suitable for high-definition acquisition, game live broadcast, teaching recording, medical imaging, etc.

To
Support maximum input resolution up to 4K;
Support maximum output resolution up to 1080P; 60fps
Support 8/10/12 bit color depth;
Support most acquisition software, such as VLC, OBS, Amcap, etc.;
Support Windows, Android and MacOS;
Comply with USB video UVC specification;
Comply with USB audio UAC specification;
No need for external power supply, compact and easy to carry.

HDMI resolution: the highest input can support 1080P
Video input format: 8/10/12 bit color depth
Video output mode: YUV, JPEG
Video output resolution: output resolution 1080P
Support audio format: L-PCM
Input cable length: ≤15 meters, AWG26 HDMI standard cable
Maximum working current: 0.4A/5VDC

Computer hardware requirements

CPU: Desktop computer i5-3400 or above, notebook computer i7-3537u2.0 GHZ or above

Graphics card: desktop NVIDIA GT630 or above, laptop NVIDIA GT735M or above

Memory: 4g RAM

If it is a version earlier than Windows 7, please install the driver first.

To use this capture card for the first time, please download and install capture software on the recording computer, such as OBS, VLC, etc. . .

OBS download link: https://obsproject.com/
