First, the product description:

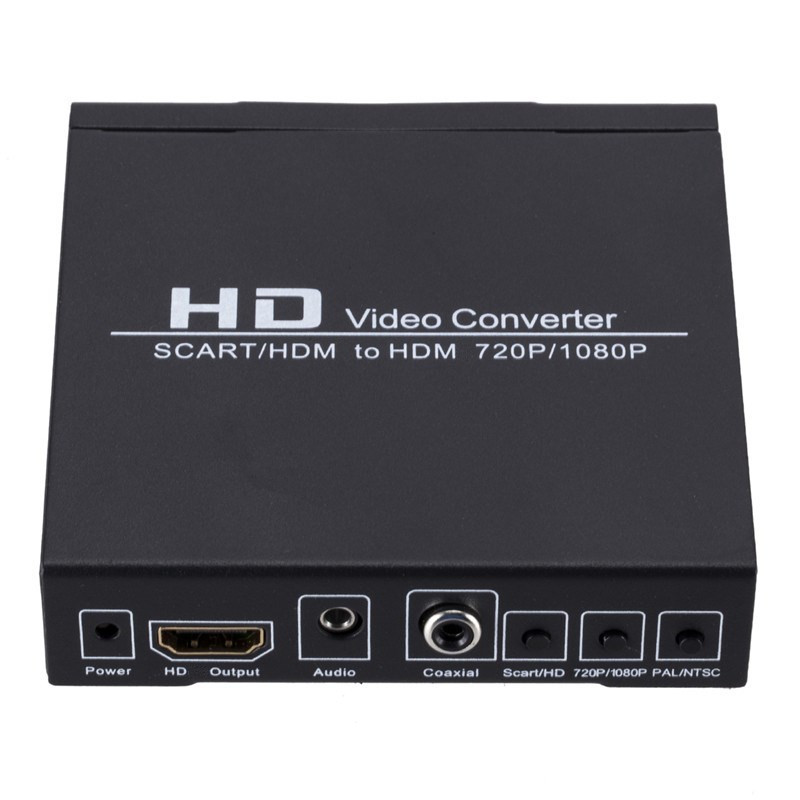

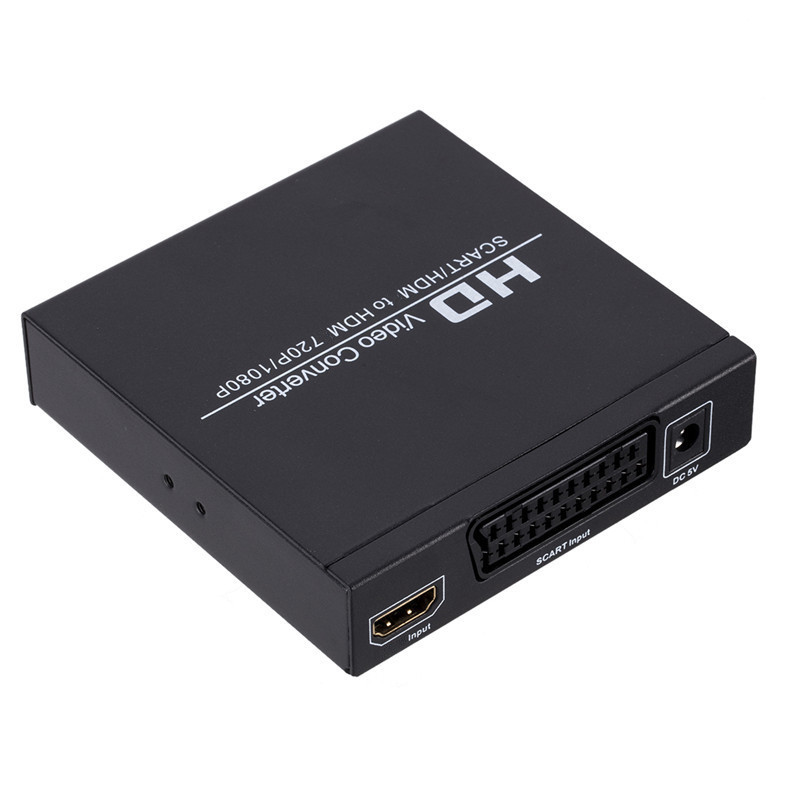

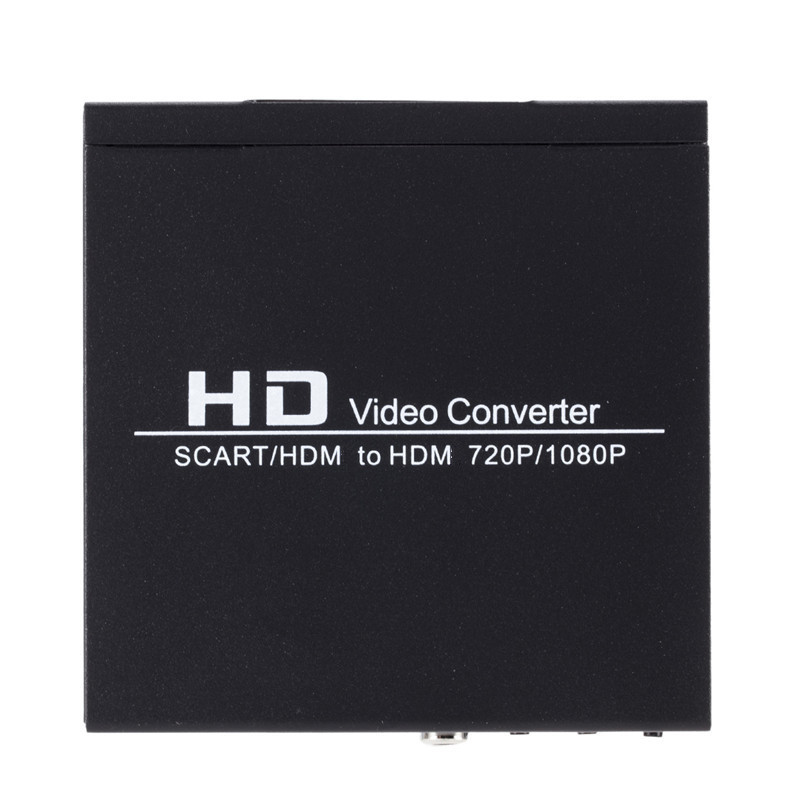

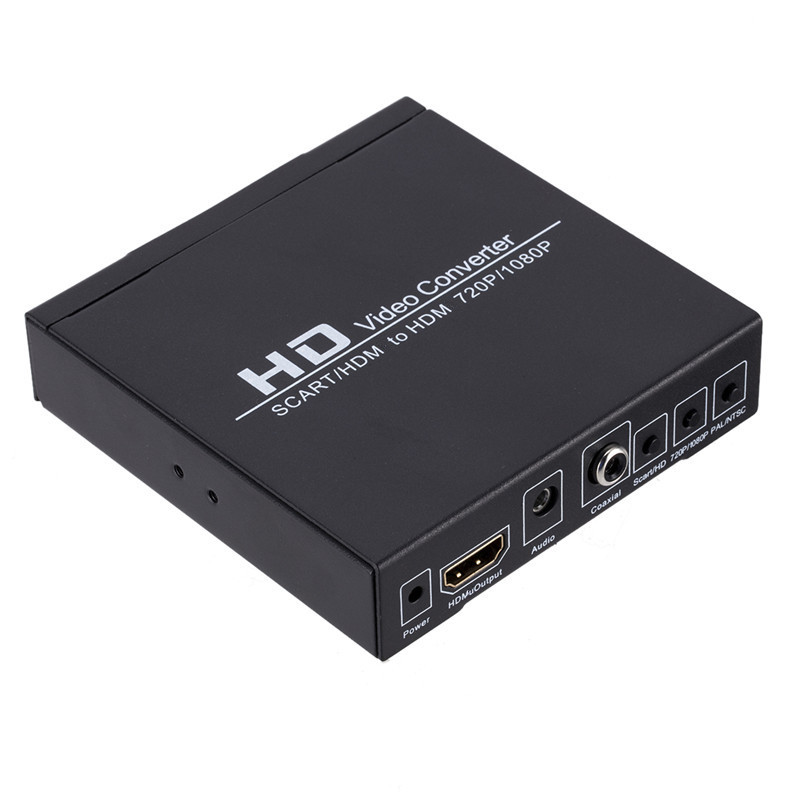

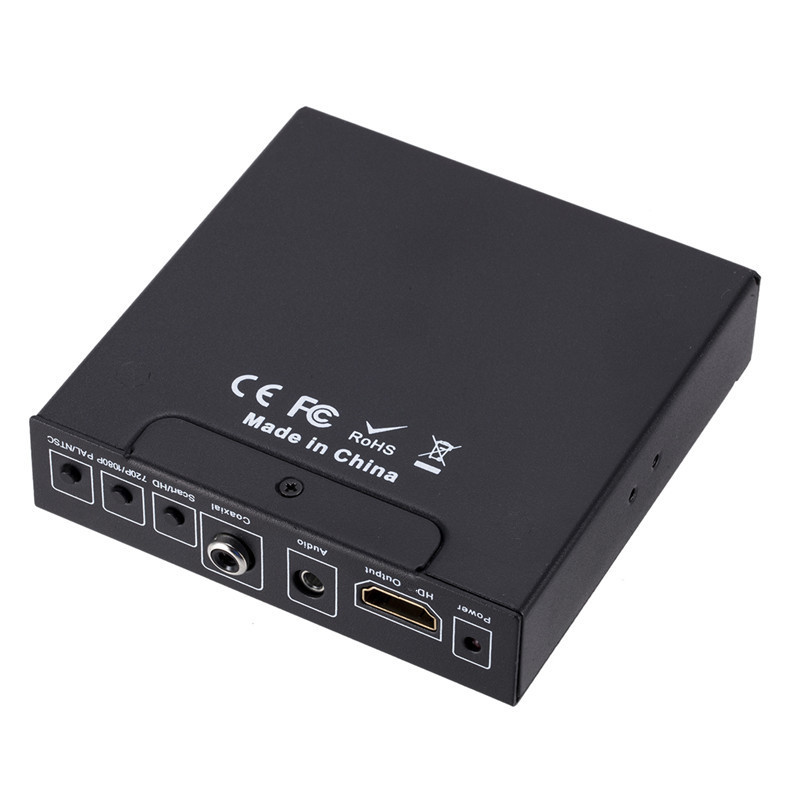

SCART + HDMI to HDMI + HDMI Converter The HDV-8S is a converter for SCART to HDMI and HDMI to HDMI output; it can convert AV video 480I (NTSC) / 576I (PAL) or SCART / RGB signals and audio and video signals To 720P or 1080P high-definition HDMI signal, but also can enter the high-definition format HDMI signal can be easily docked DVD, set-top boxes, high-definition player, game consoles, allowing you to enjoy the experience of high-definition results.
Second, the basic functions:
1) HDMI output interface: docking HDTV, HD projectors;
HDMI output format: 720P @ 50 / 60Hz, 1080P @ 50 / 60Hz;
Audio output format: digital coaxial audio, analog stereo audio.
2) SCART input interface: DVD, set-top boxes and other players;
SCART Input Format: PAL / NTSC_M / NTSC4.43 / SECAM / PLA-M / PAL-N.
3) HDMI input format: 480I / 576I / 480P / 576P / 720P @ 50_60Hz / 1080I @ 50_60Hz / 1080P @ 50_60Hz;
     Input HDMI compatible DVI several formats: 800X600, 1024X768, 1280X1024, 1360X768, 1680X1050, 1920X1080 @ 50_60Hz and so on.
4) 3.5mm audio interface: docking analog amplifier or headphone input interface.
5) Digital coaxial output: docking digital amplifier.
Third, product features:
1. Using a new generation of low-power digital chip processing, 24 small non-stop work, the heat is not large, the stability of the work.
2. Using 3D compensation technology
3. Using DCDI processing technology
a. Faroudja developed technology DCDi; can eliminate common HD converter in the video sawtooth twill;
b. Use the ability of "bad edit detection" to detect the original stream of movies in various video streams and reconstruct a more accurate video signal, thus forming an image with no moving matter under full vertical resolution;
c. Use its TrueLife Enhancement technology to identify image detail changes such as fine lines, spots or hair on the skin. The processing of these details makes the picture look more clearly;
d. Use Motion Adaptive Processing technology. Reduce noise while not producing the stain, the original image of the original appearance;
e. The use of dynamic detector technology to selectively static images for short-term filtering, and the use of image storage technology to be stored for the storage of color. After using this technology, in the staggered colors of the scene: such as tiled roof, cross-pattern clothes, leaf scenes, from which no longer appear extra noise.
4. Scaler video processing technology used:
a. The SCART signal is doubled to 1080P / 720P @ 50 / 60Hz HD output;
b. The 1080P @ 50 / 60Hz high-definition HDMI signal, through the Scaler Down technology, will be as low as 720P @ 50 / 60Hz output;
c. Can be standard definition of the various video formats (480i, 480p, 720p, 1080i), Scaler UP technology to upgrade to high-definition 1080P @ 50 / 60Hz output.
5 using I2S technology
The input L / R analog audio signal, after I2S technology, superimposed on the HDMI, HDMI cable to facilitate the transmission of audio! Remove transmission interference from analog audio cable.
6. The use of audio and video decoding technology
The digital audio in HDMI is decoded through digital decoding to separate stand-alone SPDIF coaxial audio and analog (AUDIO) audio.
7. HDCP protocol processing technology
Input HDCP protocol, remove the HDCP, send HDMI signals without HDCP, convenient for the rear without HDCP decoding display device to receive.
8 standard conversion video processing technology
a. Convert PAL and NTSC formats to HDMI @ 50 / 60Hz;
b. Convert 50Hz HDMI signal to 60Hz HDMI signal;
c. Convert 60Hz HDMI signal to 50Hz HDMI signal.

Features:

• Scales Scart Signal (RGB or  Composite Video) to HDMI 720p or 1080P
• HDMI output: 720P, 1080P
• Scart audio is integrated into HDMI  out as well as pass-through to earphone or sound box  output
• Automatically detect RGB (50/60Hz),  Composite Video (NTSC/PAL)
• Auto-store setting of output  resolution

Specification:

• HDMI output interface: connect with  high definition TV or high definition projector

• HDMI output  format: 720P@50/60Hz, 1080P@50/60HZ

• Audio output format: Digital coaxial  audio, analog stereo audio

• SCART input interface: DVD, set top  box, other players

• SCART input format: PAL / NTSC_M /  NTSC4.43 / SECAM / PLA-M / PAL-N

• HDMI input format:
      - 480I / 576I / 480P / 576P / 720P @50-60Hz
      - 1080I / 1080P @50-60Hz

• Compatible with several DVI format:  800x600, 1024x768, 1280x1024, 1360x768, 1680x1050,  1920x1080 etc

• 3.5mm audio interface: Connect with  analog audio amplifier or headphones input interface

• Digital coaxial output: Connect with  digital audio amplifier

• Package Size: 22 x 15 x 5.5cm

• Package Weight: 485g











Package include:

• 1 x Scart / HDMI To HDMI HD Video Converter
• 1 x Power Adapter
• 1 x User Manual
