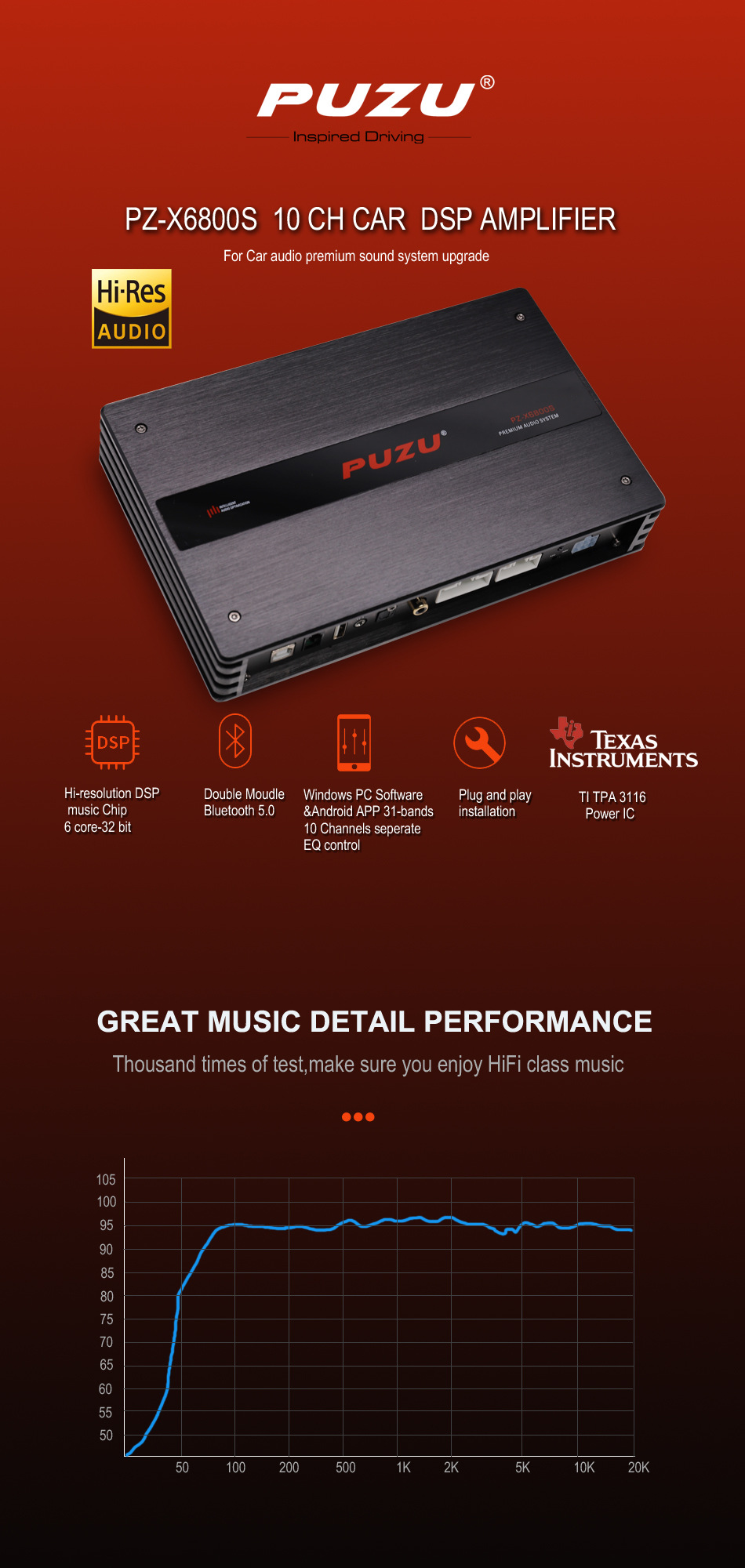

美国PUZU彪族PZ-X6800S车载DSP豪车专用功放无损升级6进10出

ntroduction of PZ-X6800S

PZ-X6800S is a Premium Car Audio 8CH Amplifier with 10CH DSP Processor upgrade for those car with factory OEM Amplifier

like Bose/JBL/Harman Kardon/BMW HiFi,L7/Burmester/Infinity/Dynaudio/etc.Which is easily do the installation by plug & play,it keep safety & save space for your

car.invisible installation,You can put it under your seat.keep tiny & clean

PZ-X6800S model PUZU delivers an extremely compact sound power plant in a shapely housing with astonishing 8 channels power output, including a freely configurable 10-Channel DSP. 6ch high level input with 10ch output freely input & out mixer, PZ-X6800S Amp offers multi upgrade solutions for you, CH1~CH4 with 4X50W RMS which you can drive for your normal speakers like tweeter and rear door speakers CH5~CH8with 4X75W output power which you can drive for your under seat woofers and front door speakers. The compact sound miracle is particularly suitable for loudspeaker systems in 3-Way active operation. With the DSP, the crossover frequencies, time alignment and frequency corrections can be perfectly adjusted.

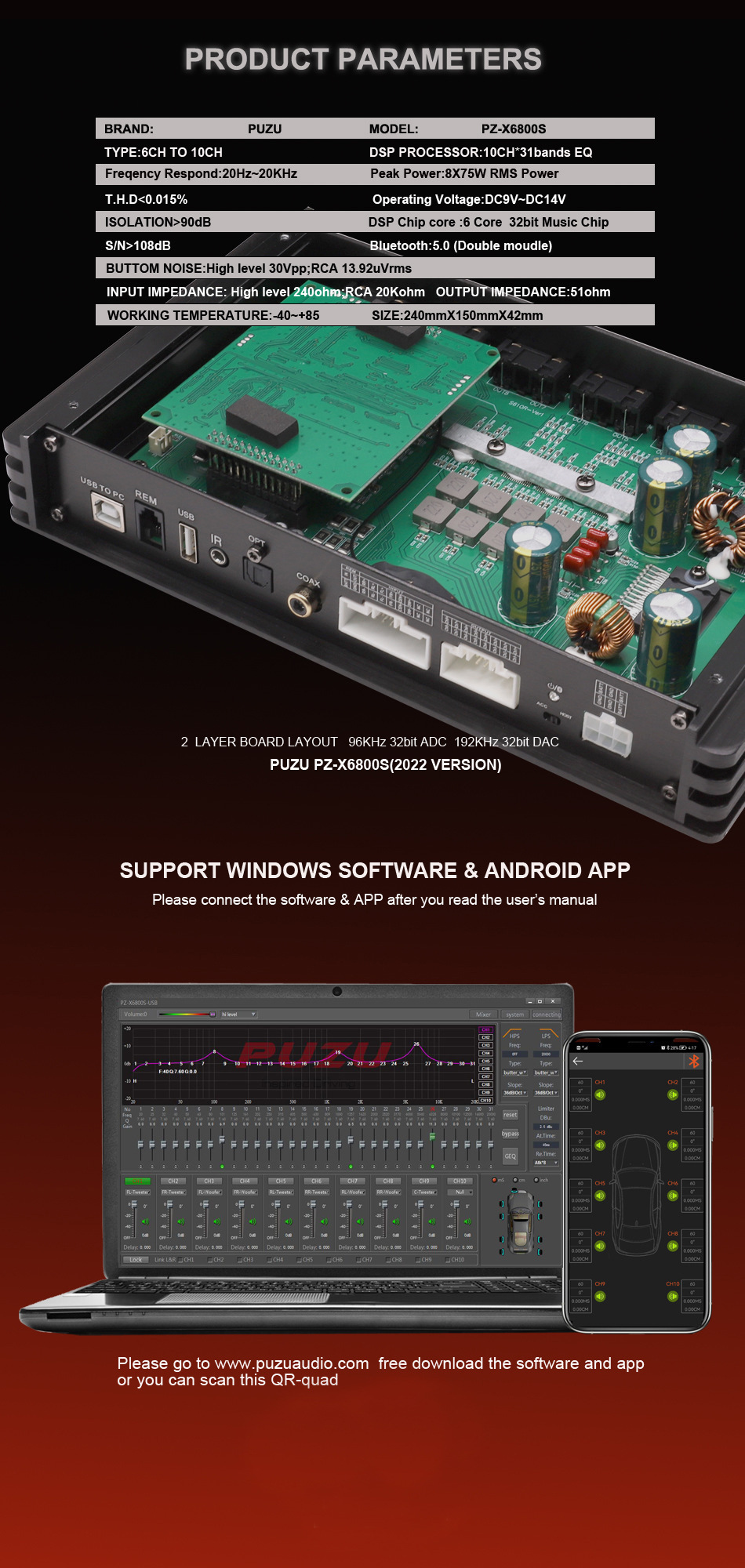

Technical Date

output power RMS/MAX

CH1~CH8 4ohm-------------------4X50/150W(CH1~CH4)

4X75/180W(CH5~CH8)

CH1~CH8 2ohm-------------------4X110/260W(CH1~CH4)

4X150/320W(CH5~CH8)

Input--------------------------------6X high level speaker input

Optical SPDIF input

USB input

Coaxial input

Bluetooth input

2CH RCA (AUX L/R) input

input sensitivity---------------------5~11volts

Out puts-----------------------------8X speakers

10x RCA low level output

Output voltage RCA----------------0.8~3V

Frequency responds----------------20Hz~20KHz

DSP resolution----------------------64bit

DSP power---------------------------295MHz

S/N---------------------------------->108dB

Isolation----------------------------->90dB

Working voltage--------------------10.5~16Volts

Product size-------------------------240X150X42(mm) 94.4X59X16.5(inch)

THD----------------------------------<0.015%

Damping factor---------------------->100

Sound tuning software main parameters

 Frequency range 20Hz~20KHz,1Hz steps

- Q:0.40~128 0.01 steps

- Gain:-20.0dB~+20dB,0.1dB steps

- High pass,low pass

- Phase control

- Specialized type fitering:Butterworth,Linkwitz-Rile,Bessel

- Filter crossover pionts:20Hz-20KHz,1Hz steps

- Slopes:6dB,12dB,18dB,24dB,30dB,36dB,42dB,48dB

- up to 20ms of time delay per channel delay unit (ms,cm,inch)

- Save and share tuning presets (8 presets mode available)

- Sources:Bluetooth audio,High-level input (head unit signal),optical SPDIF,Coaxial input,U disc,Analog AUX inputs

(aftermarket head unit signal)

- LCD remote control for volume,preset store/recall,source selection (exta selection)

- Matrix mixing allows for summing and input/output signal management.

- Android app free download

- Windows system software free download

- Limiter:0.1dBu~6dBu 0.1dBu steps

-Release Time: Atk*2,Atk*4,Atk*6,Atk*8,Atk*16,Atk*32

- AT.time:0.3ms~100ms 0.1ms steps
