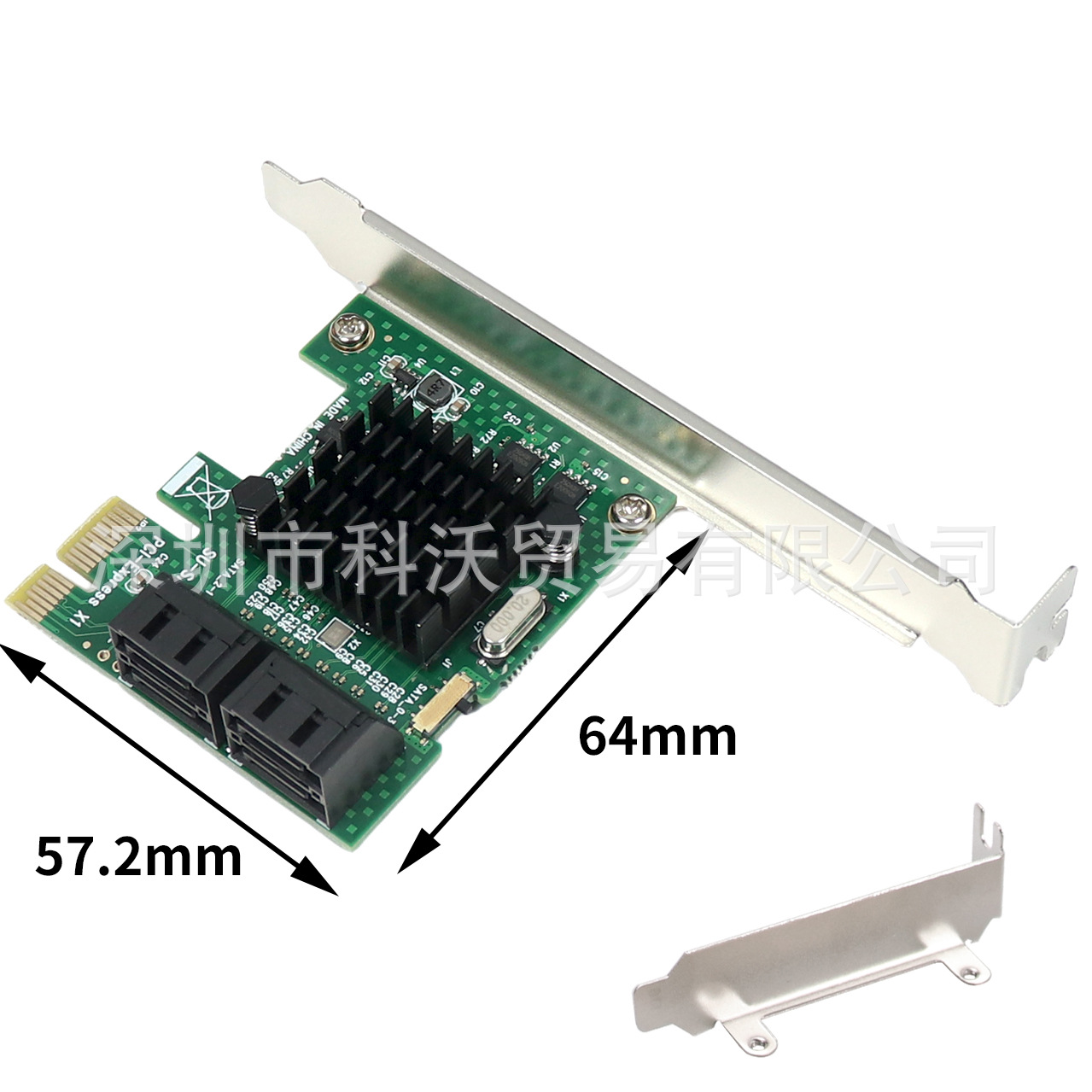

PCIE to SATA Expansion Card PCI Express x1 to 4 Ports SATA 3 3.0 III 6Gbps Controller PCI-e SATA3 Adapter Board For Windows

Feature:

Add large radiator, heat dissipation effect is better
Rear four mouth design, wiring is more convenient.
Rear four-port design, the size of the chassis universal
Tail flush design, the probability of blocking the best video card fan is less
Four layers of circuit board, with isolation layer in the middle, stronger anti-interference ability
Original mode selection,AHCL,IDE, data disk, three modes can be freely selected
The three modes can be selected by pulling the switch
1. Hard disks boot the system in AHQ mode
2. Data disk mode Hard disk does not boot (at the same time, you can close the self-check interface)
3. Hard disk boots the system in IDE mode

Specification:

Transmission rate: 6Gbps
Bus type: PCI-E X1 is compatible with PCI-EX4 X8 X16 and other interfaces
Bus speed: PCI-E3.0
Interface: standard SATA3.0
Number of ports: 6
Installation conditions: There must be one or more free PCI-E slots on the motherboard
Operating temperature: -10~60 degrees
Storage temperature: -20 °C to -40 °C
Application: Desktop computer, workstation, server, industrial equipment
Driver support: for Windows
Size: 120*65*18mm/4.7X2.6X0.7in
Weight: 60g
Packing size: 145*125*25mm/5.7x4.9x0.98in
Packing weight: 102g

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

What's Include

1 x PCI-E SATA Adapter
1 x Drive Disc
1 x Half-Height Baffle
2 x Screw
