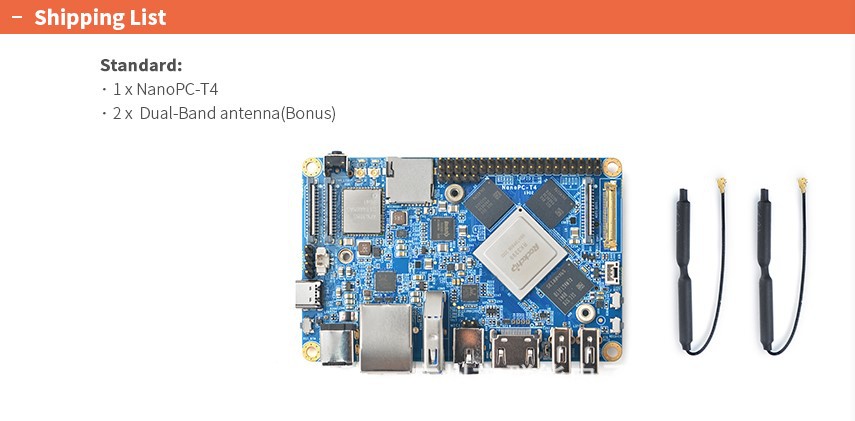

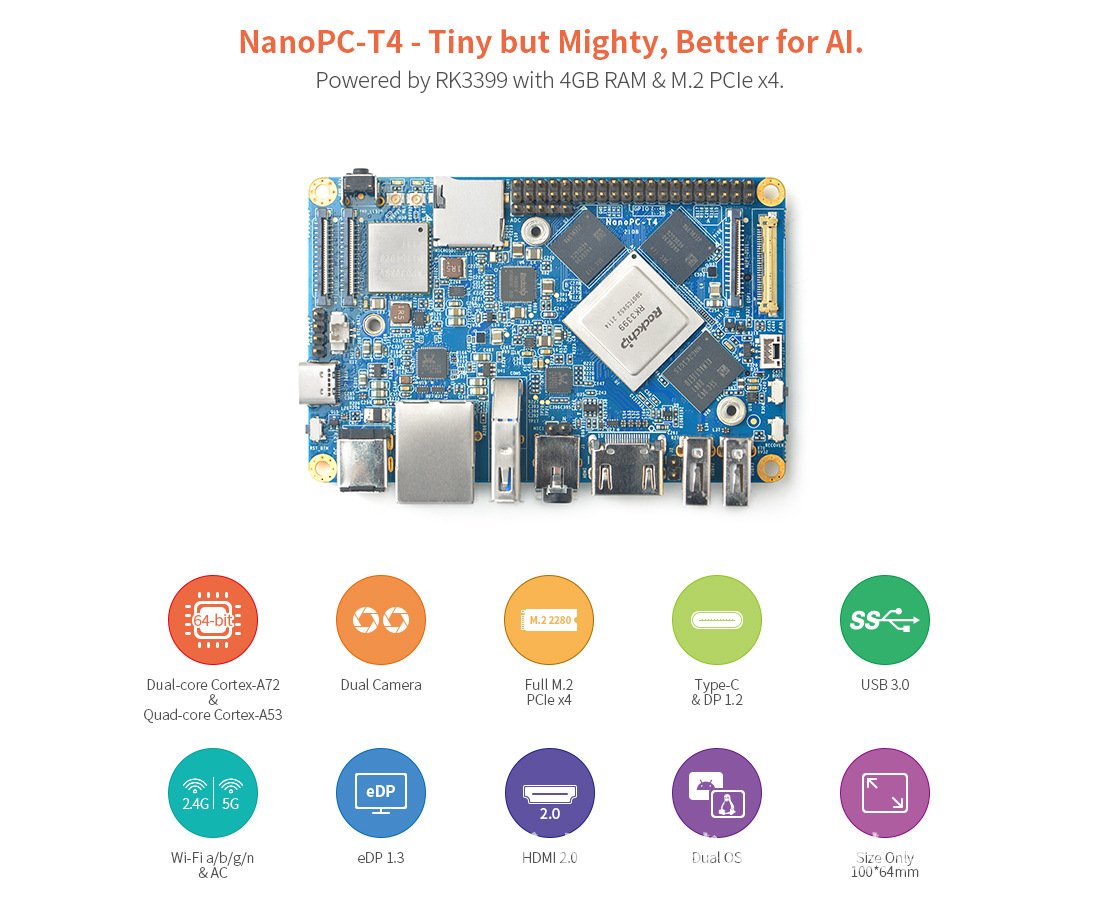

[NanoPC-T4] RK3399开发板双频WiFi双摄像头4G内存4K播放安卓10
4G+16G

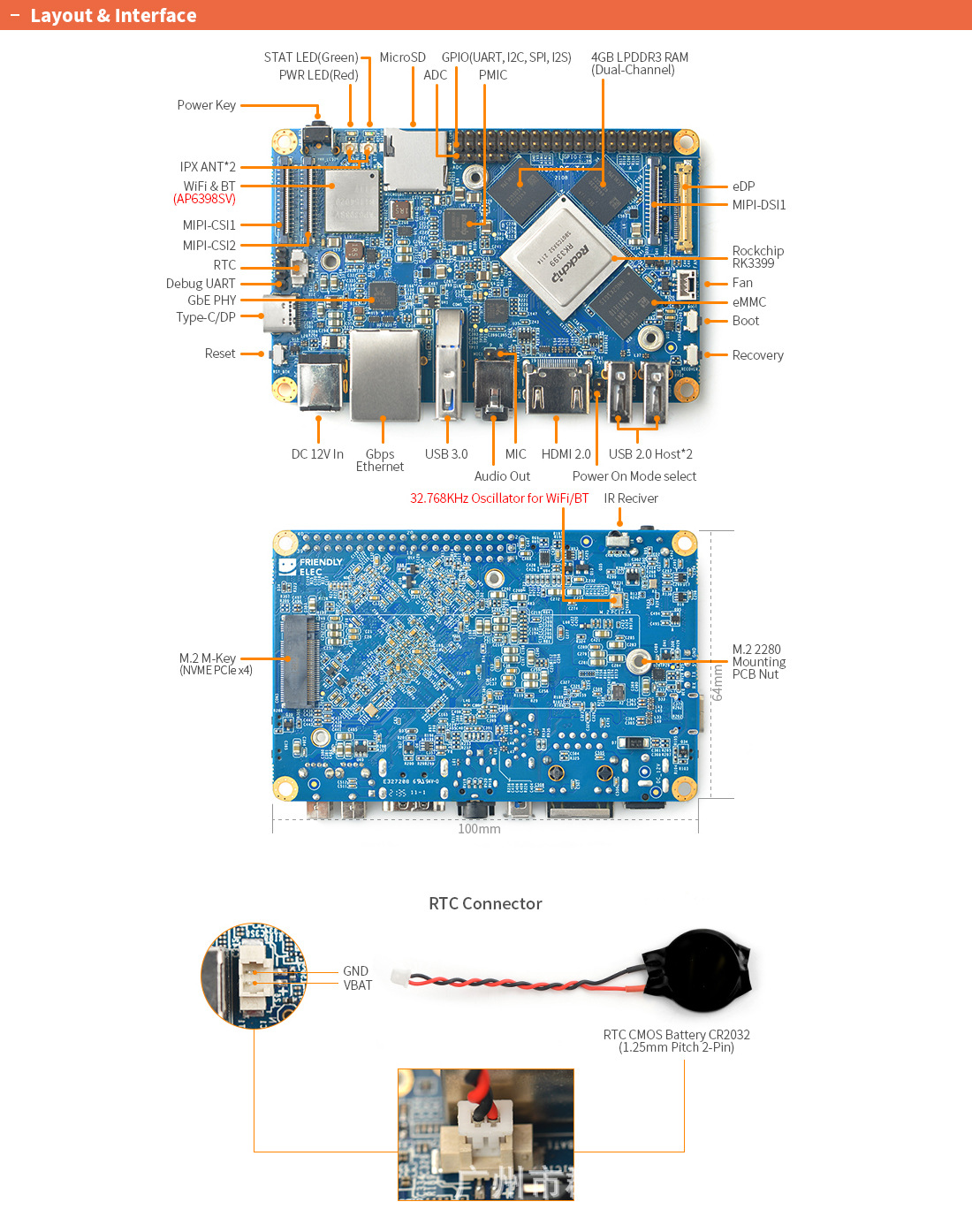

| CPU | Model: Rockchip RK3399 Number of Cores: 64-bit Dual Core Cortex-A72 + Quad Core Cortex-A53 Frequency: Cortex-A72(up to 2.0GHz), Cortex-A53(up to 1.5GHz) |
| GPU | Mali-T864 GPU， supports OpenGL® ES1.1/2.0/3.0/3.1, OpenCL™, DX11, and AFBC |
| VPU | 4K VP9 and 4K 10bits H265/H264 60fps decoding, Dual VOP, etc |
| Memory | RAM: Dual-Channel 4GB LPDDR3-1866 |
| Storage | eMMC: 16GB MicroSD Slot: MicroSD x1 for external storage up to 128GB PCIe x1: M.2 M-Key PCIe X4 socket, compatible with PCIe 2.1, Dual operation mode; Onboard M3 PCB nut for mounting M.2 2280 module |
| Power Management | RK808-D PMIC, cooperated with independent DC/DC, enabling DVFS, software power-down, RTC wake-up, system sleep mode |
| Connectivity | Ethernet: Gbps Ethernet Wi-Fi: 802.11a/b/g/n/ac,AP6389SV Chip Bluetooth: 4.1 dual-mode Antenna: Dual Antenna Interface |
| Audio | Audio Out: 3.5mm Dual channel headphone jack, or HDMI Audio In: 2-Pin 2.54mm header for microphone |
| Video Input | 2 x 4-Lane MIPI-CSI, dual ISP, up to 13MPix/s， supports simultaneous input of dual-camera data |
| Video Output | HDMI: HDMI 2.0a, supports 4K@60Hz， HDCP 1.4/2.2 DP on Type-C: DisplayPort 1.2 Alt Mode on USB Type-C LCD Interface: one eDP 1.3（4 line，10.8Gbps）, one 4-Line MIPI-DSI |
| USB | USB 2.0 x2: independent native USB 2.0 Host A interfaces USB 3.0 x1: native USB 3.0 Host A-type interface USB Type-C x1: Supports USB3.0 Type-C and DisplayPort 1.2 Alt Mode on USB Type-C |
| Pin-header | 40Pin GPIO Extension ports: 1 x 3V/1.8V I2C, up to 2 x 3V UART, 1 x 3V SPI, 1 x SPDIF_TX, up to 8 x 3V GPIOs 1 x 1.8V I2S, 3 x 1.8V GPIOs ADC: 3 x 1.8V ADC inputs, 5 Pin 2.54mm header Debug: 1 x Debug UART, 4 Pin 2.54mm header, 3V level, 1500000bps |
| User Button | Power Button x1 Reset Button x1 MASKROM(BOOT) Button x1 Recovery x1 |
| LED | Power LED(Red) x1 STAT LED(Green) x1 |
| Others | IR receiver: Onboard IR receiver, Accepted 38KHz carrier frequency RTC Battery: 2 Pin 1.27/1.25mm RTC battery input connector Cooling: two 2.5mm PCB nuts for mounting heat sink; 3 Pin 12V cooling fan interface with PWM Working Temperature: -20℃ to 70℃ |
| Power | DC 12V/2A |
| OS Support | Android 8.1 Android 10 Lubuntu 16.04 (32-bit) FriendlyCore 18.04 (64-bit) FriendlyDesktop 18.04 (64-bit) FriendlyWrt 21.02.1 (64-bit)
|
| Kernel version | Linux-4.4-LTS U-boot-2014.10 |
| PCB | 10 Layer |

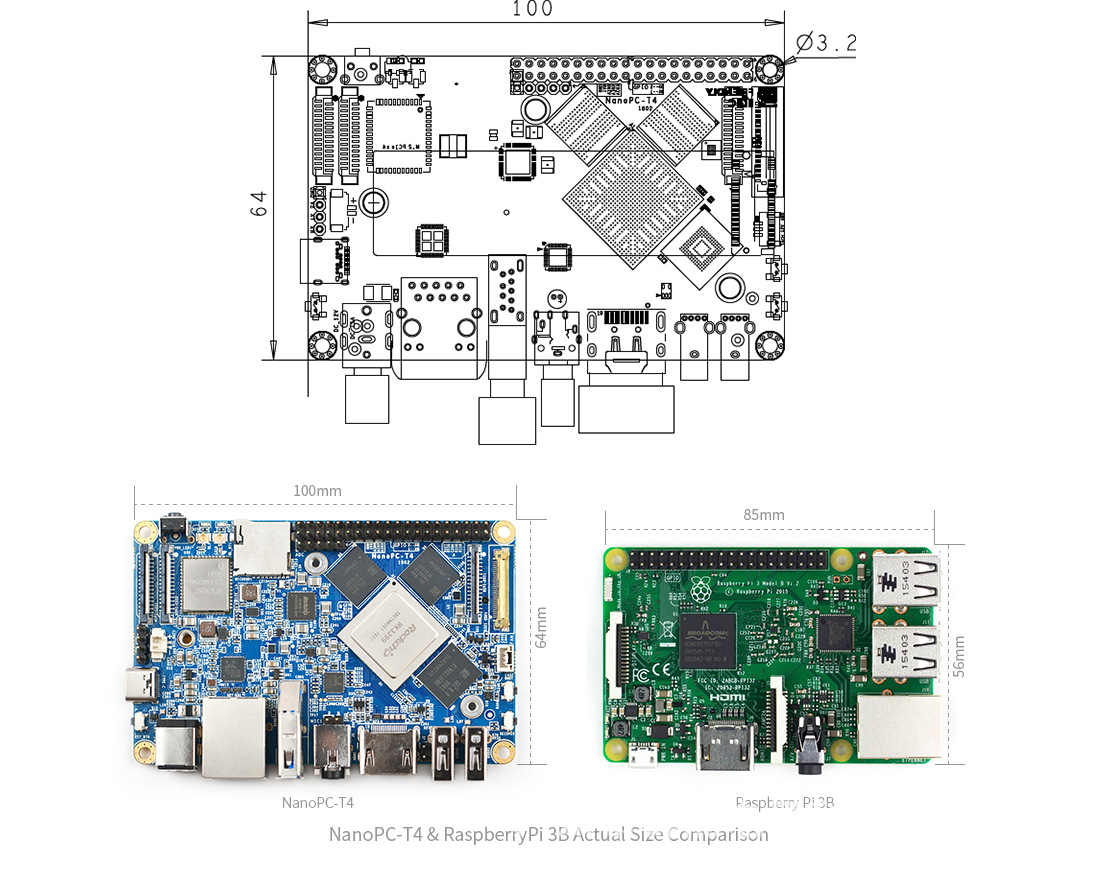

| Dimension | 100*64mm |
| Weight | 63.06g |
| WiKi维基教程（固件介绍，使用说明，操作步骤等） |
| http://wiki.friendlyelec.com/wiki/index.php/NanoPC-T4 |
| 系统固件下载 |
| https://dl.friendlyelec.com/nanopct4 |
| 原理图(pdf格式) |
| http://wiki.friendlyelec.com/wiki/images/e/e0/NanoPC-T4-1902-Schematic.pdf |
| 尺寸图(dxf格式) |
| http://wiki.friendlyelec.com/wiki/images/b/bc/NanoPC-T4_1802_Drawing%28dxf%29.zip |
