Please do not connect the AC contactor! The factory is now upgrading the PCB board, so both 110-220V and 220V will use the same

This product cooperates with two factories: So you get a different appearance from the product link picture, but the usage is the same


The product cable uses a fixed range size, if you need to use more than the data range, you can re-solder the new cable you need, if you care, please don't buy it!

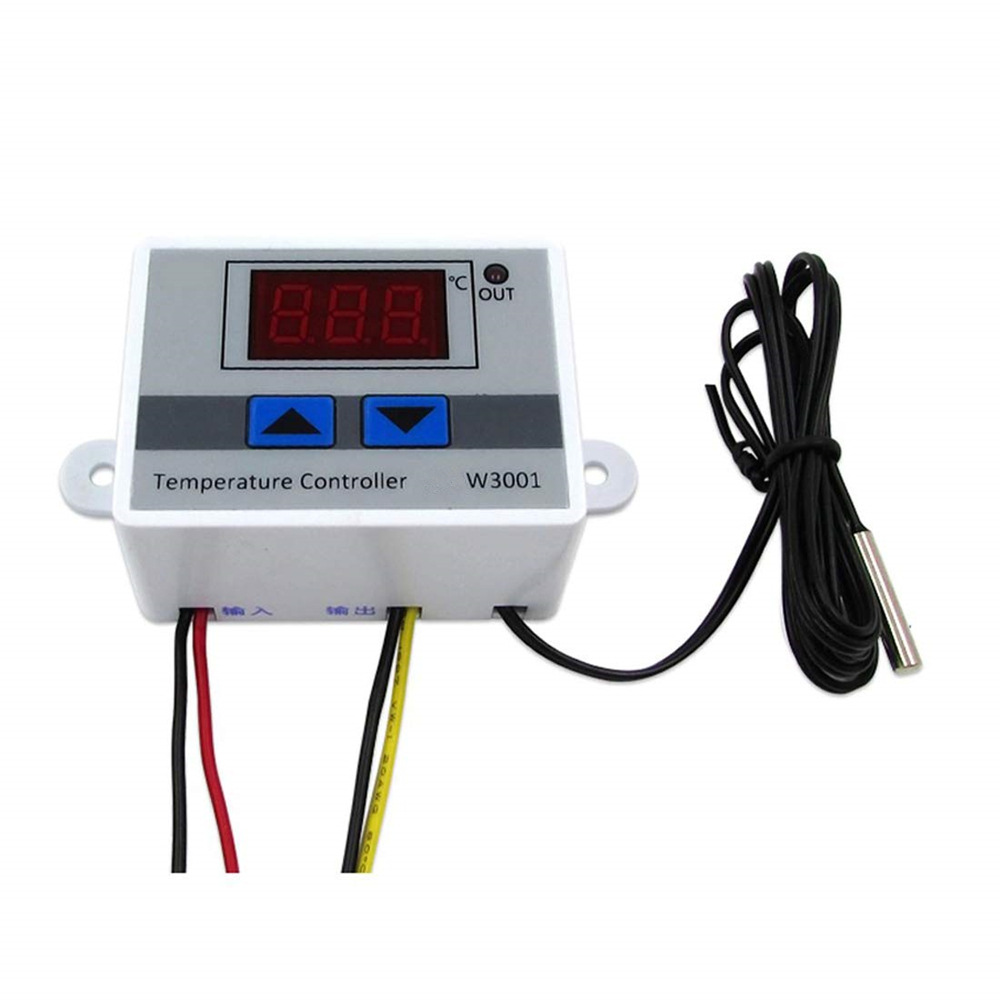

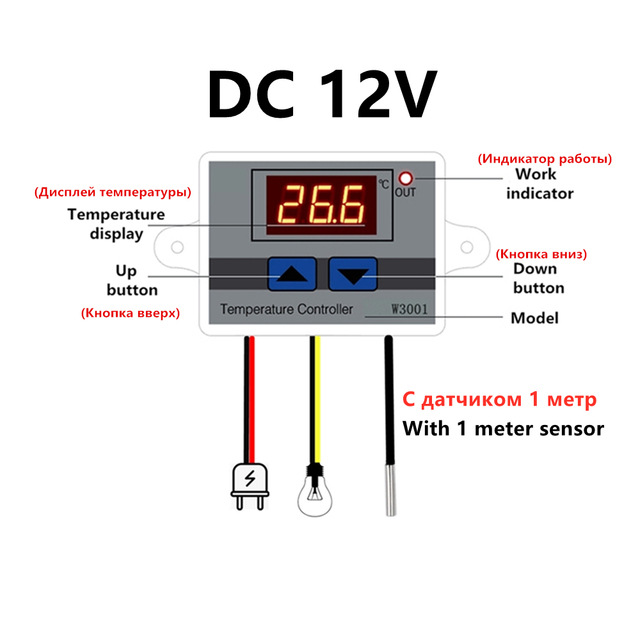

Item type: Digital temperature controller

Model: XH-W3001

Output Type: Direct Output

Output capacity:10A max

Power Supply: DC12V,DC 24V,AC 220V

Load power:120/240/1500W

Temperature Measurement Range: -10° C~110° C

Temperature Control Range: -10° C~110° C

Temperature Control Precision: 0.1°-0.2°C

Input measurement: NTC10K waterproof probe L = 1 meter waterproof

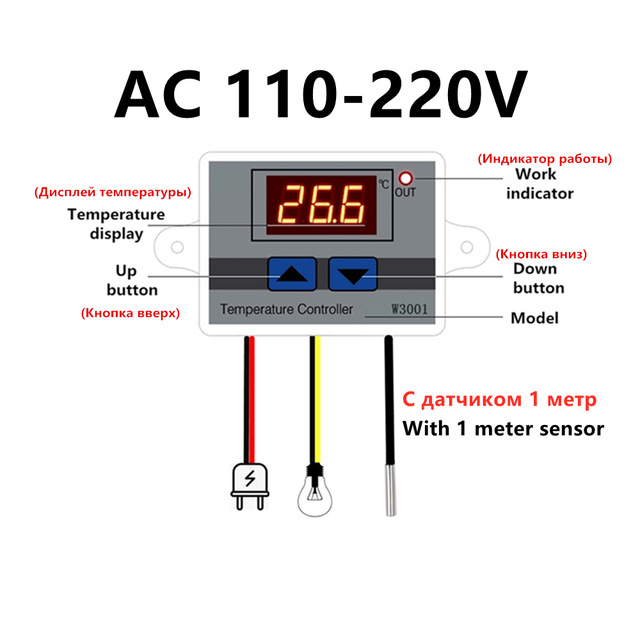

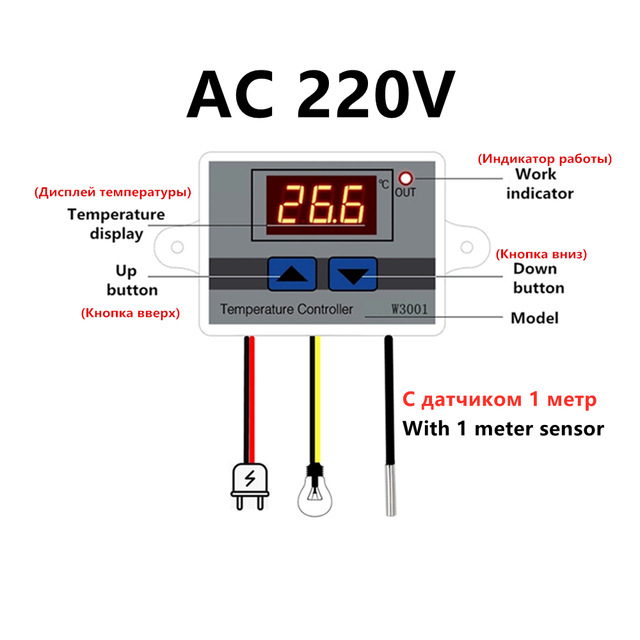

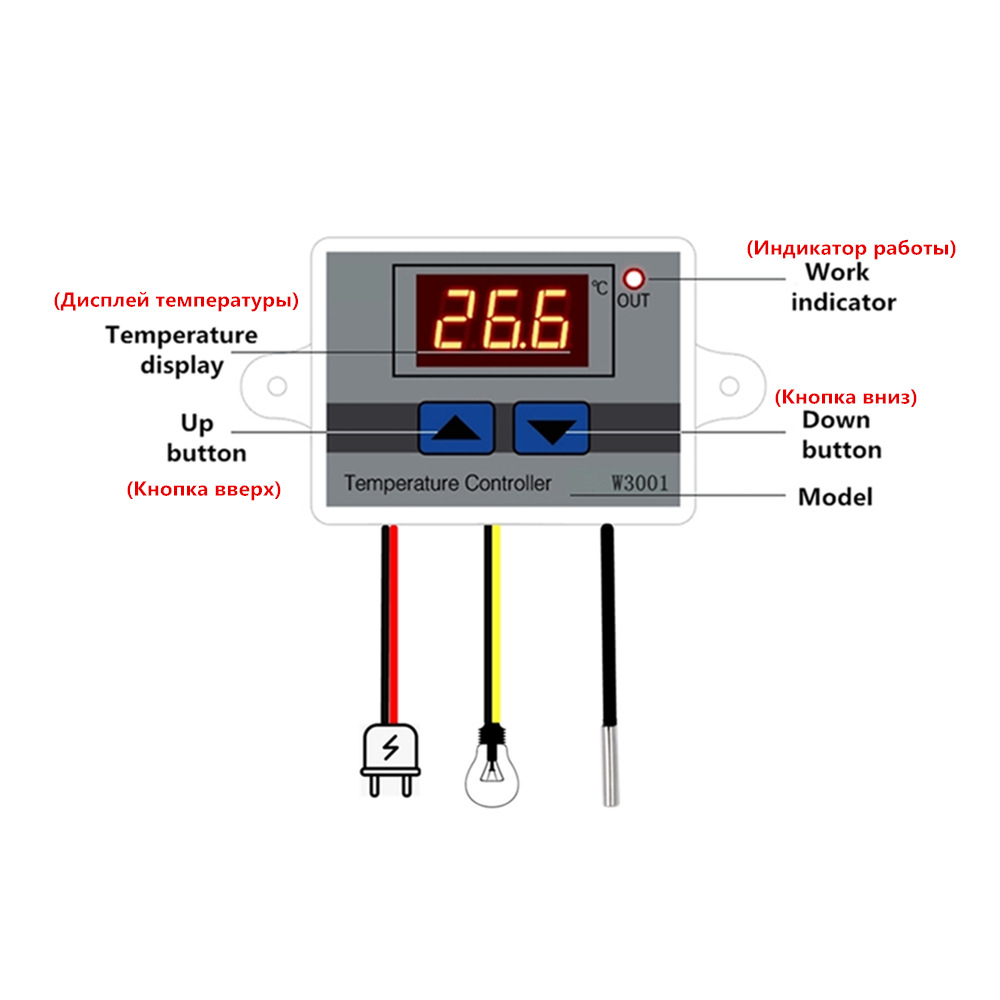

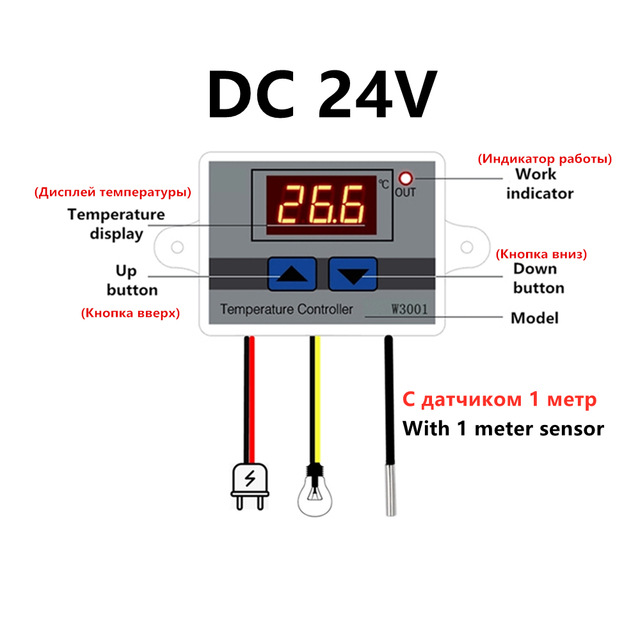

How to set
1. Press up button show the starting temperature.
2. Long press UP button the temperature display Flashing , Press the UP or Down button.
3. Set the start temperature value.
4. Press Down button show the Stop temperature.
5. Long press Down button the temperature display Flashing , press the UP or Down.
