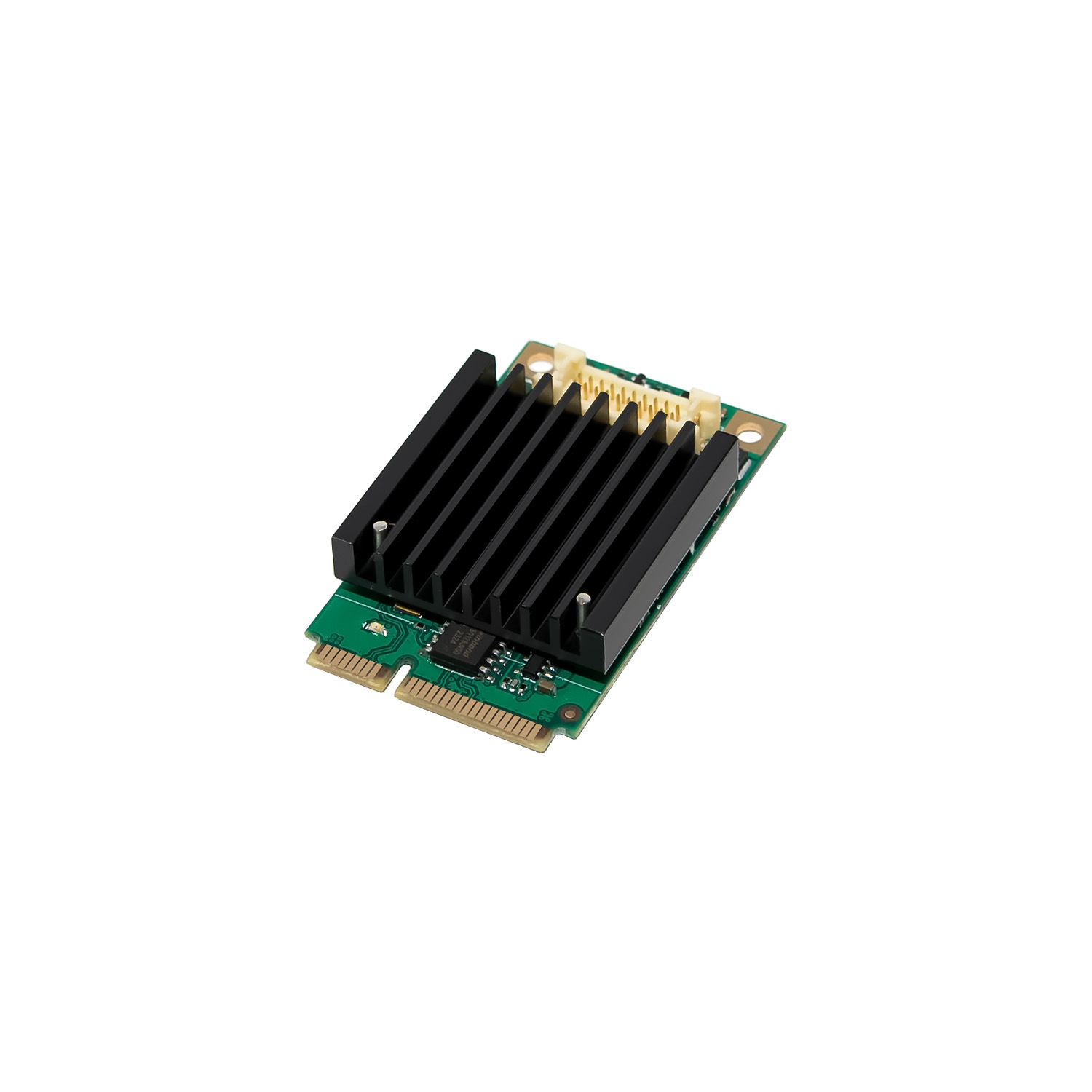

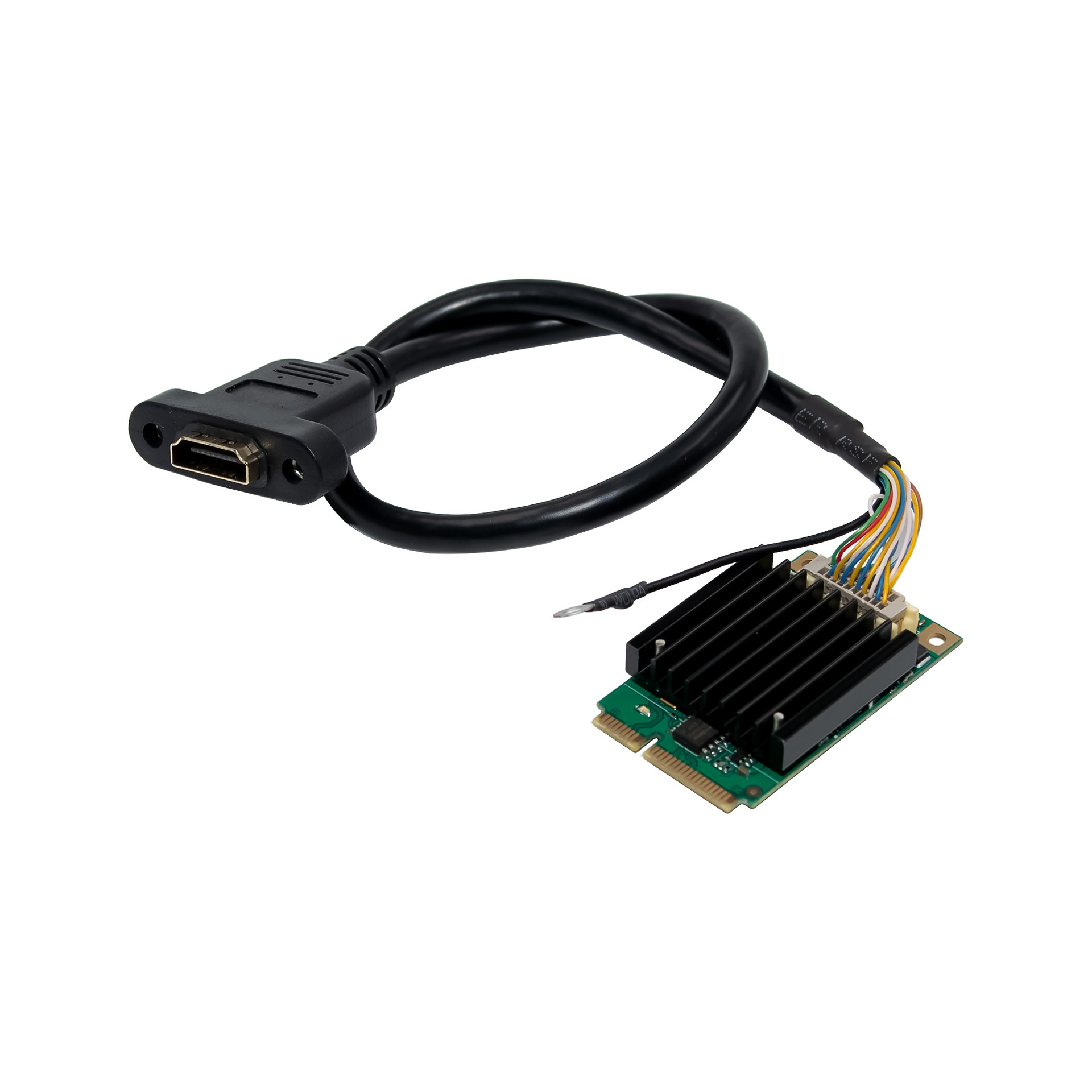

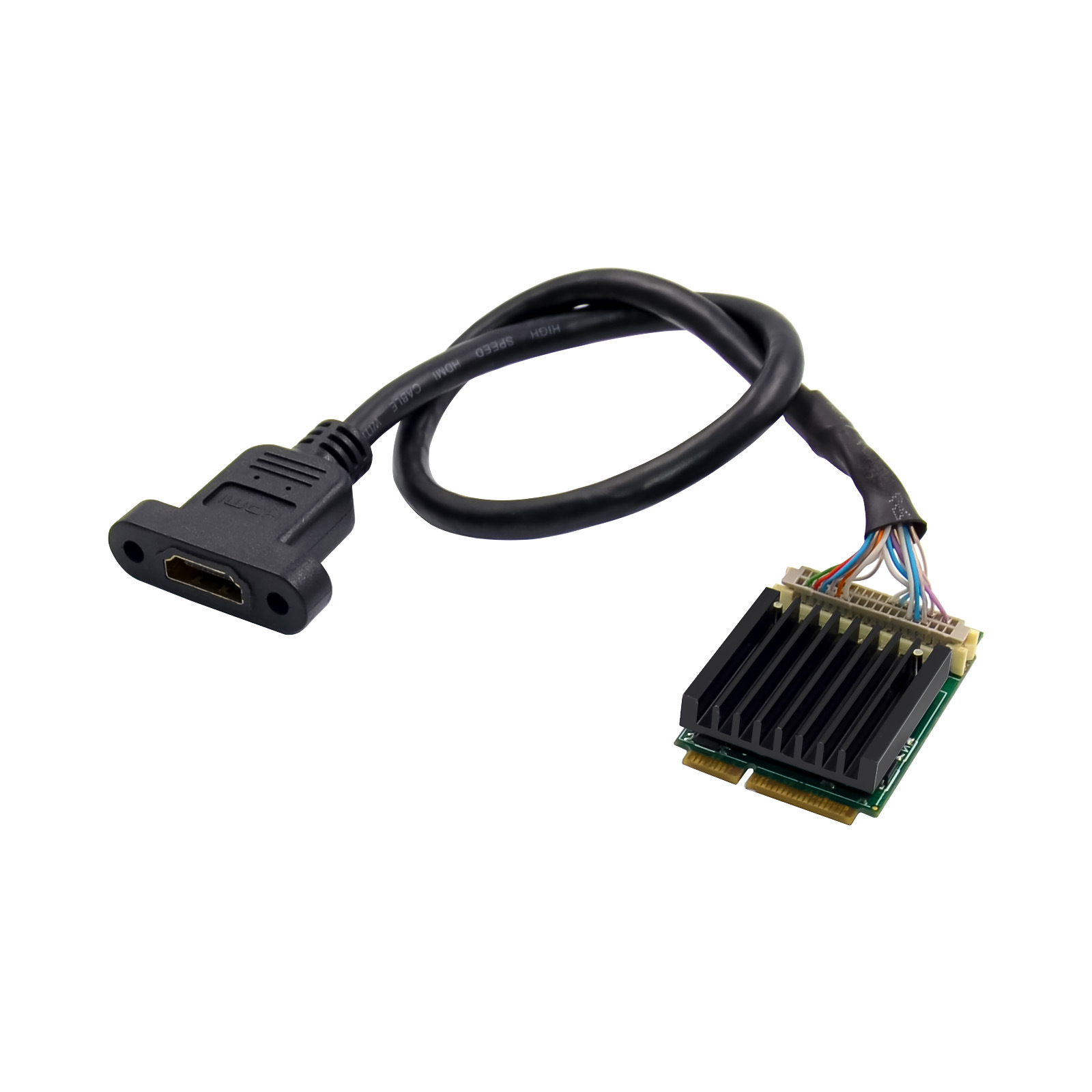

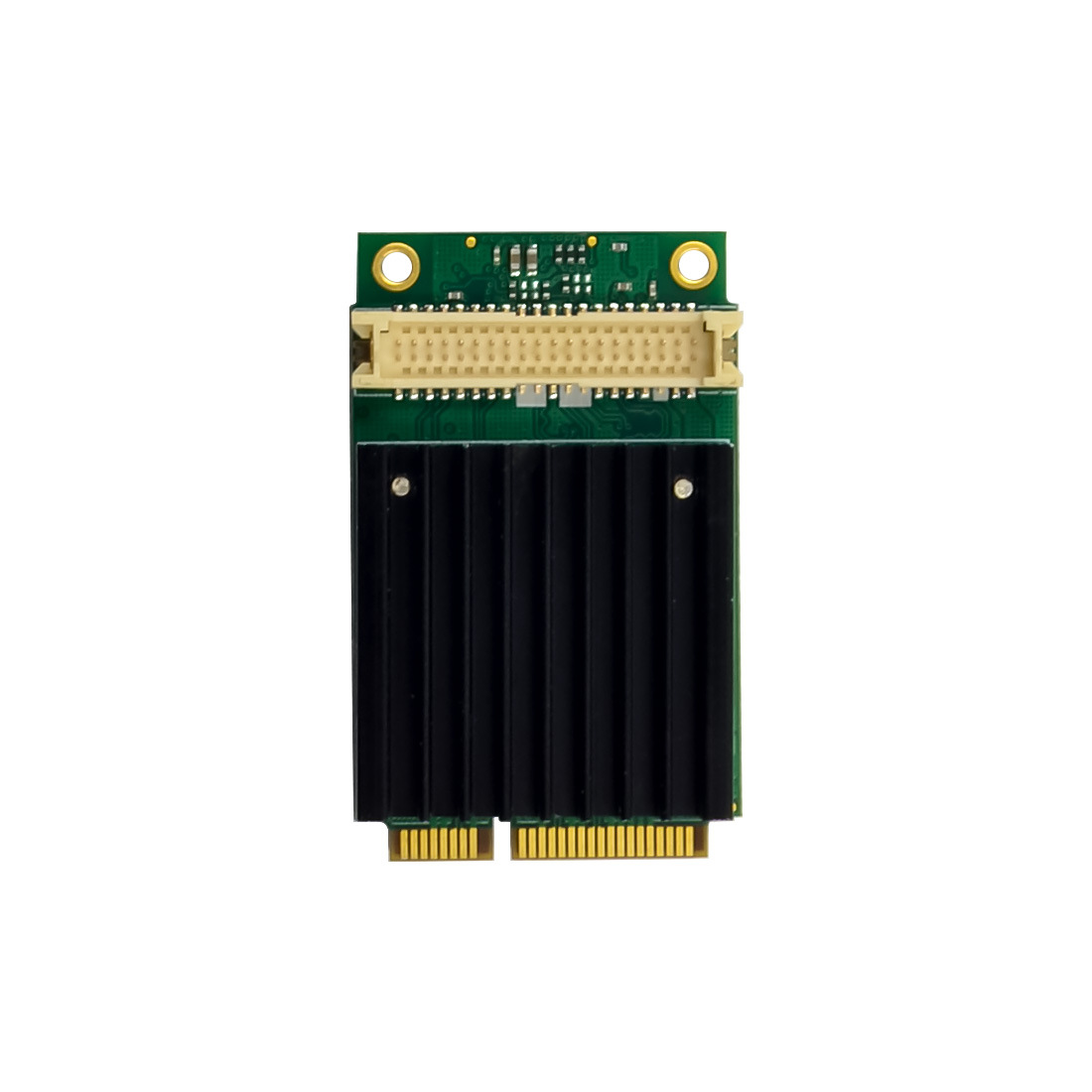

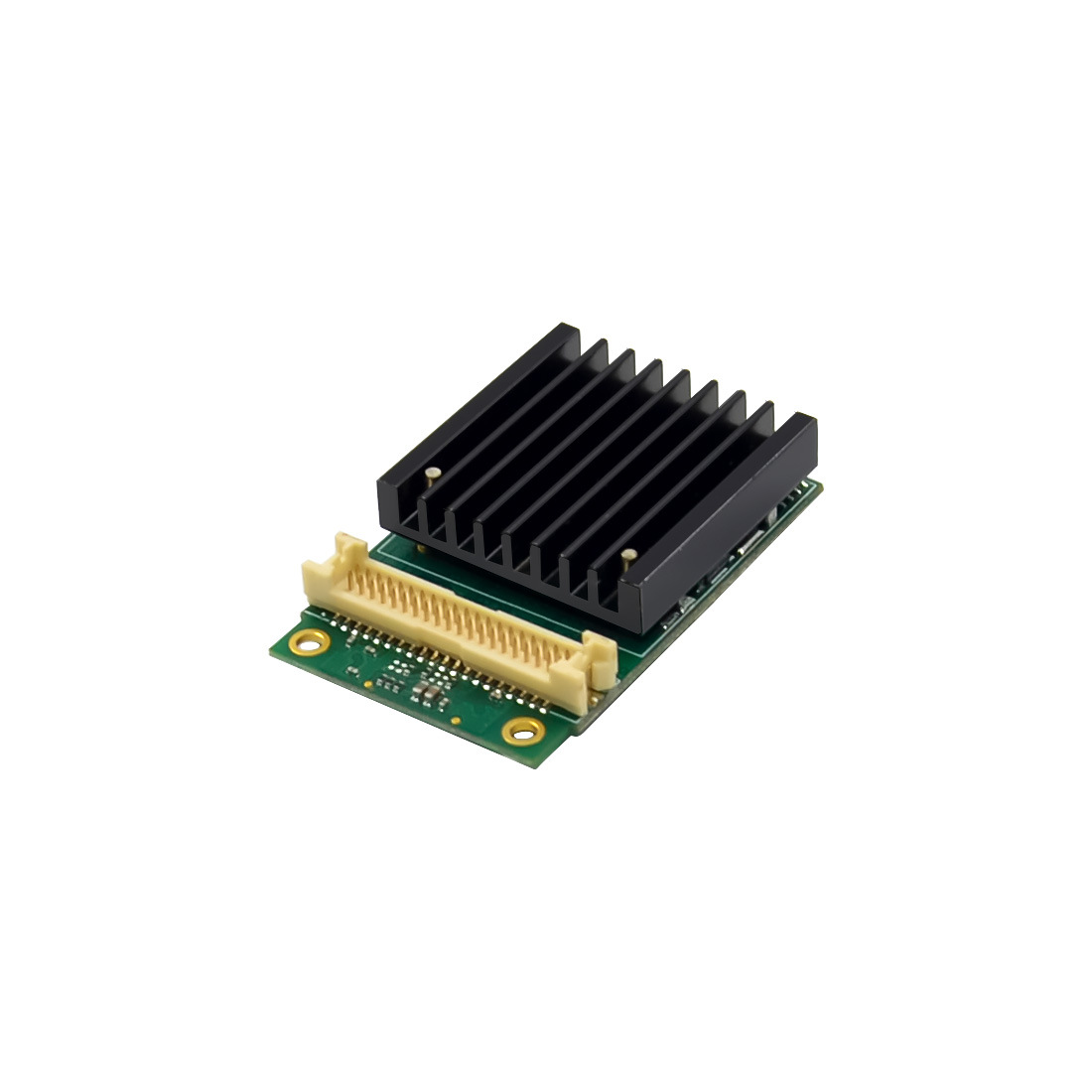

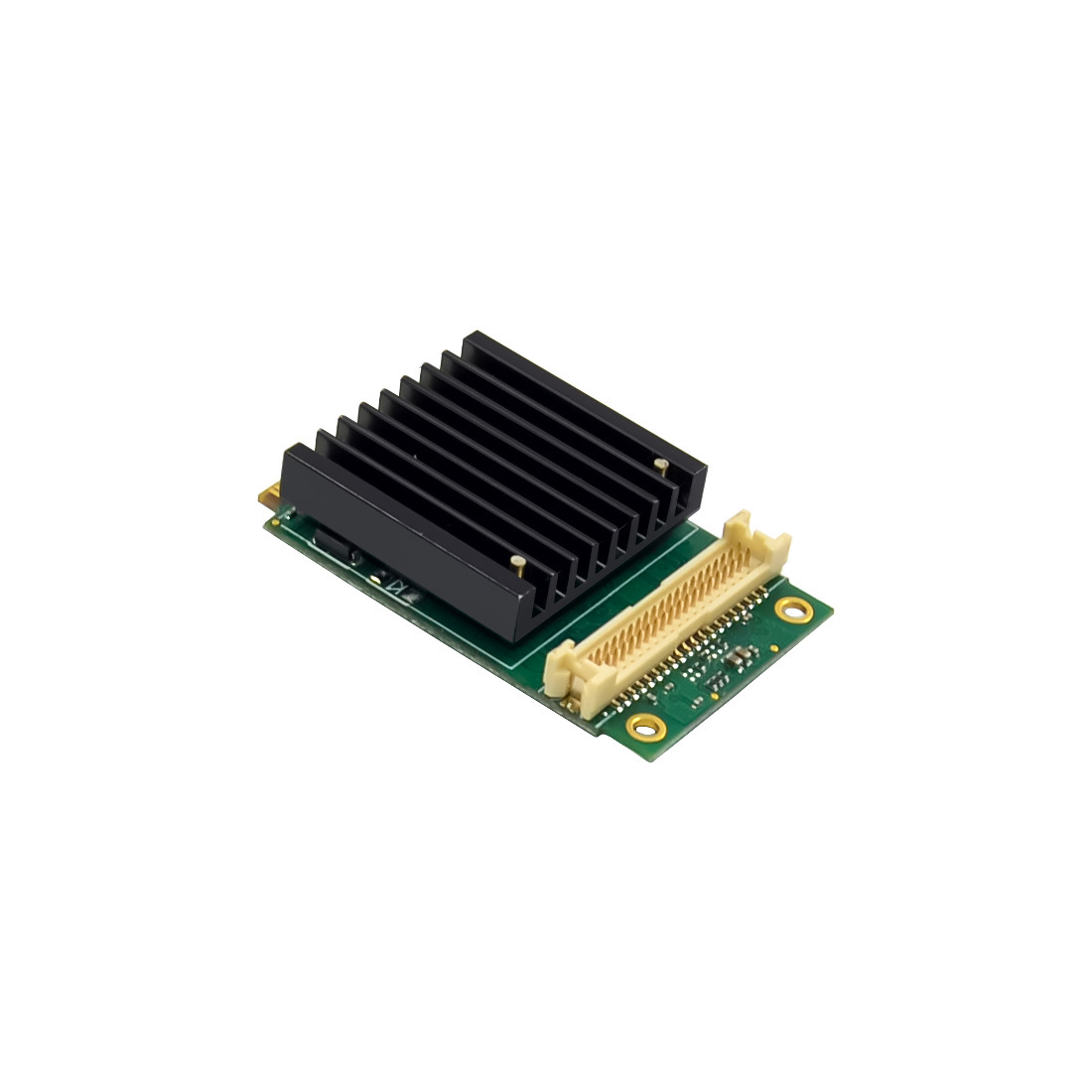

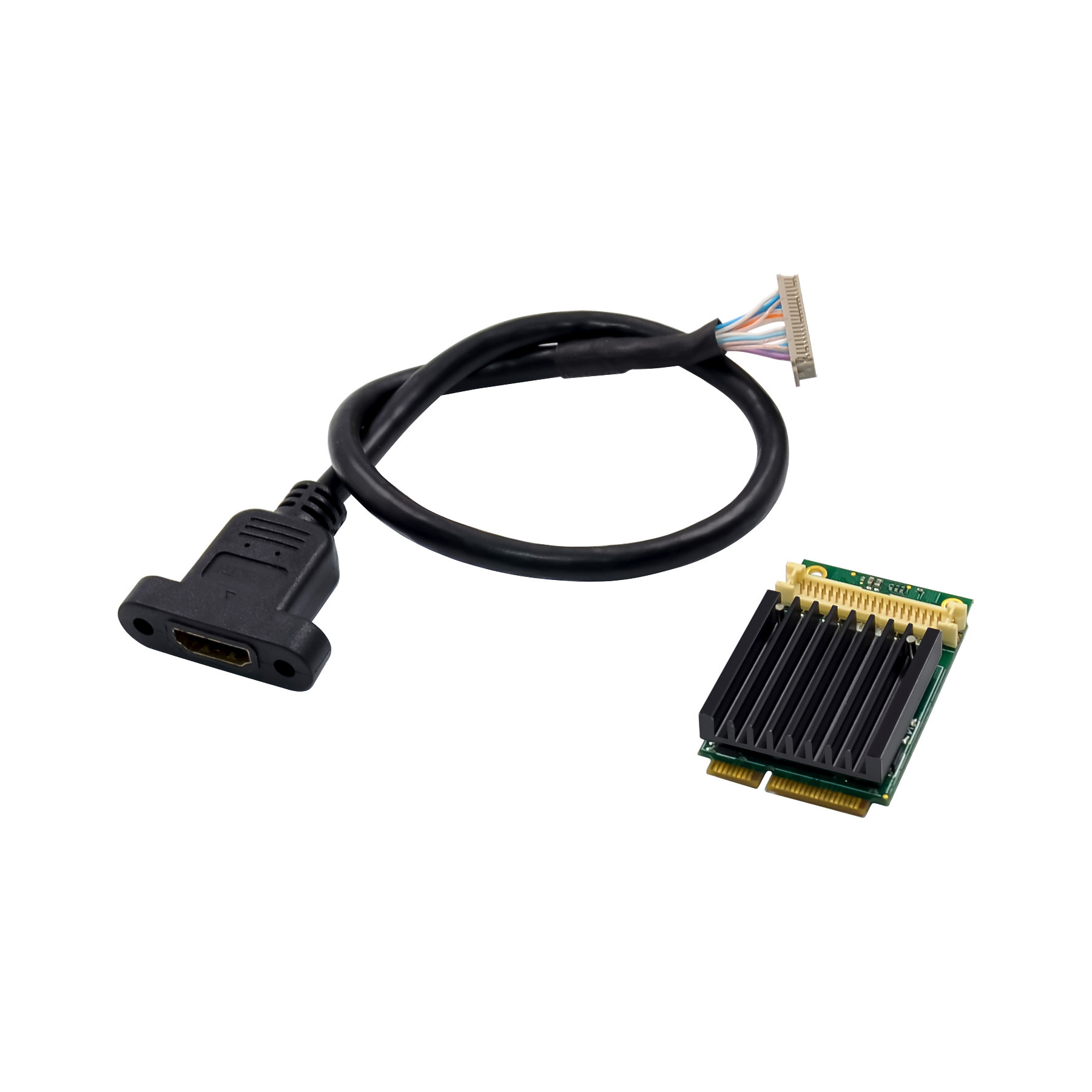

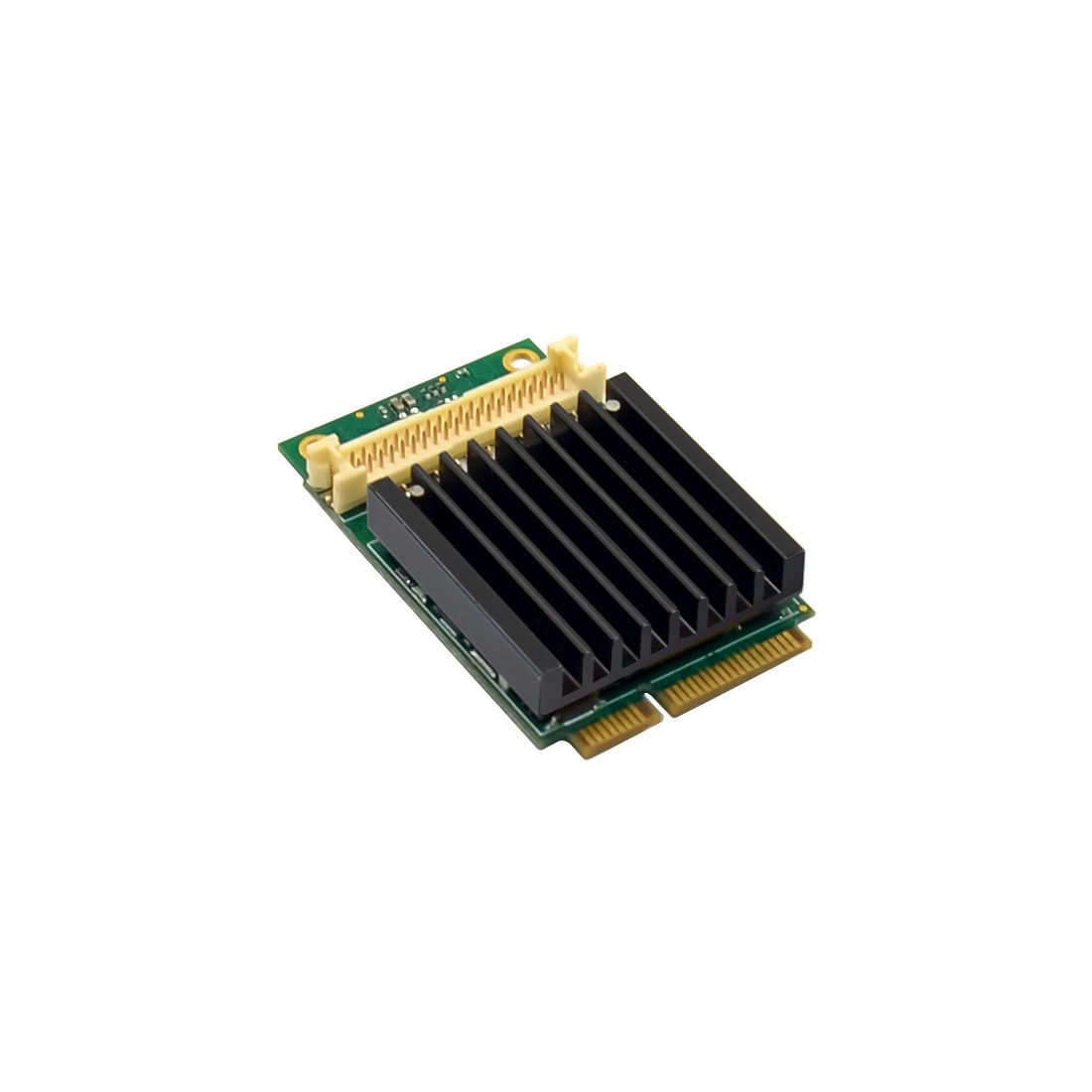

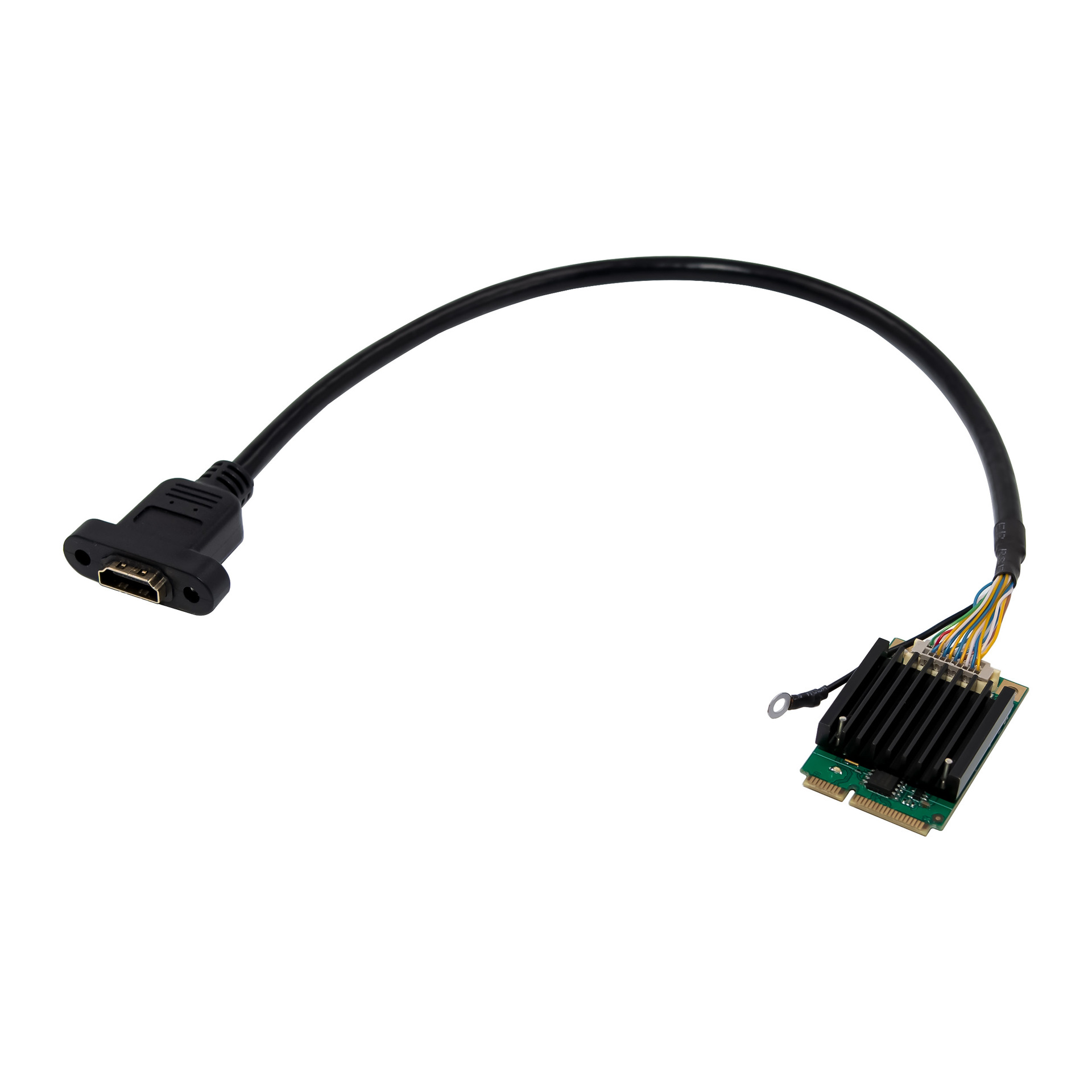

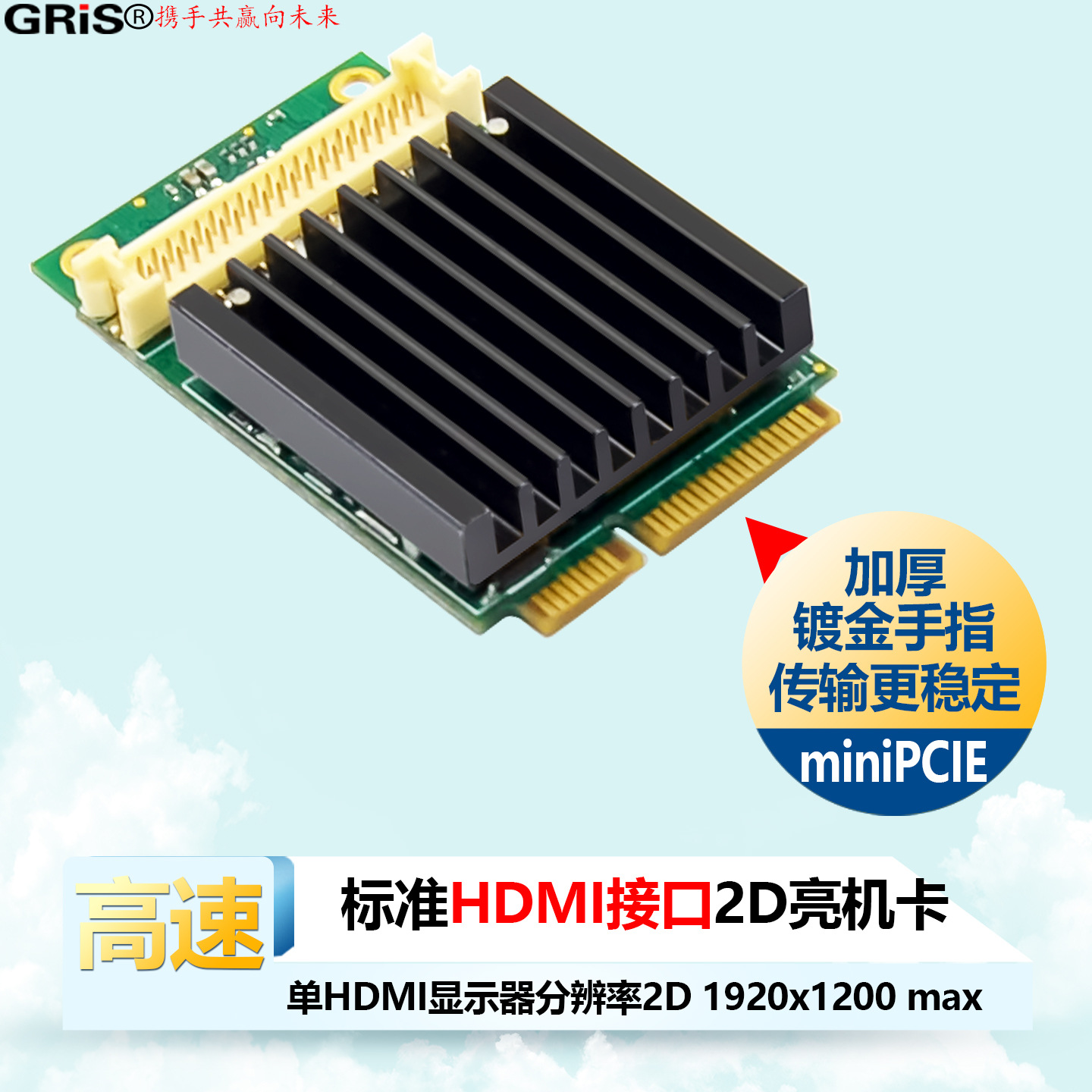

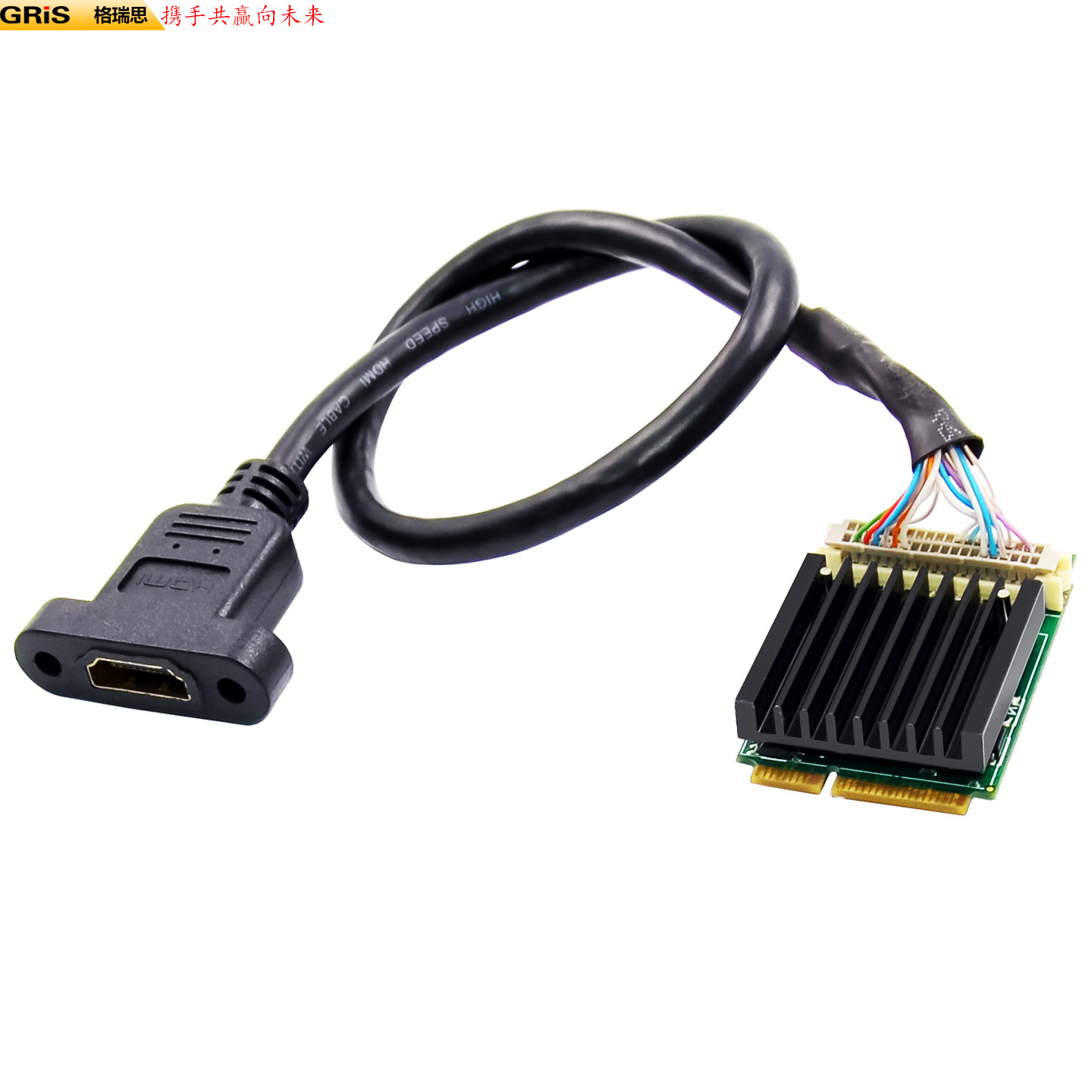

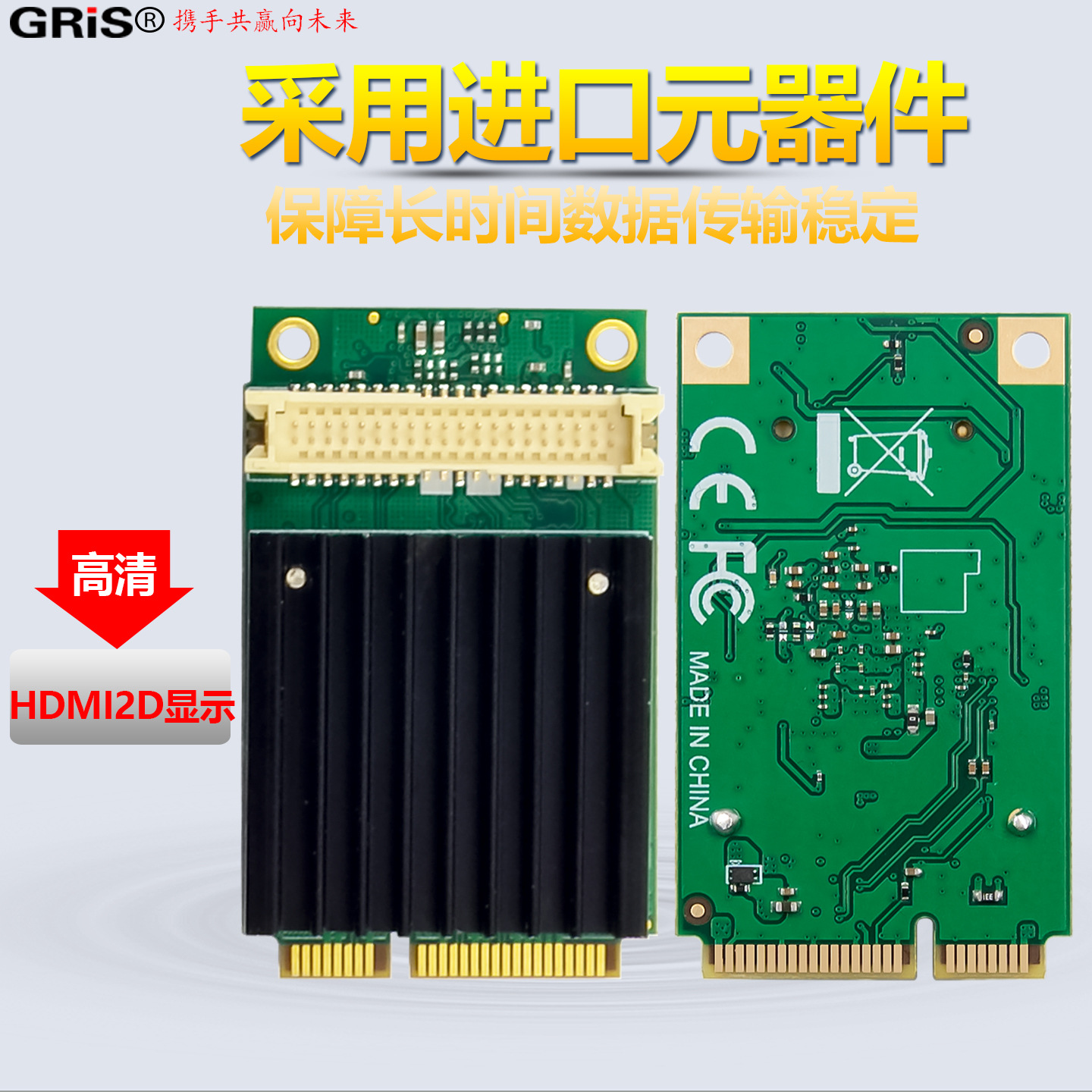

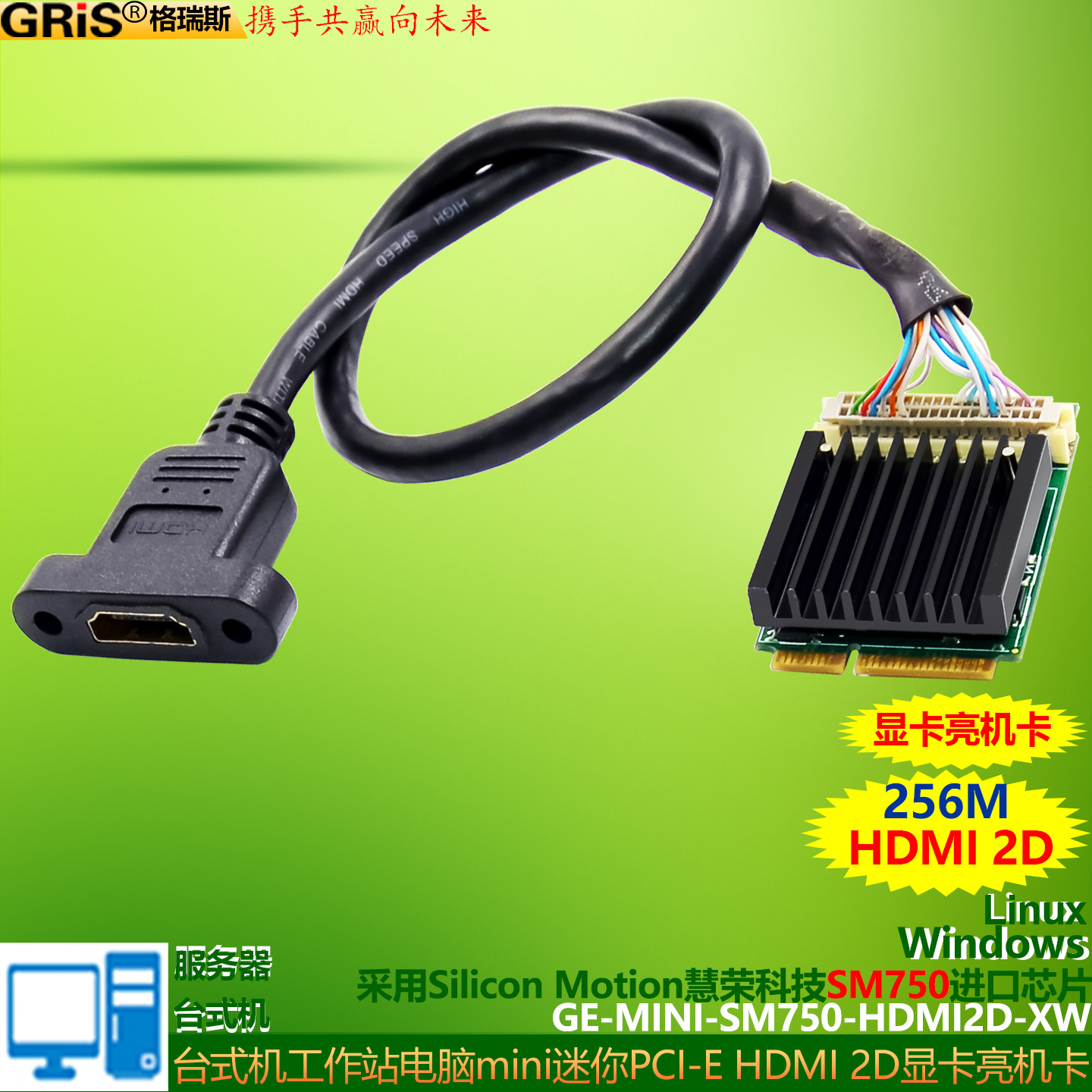

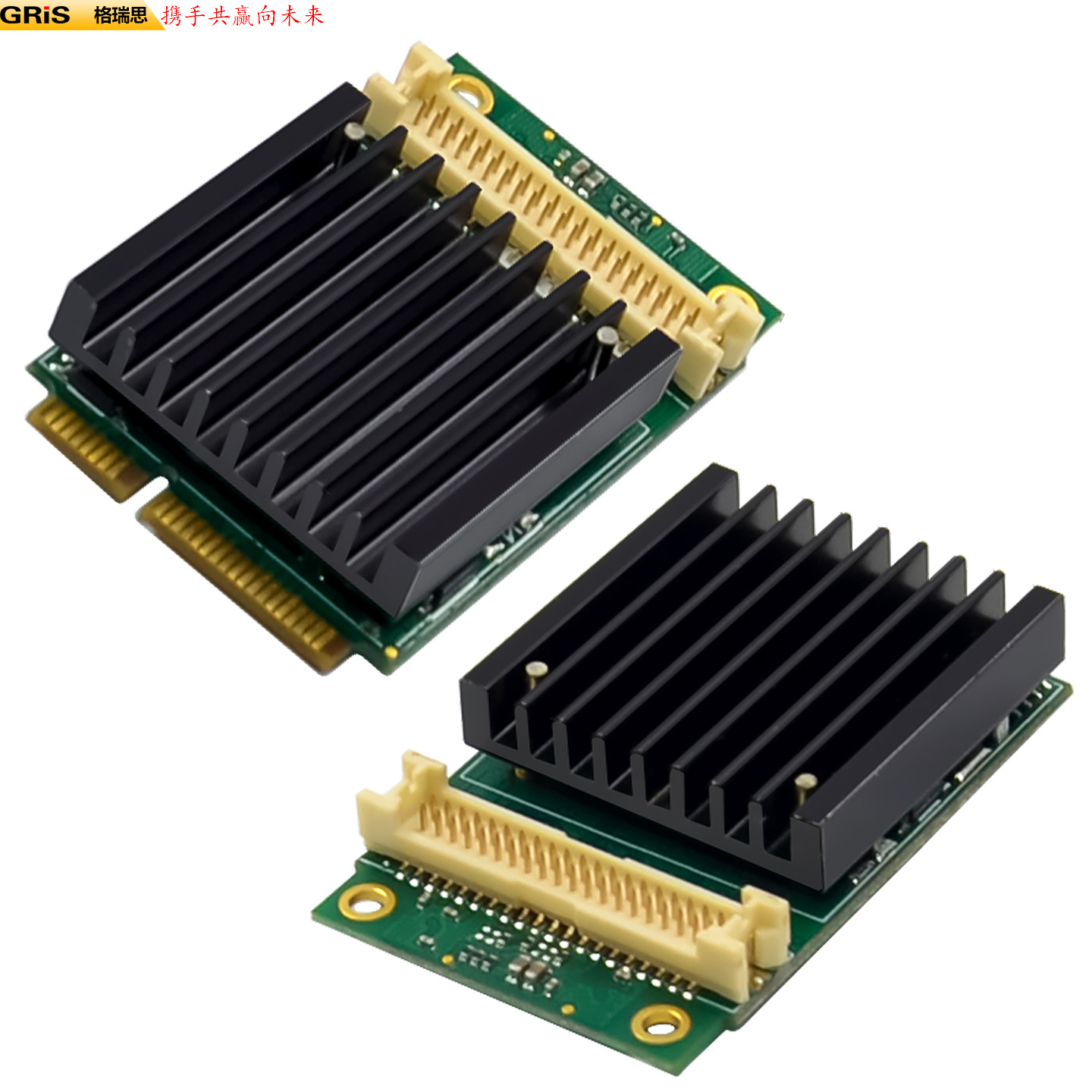

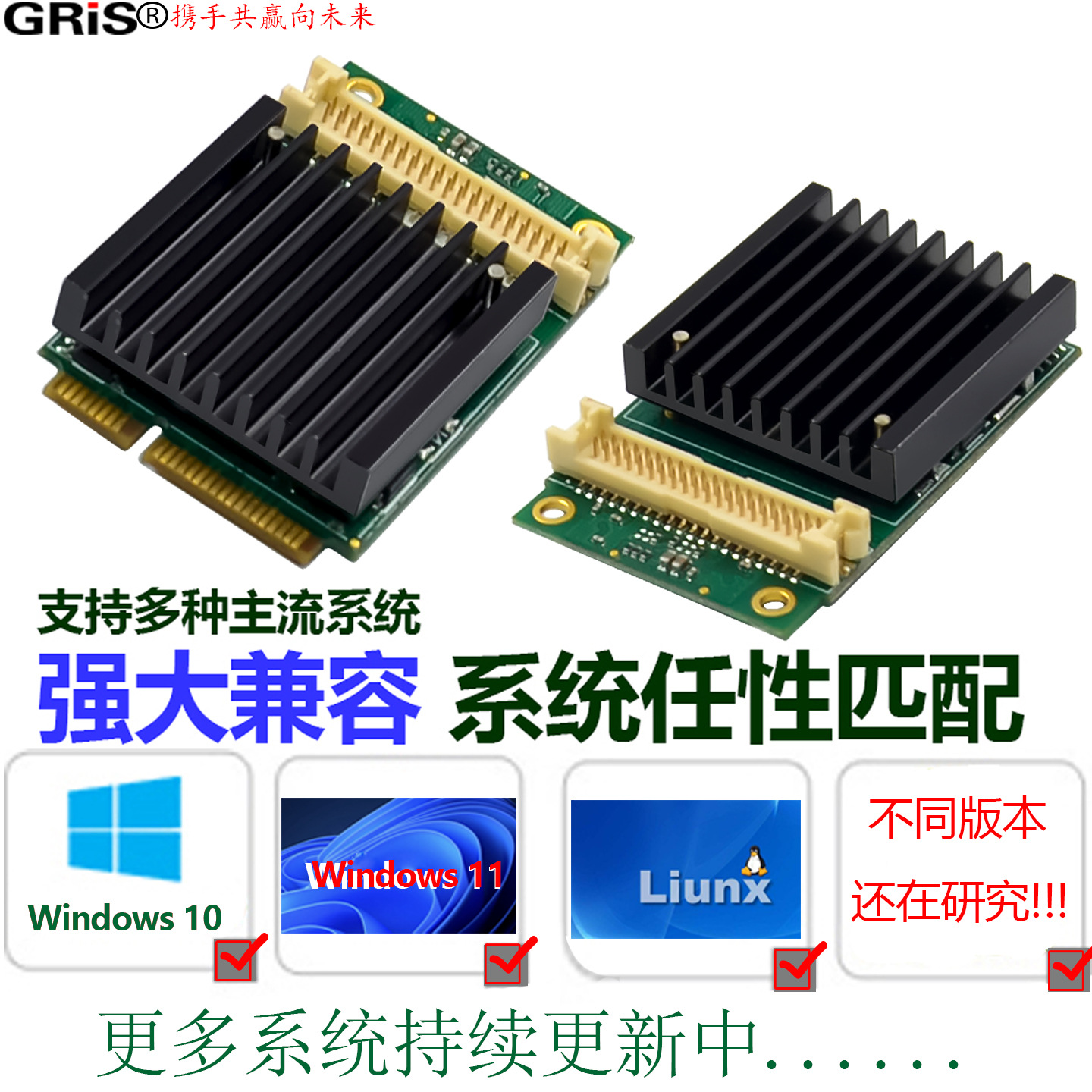

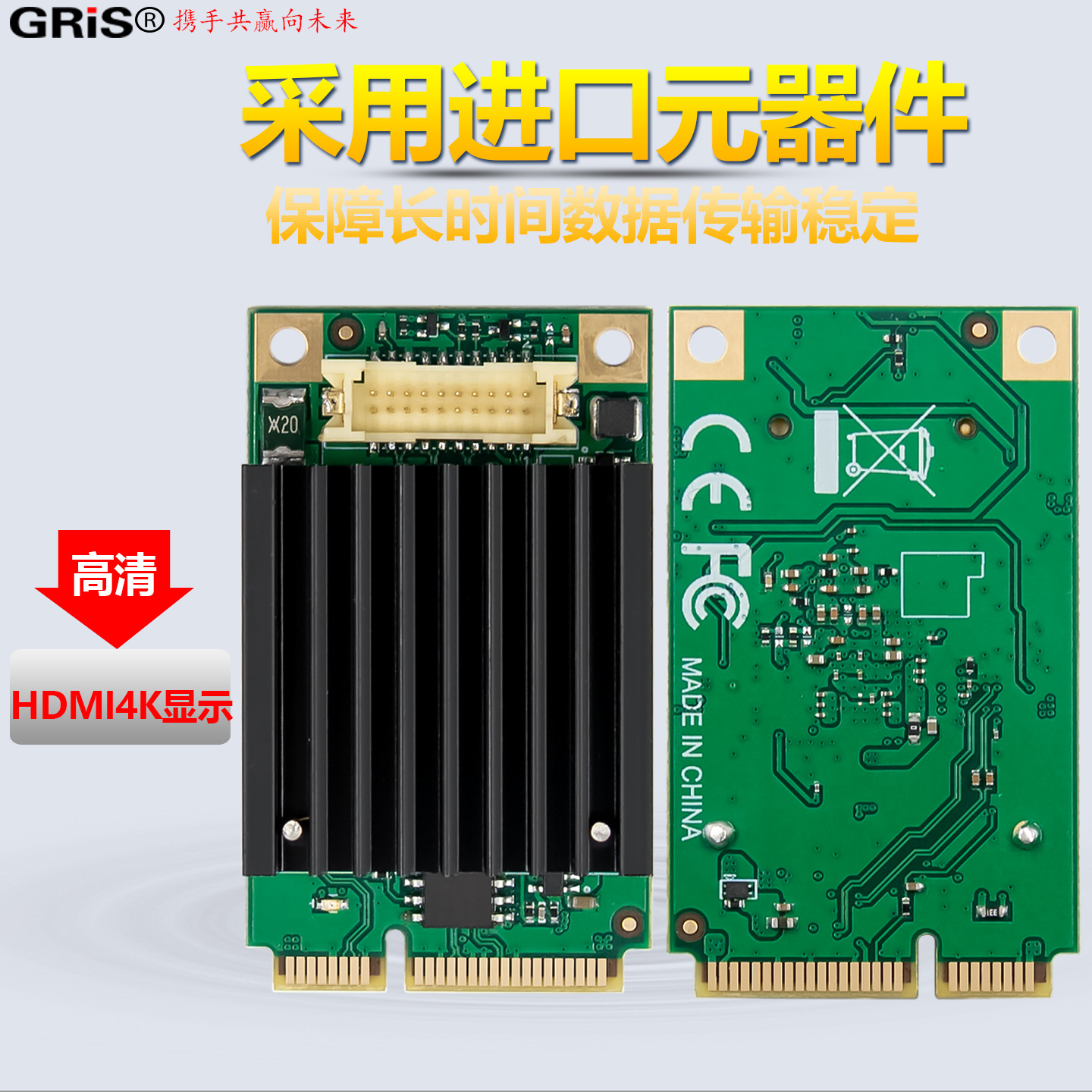

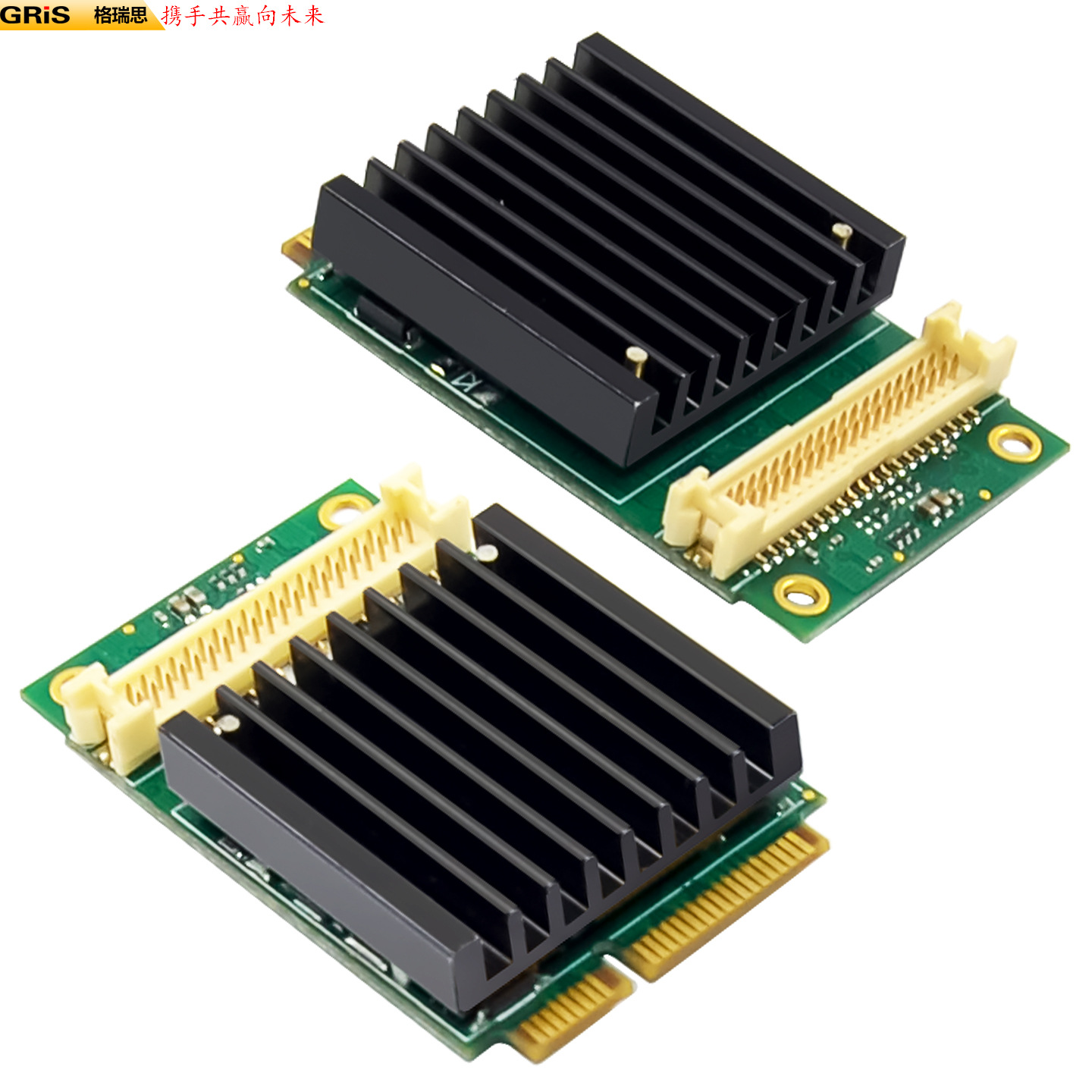

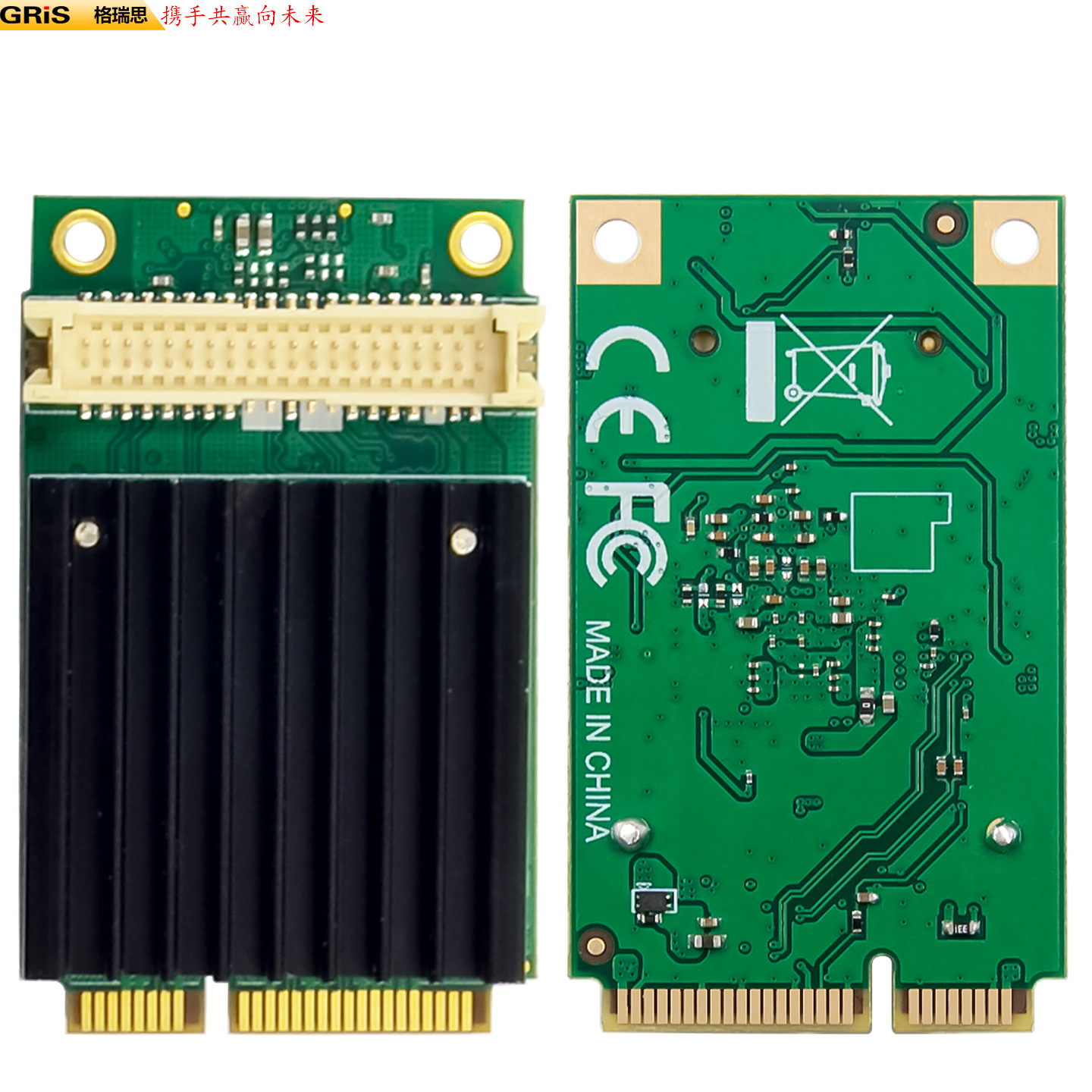

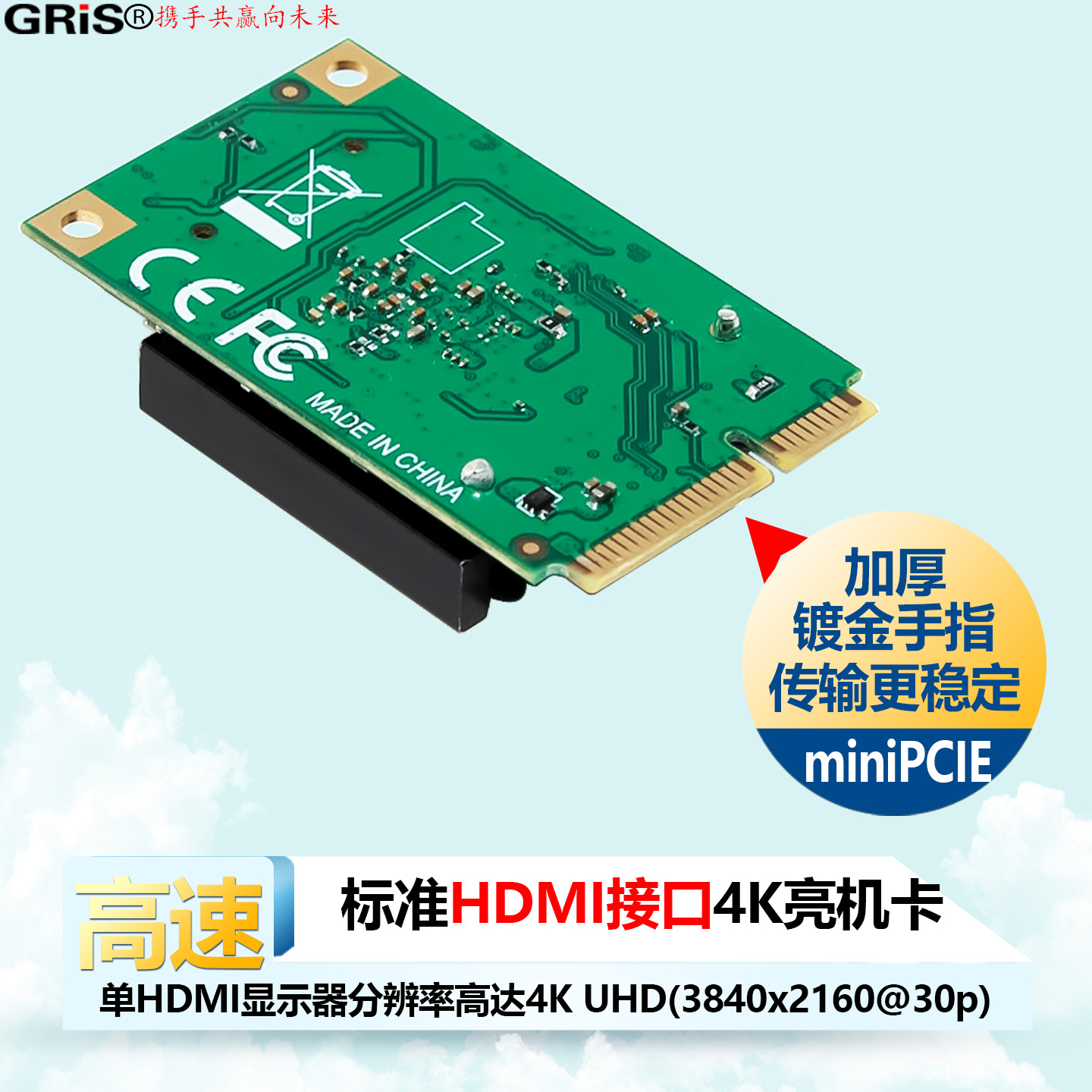

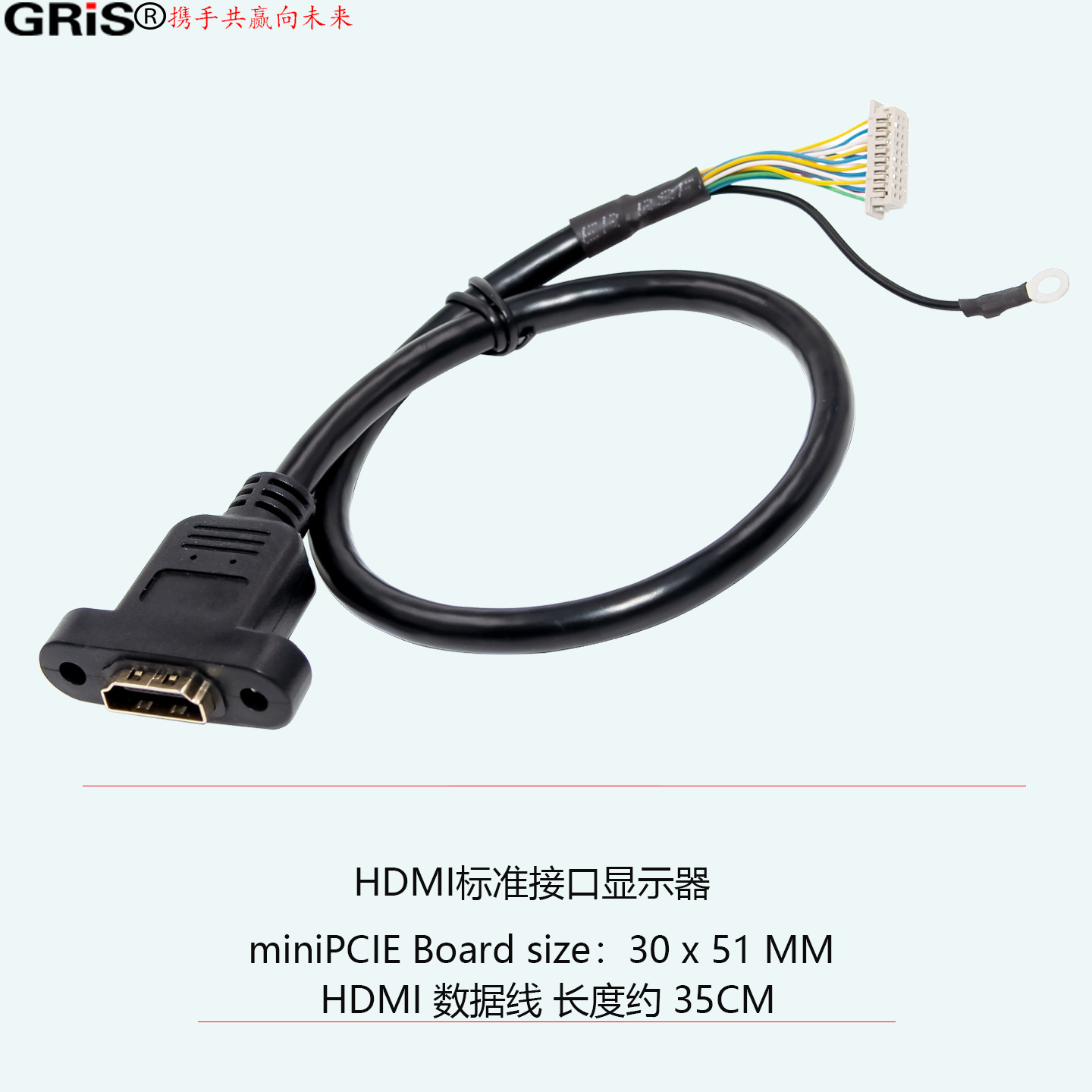

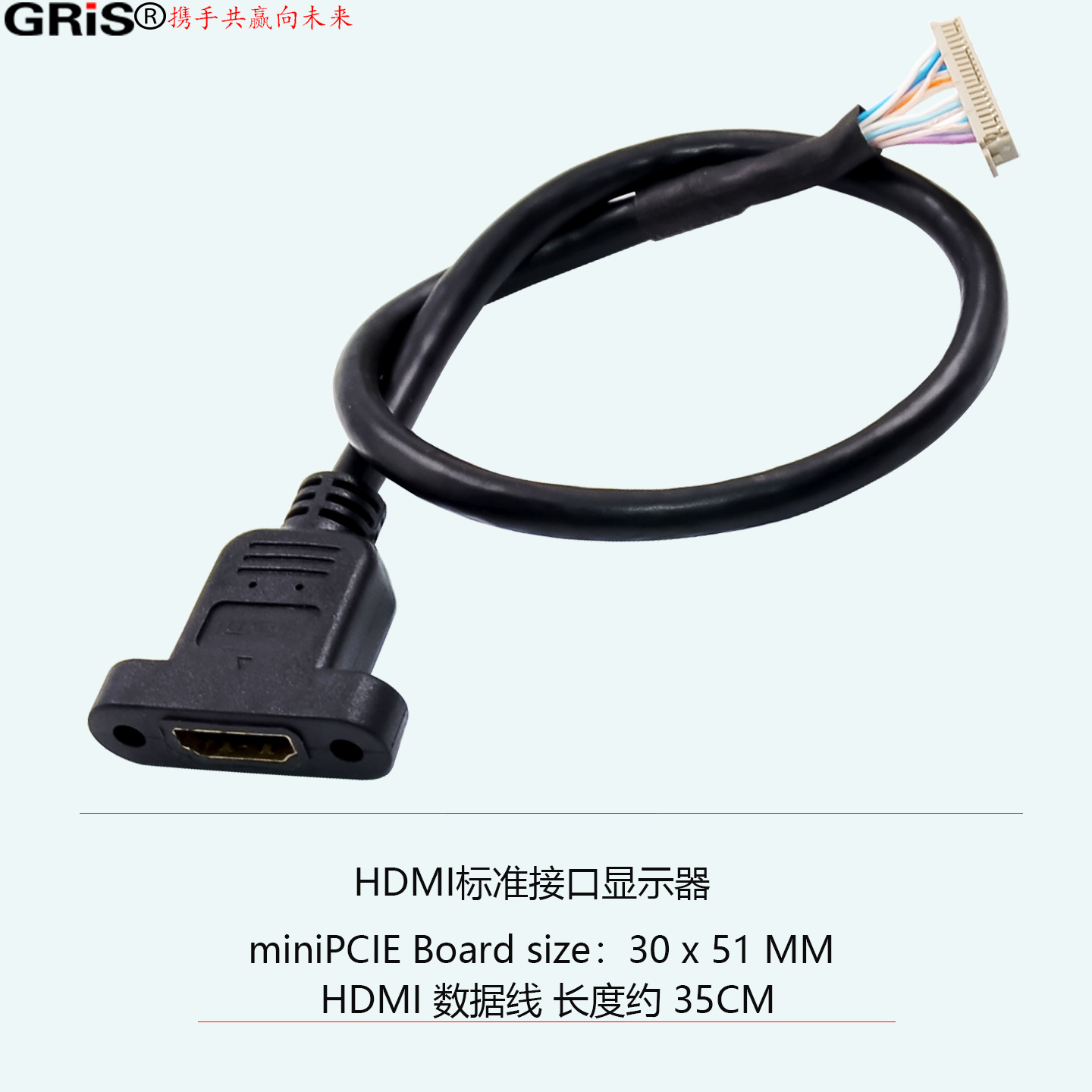

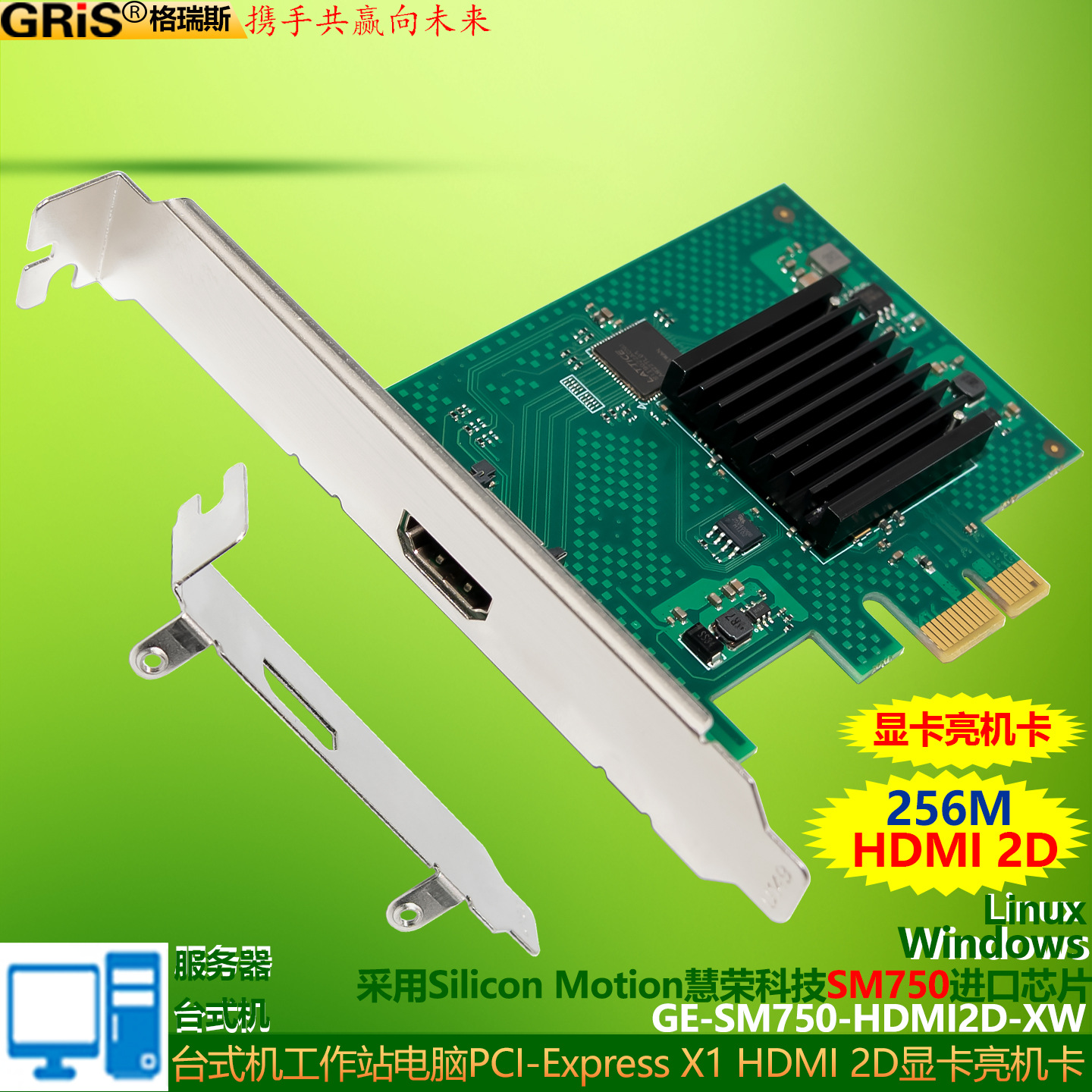

MiniPCI embedded multimedia mobile HDMI industrial graphics card independent resolution/refresh rate

GE-SM750 is a multimedia mobile display processor specially designed for embedded industry requirements, providing video acceleration and 2D acceleration functions. The GE-SM750 supports a wide range of WOs, including analog RGB and digital LCD panel interfaces, two scaled video interfaces, and pulse width modulation (PWM). The GE-SM750 provides additional GPIO interfaces for connecting various peripherals.

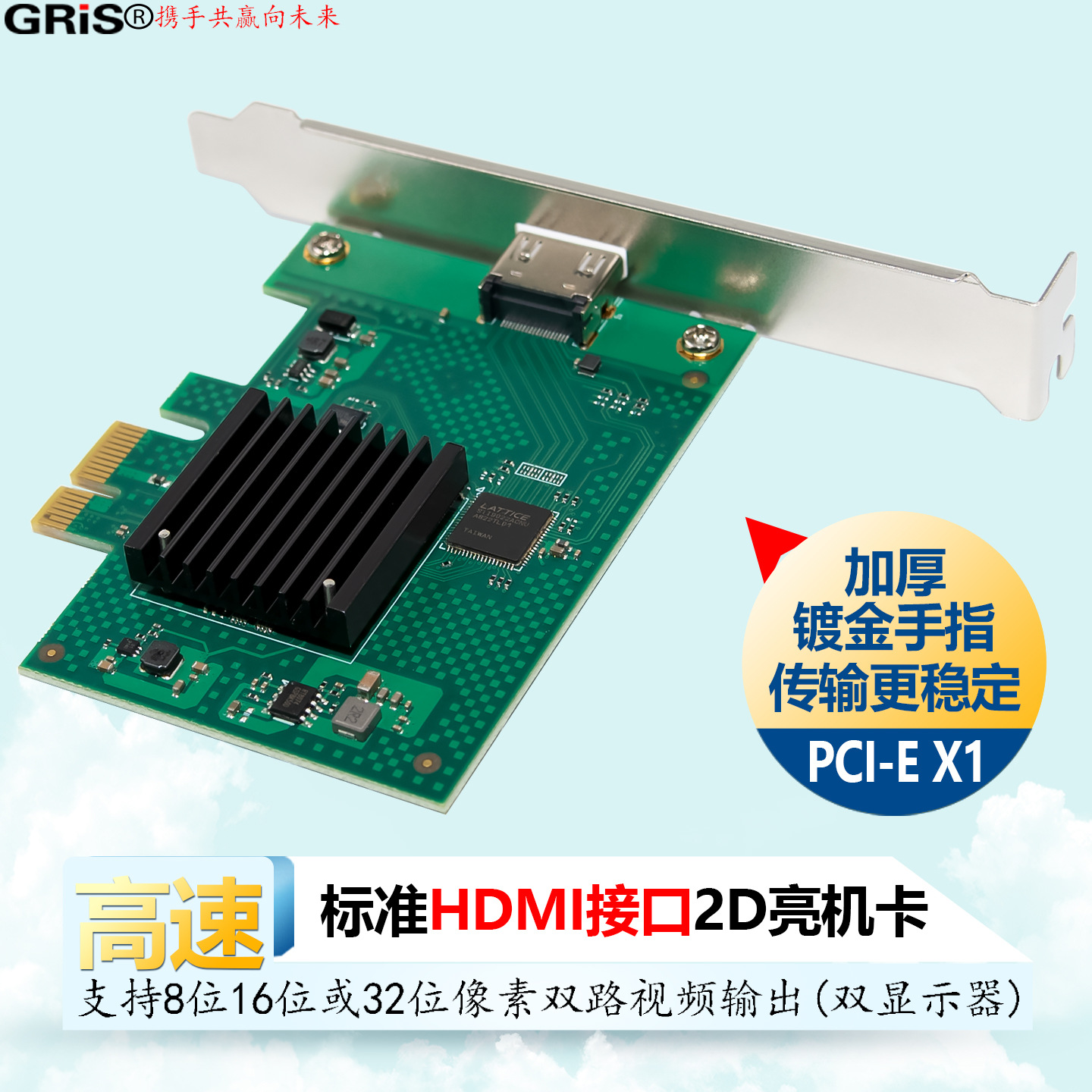

The 2D engine includes a front-end color space converter that provides 4:1 to 1:8 hardware scaling. The video engine supports 8-bit 16 bit or 32-bit pixel dual video output (dual display), and provides 3-color hardware cursor in each video. LCD video output supports background YUV color space conversion and 4:1 to 1:212 scaling. It also includes a scaled video capture (ZV) port for MPEG decoding or TV input through additional circuits.

technical specifications

Graphics Engine: 2D

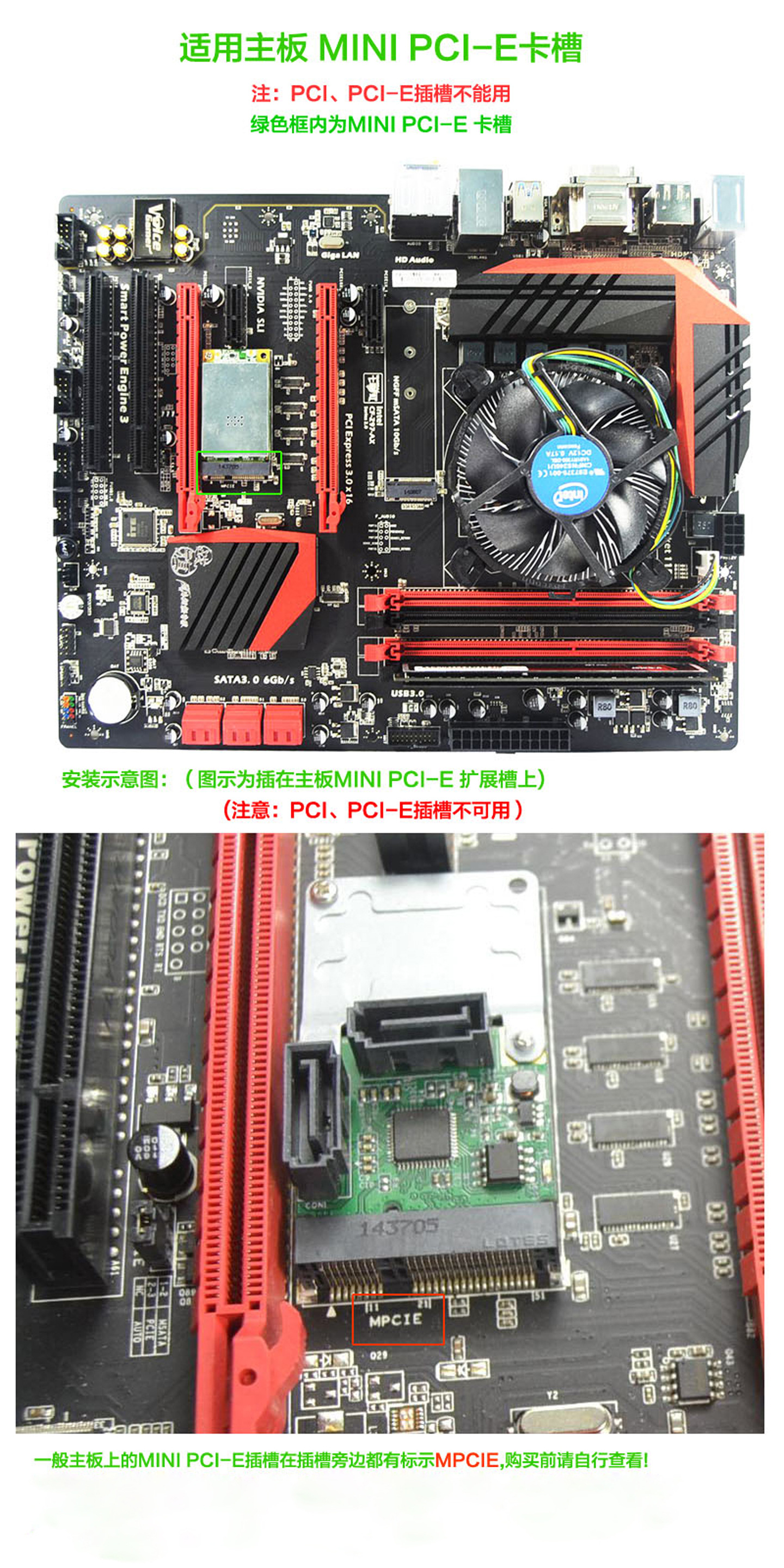

Host interface: MiniPCIe

Built in memory: 16MB DDR (optional)

External memory: 64MB DDR (large zui)

Resolution: 1920 x 1440 (large zui)

CPU platform: lntel, AMD, ZFMicro, Freescale PPc.AMCc STMicro. Marvell, Loongson and other PCles

Operating temperature: - 40 ℃~+85 ℃

PCI Express x 1 architecture: - x86 processors

-ARM, MIPS, PPC and ARC processors 16MB integrated video DDR memory

-Embedded 16MB DDR only

-Embedded 16MB DDR (32-bit I/F)+external 16MB DDR (32-bit I/F)

-External connection up to 64MB DDR (64 bit I/F), low power consumption<1.5W, supporting cost-effective multiple displays/panels

-Support dual 300 MHz DACs, with high resolution of the zui up to 1920x1440

-Dual 18 bit DVO interface, supporting TMDS or LVDS converter, Zui high resolution up to 1920x1440

-Dual independent resolution and refresh rate display output fast rotation function

-Screen image can be rotated 90 °, 180 ° and 270 ° 2D graphics accelerator

-128 bit 2D graphics engine

-ROP3, BitBLT, transparent Blt, pattern BLT, color extension and line drawing

-YUV-16/32 bit. RGB conversion video display layer

-Support 7-layer display frame (2 hardware pointers, main graphics, video, video transparency, transparency and secondary graphics) scaling video port

– Two 8-bit ports or one 16 bit video capture port support V-16/32 bit RGB conversion of ITU 601 and ITU 656 specifications

application area

Notebook, handheld I portable device, server, large game machine, industrial computer/POS/multi-function printer/DVR test instrument, factory automation (HMI), digital signage, medical equipment, all other embedded image applications

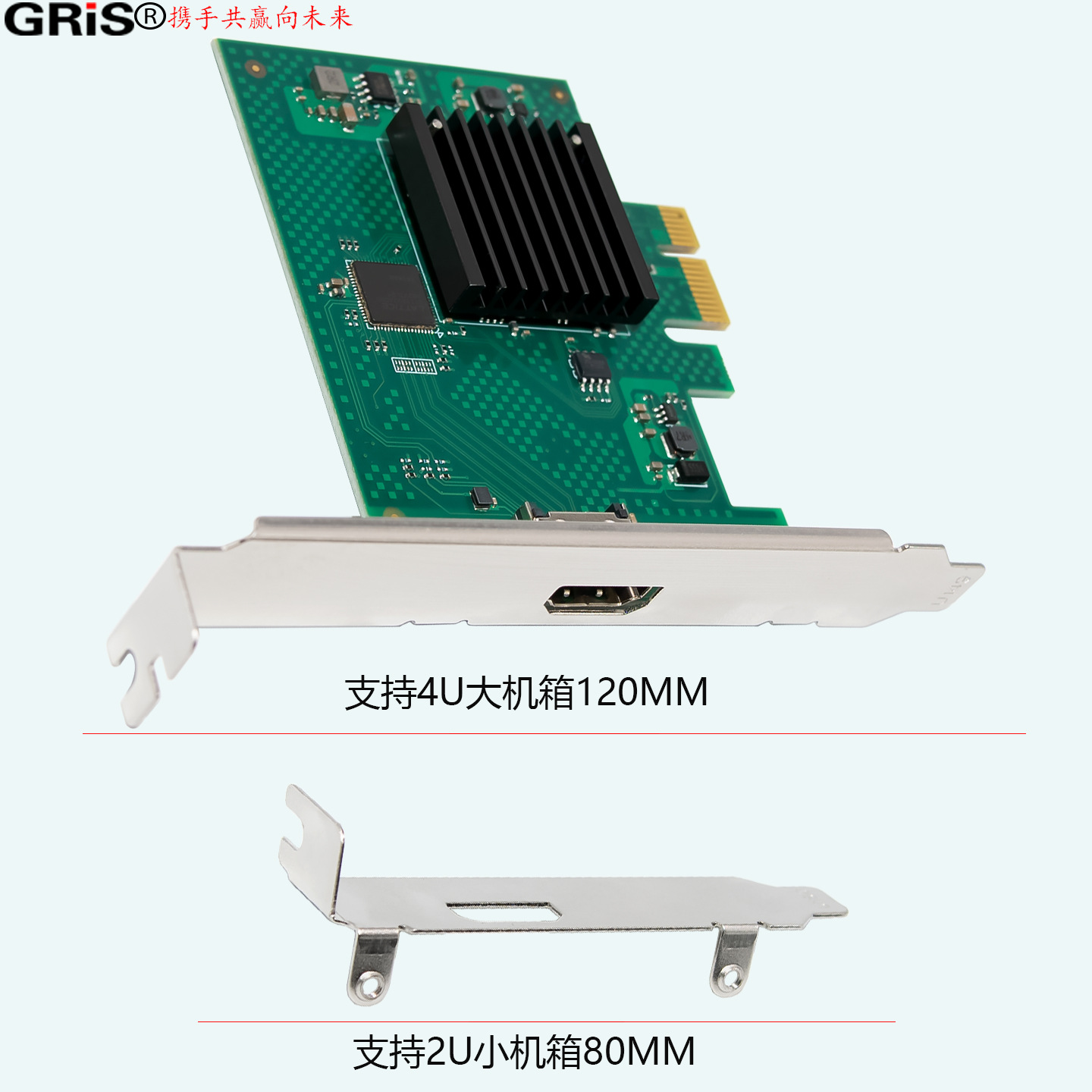

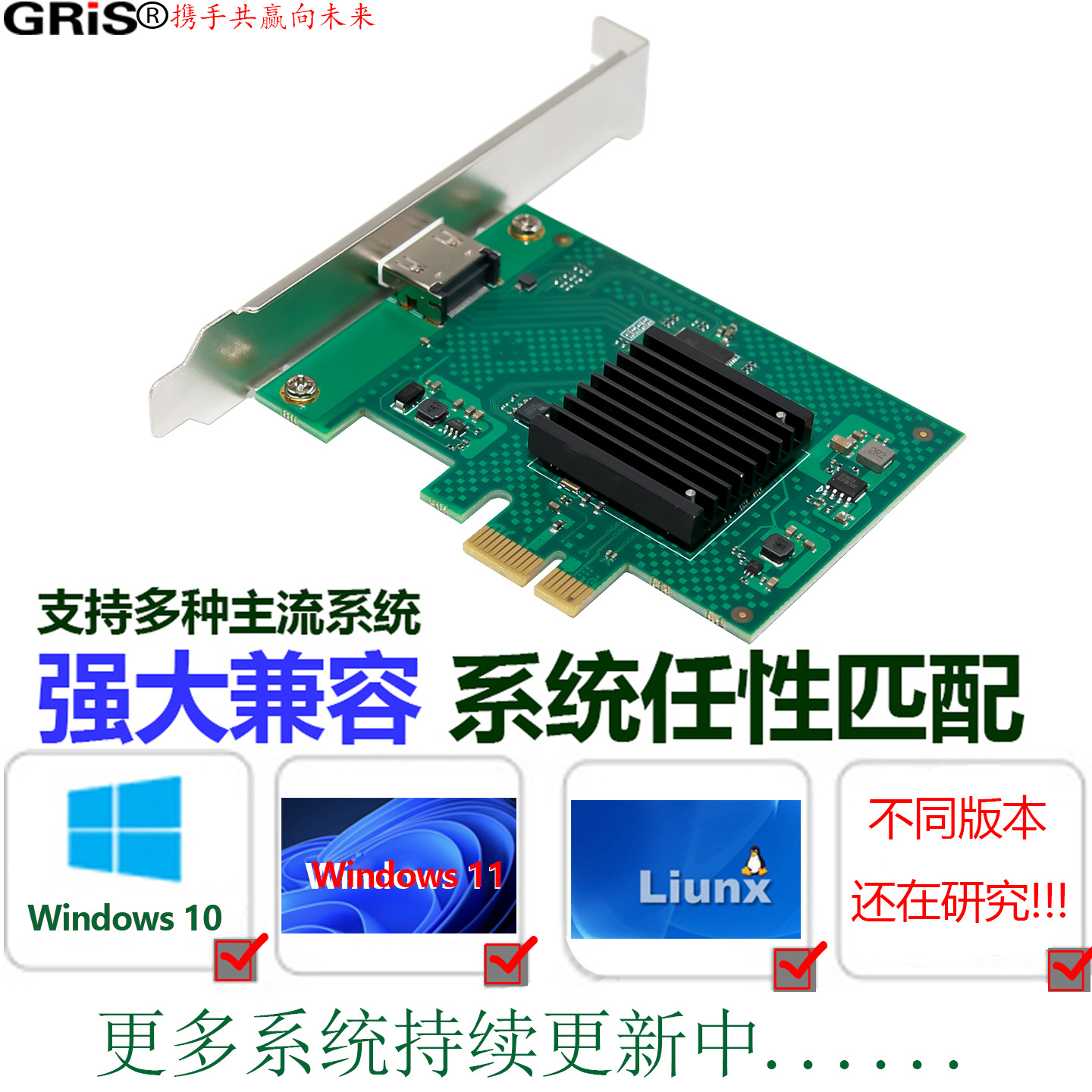

system requirements

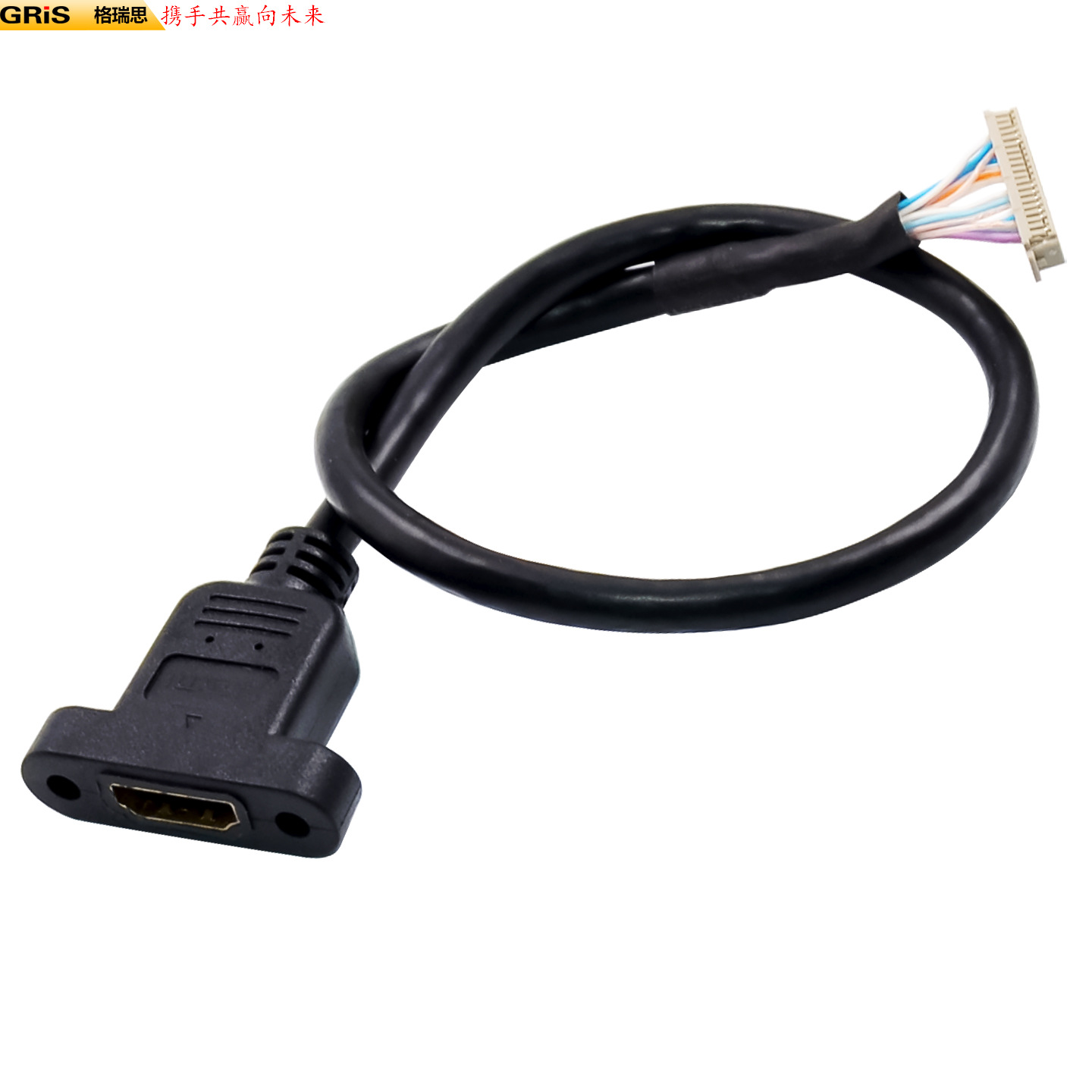

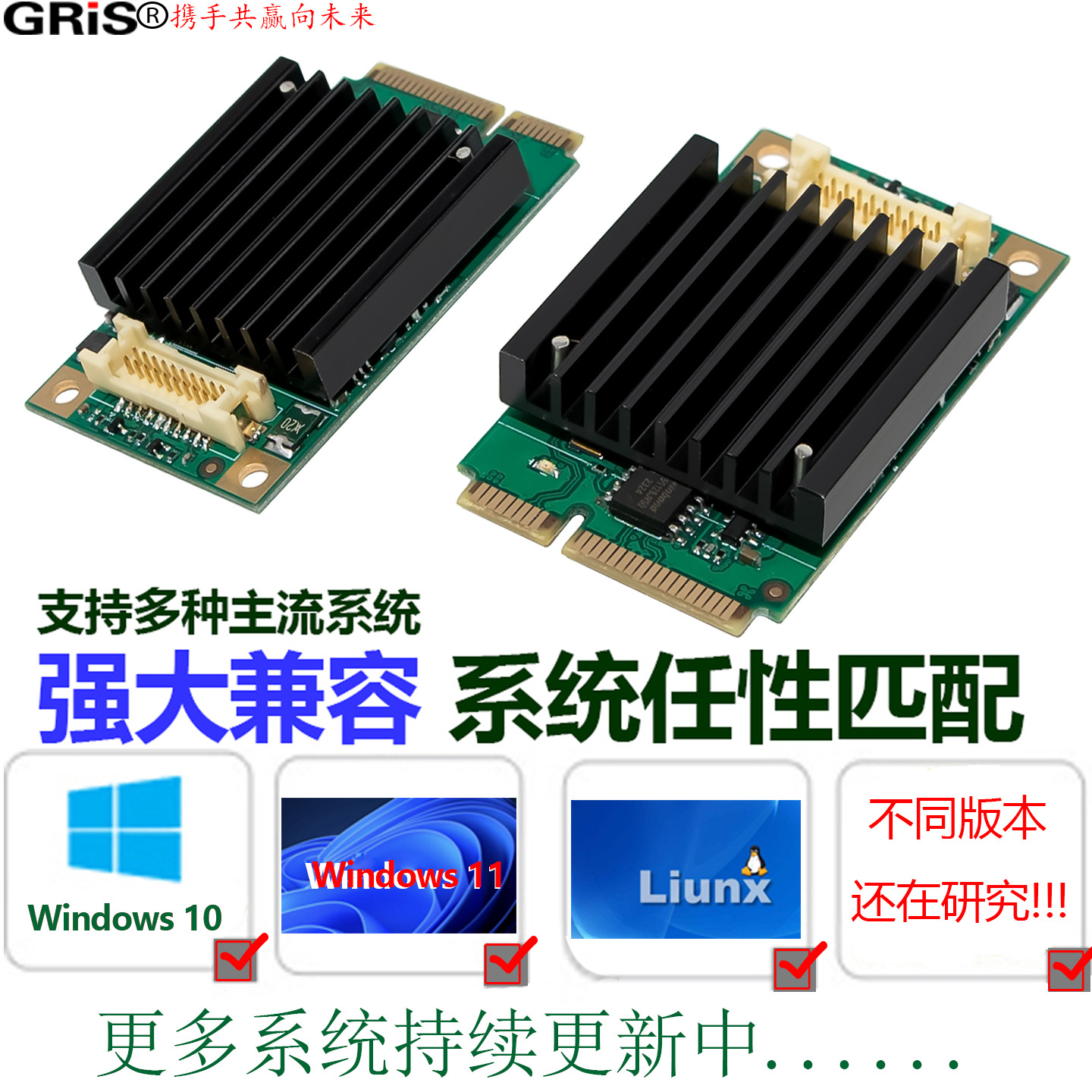

Win CE. Win XP, Win 7, WIN8, WIN10, Win 2003 (32-bit/64 bit), Win2008 (32-bit/64 bit) Linux Enterprise (32-bit/64 bit), Ubuntu, Centos, Debian;

MiniPCIE 嵌入式多媒体移动HDMI工业显卡独立分辨率/刷新率
GE-SM750是一款多媒体移动显示处理器，针对嵌入式行业需求专门设计，提供视频加速和2D加速功能。GE-SM750支持范围广泛的WO，含有模拟RGB和数字LCD面板接口、两个缩放视频接口和脉宽调制(PWM)。GE-SM750提供额外的GPIO接口用于连接各种外围设备。
2D引擎包括一个前端色彩空间转换器，提供4:1至1:8硬件缩放。视频引擎支持8位16位或32位像素双路视频输出(双显示器)，并在每路视频提供3色硬件光标。LCD视频输出支持后台YUV色彩空间转换并支持4:1至1:212比例缩。还包括一个缩放视频捕捉(ZV)端口，可通过额外的电路进行MPEG解码或电视输入。
技术规格
图形引擎：2D
主机接口：MiniPCIE
内置内存：16MB DDR（可选）
外置内存：64MB DDR（zui大）
分 辨 率： 1920 x 1440 (zui大)
CPU平台：lntel、AMD、ZFMicro、 Freescale PPc.AMCc. STMicro. Marvell、 Loongson和其它 PCle
工作温度：-40℃ ~ +85℃
PCI-Express x 1架构：- x86处理器
- ARM、MIPS、PPC和ARC处理器16MB集成式视频DDR内存
-仅嵌入式16MB DDR
-嵌入式16MB DDR(32位I/F)＋外置16MBDDR(32位I/F)
-外接高达64MB DDR(64位I/F)低功耗<1.5W支持具成本效率的多显示器/面板
-支持双300 MHz DAC，zui高分辨率达1920x1440
-双18位DVO接口，支持TMDS或LVDS转换器，zui高分辨率达1920x1440
-双路独立分辨率和刷新率显示输出快速旋转功能
-屏幕图像可旋转90°、180°和270° 2D图形加速器
-128位2D图形引擎
-ROP3、BitBLT、透明Blt、pattern BLT、颜色扩展和画线
- YUV-16/32位.RGB转换视频显示层
-支持7层显示帧(2个硬件指针、主要图形、视频、视频透明、透明和次要图形)缩放视频端口
–两个8位端口或一个16位视频捕捉端口支持ITU601和 ITU 656规格的V-16/32位RGB转换
应用领域
笔记本，手持Ⅰ便携设备，服务器，大型游戏机，工业计算机/POS/多功能打印机/DVR测试仪器，工厂自动化(HMI)，数字标牌，医疗设备，所有其它嵌入式图像应用
系统要求
Win CE. Win XP、Win 7,WIN8,WIN10、Win 2003(32位/64位)、Win2008(32位/64位) Linux Enterprise(32位/64位)，Ubuntu，Centos，Debian;
