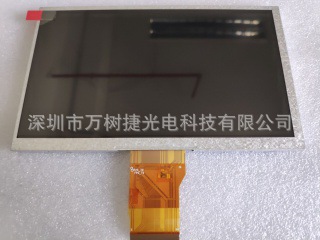

| TM070RDH10-43 7inch 800(RGB)×480, WVGA, 134PPI , LCM , a-Si TFT-LCD |
|||
| WLED Backlight，U/D,L/R Reverse，6/8 bit，Matte 47.05mm length FPC | |||
| Panel Model | TM070RDH10-43 | Panel Brand | TIANMA |
| Size (inch ) | 7inch | Panel Type | LCM , a-Si TFT-LCD |
| Resolution | 800(RGB)×480, WVGA, 134PPI | Pixel Format | RGB Vertical Stripe |
| Module Outsize(mm) | 164.9(W)×100(H) ×6(D) mm | Display Mode | TN, Normally White, Transmissive |
| LCD Active area(mm) | 154.08(W)×85.92(H) mm | Response Time | 25 (Typ.)(Tr+Td) |
| Support Color | 262K/16.7M 50% NTSC | Light Source | 3S8P WLED , 20K hours , Without Driver |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | TouchScreen | Without |
| Brightness | 400 cd/m² (Typ.) | Power Supply | 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Contrast Ratio | 500:1 (Typ.) (TM) | Used for | Mobile Phone |
| Frequncy | 60Hz | Enviroment | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| LCM Interface Type | Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC | FPC connector | Pitch 0.5mm |
| Packaging & Delivery | |||
| Packaging Details | 60pcs/Box | ||
| Port | ShenZhen / HongKong | ||
| Lead Time : | 1-3 working days after payment | ||
| Warranty | 12 Months | ||
| Please contact the seller before you release the order, thanks! | |||
