1、FDWLED R&D team developed our F series led products, which focus on indoor front maintenance led video wall market. SM supports 3840 high refresh rate, SMD1010 led types, supports from P2.5 to P1.2, if you have high image demand on the control room, hotel, airport etc, FDWLED is your best choice.
Specification
|
Model |
SM1.2 |
SM1.5 |
SM1.87 |
SM2.5 |
|
Pixel Pitch(mm) |
1.25 |
1.53 |
1.875 |
2.5 |
|
Pixel Density(dot/m2) |
640000 |
422500 |
284089 |
160000 |
|
LED Type |
SMD1010 |
SMD1010 |
SMD1010 |
SMD2121 |
|
Module Size(mm*mm) |
320*160 |
320*160 |
320*160 |
320*160 |
|
Cabinet Size(mm*mm*mm) |
640*480*90 |
640*480*90 |
640*480*90 |
640*480*90 |
|
Cabinet Weight(±0.25kg) |
7.5 |
7.5 |
7.5 |
7.5 |
|
Cabinet Resolution(px*px) |
512*384 |
416*312 |
341*256 |
256*192 |
|
Horizontal Viewing Angle(Deg) |
140 |
140 |
140 |
140 |
|
Vertical Viewing Angle(Deg) |
140 |
140 |
140 |
140 |
|
Brightness(cd/m2) |
500 |
500 |
500 |
900 |
|
Gray Scale(bit) |
16 |
16 |
16 |
16 |
|
Refresh Rate(Hz) |
3840 |
3840 |
3840 |
3840 |
|
Max Power Consumption(W/sqm) |
700 |
700 |
700 |
700 |
|
Average Power Consumption(W/sqm) |
210 |
210 |
210 |
210 |
|
Input Voltage(V) |
AC 100-240 |
AC 100-240 |
AC 100-240 |
AC 100-240 |
|
Ingress Protection |
IP20 |
IP20 |
IP20 |
IP20 |
|
Working Environment |
Indoor |
|||
2、Pixel Pitch: 1.25/P1.5625/P1.875/P2.5
Panel Size: 640*480mm
Panel Material: Die-casting Aluminum
Panel Weight: 8kgs
Brightness: 800nits
Warranty: 2 Years

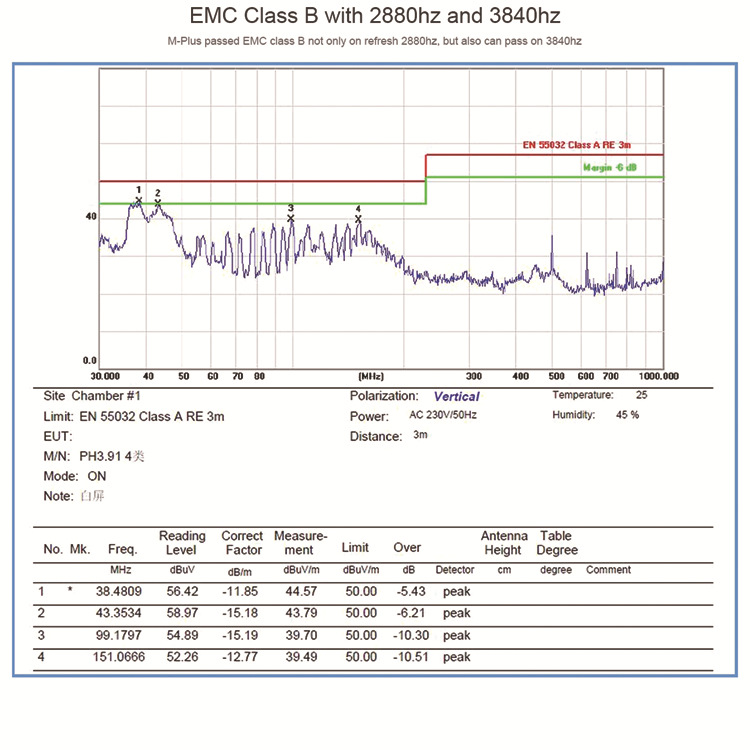

Certificate: CE/(EMC+LVD)/FCC/ETL/CETL
Applications: Studio rooms LED video wall, Conference Rooms LED video wall, TV Station LED video wall, Monitoring Rooms LED Video wall, Shopping malls led video display etc.

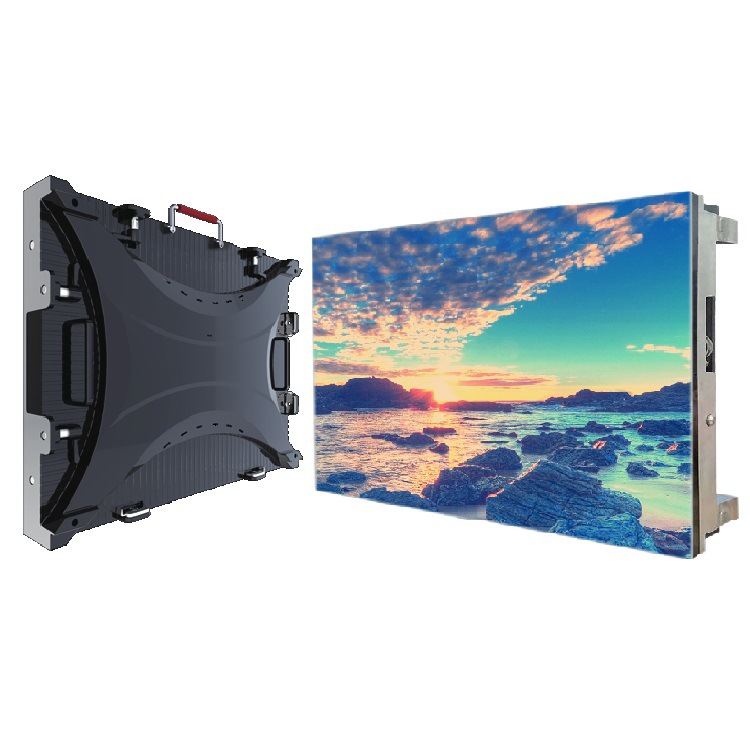

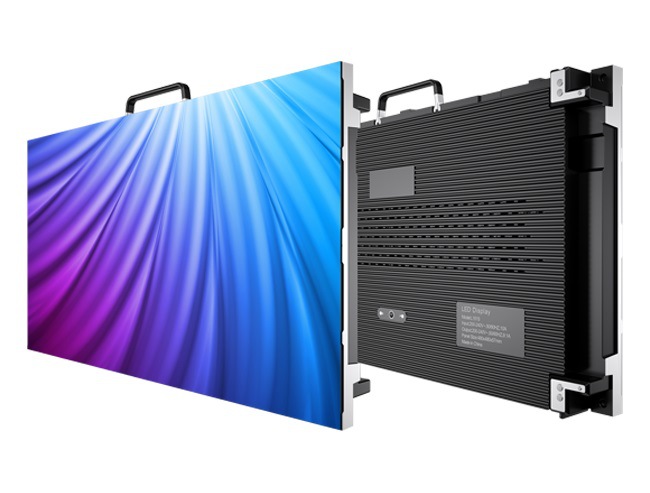

3、Indoor HD 4K and 2k LED Display front service Panel Small Pixel Pitch LED Video Wall Display.
It ultra light weight and thin narrow pixel pitch series designed for full front access purpose and wall-mounted
application. It supports both front and rear installation with easy connection, easy installation and easy maintenance.

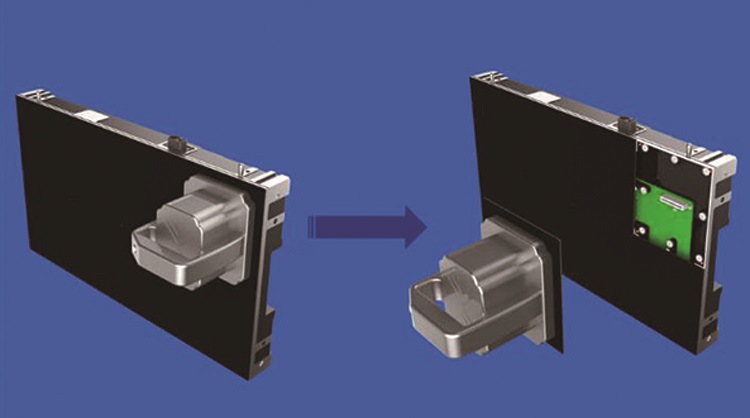

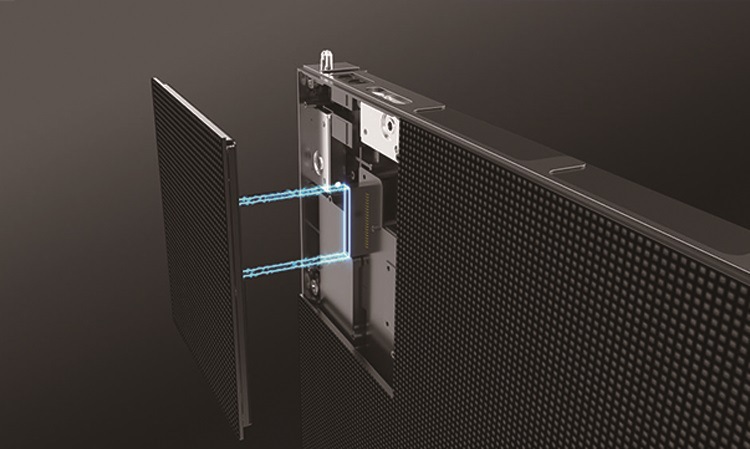

4、Magnets module support front service. The panel back cover can be opened from the back side for rear service purpose as well.

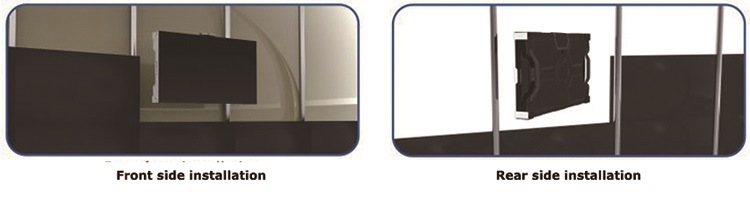

The small pixel pitch led panel support both front and rear side installation. Make your installation ways to be flexible.

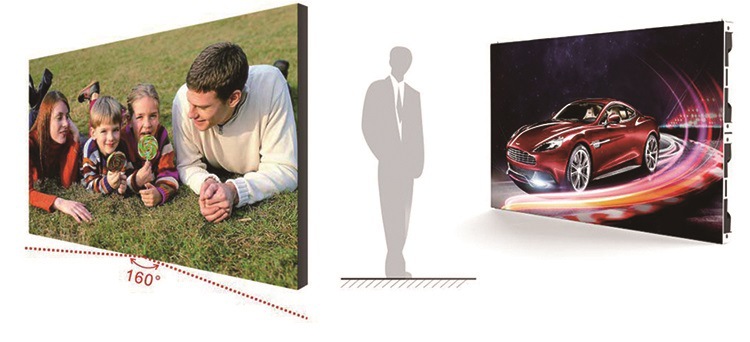

5、Wide viewing angle small pixel pitch led video wall, can have clear picture from sharp viewing angle.
6、Low brightness with high grey level make the fine pixel pitch led display images more vivid.
High refresh frequency ≥3840hz makes the narrow pixel pitch led display with no flickers when take photos
7、Aluminum die casting led cabinet enables fine pixel pitch LED led video wall achieve full 2K/4K/8K displaying effect without compression.

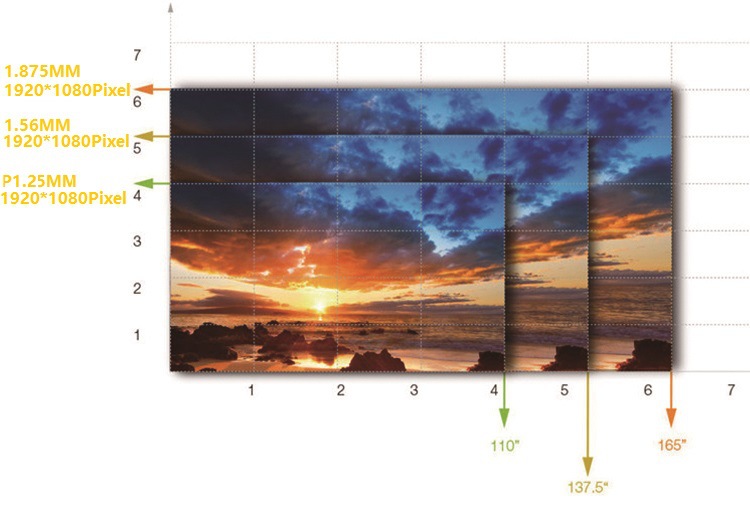

8、Resolution chart of full HD / 2k led video wall / 4k Litestar small pixel pitch LED video wal.
